Foundations — Liouville's theorem — phase space volume conservation

This page builds — from absolute zero — every symbol, word, and picture the parent note Liouville's Theorem leans on. Read it top to bottom: each idea is a brick for the next.

1. Degrees of freedom, $N$

Plain words. A degree of freedom is one independent number you must give to pin down where the system is. A bead sliding on a straight wire needs one number (how far along). A bead on a flat table needs two ($x$ and $y$). We call this count $N$.

The picture. Count the sliders you'd need on a control panel to fully set the machine's position. That count is $N$.

Why the topic needs it. Everything downstream — how many coordinates, how big the space — is set by $N$. If we don't know how many knobs there are, we can't count the dimensions of anything.

2. Position coordinates $q_i$ and momenta $p_i$

Plain words. For each degree of freedom $i$ (running $i=1,2,\dots ,N$) we carry two numbers:

• $q_i$ — a generalized position (how far along, what angle, etc.),
• $p_i$ — a generalized momentum (roughly "how fast and how heavy" in that direction — mass times velocity for a plain particle).

The little subscript $i$ is just a label: $q_1$ is the first position, $q_2$ the second, and so on. It is not a power; $q_2$ means "position number two", not "$q$ squared".

Why BOTH position and momentum? Newton's laws are second order — knowing only where a particle is doesn't tell you its future, because it could be moving any speed. You need where it is and how it's moving. Position + momentum is the smallest package that makes the future unique.

3. Phase space — the arena

Plain words. Take those $2N$ numbers and treat them as the coordinates of a single point in a $2N$-dimensional space. That space is Phase Space. One point = one complete snapshot of the whole system.

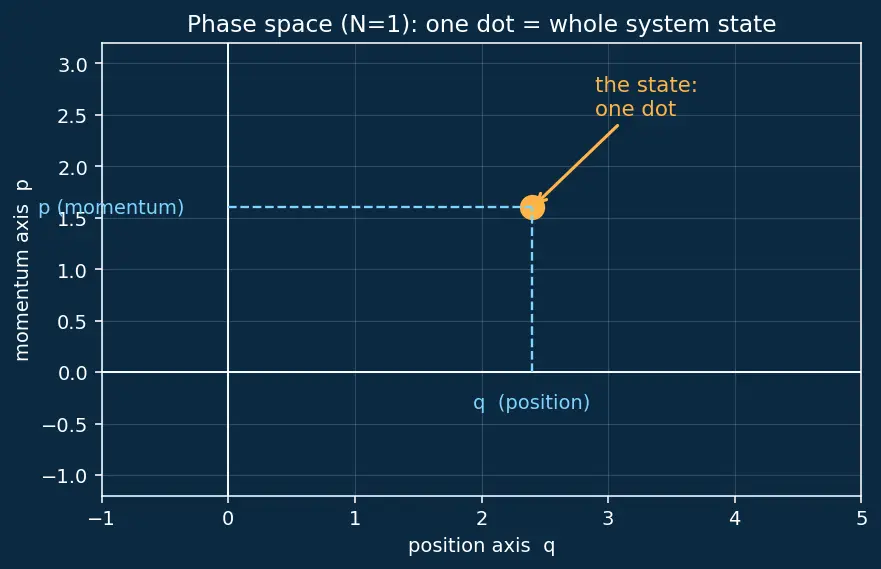

The picture. For one particle in 1D ($N=1$) phase space is an ordinary flat plane: the horizontal axis is position $q$, the vertical axis is momentum $p$. The system "is" one dot on this plane.

Why the topic needs it. Liouville's theorem is a statement about this space — specifically about areas and volumes inside it. No phase space, no theorem to state.

4. The state as a vector $\mathbf{x}$

Plain words. Writing out $2N$ numbers every time is clumsy, so we bundle them into one bold symbol $\mathbf{x}$: $\mathbf{x}=(q_1,\dots ,q_N,p_1,\dots ,p_N).$ The bold font means "this is a whole list (a vector), not a single number". A picture: an arrow from the origin of phase space pointing to our dot.

Why the topic needs it. It lets us write flow laws compactly: instead of $2N$ separate equations we say "$\mathbf{x}$ moves like this".

5. The dot: $\dot{q}$, $\dot{p}$, $\dot{\mathbf{x}}$ — rate of change

Plain words. A dot on top of a symbol means "how fast this changes per unit time". So $\dot{q}$ is the velocity of the position, $\dot{p}$ is the rate the momentum changes (which is a force), and $\dot{\mathbf{x}}$ is the whole bundle of rates at once.

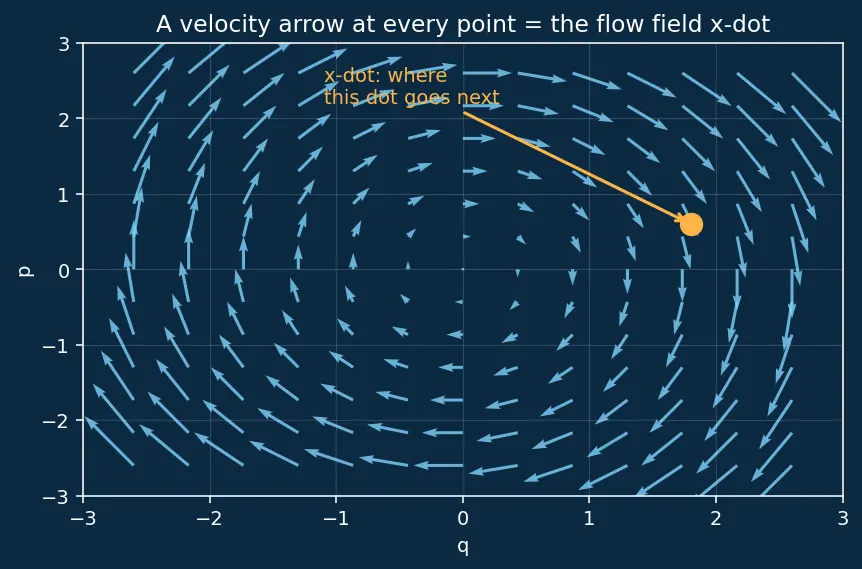

The picture. At every point of phase space, attach a tiny arrow saying "if the dot is here, it moves that way next". Do this everywhere and you paint a flow field — like the arrows showing which way water moves at each spot in a river. $\dot{\mathbf{x}}$ is that arrow.

Why the topic needs it. The whole theorem is about how a blob flows. The dot-notation is the language of flow.

6. The Hamiltonian $H$

Plain words. $H$ is a single function — usually the total energy — written in terms of the positions and momenta: $H(q,p)$. Give it the current $q$'s and $p$'s and it returns a number (the energy).

The picture. Imagine $H$ as the height of a landscape drawn over phase space: hills where energy is high, valleys where it's low.

Why the topic needs it. These two equations are the law of motion for the flow. The magic cancellation at the heart of Liouville comes directly from their mismatched signs.

7. Partial derivative $\frac{\partial }{\partial x}$

Plain words. A function like $H$ depends on many variables. A partial derivative $\partial H/\partial q_i$ asks: "if I nudge only $q_i$ a tiny bit and freeze everything else, how fast does $H$ change?" It's the slope of the energy landscape in one chosen direction.

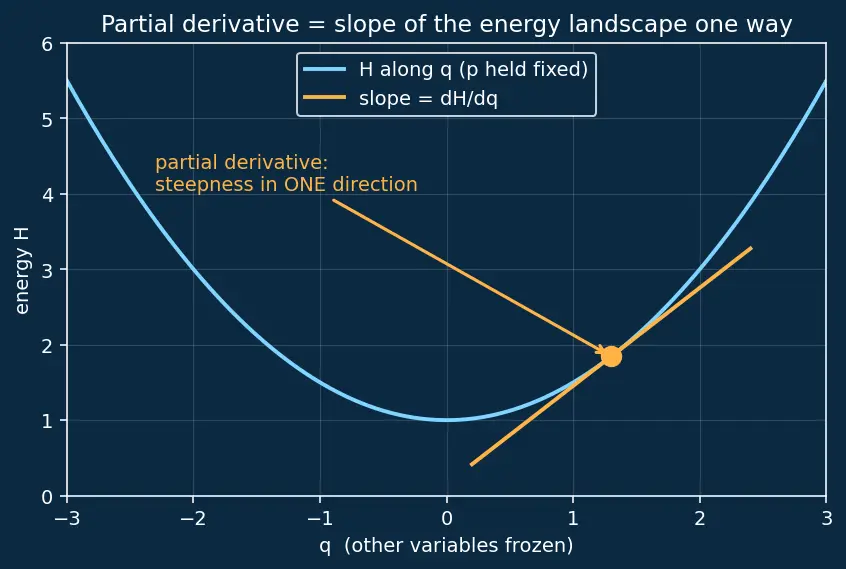

The picture. Stand on the energy-hill, face purely along the $q_i$ axis, and measure the steepness of the ground directly ahead — ignoring slopes sideways.

Why THIS tool and not an ordinary derivative $d/dx$? Because $H$ has several inputs at once. An ordinary derivative $d/dx$ only makes sense for a one-input function. The curly $\partial$ is exactly the tool that says "vary one, hold the rest still" — precisely what Hamilton's equations demand.

8. Density $\rho$

Plain words. We never know the exact state, so we picture a cloud of possible states. $\rho (q,p,t)$ is the crowdedness of that cloud: how many possible-states per unit phase-space volume sit near the point $(q,p)$ at time $t$.

The picture. A grey smudge over phase space — dark where states pile up, faint where they thin out. $\rho$ is the darkness.

Why the topic needs it. Liouville's cleanest statement is about $\rho$: following a moving dot, the crowdedness you see never changes. This $\rho$ is the bridge to Statistical Mechanics — Ensembles.

9. Gradient $\nabla$ and divergence $\nabla \cdot$

Plain words.

• The gradient $\nabla \rho$ collects all the partial-slopes of $\rho$ into one arrow that points "uphill, toward denser". Its size says how steeply the density changes.
• The divergence $\nabla \cdot \dot{\mathbf{x}}$ measures whether the flow field is spreading out (positive, a source) or squeezing in (negative, a sink) at a point.

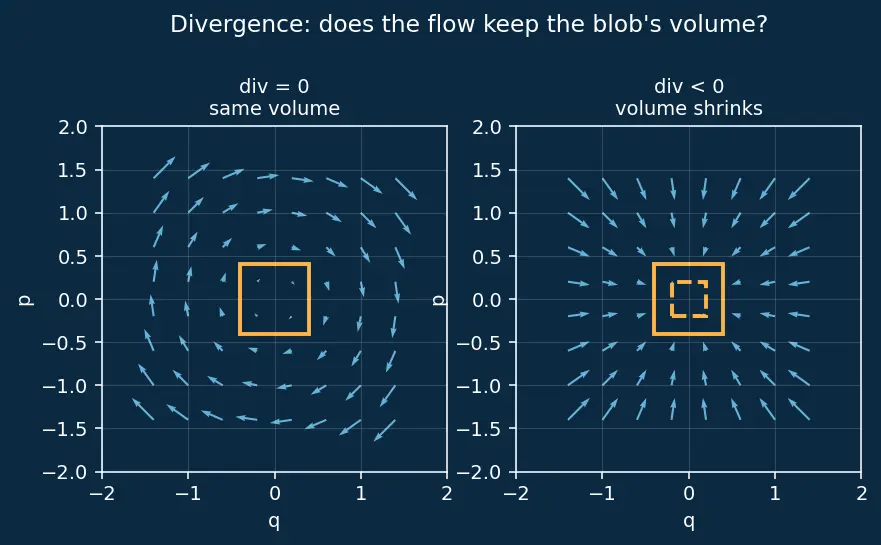

The picture for divergence. Draw a tiny box. Add up how much flow-arrow leaves through the walls minus how much enters. If more leaves than enters, divergence is positive (the box's contents are being blown apart). If it perfectly balances, divergence is zero — an incompressible flow.

Why THIS tool? Volume growth of a flowing blob equals the total divergence inside it. So "does the blob's volume change?" is answered exactly by "is the divergence zero?". Divergence is the mathematical name of the question Liouville asks.

10. The material (total) derivative $\frac{d}{dt}$

Plain words. There are two ways to watch a quantity change:

• $\frac{\partial \rho }{\partial t}$ — sit still at a fixed point and watch the cloud drift past.
• $\frac{d\rho }{dt}$ — ride along with a moving dot and report what it sees.

The riding version bundles both the clock-change and the fact that you moved into new territory: $\frac{d\rho }{dt}=\frac{\partial \rho }{\partial t}+\dot{\mathbf{x}}\cdot \nabla \rho .$

The picture. A thermometer nailed to a bridge (partial) versus a thermometer floating down the river on a boat (total). They read different things.

Why the topic needs it. Liouville's punchline, $d\rho /dt=0$, is a statement in the riding frame. Knowing the difference between the two derivatives is what makes the theorem quotable.

11. Poisson bracket $\{,\}$ (a preview)

Plain words. The Poisson bracket $\{f,H\}$ is a compact machine that packages "how does $f$ change as the system flows under $H$". Its full workings live in a sibling note; here just meet the symbol so the parent's line $\frac{\partial \rho }{\partial t}=-\{\rho ,H\}$ isn't a stranger. It is the same Liouville statement written in the natural language of flows.

Prerequisite map

Related roads out of this hub: Canonical Transformations (why volume-preservation is built into the structure), Symplectic Geometry (the deeper reason mixed partials cancel), Poincaré Recurrence Theorem (a consequence of finite conserved volume).

Equipment checklist

Test yourself — cover the right side and answer before revealing.
