Energy stored in capacitor U = ½CV²: Visual walkthrough

Step 0 — What are the words on the page?

Before any symbol appears in a formula, let's name the pictures.

Now — and only now that $q$ , $v$ and $C$ are named — we state the one relation linking charge and voltage, which holds at every instant (this is the $Q=CV$ rule, written for the running values): $q = C v ⟺ v = \frac{q}{C}$

$q$ — charge already sitting on the plate right now.
$C$ — the capacitor's fixed capacitance (a constant).
$v$ — the voltage right now, i.e. the current hill height.

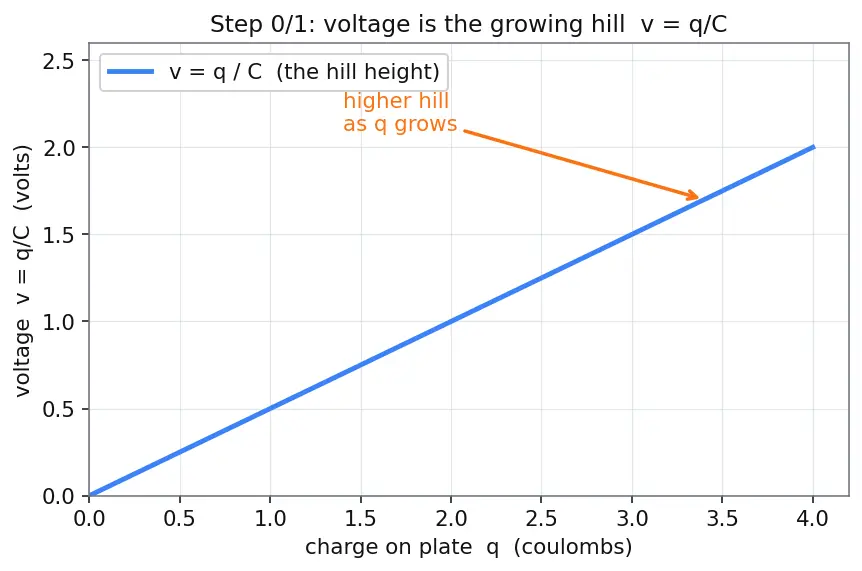

At the very end this same rule reads $Q = C V$ , i.e. $V = Q / C$ . Look at the figure: as charge $q$ grows left→right, the hill $v$ grows straight-up in proportion.

Figure — Energy stored in capacitor U = ½CV²

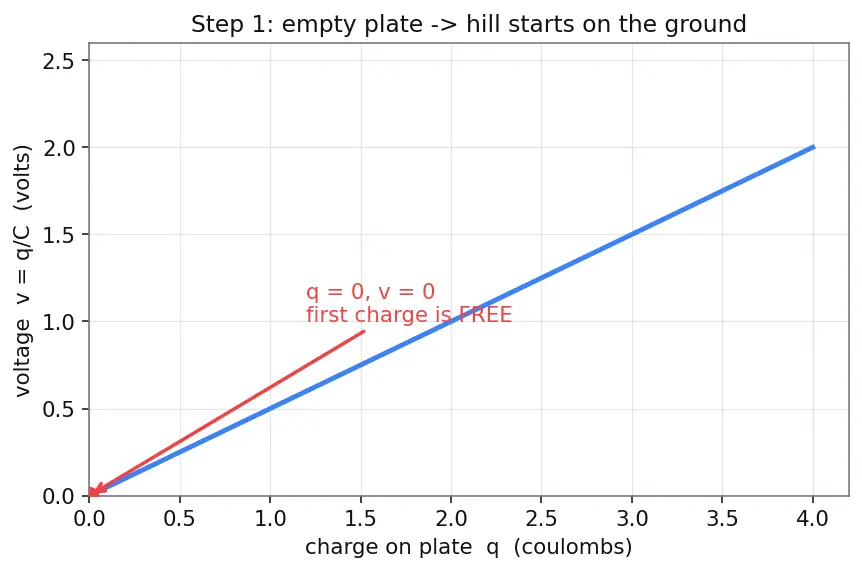

Step 1 — The plate is empty. The first marble is free.

WHAT. Start with $q = 0$ . Plug into $v = q / C$ : $v = \frac{0}{C} = 0.$

WHY. Before any charge sits on the plate, there is no field pushing back. So the first sliver of charge climbs a hill of height zero — it costs (almost) nothing.

PICTURE. The hill starts flat on the ground. This is the crucial fact people forget when they guess "energy $= Q V$ ": you do not pay the full final voltage $V$ from the start.

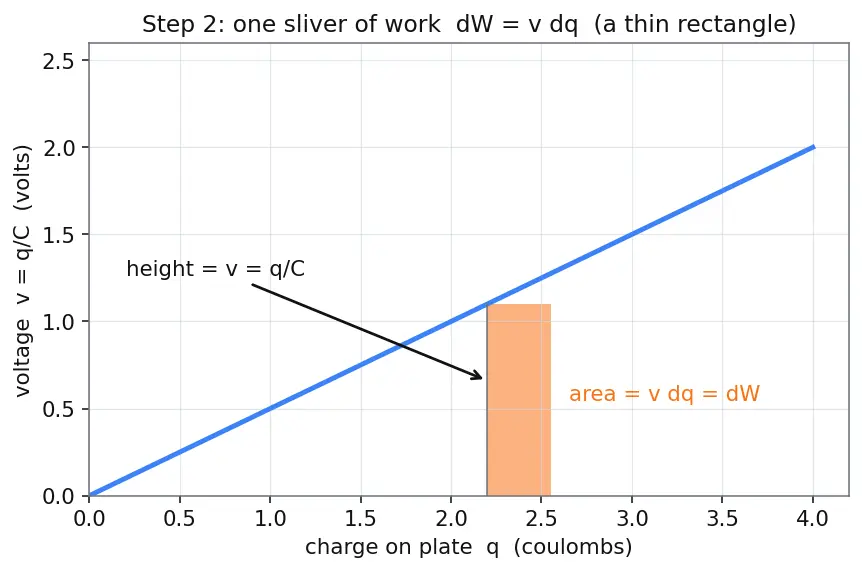

Step 2 — Add one thin sliver of charge $d q$ .

WHAT. Suppose the plate currently holds charge $q$ , so the hill is $v = q / C$ . Now push on one thin extra sliver, called $d q$ ("a tiny bit of charge $q$ "). The work to lift a charge through a hill of height $v$ is: $d W = v d q = \frac{q}{C} d q .$

$d W$ — the tiny bit of work done for this one sliver.
$v = q / C$ — the hill height at this moment (uses the charge already there, not the final charge).
$d q$ — the thin sliver of charge we're adding.

WHY THIS TOOL — why $d W = v d q$ and not $W = v q$ ? Because the hill height $v$ is changing while we pile charge on. We cannot multiply "voltage × charge" in one shot, because there is no single voltage — it slides from $0$ up to the final $V$ . The trick of calculus is: chop the job into slivers so thin that $v$ is effectively constant across each one. For a sliver, $d W = v d q$ is exactly true.

PICTURE. Each sliver is a thin vertical rectangle under the hill line: its width is $d q$ , its height is $v$ , so its area is $v d q$ — which is the work. The work equals area under the $v$ – $q$ line.

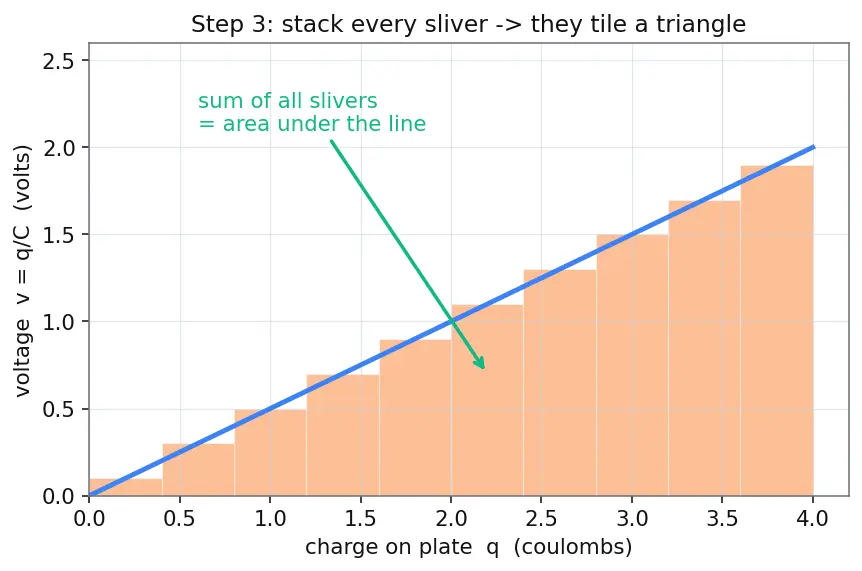

Step 3 — Stack every sliver from empty to full (integrate).

WHAT. Total work = sum of all sliver-rectangles, from the first ( $q = 0$ ) to the last ( $q = Q$ , the final charge). This grand total is the stored energy $U$ — the character we named in Step 0, finally making its entrance. Summing infinitely many infinitely thin slivers is what the integral sign $\int$ means: $U = \int_{0}^{Q} \frac{q}{C} d q .$

$\int_{0}^{Q}$ — "add up all slivers as $q$ runs from $0$ up to the final charge $Q$ ."
$\frac{q}{C} d q$ — one sliver's work from Step 2.
$U$ — the grand total: the energy stored (joules).

WHY. The energy stored is nothing but all the work you did filling the plate. No work is lost inside an ideal capacitor, so total work = stored energy.

PICTURE. All the thin rectangles together tile a triangle under the straight hill line. And you already know a triangle's area: $\frac{1}{2} \times base \times height$ .

Step 4 — Do the sum: the triangle's area.

WHAT. Carry out the integral (this is just "area of the triangle" done with algebra): $U = \frac{1}{C} \int_{0}^{Q} q d q = \frac{1}{C} \cdot \frac{q ^{2}}{2}_{0}^{Q} = \frac{Q ^{2}}{2 C} .$

$\frac{1}{C}$ — pulled out front because $C$ is a constant (doesn't change as we fill).
$\frac{q ^{2}}{2}_{0}^{Q} = \frac{Q ^{2}}{2}$ — the running total of $\int q d q$ , evaluated from $0$ to the final $Q$ .
$\frac{Q ^{2}}{2 C}$ — the finished stored energy.

WHY the $\frac{1}{2}$ ? Look at the triangle. Its base is the final charge $Q$ , and its height is the final voltage $V$ — recall from Step 0 that $V \equiv v_{final} = Q / C$ . Its area is $\frac{1}{2} \times base = q_{final} Q \times height = V = v_{final} \frac{Q}{C} = \frac{Q ^{2}}{2 C} .$ The $\frac{1}{2}$ is the $\frac{1}{2}$ in "area of a triangle." That's the whole mystery.

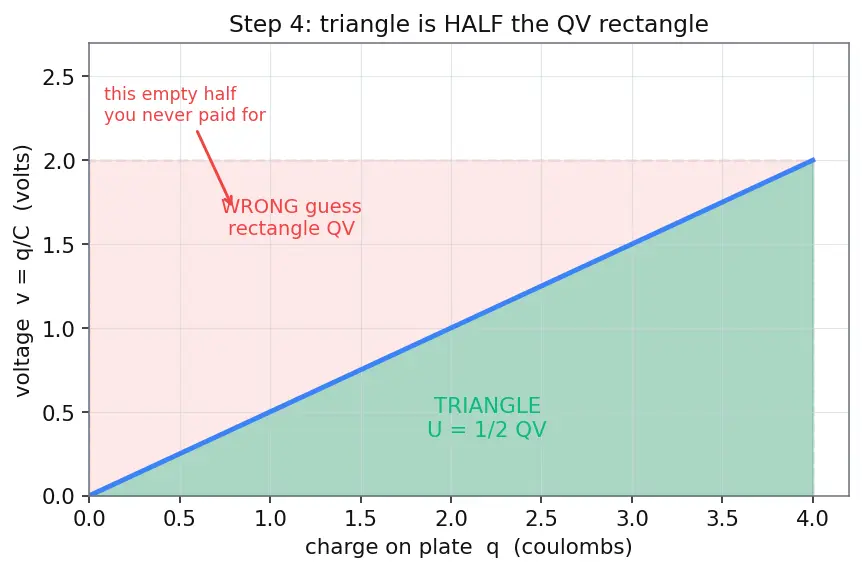

PICTURE. Compare two boxes: the WRONG guess "energy $= Q V$ " is the full rectangle (base $Q$ , height the final voltage $V$ ). The RIGHT answer is the triangle — exactly half of it. The missing half is the empty upper-left triangle you never had to pay for, because early charges climbed a low hill.

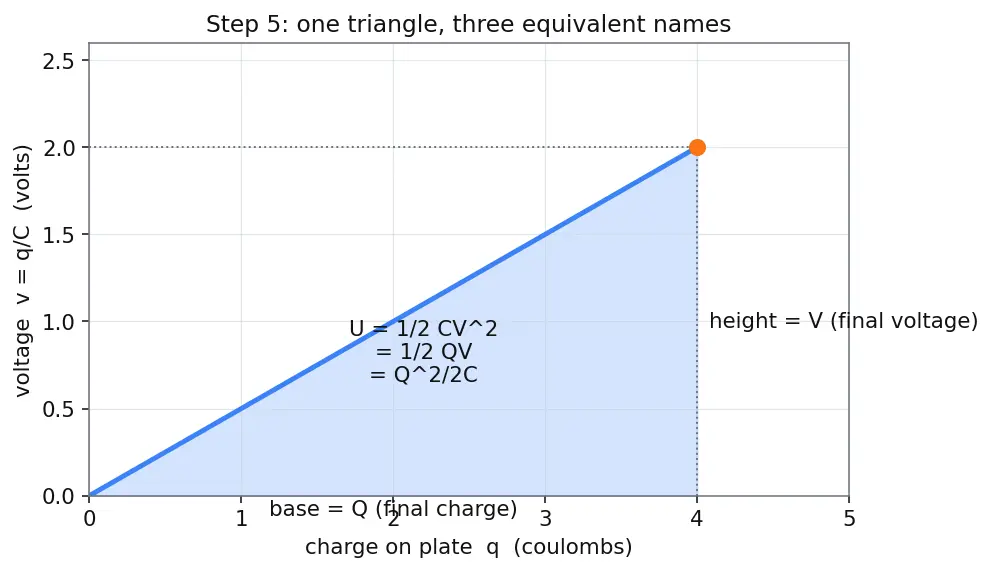

Step 5 — Rewrite in the three famous forms.

WHAT. Use the final relation $Q = C V$ (that is, $q_{final} = C v_{final}$ ) to swap symbols and get all three faces of the same coin: $U = \frac{Q ^{2}}{2 C} = \frac{( C V ) ^{2}}{2 C} = \frac{1}{2} C V^{2} = \frac{1}{2} Q V .$

$\frac{Q ^{2}}{2 C}$ — use when the final charge $Q$ is fixed (capacitor disconnected).
$\frac{1}{2} C V^{2}$ — use when the final voltage $V$ is fixed (still on a battery).
$\frac{1}{2} Q V$ — the "triangle" form: $Q$ times average voltage $V /2$ .

WHY three forms? They're identical numbers, but each is convenient when a different quantity is being held constant. Choosing the right one saves you algebra (see the parent's disconnect/reconnect examples).

PICTURE. The same triangle, relabelled three ways — the area never changes, only the names on the axes.

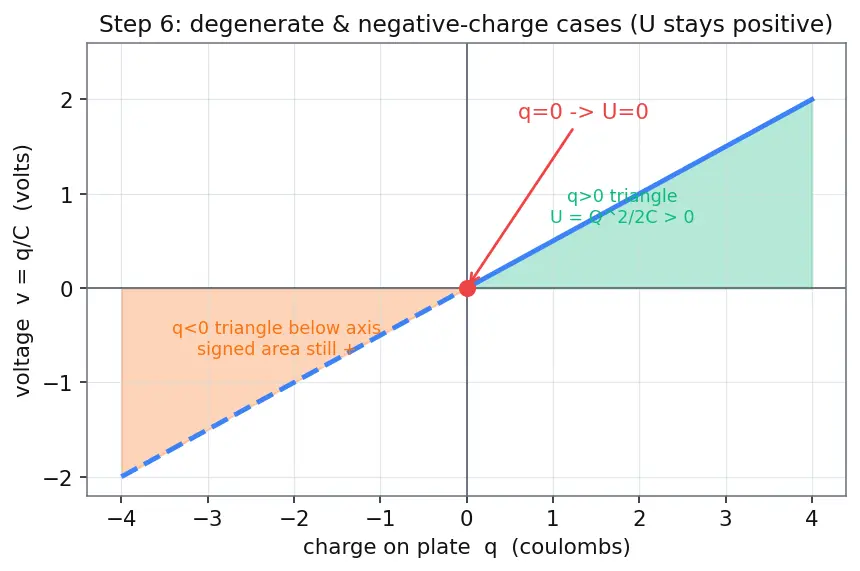

Step 6 — The degenerate cases (never leave a gap)

We must check the corners where things might break.

Case A: $q = 0$ (empty plate). Then $v = 0/ C = 0$ and $U = 0$ . No charge, no hill, no energy. ✓ The triangle has zero base → zero area.

Case B: $C \to \infty$ (a "gentle-hill" giant capacitor). Then $v = q / C \to 0$ for any finite $q$ : the hill never rises, so $U = Q^{2} /2 C \to 0$ . A capacitor so big it acts like a wire stores essentially no energy per coulomb. ✓

Case C: $C \to 0$ (a "steep-hill" tiny capacitor). Now $v = q / C$ shoots up: the hill is a cliff. For fixed final $Q$ , $U = Q^{2} /2 C \to \infty$ . Cramming charge onto a near-zero capacitor costs enormous work. ✓

Case D: charging with negative charge. Suppose we deliver negative charge instead, so the final charge is $Q = - ∣ Q ∣$ and every running $q$ is negative. Two sign-flips happen and they cancel, which is easy to miss:

Common mistake "But surely for a battery it's energy

$= Q V$ , not $\frac{1}{2} Q V$ ?" A battery holds its voltage fixed at $V$ the whole time, so its hill is a flat plateau — a full rectangle $Q V$ . A capacitor's hill ramps up from $0$ to the final $V$ — a triangle $\frac{1}{2} Q V$ . Different pictures, different areas. When a battery charges a capacitor through a simple resistive wire, it spends $Q V$ ; the capacitor keeps $\frac{1}{2} Q V$ ; and the remaining $\frac{1}{2} Q V$ is dissipated as heat in the wire resistance (see Work done by a battery and Joule heating).

Qualification (don't over-generalise): that clean "exactly half becomes heat" result is specific to the ideal resistor-only charging path, and it is independent of the resistance value. In a real circuit the leftover $\frac{1}{2} Q V$ need not all become resistive heat — if the wires have appreciable inductance the charge can oscillate (ring) and some energy is radiated away as electromagnetic waves, or temporarily stored in the magnetic field. The bookkeeping "battery gives $Q V$ , capacitor keeps $\frac{1}{2} Q V$ , the rest leaves the capacitor" always holds; how the rest leaves depends on the circuit.

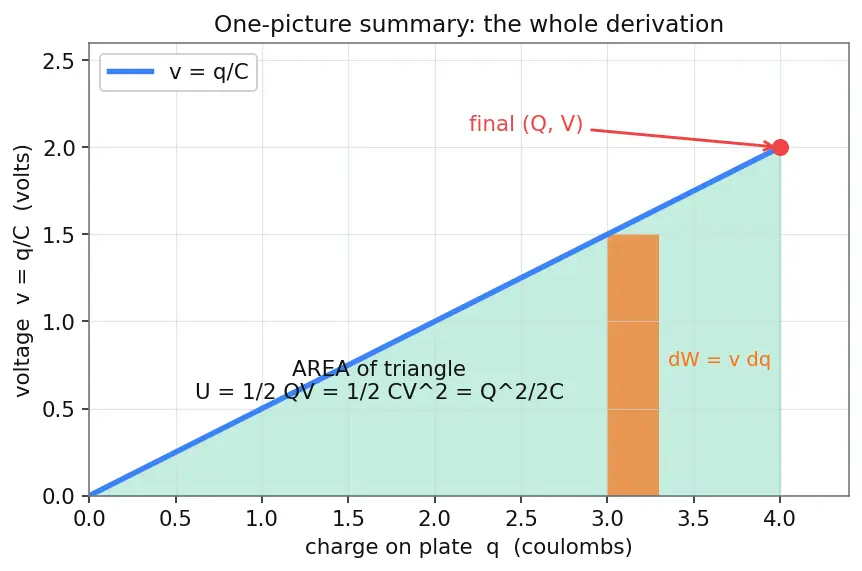

The one-picture summary

Everything above compresses into one figure: the straight line $v = q / C$ , the tiny sliver $v d q$ , the triangle it fills, and the three names for that triangle's area (with $Q, V$ the final charge and voltage).

Recall Feynman retelling — the whole walk in plain words

You're loading marbles onto a shelf, but the shelf floats higher the more marbles you pile on (that's the voltage rising: $v = q / C$ ). The very first marble drops onto a shelf at ground level — free. The last marble must be lifted all the way to the top height $V$ (the final voltage). So if you plot "lift height" against "marble number," you get a straight ramp from $0$ to $V$ . The total effort — which is exactly the stored energy $U$ — is the area under that ramp, and the area under a straight ramp is a triangle, which is half of the full rectangle. Half of $Q \times V$ is $\frac{1}{2} Q V$ . Rename it with $Q = C V$ and you get $\frac{1}{2} C V^{2}$ or $Q^{2} /2 C$ . The famous $\frac{1}{2}$ was never magic — it's the $\frac{1}{2}$ from "area of a triangle," which is the same as saying "you only ever paid the average hill height, $V /2$ ."

Recall Quick self-check

Where does the $\frac{1}{2}$ come from geometrically? ::: It is the area of the triangle under the straight line $v = q / C$ — half the rectangle $Q V$ . Why can't we just write energy $= Q V$ for a capacitor? ::: Its voltage isn't constant; it ramps from 0 to the final V, so the region under it is a triangle, not a rectangle. What does $d W = v d q$ represent as a picture? ::: One thin rectangle (width $d q$ , height $v$ ) — its area is the work for that sliver. What is the difference between $v$ and $V$ here? ::: Lowercase $v$ is the running voltage while charging; uppercase $V = v_{final} = Q / C$ is the final voltage. Which form when the capacitor is disconnected (final Q fixed)? ::: $U = Q^{2} /2 C$ . Is stored energy ever negative for negative charge? ::: No — $U = Q^{2} /2 C$ depends on $Q^{2}$ , always positive; the two sign-flips (negative height, negative sweep) cancel.
