Series and parallel capacitors — derivations: Visual walkthrough

Step 0 — What is a capacitor, drawn honestly

WHAT. A capacitor is just two metal plates facing each other with a gap between them. First we fix a sign convention. Let == $Q$ be a positive magnitude — "how many coulombs sit on a plate", always $Q \geq 0$ ==. Hook the capacitor to a battery: one plate loses electrons and ends up positively charged, which we label $+ Q$ ; the other plate gains exactly those electrons and ends up negatively charged, labelled $- Q$ . So the two plates carry signed charges $+ Q$ and $- Q$ (equal size, opposite sign), while the bare letter $Q$ by itself always means the unsigned magnitude — the little $\pm$ in front only tells you which plate you're looking at. The plates now sit at different electric potentials — a "voltage" $V$ between them, like a height difference.

WHY these three symbols. Three quantities describe the whole gadget:

$Q$ = magnitude of charge parked on each plate (coulombs, C, $Q \geq 0$ ).
$V$ = the potential difference across the gap (volts, V) — think of it as pressure pushing charge apart.
$C$ = capacitance — how much charge the plate hoards per volt of pressure. Big $C$ = greedy plate.

They are tied together by the single relation we lean on all page long, from Q = CV:

$charge magnitude Q = greed factor C \times pressure across gap V$

PICTURE. One plate holds signed charge $+ Q$ (amber), the facing plate holds $- Q$ (cyan); the common magnitude is $Q$ . The white arrow across the gap is the voltage $V$ .

Figure — Series and parallel capacitors — derivations

Step 1 — The goal: one capacitor that fakes the whole network

WHAT. We want to throw away a tangle of capacitors and drop in a single replacement $C_{e q}$ that the battery cannot tell apart from the original — same total charge pulled out, same total voltage across the terminals.

WHY. "Equivalent" must be defined, or the word means nothing. First pin down the new symbol $Q_{total}$ : it is all the charge the battery had to supply to the network, i.e. the sum of the charges delivered to the individual capacitors,

$Q_{total} \equiv Q_{1} + Q_{2} + \dots + Q_{n}$

(distinct from any single $Q_{i}$ , which is just one capacitor's share). Likewise $V_{total}$ is the battery's voltage across the terminals. We then define equivalence by behaviour at the two terminals A and B:

$C_{e q} \equiv \frac{Q _{total}}{V _{total}}$

If a black box matches both $Q_{total}$ and $V_{total}$ , it is the network as far as the outside world knows.

PICTURE. Left: a messy box of capacitors between terminals A and B. Right: one fat capacitor $C_{e q}$ . The battery reads identical charge-supplied and voltage across either.

Step 2 — Parallel wiring: everyone shares the same two wires

WHAT. In parallel, every capacitor's left plate touches wire A and every right plate touches wire B. No capacitor is "downstream" of another; they hang side by side like clothes on one rail.

WHY same voltage. A wire is a conductor at one single potential (an equipotential — no pressure difference along a plain wire). So node A sits at one height, node B at another, and every capacitor bridges the exact same two heights:

$V_{1} = V_{2} = V_{3} = V (the battery’s own voltage)$

Each $V_{i}$ is forced equal to $V$ because each capacitor literally connects the same two nodes.

PICTURE. Three capacitors, all left plates on the cyan A-rail, all right plates on the amber B-rail. The identical white $V$ arrow is copy-pasted across all three.

Step 3 — Parallel: charges add up at the node

WHAT. Apply $Q = C V$ to each capacitor with the same $V$ , then collect what the battery must have supplied.

WHY. By charge conservation at node A, the charge leaving the battery splits and lands on the three left plates. Nothing is lost, so $Q_{total}$ (defined in Step 1 as $Q_{1} + Q_{2} + Q_{3}$ ) is the sum:

$Q_{total} = C_{1} V Q_{1} + C_{2} V Q_{2} + C_{3} V Q_{3} = (C_{1} + C_{2} + C_{3}) V$

Read the last bracket: because $V$ is common, it factors out, and what's left multiplying it is a plain sum of capacitances. Compare with $Q_{total} = C_{e q} V$ and the $V$ 's cancel:

$C_{e q} = C_{1} + C_{2} + \dots + C_{n}$

Each term $C_{i}$ is a separate greedy plate; putting them side by side just gives charge more plate area to sit on, so total greed adds.

PICTURE. The battery's charge stream forks at node A into three coloured streams landing on three plates; the merge back at B shows $Q_{total} = Q_{1} + Q_{2} + Q_{3}$ .

Step 4 — Series wiring: the trapped island of metal

WHAT. In series the capacitors form a chain: right plate of $C_{1}$ wires only to the left plate of $C_{2}$ , and so on. That connecting piece touches nothing else — it is an isolated island of conductor.

WHY same charge. The island started electrically neutral. When the battery forces $+ Q$ onto $C_{1}$ 's far-left plate, that $+ Q$ pulls $- Q$ onto $C_{1}$ 's right plate. But the island (that right plate plus $C_{2}$ 's left plate) must stay net-neutral — it's connected to no charge source. So if $- Q$ appears on one end of the island, $+ Q$ is forced onto the other end. That $+ Q$ becomes $C_{2}$ 's charge. The same $Q$ therefore marches through every capacitor:

$Q_{1} = Q_{2} = Q_{3} = Q$

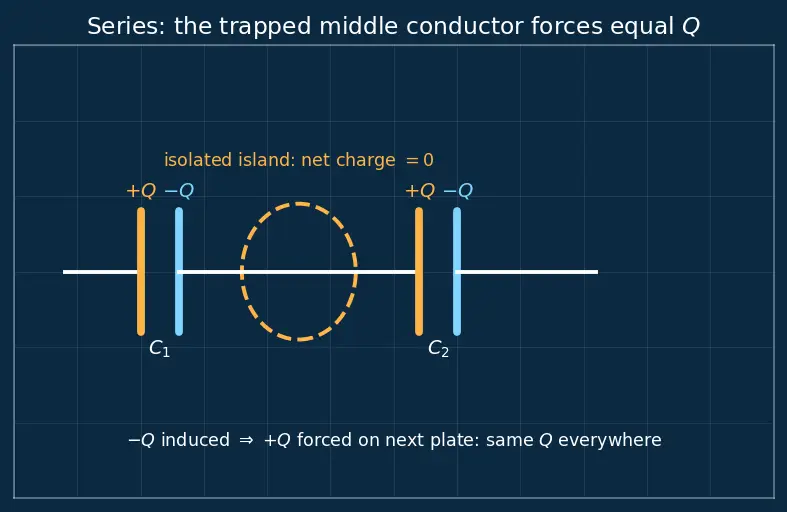

PICTURE. The chain with the middle conductor circled amber, labelled "isolated island, net charge = 0", showing induced $- Q$ / $+ Q$ balancing on it.

Step 5 — Series: voltages add all the way round the loop

WHAT. Give each capacitor its own voltage from $Q = C V$ rearranged, then walk around the circuit adding drops.

WHY. Rearranging $Q = C V$ into $V = Q / C$ answers "how much pressure does this capacitor need to hold charge $Q$ ?" With $Q$ common:

$V_{1} = \frac{Q}{C _{1}}, V_{2} = \frac{Q}{C _{2}}, V_{3} = \frac{Q}{C _{3}}$

By Kirchhoff's voltage law, if you walk one full loop — start at the battery's $+$ terminal, step down across $C_{1}$ , then $C_{2}$ , then $C_{3}$ , and arrive back where you started — the ups and downs must cancel. The battery raised you by $V$ ; the three capacitors must drop you by exactly $V$ in total. The picture below draws that loop as an arrow with each drop $V_{1}, V_{2}, V_{3}$ tagged on the very step where it happens, so:

$V = \frac{Q}{C _{1}} + \frac{Q}{C _{2}} + \frac{Q}{C _{3}} = Q (\frac{1}{C _{1}} + \frac{1}{C _{2}} + \frac{1}{C _{3}})$

The common $Q$ factors out; inside the bracket sit reciprocals of capacitance — these are the "hardness to fill" of each capacitor. Now use $V = Q / C_{e q}$ and cancel the common $Q$ :

$\frac{1}{C _{e q}} = \frac{1}{C _{1}} + \frac{1}{C _{2}} + \dots + \frac{1}{C _{n}}$

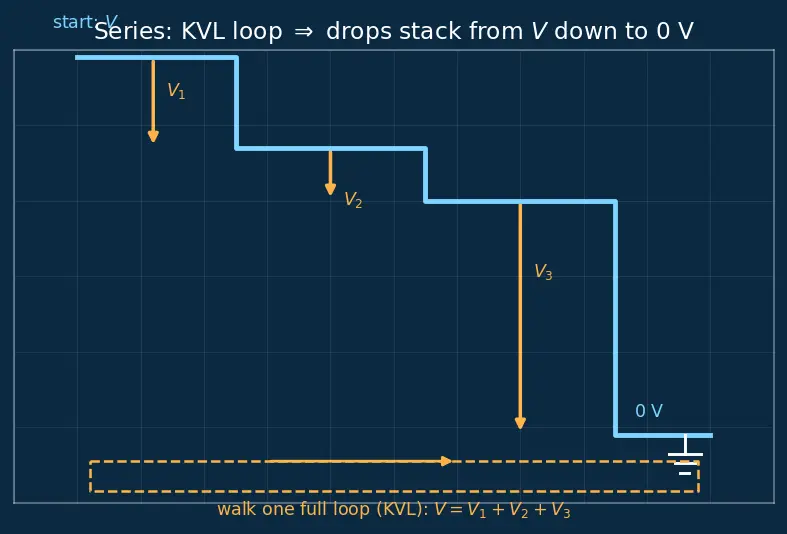

PICTURE. The loop drawn explicitly (curved amber arrow around the circuit), and the potential staircase: start at $V$ on the left, drop $V_{1}$ , then $V_{2}$ , then $V_{3}$ , landing on the grounded reference wire at $0 V$ — the total fall equals the battery height.

Step 6 — Edge & degenerate cases (never get surprised)

WHAT. Push the formulas to their limits so nothing can ambush you.

WHY. A formula you trust only in the "nice" middle is a formula you don't understand. Check the extremes.

Series extremes (use $\frac{1}{C _{e q}} = \sum \frac{1}{C _{i}}$ ):

One capacitor much smaller ( $C_{1} ≪ C_{2}$ ): $\frac{1}{C _{e q}} \approx \frac{1}{C _{1}}$ , so $C_{e q} \approx C_{1}$ (and always strictly below $C_{1}$ ). The tiny capacitor dominates — the weakest link controls the chain.
Two equal ( $C_{1} = C_{2} = C$ ): $C_{e q} = C /2$ . Stacking gaps doubles the effective thickness → half the capacitance.
A short in the chain ( $C_{2} \to \infty$ , treated as a nearly ideal fat wire): $1/ C_{2} \to 0$ drops out, $C_{e q} \to C_{1}$ . A "wire" behaves like a capacitor so greedy it takes essentially no voltage. ✓
An open circuit / missing capacitor ( $C_{2} \to 0$ ): now $1/ C_{2} \to \infty$ , so $\frac{1}{C _{e q}} \to \infty$ and therefore $C_{e q} \to 0$ . The whole chain stores nothing. This is the ambush case: a single broken (zero-capacitance) link is a gap in the pipe — charge can't march through, so the entire series combination dies. In series, the smallest member always drags $C_{e q}$ down, and zero drags it all the way to zero.

Parallel extremes (use $C_{e q} = \sum C_{i}$ ):

A missing member ( $C_{2} \to 0$ ): it simply adds nothing, $C_{e q} = C_{1} + C_{3}$ . A dead branch in parallel is harmless — the others carry on.
One member very large ( $C_{2} \to \infty$ ): then $C_{e q} \to \infty$ too. An extremely greedy plate across the terminals behaves like a short to the reference rail — it accepts near-unlimited charge at any voltage, swamping the finite others. This is the exact dual of the series-open case: in parallel the biggest member dominates and a huge value blows $C_{e q}$ up.

Guardrails to memorise: series always lands below the smallest member (zero if any member is zero); parallel always lands above the largest (unbounded if any member grows without limit).

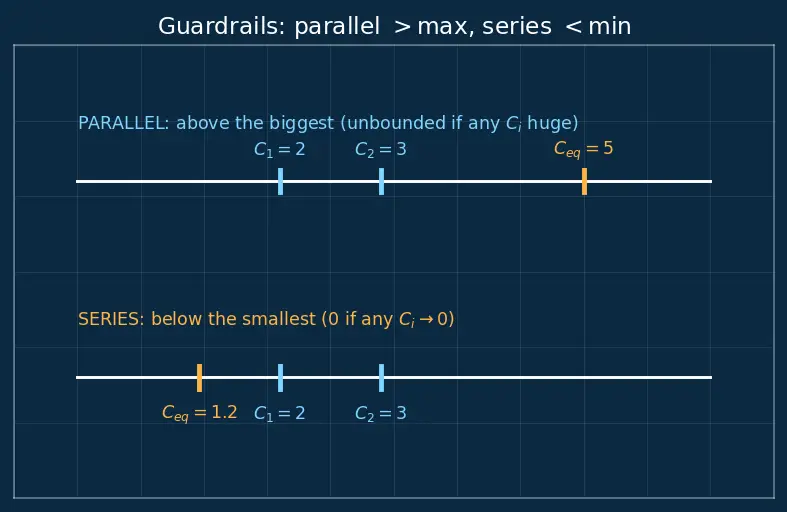

PICTURE. Two number lines: the parallel result pinned above $max (C_{i})$ , the series result pinned below $min (C_{i})$ , with a worked $2 μ F$ & $3 μ F$ pair marked ( $5$ and $1.2$ ).

The one-picture summary

PICTURE. Left half = parallel: shared $V$ arrow, charges $Q_{1}, Q_{2}, Q_{3}$ fanning out, result $C_{e q} = \sum C_{i}$ . Right half = series: shared $Q$ marching through, voltages $V_{1}, V_{2}, V_{3}$ stacking as a staircase, result $\frac{1}{C _{e q}} = \sum \frac{1}{C _{i}}$ . One canvas, both stories.

Related energy accounting lives in energy stored in a capacitor; inserting a slab changes each $C_{i}$ per dielectrics — but the two rules above never change.

Which quantity is shared in parallel?

The voltage

V

across every capacitor.

Which quantity is shared in series?

The charge

Q

on every capacitor.

In series, why is

C_{e q}

below the smallest member?

Adding reciprocals only raises

1/ C_{e q}

, so

C_{e q}

must fall below every term.

In series, which capacitor gets the biggest voltage?

The smallest one, since

V = Q / C

with

Q

common.

What happens to a series chain if one capacitor is zero (open)?

1/ C_{e q} \to \infty

, so

C_{e q} \to 0

— the whole chain stores nothing.

What happens to a parallel bank if one capacitor is very large?

C_{e q} \to \infty

— it acts like a short across the terminals.

Recall Feynman retelling — the whole walk in plain words

Picture two metal plates as a bucket for charge; the voltage is the water pressure and $C$ is how big the bucket is. Parallel: hang all the buckets on the same two wires. Because a wire is flat (one potential), every bucket feels the same pressure. Fill them all at that pressure and the amounts of charge simply pile together — so the bucket-sizes add: $C_{e q} = \sum C_{i}$ . More buckets side by side = a bigger bucket. If one bucket were enormously big, the whole rail could swallow near-unlimited water — a short. Series: stack the buckets in one pipe. The lump of metal between two buckets is sealed off and started with zero charge, so whatever charge sits on one side must be mirrored on the other — the same $Q$ is forced through every bucket. Each bucket then demands its own pressure $V = Q / C$ , and those pressures stack up to equal the battery. Since a small bucket demands big pressure, and the pressures add, the whole stack is hard to fill — the total capacitance drops below the smallest bucket, and it's the "difficulties" $1/ C$ that add: $\frac{1}{C _{e q}} = \sum \frac{1}{C _{i}}$ . And if one link is broken (zero bucket), the pipe is blocked — the whole chain stores nothing. Two lines, two pictures, both formulas — no memorising.
