Foundations — Gauss's law — integral form, choosing Gaussian surfaces

This page assumes nothing. Every symbol in the parent note — $\vec{E}$, $d\vec{A}$, the little circle on $\oint$, the dot in $\vec{E}\cdot d\vec{A}$, ${\epsilon }_0$, $Q_{\text{enc}}$ — is built here from the picture up. Work top to bottom; each idea leans on the one before it.

1. What is an arrow that has a size AND a direction? (Vectors)

Some quantities are just a number: temperature, mass, how much charge. We call these scalars — one number, done.

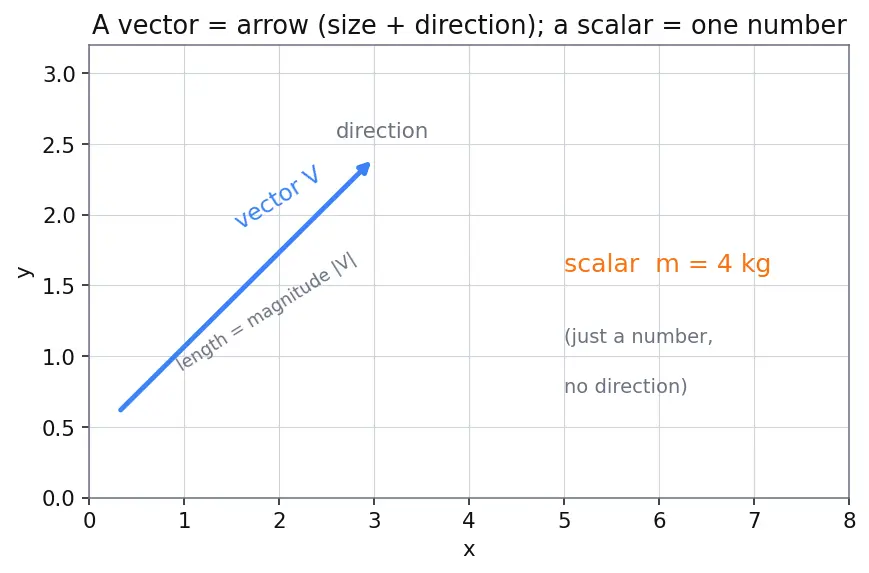

Other quantities need a number and a direction to make sense. "The wind blows at 30 km/h" is incomplete — you must say which way. A quantity with both a size (called its magnitude) and a direction is a vector. We draw it as an arrow: the length shows the magnitude, the way it points shows the direction. We write it with a little arrow on top, like $\vec{E}$.

Why does the topic need this? The electric field pushes charges in a definite direction, so it must be a vector. Half of Gauss's law is about the direction of arrows relative to a surface — you cannot even state the law without vectors.

2. The electric field $\vec{E}$ — an arrow living at every point

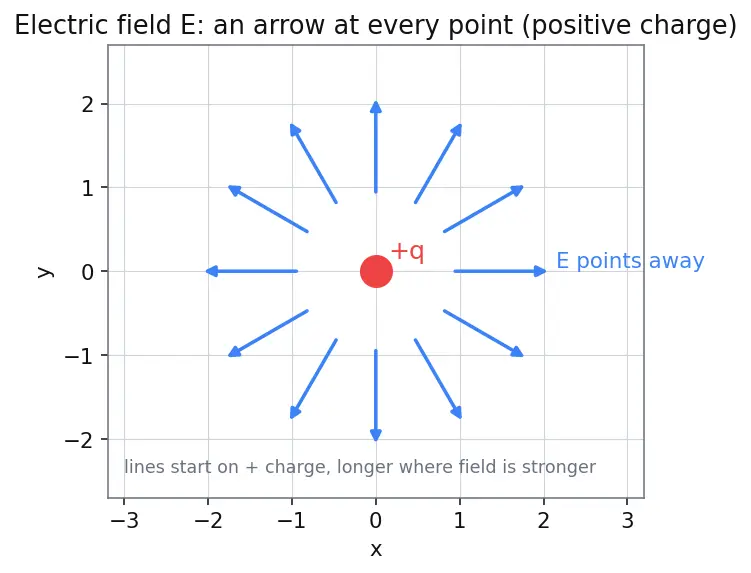

Imagine sprinkling a tiny "test" positive charge at some point in space. It feels a push. The electric field $\vec{E}$ at that point is an arrow pointing the way the push goes, with length telling how hard the push is (per unit of test charge).

So $\vec{E}$ is not one arrow — it is one arrow attached to every point of space. Near a positive charge the arrows point away (it shoves test charges off); near a negative charge they point in.

Why the topic needs it: Gauss's law is a statement about these arrows and how many pierce a surface. See Coulomb's law for the exact formula giving $\vec{E}$ of a point charge.

3. Area as a vector: $d\vec{A}$

Here is the clever move. A flat patch of surface has an obvious number — its area. But to talk about "how many field arrows pass through it," we also need to know which way the patch faces.

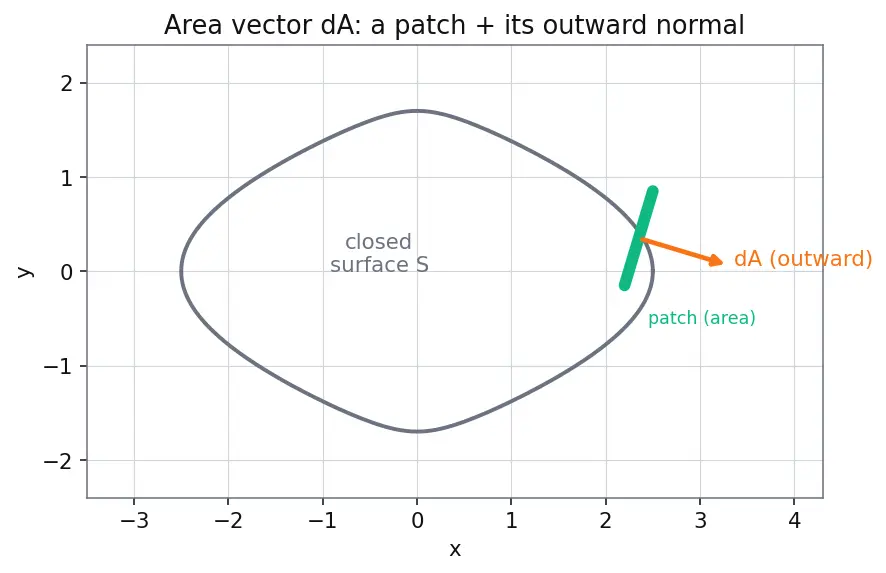

So we promote area to a vector $\vec{A}$: its magnitude is the patch's area, and its direction is the normal — the direction sticking straight out of the patch at a right angle. For a closed bag we always choose the outward normal (pointing out of the bag).

A curved surface isn't flat, so we chop it into tiny nearly-flat patches. One tiny patch has area vector $d\vec{A}$ — the "$d$" means "an infinitesimally small piece."

Why the topic needs it: "Flux through a surface" only makes sense if the surface has a facing direction. Comparing $\vec{E}$'s direction to $d\vec{A}$'s direction is how we measure what passes through.

4. The dot product $\vec{E}\cdot d\vec{A}$ — "how much is aligned?"

We have two arrows now: the field $\vec{E}$ and the patch's facing direction $d\vec{A}$. We want a single number saying how much of the field actually pierces the patch straight through — a field that skims sideways along the patch shouldn't count.

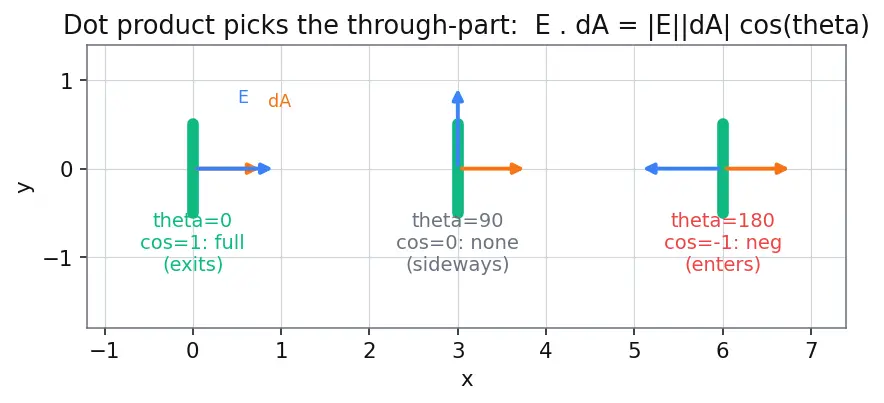

The dot product answers exactly this. For two vectors with lengths $|\vec{E}|$ and $|d\vec{A}|$ separated by angle $\theta$, $\vec{E}\cdot d\vec{A}=|\vec{E}||d\vec{A}|\cos \theta .$

Why cosine, and not something else? Because $\cos \theta$ is precisely the "how much do these two arrows agree in direction" factor:

• $\theta =0^{\circ }$ (field pokes straight through): $\cos 0=1$ → full contribution $|\vec{E}||d\vec{A}|$.
• $\theta =90^{\circ }$ (field slides sideways along the patch): $\cos 90^{\circ }=0$ → nothing passes through.
• $\theta =180^{\circ }$ (field pokes inward): $\cos 180^{\circ }=-1$ → counts negative (leaking in, not out).

Why the topic needs it: The dot product is the tool that converts "an arrow and a facing patch" into one honest number of arrows-through. Without it, "flux" is undefined.

5. Adding up all the patches: ${\oint }_S$ (the closed-surface integral)

One patch gives one small number $\vec{E}\cdot d\vec{A}$. The whole bag is millions of patches. To get the total, we add every patch's contribution. Because the patches are infinitely small and infinitely many, this sum is an integral, written with $\int$.

The little circle on $\oint$ means the surface is closed — a complete sealed bag with no holes, so "inside" and "outside" are well defined. The subscript $S$ names which surface. Read ${\oint }_S$ as: "sum $\vec{E}\cdot d\vec{A}$ over every patch of the closed surface $S$."

Why the topic needs it: The left side of Gauss's law is this integral. Everything above (vectors, dot product, area vector, closed surface) exists so this one symbol means something.

6. What sits inside: $Q_{\text{enc}}$

$Q_{\text{enc}}$ is the total charge enclosed — the algebraic sum of all charge inside the bag $S$. "Algebraic" means add positives, subtract negatives: two $+3\text{C}$ and one $-1\text{C}$ inside give $Q_{\text{enc}}=+5\text{C}$.

Charges outside the bag are not included in $Q_{\text{enc}}$ — even though they still tug on $\vec{E}$ everywhere. (That subtlety is the parent note's first "common mistake.")

7. The conversion constant: ${\epsilon }_0$

Flux is measured in field-times-area units; charge is measured in coulombs. To make the two sides of the law balance, we need a conversion number. That number is ${\epsilon }_0$, the permittivity of free space (read "epsilon-nought") — a fixed property of empty space that sets the strength of electric effects.

Why the topic needs it: Without ${\epsilon }_0$ the units on the two sides of $\oint \vec{E}\cdot d\vec{A}=Q_{\text{enc}}/{\epsilon }_0$ wouldn't match. It's the exchange rate between charge and flux.

8. Symmetry — the word that makes the law usable

The law is always true, but you can only solve it for $\vec{E}$ when the charge is arranged so tidily that $\vec{E}$ has the same magnitude everywhere on a well-chosen surface and either pokes straight through or slides sideways. That tidiness is symmetry: an arrangement that looks the same after some move (rotate a sphere, slide along a line, reflect a plane). See Symmetry in physics.

Why the topic needs it: Symmetry is what lets you pull $|\vec{E}|$ out of the integral, turning $\oint$ into a plain multiplication. Also relevant: Electric field of conductors (fields inside metals vanish), and the deeper local version via the Divergence theorem, part of Maxwell's equations.

Prerequisite map

Equipment checklist

Test yourself — you're ready for the parent topic when each reveal feels obvious.
