Electric field of point charge, dipole, ring, disk, line charge (Gauss's law): Visual walkthrough

Prerequisites we will lean on (all built here anyway): Coulomb's law for one point charge, Flux and field lines for the picture of "arrows pointing away," and the parent's rule of superposition.

Step 1 — Draw the one thing we already trust: a single point charge

WHAT. Before a ring, look at a single speck of positive charge sitting alone in space. It pushes a tiny test speck away from itself. The push has a strength (how hard) and a direction (straight away). We draw that as an arrow.

WHY. Every complicated field is a sum of these single-speck arrows. If we cannot draw one arrow correctly, we cannot add a thousand of them. So we pin down the one-speck rule first.

PICTURE. In the figure, the purple dot is our charge $q$ . The coral arrow is the field it makes at a point a distance $r$ away.

Figure — Electric field of point charge, dipole, ring, disk, line charge (Gauss's law)

That word "direction" is the whole game. Keep it in view.

Step 2 — Set the stage: a ring, a point on its axis, one chosen piece

WHAT. Now bend a lot of charge into a circular hoop of radius $R$ , carrying total charge $Q$ . Stand at a point $P$ on the axis — the straight line through the center, perpendicular to the ring's plane — a distance $x$ from the center. Pick one tiny piece of the hoop and call its charge $d q$ .

WHY. The axis is a magic vantage point: from there, every piece of the ring looks symmetrically placed. That symmetry is what will save us from a monstrous integral. We choose one piece $d q$ because Step 1 already tells us its field — we just have to add up all such pieces.

PICTURE. The mint circle is the ring. The purple line is the axis. The chosen speck $d q$ sits on the rim; the dashed slate line is the straight-line distance $r$ from that speck to $P$ .

Step 3 — Every speck fires a slanted arrow. Split it into two honest pieces

WHAT. By Step 1, our speck $d q$ makes a field at $P$ of magnitude $d E = \frac{k d q}{r ^{2}} = \frac{k d q}{R ^{2} + x ^{2}},$ pointing along that dashed line, slanting toward $P$ . A slanted arrow is awkward to add. So we split it into two perpendicular pieces: one along the axis ( $d E_{x}$ ) and one perpendicular to the axis ( $d E_{⊥}$ ), pointing sideways.

WHY. Adding arrows is only easy when they point along fixed directions. Splitting each slanted arrow into "axial part" + "sideways part" lets us add all the axial parts together and all the sideways parts together, separately. This is the core move of every superposition problem.

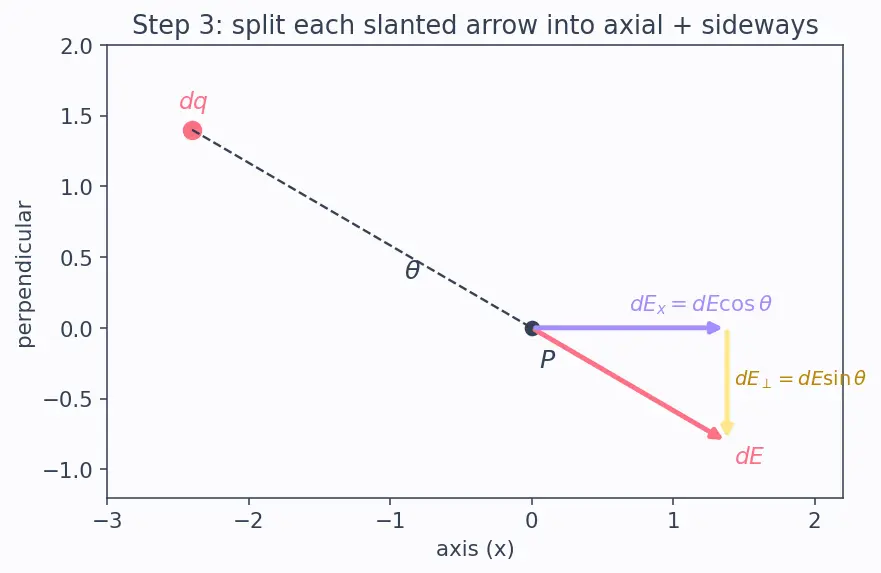

PICTURE. The coral arrow is the full slanted field $d E$ . The lavender arrow is its axial share $d E_{x}$ ; the butter arrow is its sideways share $d E_{⊥}$ . The angle $θ$ between the dashed line $r$ and the axis controls the split.

Step 4 — The sideways arrows cancel. Watch them die in pairs

WHAT. For our chosen speck, there is a speck diametrically opposite it on the ring. Its axial arrow points the same way (forward, toward $P$ 's side), but its sideways arrow points in the exact opposite sideways direction. The two sideways arrows are equal and opposite — they sum to zero.

WHY. This is why the axis is magic. Pair up every speck with its mirror across the ring; each pair's sideways contributions annihilate. After pairing the whole ring, not one scrap of sideways field survives. Only the axial parts remain — and they all point the same way, so they reinforce. We just deleted half the problem using symmetry.

PICTURE. Two opposite specks (mint dots), their two slanted arrows, and the butter sideways components pointing left/right — clearly equal and opposite — while the lavender axial components both point right.

Recall Why does the sideways field vanish?

Because every speck has a partner across the ring whose sideways push exactly opposes it ::: their perpendicular components cancel in pairs, leaving only the axial component.

Step 5 — Add all the axial parts. The lucky constant that pulls out

WHAT. Only the axial component survives, so the total field is $E_{x} = \int d E_{x} = \int d E cos θ = \int \frac{k d q}{R ^{2} + x ^{2}} \cdot \frac{x}{R ^{2} + x ^{2}} .$ Now the miracle: $R$ , $x$ , and therefore the whole factor $\frac{k x}{( R ^{2} + x ^{2} ) ^{3/2}}$ are the same for every speck — they do not depend on which speck we chose. Constants slide out of an integral: $E_{x} = \frac{k x}{( R ^{2} + x ^{2} ) ^{3/2}} \int d q .$

WHY. An integral $\int (stuff) d q$ only becomes trivial if "stuff" is constant. Here it is, thanks to the equal-distance and equal-angle facts from Steps 2–3. The leftover $\int d q$ just means "add up every pinch of charge," which is the whole charge $Q$ .

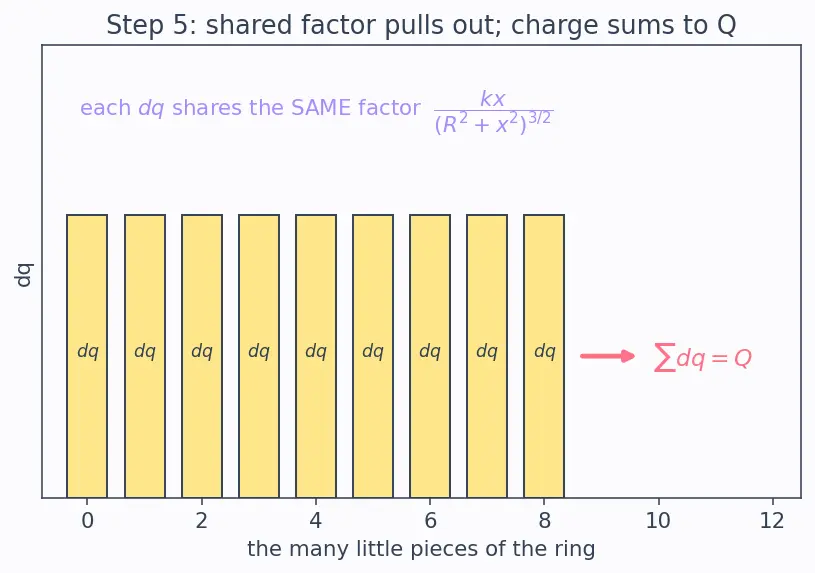

PICTURE. A bar-chart-style stack showing many tiny equal $d q$ pieces summing to $Q$ , each multiplied by the identical geometric factor — visually, one shared factor times a growing pile.

Step 6 — Edge case A: stand at the exact center ( $x = 0$ )

WHAT. Put $P$ at the ring's center: $x = 0$ . The formula gives $E_{r in g} = \frac{k Q \cdot 0}{( R ^{2} + 0 ) ^{3/2}} = 0.$

WHY. At the center you are equidistant from all the charge and every speck's arrow points radially inward-or-outward in the ring's plane; they cancel in all directions, not just sideways. The $x$ in the numerator encodes exactly this: no axial preference means no field.

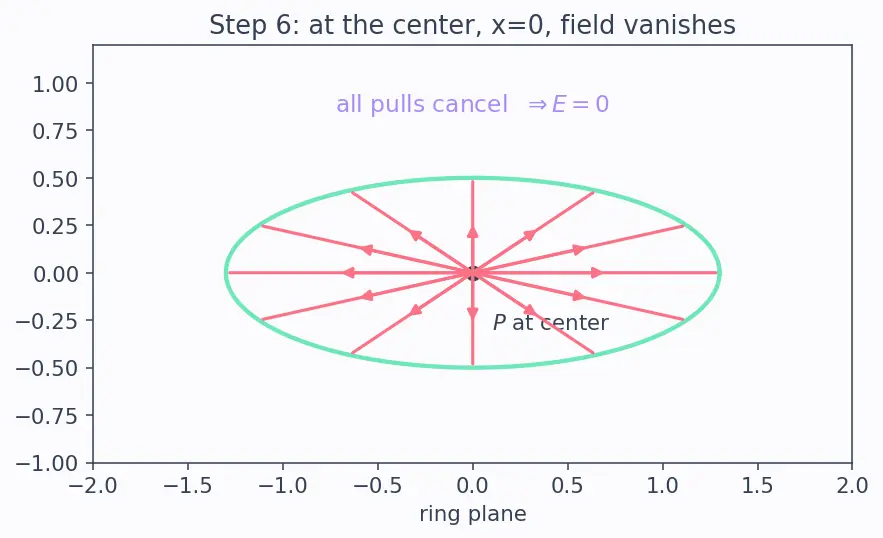

PICTURE. $P$ at center with arrows from all around pointing symmetrically outward — a starburst that sums to nothing.

Step 7 — Edge case B: stand very far away ( $x ≫ R$ )

WHAT. When $x$ is huge compared to $R$ , the $R^{2}$ inside the bracket is negligible, so $(R^{2} + x^{2})^{3/2} \to x^{3}$ : $E_{r in g} \to \frac{k Q x}{x ^{3}} = \frac{k Q}{x ^{2}} .$

WHY. From far enough away, the ring's shape stops mattering — it looks like a single dot holding charge $Q$ . Recovering the point-charge law $k Q / x^{2}$ is the sanity check that our whole derivation is honest. Any correct extended-charge formula must reduce to a point charge at large distance.

PICTURE. The ring shrinking to a dot as $P$ recedes, its field arrow matching the plain Coulomb arrow of Step 1.

Step 8 — Edge case C: where is the field strongest? ( $x = \pm R / 2$ )

WHAT. The field is zero at the center and zero far away, so somewhere in between it peaks. Setting $\frac{d E _{r in g}}{d x} = 0$ gives the peak at $x = \pm \frac{R}{2} .$

WHY. We use the derivative because "maximum" means "the slope of $E$ versus $x$ is momentarily flat." Between two zeros, a smooth positive curve must have a highest point, and calculus locates it. The two signs $\pm$ say the ring's field is mirror-symmetric on both sides of its plane.

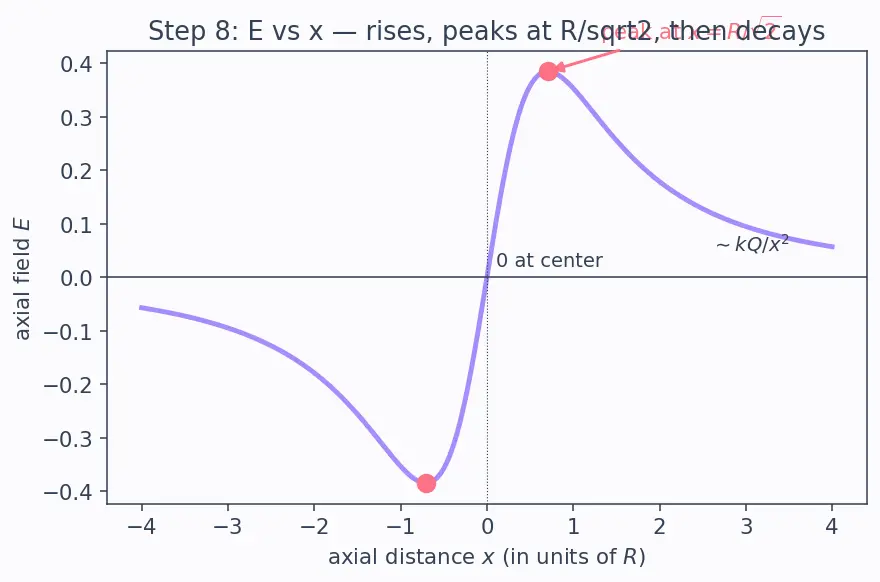

PICTURE. The full curve $E$ vs $x$ : rising from $0$ at the center, peaking at $x = R / 2$ , then decaying like $1/ x^{2}$ — with the peak marked.

Recall At what axial distance is the ring's field maximal?

Solve $d E / d x = 0$ ::: at $x = \pm R / 2$ , where the field reaches its peak between the center-zero and the far-field decay.

The one-picture summary

Every arrow slants; split each into axial (survives) and sideways (cancels in pairs); all survivors share one geometric factor, so they pull out and multiply the total charge $Q$ . The result rises from zero, peaks at $R / 2$ , and fades into a point charge.

Recall Feynman retelling — say it in plain words

Picture a hula-hoop of charge and you're floating on the pole through its middle. Every little bead on the hoop shoves your test charge along a slanted line toward you. Split each shove into "forward-along-the-pole" and "sideways." Now here's the trick: every bead has a twin on the far side of the hoop, and their sideways shoves are equal and opposite — they wipe each other out. All that's left is the forward shoves, and since every bead sits the same distance and the same slant from you, they all get multiplied by the same number. So you just add up all the charge into one big $Q$ and multiply once. That gives $E = \frac{k Q x}{( R ^{2} + x ^{2} ) ^{3/2}}$ . Stand at the dead center and the forward part is zero (no forward direction is special) so the field vanishes. Float way out and the hoop looks like a dot, so you get back plain old $k Q / x^{2}$ . In between, the field is strongest at $x = R / 2$ . That's the whole story — split, cancel, add, check the ends.

Related builds using this exact machinery: the disk stacks rings, the dipole pairs two point charges, and where symmetry is even kinder we skip integration entirely with Gauss's law. For the energy view, see Electric potential.
