Foundations — Superposition principle for forces

This page assumes you have seen none of the notation in the parent note. We build every symbol, one at a time, each one earning its place before the next appears. By the end you will be able to read the parent's boxed formula out loud and know what every piece means.

1. Charge — the symbol $q$

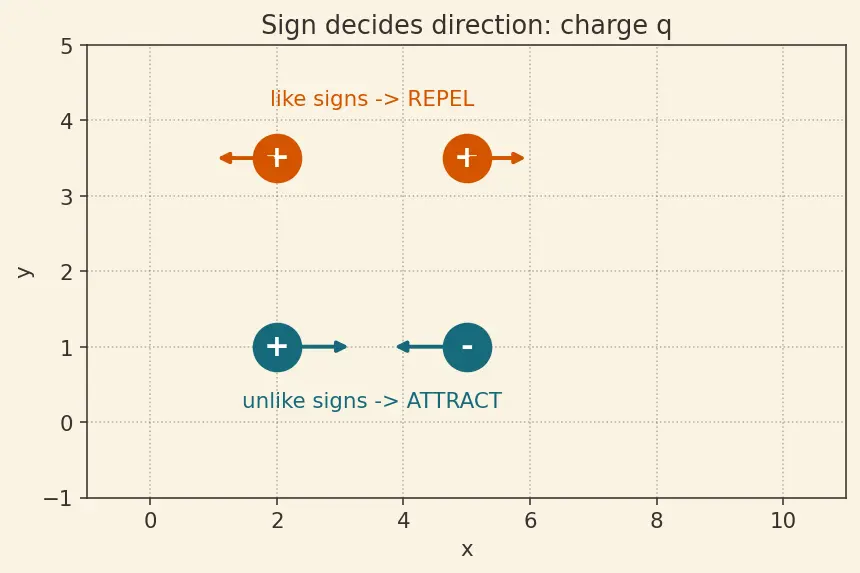

The sign is not decoration — it decides direction:

• Two like signs $(+,+)$ or $(-,-)$ → they repel (push apart).
• Two unlike signs $(+,-)$ → they attract (pull together).

We measure charge in coulombs (symbol C). Real problems use tiny amounts, so you will constantly see the microcoulomb: $1\mu C=1\times 10^{-6}\text{C}$ The Greek letter $\mu$ ("mu") just means "millionth". Whenever you see $\mu C$, mentally attach $\times 10^{-6}$.

Why the topic needs it: superposition is a statement about many charges acting on one target charge. We label the target $q_0$ (the "zero-th", the one we care about) and the sources $q_1,q_2,\dots ,q_n$. The little numbers underneath — the subscripts — are just name tags, not multiplication.

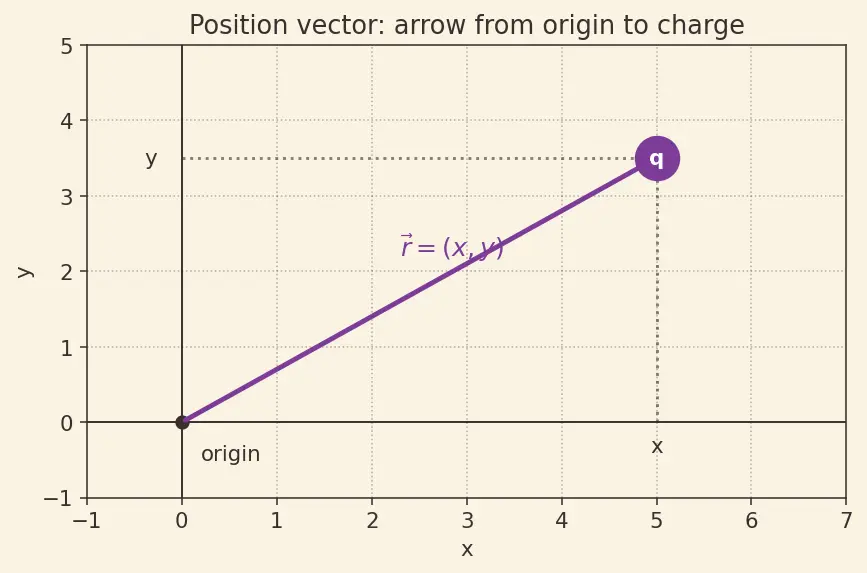

2. Position — the symbol $\vec{r}$ and what the little arrow means

To say where a charge sits, we need a location. In 2-D we give it two numbers: how far right ($x$) and how far up ($y$).

• ${\vec{r}}_0=(x_0,y_0)$ is where the target $q_0$ sits.
• ${\vec{r}}_i=(x_i,y_i)$ is where source $q_i$ sits.

Why the topic needs it: Coulomb's law depends on how far apart two charges are and in which direction one lies from the other. Positions give us both. Without $\vec{r}$ we could not build the separation between charges.

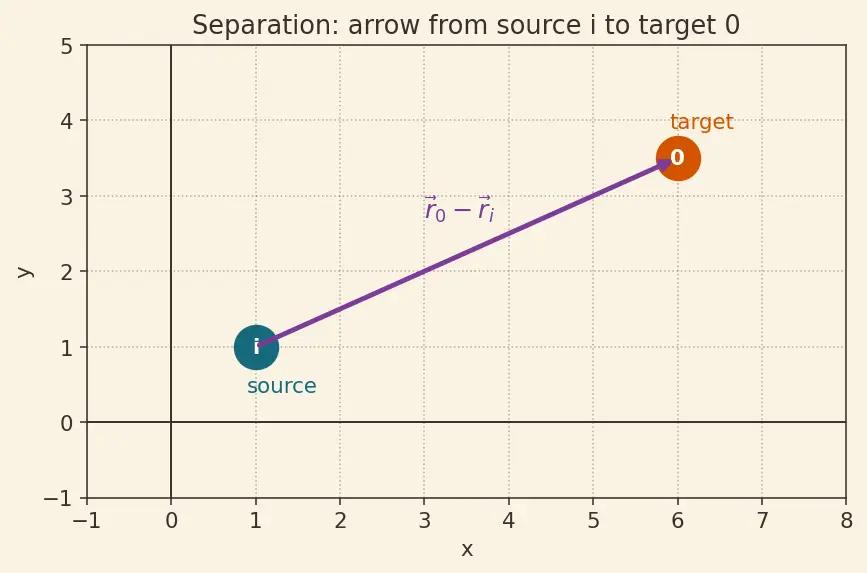

3. Separation — subtracting positions, ${\vec{r}}_0-{\vec{r}}_i$

To go from source $i$ to target $0$, you subtract arrows tip-to-tail:

Subtracting vectors means subtracting each coordinate separately.

What it looks like: stand at source $i$, look toward target $0$ — the separation vector is exactly that line of sight, pointing at $q_0$.

Why the topic needs it: the force on $q_0$ must point along this line. Repulsion pushes $q_0$ away from the source (i.e. along ${\vec{r}}_0-{\vec{r}}_i$); attraction pulls it toward the source (opposite way). Getting this arrow right is why the parent could handle direction "by geometry, not by hand".

4. Distance — the symbol $|{\vec{r}}_0-{\vec{r}}_i|$ and $r$

The length of the separation arrow is the plain distance between the two charges. The two bars $|\cdot |$ mean "length of":

Why the square root of squares? The separation arrow is the hypotenuse of a right triangle whose legs are the horizontal gap $(x_0-x_i)$ and vertical gap $(y_0-y_i)$. Pythagoras gives the hypotenuse. That is the whole reason $\sqrt{\cdots }$ appears.

Why the topic needs it: Coulomb's law weakens with distance as $1/r^2$. No distance, no force strength.

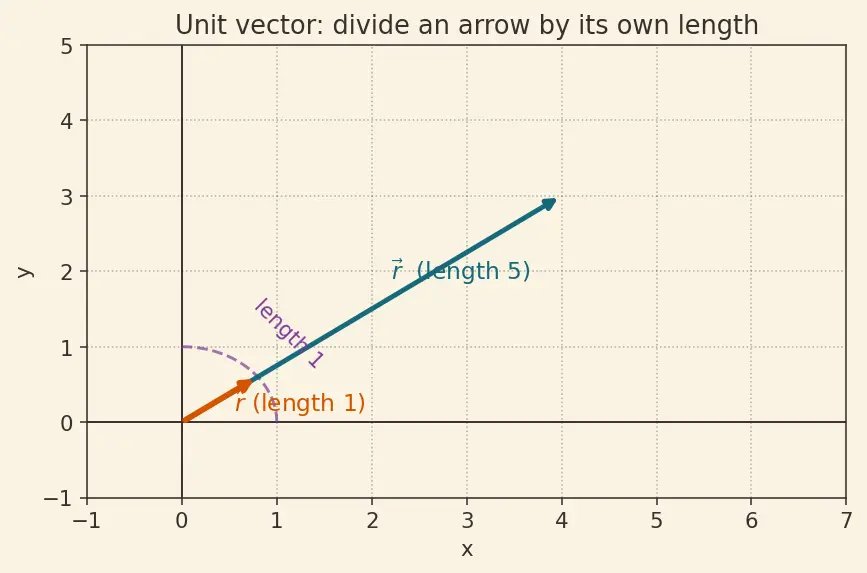

5. The unit vector — $\hat{r}$, a pure "which-way" arrow

Sometimes we want direction only, with the length stripped off. We take an arrow and shrink it to length exactly $1$:

Why divide? Splitting force into "how strong" $\times$ "which way" keeps the two ideas clean. The number $\frac{k{q}_0{q}_i}{r^2}$ answers how strong; the hat ${\hat{r}}_{0i}$ answers which way.

6. The constant — $k$ and $\frac{1}{4\pi {\epsilon }_0}$

Why the topic needs it: it converts "charges and distances" into an actual force in newtons. It is the exchange rate between geometry and force.

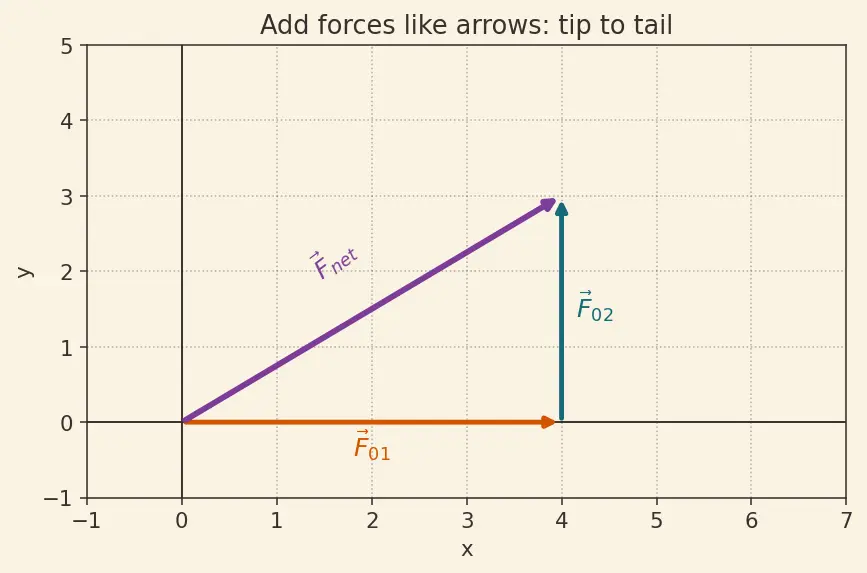

7. Force as a vector — $\vec{F}$, and adding forces

Two forces on the same charge add like arrows, tip-to-tail:

Why arrows, not numbers? A push north and a push east do not combine into a bigger north-push. They combine into a north-east push at reduced total. Only arrows capture this. This is the single most important reason superposition is a vector law. (See Vector Addition and Resolution for the full engine.)

8. Components — turning arrows into safe numbers

You cannot add arrows that point different ways just by adding their lengths. The trick: break each arrow into its shadow on the $x$-axis and its shadow on the $y$-axis, add those shadows separately, then rebuild.

Here $\cos \theta$ ("cosine") is the fraction of the arrow that lies along $x$ (the adjacent side over the hypotenuse of the force's own right triangle), and $\sin \theta$ ("sine") is the fraction up $y$. The angle $\varphi$ ("phi") of the total is recovered by $\arctan$ — the "which angle has this ratio of up-to-across?" function. Full quadrant care for $\arctan$ lives in Vector Addition and Resolution.

Why the topic needs it: every 2-D superposition problem ends here. Components are the only honest way to combine non-collinear forces.

9. The summation symbol — $\sum$

Why the topic needs it: with 3 charges you could write every term. With 100 charges you can't. $\sum$ says "add them all" in one clean symbol, and it is the bridge to the integral $\int d\vec{F}$ used in Continuous Charge Distributions.

How these feed the topic

Read it top-down: charge and position are the raw ingredients; they build the separation, distance, and direction; those plus the constant make one pair's Coulomb force; forces are arrows, so we resolve and sum — and that sum is the superposition principle of the parent topic.

Equipment checklist

Cover the answer and test yourself. If you can state each, you are ready for the parent note.

Connections

• Parent: Superposition principle for forces — where these symbols are put to work.
• Coulomb's Law — the one-pair force these foundations assemble.
• Vector Addition and Resolution — deep dive on arrows, components, and $\arctan$ quadrants.
• Electric Field — the same symbols, one $q_0$ divided out.
• Continuous Charge Distributions — where $\sum$ becomes $\int$.
