Foundations — Latent heat — phase transitions

This page builds every symbol and idea the parent note leans on, starting from things a curious 12-year-old already knows. Read top to bottom: each block only uses words defined above it.

1. Mass — the symbol $m$

Picture it: a pile of identical marbles. More marbles = more mass. Every marble is one molecule.

Why the topic needs it: heat needed always scales with how much you are heating. Melt twice the ice, spend twice the energy. $m$ is the "amount" dial on every formula below.

2. Temperature — the symbol $T$ and the change $\Delta T$

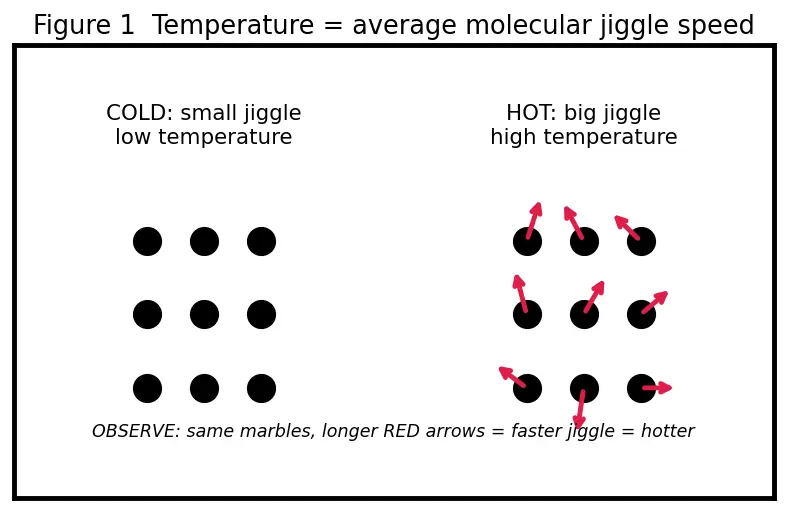

Picture it (Figure 1): the same marbles, but now shaking. Cold = tiny shakes; hot = wild shakes.

Why the topic needs it: the parent note's whole story is "does $T$ change or not?" On the heating curve (which we plot in section 8) the rising parts are exactly where $\Delta T\ne 0$; the flat parts are where $\Delta T=0$. $\Delta$ lets us write that cleanly. See Kinetic theory of gases for the deeper link between molecular speed and $T$.

3. Heat — the symbol $Q$ and its sign

Picture it: energy pouring like water from a hot object into a cold one, always downhill (hot → cold).

Why the topic needs it: $Q$ is the quantity we compute in every worked example — "how much energy to melt / boil / warm this?" — and the sign tells us whether the substance is gaining or giving up that energy, which is exactly what calorimetry balances.

4. Kinetic vs potential energy — the two piggy banks

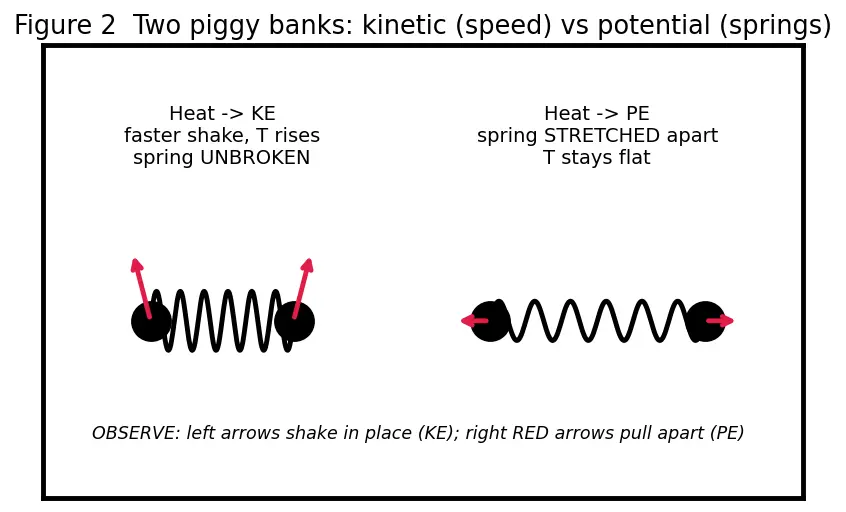

Picture it (Figure 2): molecules linked by tiny springs. Warming shakes the whole set (KE up). Melting/boiling stretches and snaps the springs (PE up), while the shaking speed stays the same.

Why the topic needs it: this two-bank picture is the reason phase changes happen at constant temperature — the single deepest "why" in the parent note.

5. Phase and phase change — solid, liquid, gas

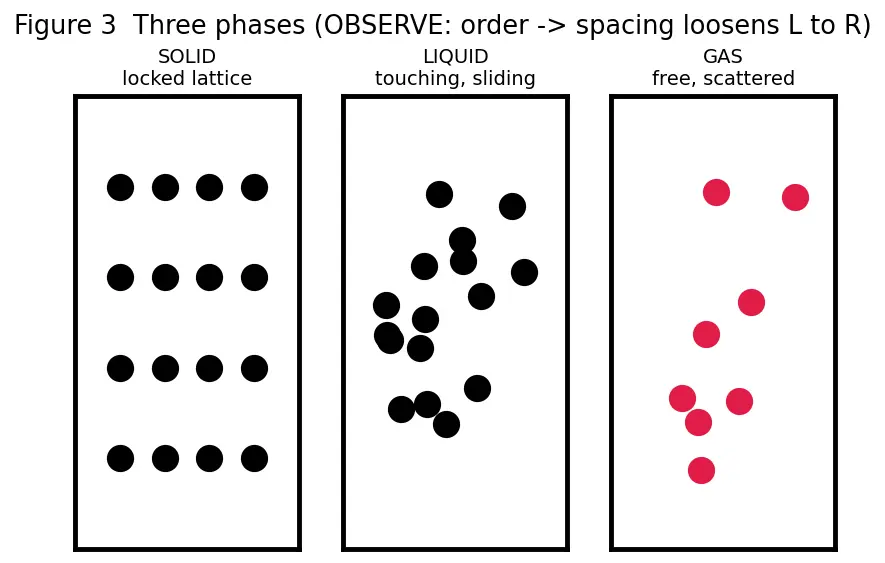

Picture it (Figure 3): three panels — locked grid → jostling blob → scattered dots.

Why the topic needs it: latent heat has one flavour per phase change. Fusion and vaporisation are the two you meet in every heating-curve problem; sublimation is the low-pressure edge case you must not forget. The surface-only version of vaporisation is Evaporation vs boiling.

6. Specific heat capacity — the symbol $c$

Read the formula aloud: heat $=$ (amount) $\times$ (how stubborn per kg) $\times$ (how much you raised the temperature). All three make it bigger.

Why the topic needs it: this is the formula for the rising parts of the heating curve — every region where the temperature is actually climbing. It is the partner of latent heat. Full details in Specific heat capacity.

7. Specific latent heat — the symbol $L$

Notice: no $\Delta T$ here! That is deliberate — during a phase change $\Delta T=0$, so $mc\Delta T$ would give $0$, which is nonsense. $L$ is what replaces it on the flat parts of the curve.

Why $L_v\gg L_f$: boiling snaps every spring and pushes back the atmosphere; melting only loosens the lattice. Far more energy for full separation. The atmosphere-pushing part is explained by First law of thermodynamics.

8. Putting the symbols together — the heating curve

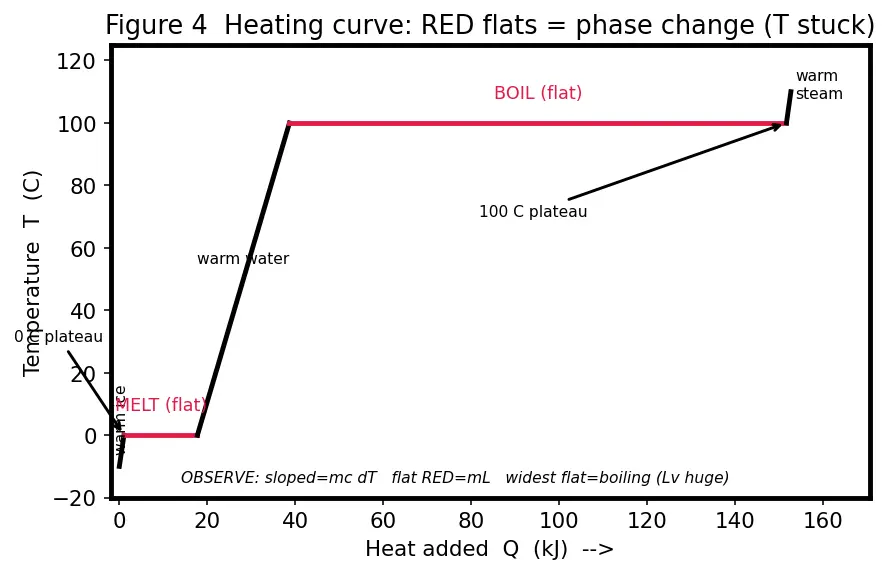

Now plot temperature (up) against heat added (across) as you steadily warm ice all the way to steam. This is the picture every symbol above was building toward.

With each segment's start and end temperature written in, the master formula reads plainly:

$Q_{\text{total}}=\underset{\text{ice: }-10°C\to 0°C}{\underbrace{m{c}_{\text{ice}}(0-(-10))}}+\underset{\text{melt at }0°C}{\underbrace{m{L}_f}}+\underset{\text{water: }0°C\to 100°C}{\underbrace{m{c}_{\text{water}}(100-0)}}+\underset{\text{boil at }100°C}{\underbrace{m{L}_v}}+\underset{\text{steam: }100°C\to 110°C}{\underbrace{m{c}_{\text{steam}}(110-100)}}$

Each $\Delta T$ is spelled out as (final − initial) so no step is a mystery. Every term here is $Q>0$ because we are heating throughout. Reverse the journey (cooling steam back to ice) and every term simply flips sign to $Q<0$ — heat leaving the substance.

Energy conservation — heat lost by one thing equals heat gained by another — is the extra idea behind mixing problems; see Calorimetry — method of mixtures.

Prerequisite map

Equipment checklist

Self-test: cover the right side and answer before revealing.

Connections

• Hinglish version of the parent →
• Specific heat capacity — the $c$ built in section 6.
• Kinetic theory of gases — why $T$ tracks molecular kinetic energy (section 2).
• Calorimetry — method of mixtures — energy conservation for the mixing example.
• Evaporation vs boiling — surface vaporisation still costs latent heat.
• First law of thermodynamics — the "push back the atmosphere" part of $L_v$.
• Phase diagrams — where fusion, vaporisation and sublimation live in $P$–$T$ space, and why $L$ depends on pressure.
