1.7.1Thermodynamics

Temperature — thermal equilibrium, thermometers, scales

2,366 words11 min readdifficulty · medium

WHY do we even need "temperature"?

WHAT problem are we solving? Our senses are liars. Touch a metal doorknob and a wooden door on a cold morning — the metal feels colder, yet both are at the same temperature. Metal just conducts heat out of your hand faster. So "hot/cold by feeling" cannot be a physical quantity.

WHY we need an objective definition: physics needs a number that (a) is the same for two systems that have stopped exchanging heat, and (b) tells us which way heat would flow if they weren't.


The Zeroth Law — the logical foundation

HOW this creates temperature: Equilibrium is an equivalence relation (reflexive, symmetric, transitive). All systems mutually in equilibrium form a class, and we attach one number — the temperature — to each class. The thermometer (CC) is just our standard reference system.


How a thermometer actually works

One-fixed-point modern definition (SI)

Since 2019/the Kelvin scale, we anchor to a single fixed point and the slope is fixed by definition: T=TtrXXtr,Ttr=273.16 K (triple point of water)T = T_{\text{tr}}\,\frac{X}{X_{\text{tr}}}, \qquad T_{\text{tr}} = 273.16\ \text{K (triple point of water)} This forces T0T \to 0 when X0X \to 0, i.e. an absolute zero.

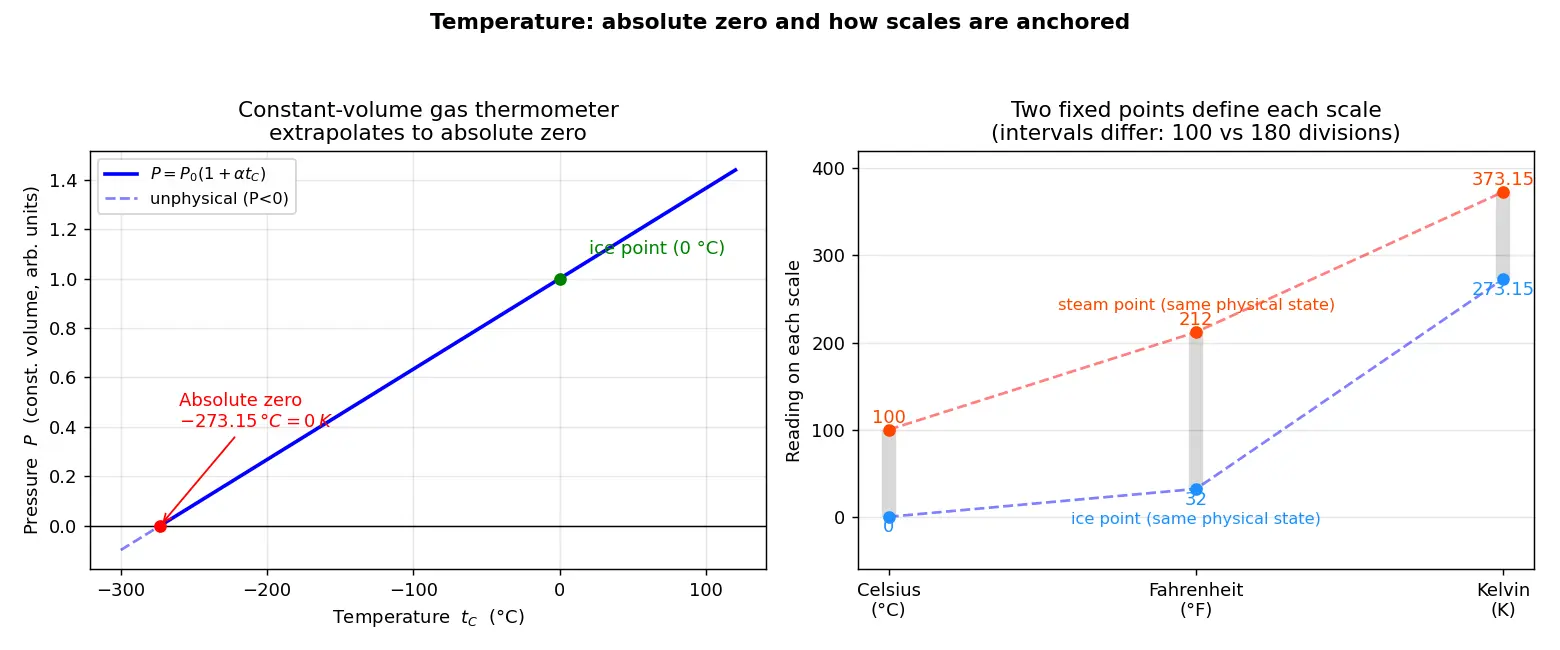

Figure — Temperature — thermal equilibrium, thermometers, scales

Temperature scales — and the conversions, derived

We use two fixed points: melting ice and boiling water (at 1 atm).

Scale Ice point Steam point Divisions
Celsius tC\,t_C 00 100100 100100
Fahrenheit tF\,t_F 3232 212212 180180
Kelvin T\,T 273.15273.15 373.15373.15 100100

The gas thermometer & absolute zero


Worked Examples


Common Mistakes (Steel-manned)


Recall Feynman: explain to a 12-year-old

Imagine two cups of water, one hot, one cold, joined by a metal spoon. Heat sneaks from the hot cup into the cold one through the spoon until both feel "the same warm" — then it stops. That "same warm" number is temperature. A thermometer is just a tiny thing (like a thread of mercury) that gets longer when warm; we make a ruler on it by marking two known points — ice melting and water boiling — and dividing the gap into equal steps. The Zeroth Law is the promise that if the thermometer matches your soup and matches your tea, then your soup and tea match each other too. And if you cool a gas down and down, its push (pressure) drops toward zero at 273.15-273.15 °C — you can't push less than nothing, so that's the coldest anything can ever be.


Flashcards

What single quantity determines the direction of net heat flow?
Temperature (heat flows hot → cold until equal temperatures).
Define thermal equilibrium.
State where two systems in thermal contact exchange no net heat and their macroscopic properties stop changing.
State the Zeroth Law of Thermodynamics.
If A is in thermal equilibrium with C and B is in equilibrium with C, then A is in equilibrium with B.
Why does the Zeroth Law justify thermometers?
It makes "in equilibrium with" transitive, so a thermometer (C) that agrees with two bodies guarantees they share the same temperature; temperature becomes a well-defined property.
What is a thermometric property? Give 3.
A property varying reproducibly with hotness — e.g. mercury column length, gas pressure (const. V), electrical resistance.
Convert Celsius to Fahrenheit.
tF=95tC+32t_F = \tfrac95 t_C + 32.
Convert Celsius to Kelvin.
T=tC+273.15T = t_C + 273.15.
At what temperature do Celsius and Fahrenheit coincide?
40°-40° (−40 °C = −40 °F).
For a temperature change, relate ΔT, Δt_C, Δt_F.
ΔT=ΔtC\Delta T = \Delta t_C and ΔtF=95ΔtC\Delta t_F = \tfrac95 \Delta t_C (offsets cancel).
Why is the constant-volume gas thermometer the standard?
All dilute (ideal) gases behave identically at low pressure, so they agree on temperature, unlike different liquids.
How is absolute zero derived from a gas thermometer?
Extrapolate P=P0(1+αtC)P=P_0(1+\alpha t_C) to P=0P=0, giving tC=1/α=273.15°C=0t_C = -1/\alpha = -273.15°C = 0 K.
Single-fixed-point Kelvin definition formula.
T=TtrXXtrT = T_{tr}\,\dfrac{X}{X_{tr}} with Ttr=273.16T_{tr}=273.16 K (triple point of water).
Why can't temperature go below absolute zero?
It corresponds to zero gas pressure; pressure cannot be negative, so 0 K is a hard lower limit.

Connections

Concept Map

motivates

defined via

means

is an

formalized by

guarantees

measured by

uses

assumed

needs

decides

is

Senses unreliable

Objective temperature

Thermal equilibrium

No net heat flow

Equivalence relation

Zeroth Law

Temperature as class label

Thermometer

Thermometric property X

Linear relation T=aX+b

Two fixed points

Temperature

Direction of heat flow

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, temperature ka matlab "kitni heat hai" nahi hota — ye galat soch hai. Temperature batata hai ki heat kis direction mein bahegi: hamesha garam se thande object ki taraf, jab tak dono ki "garmi same" na ho jaye. Jab heat ka net flow rukh jaata hai, us state ko thermal equilibrium kehte hain, aur tabhi dono ka temperature equal hota hai. Apni ungli ka bharosa mat karo — metal aur lakdi same temperature pe bhi alag-alag thande lagte hain kyunki metal heat tezi se kheech leta hai.

Zeroth Law ek simple si guarantee hai: agar thermometer A se match karta hai aur B se bhi match karta hai, to A aur B aapas mein bhi equal temperature pe honge — chahe A aur B kabhi mile bhi na ho. Isi guarantee ki wajah se thermometer kaam karta hai. Thermometer bas koi aisi property use karta hai jo garmi ke saath badle — jaise mercury ka length, ya gas ka pressure — aur usko hum linear maan ke do fixed points (ice melting = 0, water boiling = 100) se calibrate karte hain.

Scales yaad rakhna easy hai agar formula ratta na maaro, derive karo: dono scales linear hain, to ice se steam tak ka fraction same hona chahiye — isse seedha tF=95tC+32t_F = \frac95 t_C + 32 aur T=tC+273.15T = t_C + 273.15 nikal aata hai. Ek important baat: temperature ka difference convert karte waqt +32+32 ya +273.15+273.15 wala shift nahi lagta, sirf slope lagta hai (ΔtF=95ΔtC\Delta t_F = \frac95 \Delta t_C, ΔT=ΔtC\Delta T = \Delta t_C).

Gas thermometer sabse sacha hai kyunki saari dilute gases low pressure pe ek jaisa behave karti hain. Pressure ko constant volume pe ghatate jao, to 273.15°C-273.15°C pe pressure zero ho jaata — aur pressure negative ho hi nahi sakta, isliye yahi absolute zero = 0 K, sabse thanda possible point. Bas ye intuition pakad lo, exam ke saare numericals khud ban jaate hain.
