Visual walkthrough — Wave parameters — amplitude, wavelength, frequency, period, wave speed

We will build, in order: the two kinds of repetition → the meaning of $\lambda$ → the meaning of $T$ → the meaning of $f$ → watch a crest travel → measure its speed → assemble $v=f\lambda$ → check the strange cases (zero frequency, doubling frequency).

---

Step 1 — A wave is a pattern that repeats in TWO ways

WHAT. Before any symbol, look at a single frozen snapshot of a wave and, next to it, the story of one particle over time.

WHY. Every wave parameter is a name for one of these two repetitions (space or time) or for the size of the wiggle. If we don't separate "repeats in space" from "repeats in time," we will confuse wavelength with period — the classic error. So we split them from line one.

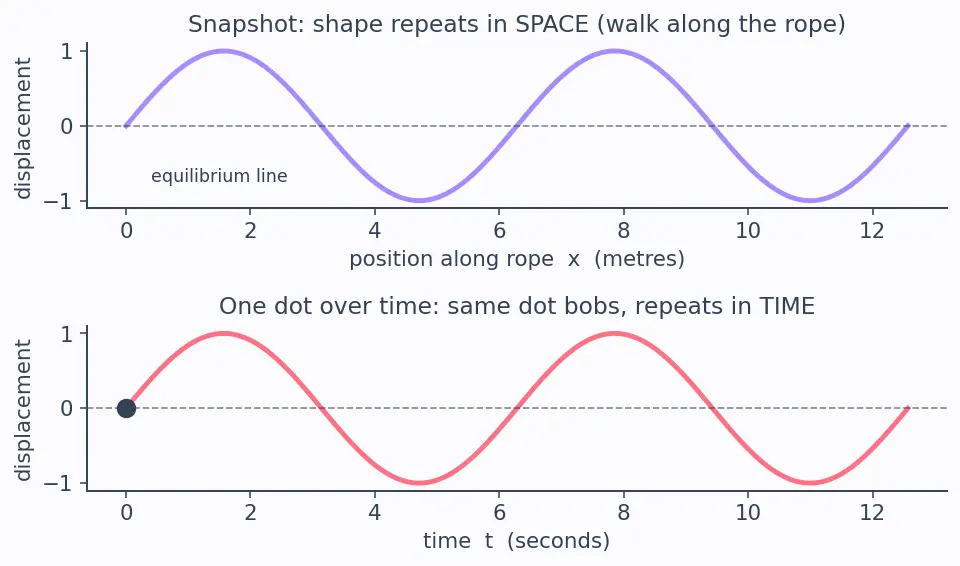

PICTURE. The top strip is a photograph of the whole rope at one instant: the shape repeats as you walk along the rope. The bottom strip is a video of one dot staying at one place while time flows: it bobs up and down, repeating in time.

---

Step 2 — Wavelength $\lambda$: the repeat-distance in SPACE

WHAT. Freeze time. Walk along the rope until the shape looks exactly the same as where you started — same height, same slope, heading the same way. The distance you walked is one wavelength.

WHY a distance, not a time? Because here we are moving our eyes through space along a frozen photo. Nothing is changing in time — the clock is stopped. So the natural thing to measure is a length, in metres.

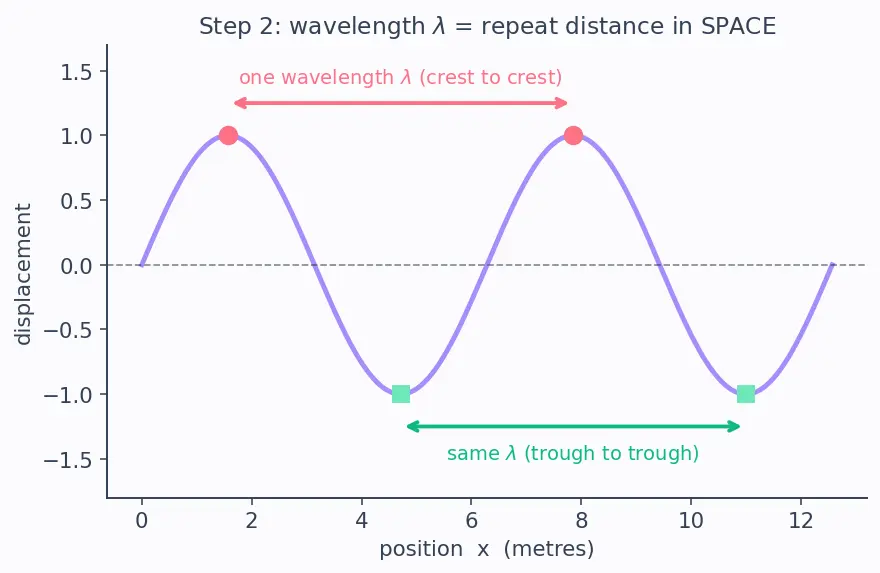

PICTURE. The red bracket runs crest-to-crest. That is the shortest full repeat. (Trough-to-trough gives the same length — the green bracket confirms it.)

---

Step 3 — Period $T$: the repeat-time for ONE particle

WHAT. Now do the opposite. Stop walking, stand over one particle, and start a stopwatch. The time until that particle returns to the same height moving the same way is one period.

WHY a time, not a distance? Here our eyes are fixed on one point in space; the only thing changing is the clock. So the natural measurement is a time, in seconds.

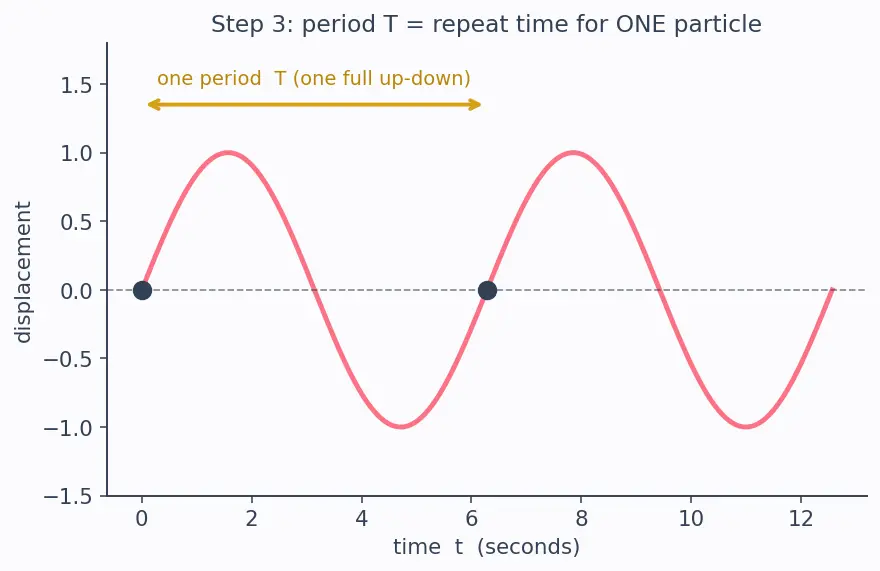

PICTURE. The single dot traces out an up-down curve as time runs left to right. The orange bracket marks one full cycle: up, down, back to start.

---

Step 4 — Frequency $f$: counting cycles per second

WHAT. Frequency is just "how many full bobs happen in one second."

WHY invert the period? Suppose one bob takes $T=0.25\text{s}$. Then inside a single second you fit $1÷0.25=4$ bobs. "Number of things in one second" is literally one second divided by the time for one thing. That is why:

$f=\frac{1}{T}$

Reading the symbols: $f$ (frequency) on the left is bobs per second; the $1$ on top is one second's worth of counting; $T$ underneath is seconds per bob. Dividing seconds-of-counting by seconds-per-bob leaves you with a pure count — bobs — per second.

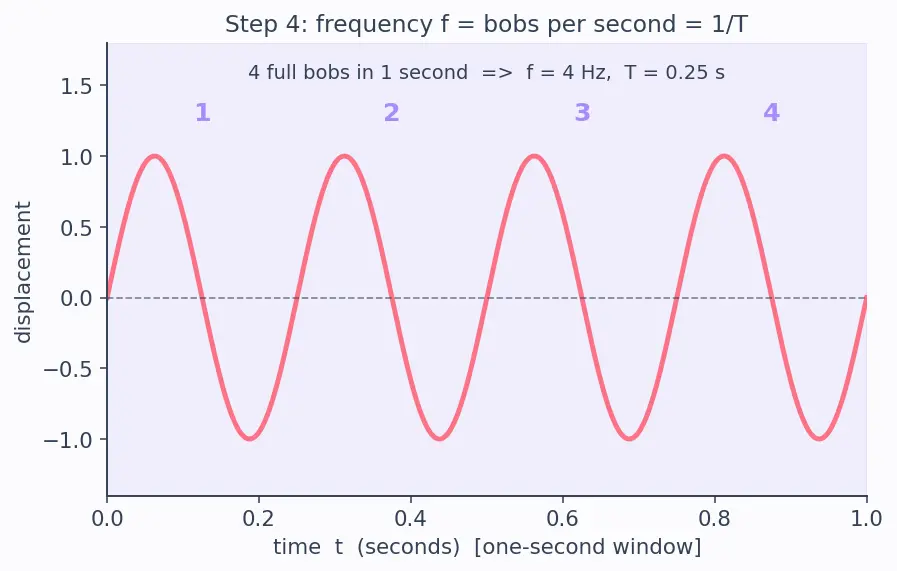

PICTURE. A one-second window laid over the particle's motion, with the whole bobs inside it tallied.

---

Step 5 — The key move: a crest is a TRAVELLER

WHAT. Now we un-freeze time and stop staring at one point. We follow a single crest as it moves along the rope. This is the heart of the derivation.

WHY this exact move? Speed always means "distance moved ÷ time taken." To get a speed we must watch something move. A crest is the perfect thing to track: it is a "point of fixed phase" — the top of the same hump — so its position at any instant is unambiguous.

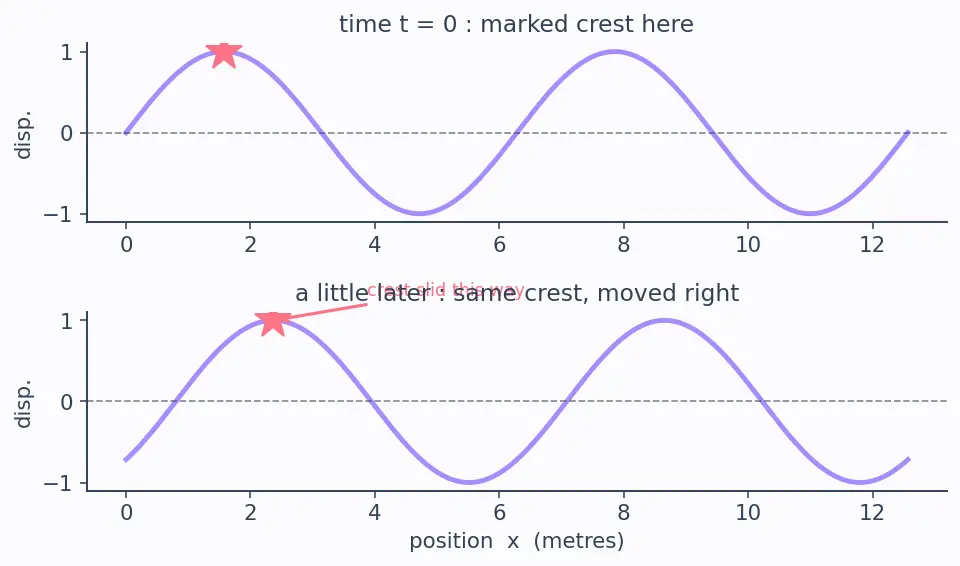

PICTURE. Two snapshots stacked: the same crest (marked with a coral star) at time $0$ and a little later. It has clearly slid to the right.

---

Step 6 — How far does the crest go in exactly one period?

WHAT. Let the stopwatch run for exactly one period $T$ while we watch the marked crest.

WHY the answer is $\lambda$. After one period, every particle has completed one full oscillation, so the entire wave shape looks identical to how it started — just slid along. The only way an identical shape can also be shifted is by a whole repeat-distance. The nearest place the pattern matches is one $\lambda$ downstream. So the crest that was at position $0$ is now sitting where the next crest used to be: it advanced exactly $\lambda$.

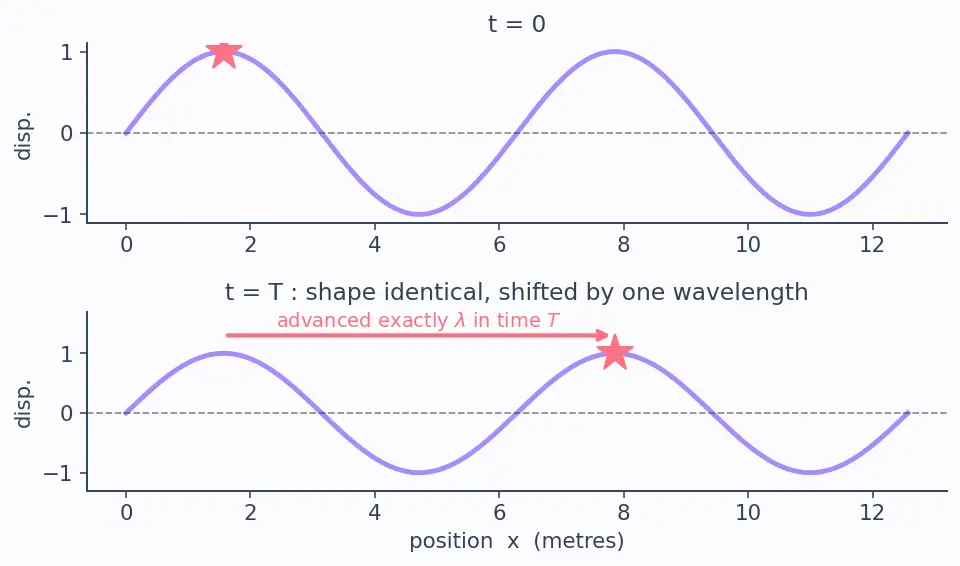

PICTURE. Top snapshot at $t=0$, bottom snapshot at $t=T$. The starred crest has moved forward by precisely the red $\lambda$-bracket from Step 2.

---

Step 7 — Assemble the speed: $v=\lambda /T=f\lambda$

WHAT. Plug the crest's journey into the speed definition.

WHY. We have both numbers now: in a time of $T$ the crest covered a distance of $\lambda$. Speed is distance over time, so:

$v=\frac{\text{distance travelled}}{\text{time taken}}=\frac{\lambda }{T}$

Term by term: $\lambda$ (top) is the metres the crest slid in Step 6; $T$ (bottom) is the seconds that took (one period, Step 3); their ratio is metres per second — a speed.

Now swap $1/T$ for $f$ (Step 4), because $\frac{\lambda }{T}=\lambda \cdot \frac{1}{T}=\lambda \cdot f$:

$\boxed{v=\frac{\lambda }{T}=f\lambda }$

Reading the boxed form: $f$ = bobs per second, $\lambda$ = metres per bob. Multiply — the "bobs" cancel — and you are left with metres per second: exactly a speed. The units themselves tell you the equation is built right.

PICTURE. A units-flow diagram: (metres/bob) × (bobs/second) → metres/second, with the "bobs" visibly cancelling.

---

Step 8 — The edge cases: what if $f$ is zero, or you double it?

WHAT. A derivation you can't stress-test is a derivation you don't trust. Two extremes:

Case A — $f=0$ (no shaking). Then $T=1/f$ blows up to infinity: the "period" is infinite because the particle never completes a cycle — it just sits still. And $v=f\lambda =0\cdot \lambda =0$: there is no travelling crest because there is no wave at all. The formula gracefully returns "nothing moves." ✓

Case B — you double $f$ in the same medium. Here is the subtle one. The speed $v$ is fixed by the medium (tension and density for a string — see Speed of Waves on a String). It does not care how fast your hand wiggles. So in $v=f\lambda$ the left side is nailed down; if $f$ doubles, $\lambda$ must halve to keep the product constant:

$\lambda =\frac{v}{f}\Rightarrow f\to 2f\text{ forces }\lambda \to \frac{\lambda }{2}.$

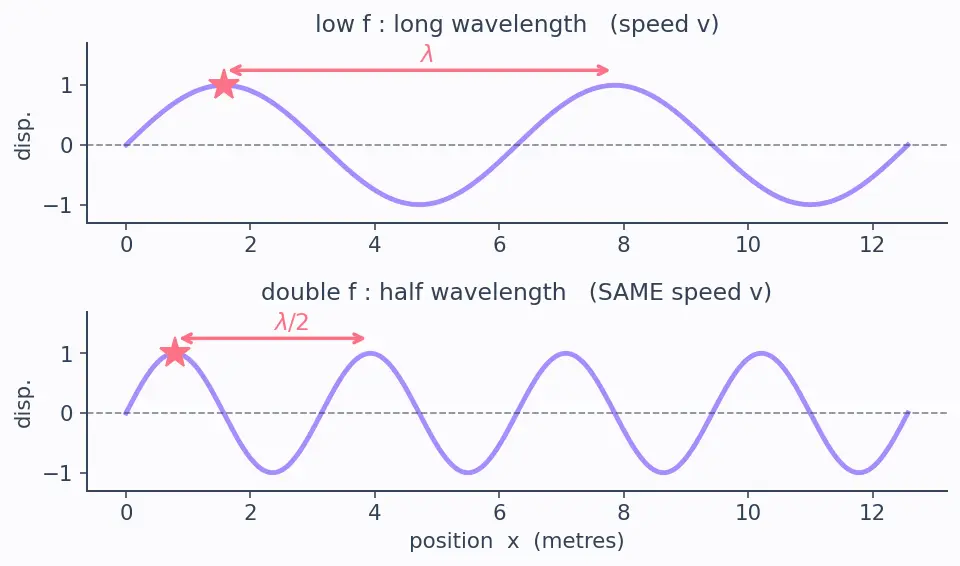

PICTURE. Same rope, same $v$: top shows low $f$ with long $\lambda$; bottom shows doubled $f$ with humps squeezed to half the length — but the marked crest still travels at the same speed $v$.

---

The one-picture summary

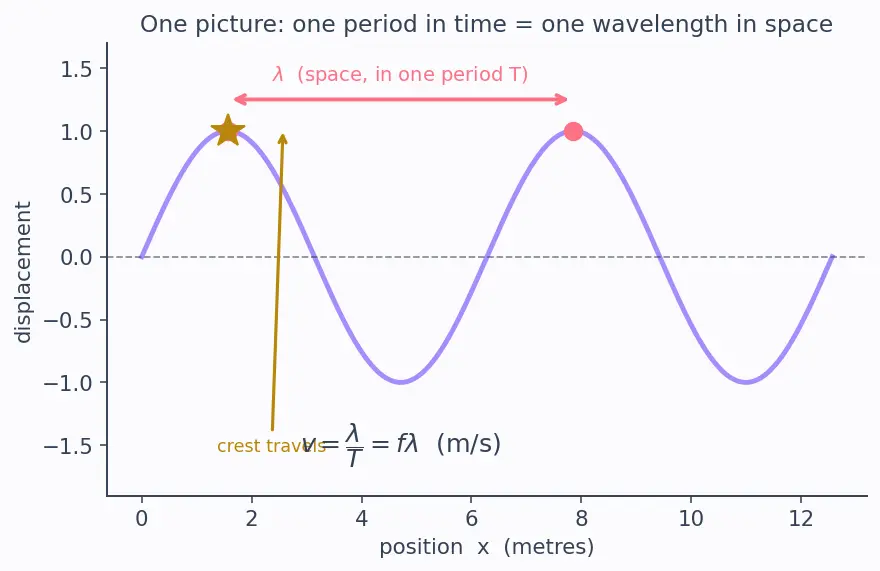

Everything on one canvas: the space-repeat $\lambda$ (red), the time-repeat $T$ (orange), one crest travelling $\lambda$ in one $T$, and the resulting $v=f\lambda$ with its units cancelling.

Recall Feynman retelling — the whole walkthrough in plain words

Picture a long rope. Freeze it: the humps repeat every so many metres — that gap is the wavelength $\lambda$. Now stare at one spot instead: it bobs up and down, and one full up-down takes some seconds — that's the period $T$. Count how many bobs happen in a single second and you've got the frequency $f$; since one bob takes $T$ seconds, you fit $1/T$ of them per second, so $f=1/T$. Here's the trick that ties it together: follow one hump. Wait exactly one period. In that time every particle has done one full bob, so the whole rope looks the same again — just shifted forward by one hump-spacing, one $\lambda$. So your hump travelled $\lambda$ metres in $T$ seconds. Speed is distance over time: $v=\lambda /T$, which is $f\lambda$. Each second you make $f$ humps, each $\lambda$ long, so $f\lambda$ metres of wave stream past — that's the speed. And it's the medium's speed: shake twice as fast and you just make the humps half as long, not the wave any quicker.

---
