Foundations — Velocity and acceleration in SHM — v = ω√(A² − x²)

This page builds the topic's every symbol from nothing — plain meaning, then a picture, then the reason the topic can't live without it. We introduce no letter before its own section. Read top to bottom; each block uses only what came before, and by the end you will assemble the target relation yourself.

1. The oscillation itself — what are we even watching?

Picture a small bead sliding back and forth along a straight groove. There is one special spot — the middle — that the bead keeps returning to. Everything in this topic is measured from that middle.

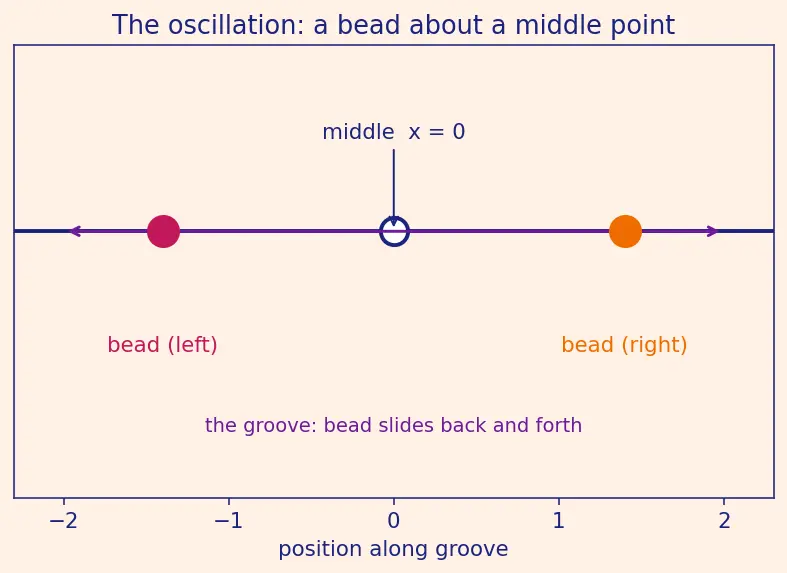

Look at the figure: the groove is horizontal, the middle is marked with a small circle, and the bead is shown once to the left and once to the right. The topic is the story of that bead's journey.

2. $x$ — displacement, the "where am I" number

Why the topic needs it: the whole point is to find speed and acceleration at a given place. Without a labelled position axis there is no "place" to talk about. Notice the sign already tells us direction, which we'll reuse for acceleration.

3. $A$ — amplitude, the "edge of the world"

The bead does not fly off forever; it swings out, slows, stops, and comes back. The farthest it ever reaches has a name.

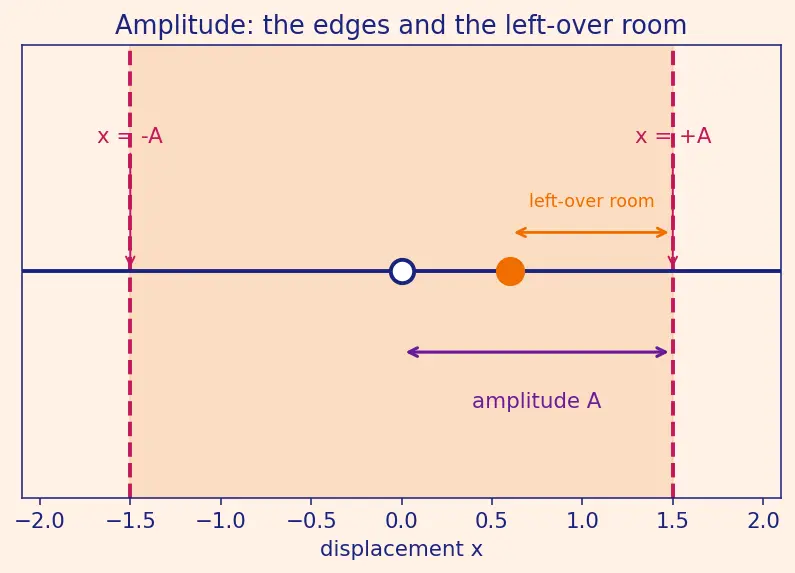

Look at the figure: the two turning points sit at $x=+A$ and $x=-A$. The shaded band between them is the entire territory the bead can occupy.

4. Turning space into a spinning circle — the reference circle

Here is the trick that makes SHM easy. Take a point moving steadily around a circle of radius $A$. Shine a light from the side and watch its shadow on the groove below. That shadow performs exactly SHM.

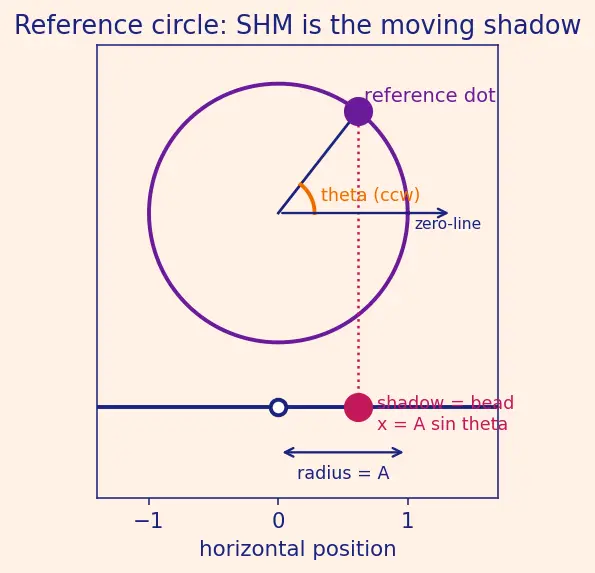

Look at the figure: the violet dot goes round the circle at constant speed. Its horizontal shadow (magenta) slides back and forth between $-A$ and $+A$ — the bead. The radius of the circle equals the amplitude $A$. This is the Reference circle (projection of uniform circular motion).

Why the topic needs it: it converts a back-and-forth motion (hard to describe) into a steady rotation (easy to describe with angles). Every symbol below is really an angle or a rate of turning on this circle.

5. Angle $\theta$, and the two functions $\sin \theta$ and $\cos \theta$

To say where on the circle the dot is, we need an angle — and a rule for reading off its coordinates.

Look again at the figure of Section 4: the orange arc is $\theta$, opening counter-clockwise from the right-pointing zero-line. Fixing this convention is what makes the next two definitions unambiguous.

6. $\omega$ — angular frequency, "how fast the circle spins"

The dot turns at a steady rate. That rate has a name.

Picture: a fast spinner (large $\omega$) makes the shadow rattle back and forth quickly; a slow spinner makes a lazy sway. $\omega$ sets the pace of the whole oscillation — see Angular frequency ω and time period T.

7. $\varphi$ — phase, "where the dot started"

Two beads can swing with the same $A$ and $\omega$ yet be out of step — one at the middle while the other is at the edge. What distinguishes them is their starting angle.

Picture: rotate the whole circle by $\varphi$ before starting the clock. This is the foundation of Phase and phase difference. If it confuses you now, set $\varphi =0$ everywhere — the bead simply starts at the middle moving outward.

8. $v$ — velocity, and the chain rule that gives it

Why the derivative? "Rate of change" is exactly what a derivative measures: how much $x$ moves in a whisker of time $dt$. No other tool gives instantaneous speed; average speed over a whole swing would hide the fact that the bead is fastest at the middle.

Here is where $\cos \theta$ from Section 5 does real work: the derivative of sine is cosine, so velocity naturally carries a cosine. This single line is what later lets us write $\cos \theta =\frac{v}{A\omega }$.

Picture on the circle: the shadow moves fastest when the dot crosses the top or bottom (its horizontal motion is greatest) — exactly when the shadow sits at the middle, $x=0$. So speed is maximum at the centre, zero at the edges.

9. $a$ — acceleration, derived by differentiating once more

Why a second derivative? Velocity itself is not constant in SHM — the bead speeds up toward the middle and slows toward the edges. To capture that changing-ness we differentiate the velocity of Section 8.

Why the minus sign matters: it says acceleration always points opposite to displacement — back toward the middle. That restoring behaviour is the definition of SHM. See Simple Harmonic Motion — definition a = −ω²x.

10. The Pythagorean identity — the bridge that removes time

We now have two equations that both hide the same angle $\theta =\omega t+\varphi$: $\sin \theta =\frac{x}{A}\text{(from Section 5)},\cos \theta =\frac{v}{A\omega }\text{(from Section 8)}.$ We want $v$ in terms of $x$ alone — with the hidden angle (and hence time) gone. The tool for that is the identity linking $\sin$ and $\cos$.

Picture: on the reference circle of radius $1$, a point has coordinates $(\cos \theta ,\sin \theta )$. Its distance from the centre is always $1$, and Pythagoras on that right triangle gives exactly ${\cos }^2\theta +{\sin }^2\theta =1$. This is Pythagorean identity sin² + cos² = 1.

11. Energy words — kinetic and potential (the see-saw)

The target relation is secretly energy book-keeping, so two more words:

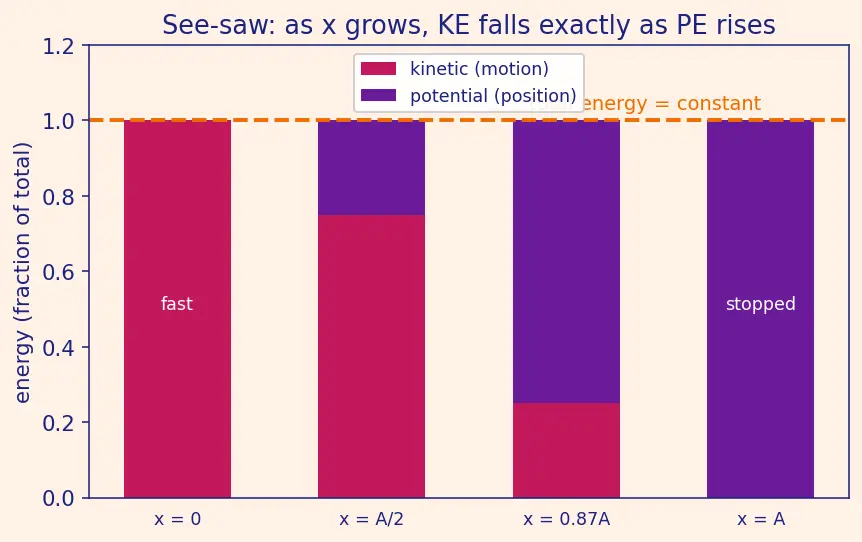

Look at the figure: as $x$ grows the potential bar rises and the kinetic bar falls by the same amount — a see-saw whose total height never changes. That constant total is precisely why $v$ shrinks exactly as $x$ grows, reproducing $v=\pm \omega \sqrt{A^2-x^2}$.

How these foundations feed the topic

Each arrow below just says "is needed before." Read it as a checklist of order: equilibrium → displacement → amplitude → circle → angle & its two functions → spin rate → phase → the two derivatives → the identity → the final relation, with energy as the parallel route.
