Friction — static (maximum), kinetic, rolling: Visual walkthrough

Step 1 — The cast of characters (what is even touching what?)

WHAT. A block of mass $m$ sits on a flat floor. Nothing moves yet. We draw every force acting on it — this is a free body diagram.

WHY. Before we can talk about friction, we must name the other forces, because friction only ever appears in response to them. You cannot describe a self-adjusting force without knowing what it is adjusting to.

PICTURE. Look at the four arrows.

Figure — Friction — static (maximum), kinetic, rolling

$m$ — the mass of the block (kilograms), a measure of "how much stuff."
$g$ — gravitational acceleration ( $\approx 10 m/s^{2}$ ), how fast gravity speeds up a free fall.
$m g$ — weight, pulling straight down. ( $m$ times $g$ : more mass or stronger gravity ⇒ heavier pull.)
$N$ — the normal force, the floor pushing straight up. "Normal" here means perpendicular to the surface, not "ordinary."

Step 2 — Start pushing gently: friction is born

WHAT. We now push horizontally with a force we call $F$ . The block still does not move. A new horizontal arrow appears, pointing back against our push — that is static friction $f_{s}$ .

WHY. By Newton's Second Law, if the block does not accelerate ( $a = 0$ ), the total sideways force must be zero. Our push $F$ points one way; something must exactly cancel it. That something is friction. It is forced into existence by the requirement "no motion."

PICTURE. Red is our push, mint is friction — same length, opposite direction.

Step 3 — The first slice of the graph: the diagonal

WHAT. Plot friction (vertical axis) against our push (horizontal axis). While the block stays still, $f_{s} = F$ , so the points lie on a 45° diagonal line through the origin.

WHY. Because we just proved $f_{s} = F$ in Step 2. If two quantities are always equal, plotting one against the other gives a line of slope $1$ . Every point on this diagonal is a moment where the block is politely refusing to move.

PICTURE. The lavender diagonal is the whole story so far.

Horizontal axis: applied push $F$ .
Vertical axis: friction force $f$ .
Diagonal ( $f = F$ ): the static regime. Slope $= 1$ means "friction copies the push."

But a line rising forever is impossible — no real surface can resist an infinite push. There must be a ceiling. That is Step 4.

Step 4 — Why there is a ceiling: $f_{s}^{ma x} = μ_{s} N$

WHAT. Static friction can only grow up to a maximum, called $f_{s}^{ma x}$ . Experiment tells us this maximum is proportional to how hard the surfaces are pressed together — the normal force $N$ .

WHY this specific form? Zoom into the contact. Real surfaces are rough: tiny ridges (asperities) touch and their atoms bond. To slide, you must snap these bonds. Press harder (bigger $N$ ) ⇒ more ridges flatten into contact ⇒ more bonds ⇒ more force needed. Doubling $N$ roughly doubles the bonds, so the relationship is linear: $f_{s}^{ma x} = μ_{s} N$

PICTURE. More press, more contact patches, more little springs to break.

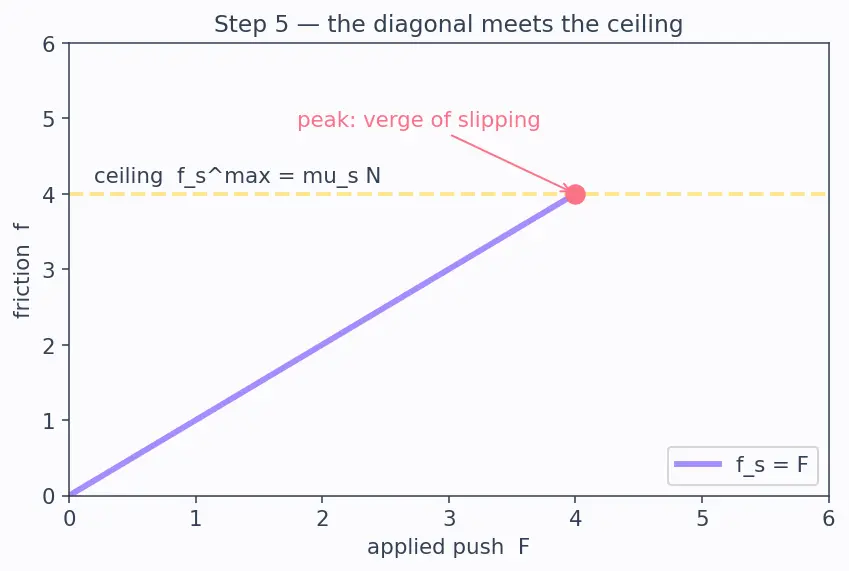

Step 5 — The peak: the verge of slipping

WHAT. Keep increasing $F$ . On the graph, the diagonal keeps rising until it hits the height $f_{s}^{ma x} = μ_{s} N$ . At that exact push, the block is on the verge of sliding — every bond is stretched to breaking.

WHY. As long as $F \leq μ_{s} N$ , friction can still match it (Step 2 balance holds). The instant $F$ tries to exceed $μ_{s} N$ , friction has no more to give. The balance $F - f_{s} = 0$ can no longer be satisfied with a stationary block, so motion must begin.

PICTURE. The diagonal meets the ceiling at a sharp peak — the coral dot.

Step 6 — The drop: kinetic friction takes over

WHAT. The moment the block breaks free and slides, a different law applies. Sliding friction — kinetic friction $f_{k}$ — is roughly constant and, crucially, smaller than the peak we just left: $f_{k} = μ_{k} N, μ_{k} < μ_{s}$

WHY smaller? When the surfaces are still, bonds have time to fully settle and mature — strong bonds, high ceiling. When sliding, each bond forms and is ripped apart before it matures — on average a weaker fraction resists. So the graph drops from the peak $μ_{s} N$ down to the flat plateau $μ_{k} N$ .

PICTURE. The sudden fall from peak to plateau — this is why a heavy box "jerks" the instant it breaks loose.

Peak height $μ_{s} N$ : the last static value.
Plateau height $μ_{k} N$ : constant kinetic value, flat because it does not depend on speed.
The gap between them: why starting is harder than continuing.

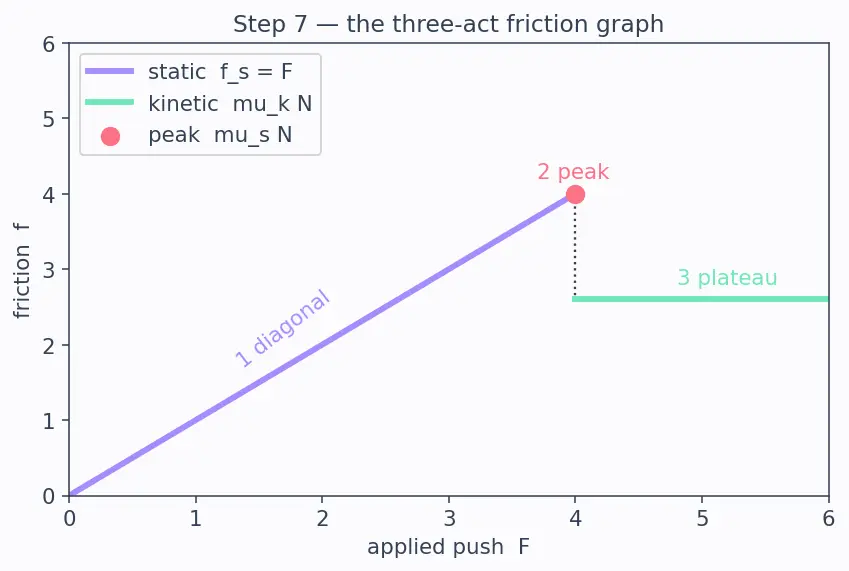

Step 7 — Reading the whole graph as a story

WHAT. Put Steps 3, 5, 6 together. The complete friction-vs-push curve has three acts.

WHY. Each act is a different physical regime we derived: matching, breaking, sliding. The graph is not arbitrary — every feature was forced by a physical law.

PICTURE. The full curve, colour-coded to the story.

Diagonal ( $F < μ_{s} N$ ): static, self-adjusting, $f_{s} = F$ .
Peak ( $F = μ_{s} N$ ): verge of slipping, ceiling reached.
Plateau ( $F > μ_{s} N$ ): kinetic, constant $f_{k} = μ_{k} N$ ; the extra push now goes into acceleration.

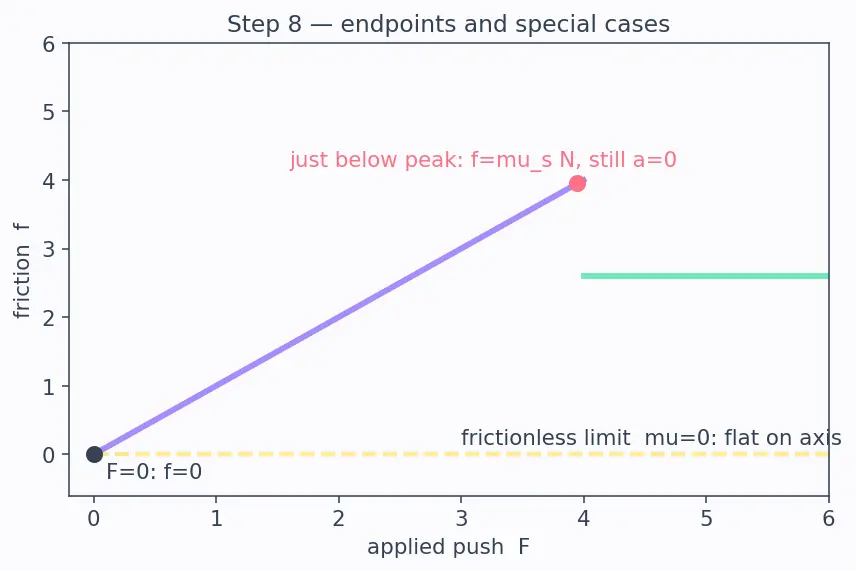

Step 8 — Edge & degenerate cases (do not get caught out)

WHAT. Check the graph's endpoints and special inputs.

WHY. A model is only trustworthy if it behaves sensibly at zero, at rest, and at the limits. The reader must never hit a case we skipped.

PICTURE. Four small scenarios along the same curve.

Zero push ( $F = 0$ ): origin of the graph. $f_{s} = 0$ — no push, no friction. Friction is not lurking with a value; it only answers a demand.
Just below peak ( $F = μ_{s} N^{-}$ ): $f_{s} = μ_{s} N$ but still not moving, $a = 0$ . The single point where " $f = μ_{s} N$ " and "static" are both true.
Exactly at peak: infinitesimal knife-edge; conventionally treated as the onset of slipping.
Frictionless limit ( $μ_{s} = μ_{k} = 0$ ): the diagonal is flat on the axis; any push at all accelerates the block. This is the smooth-surface idealisation used in many Inclined Plane Problems.

Worked example — reading the graph numerically

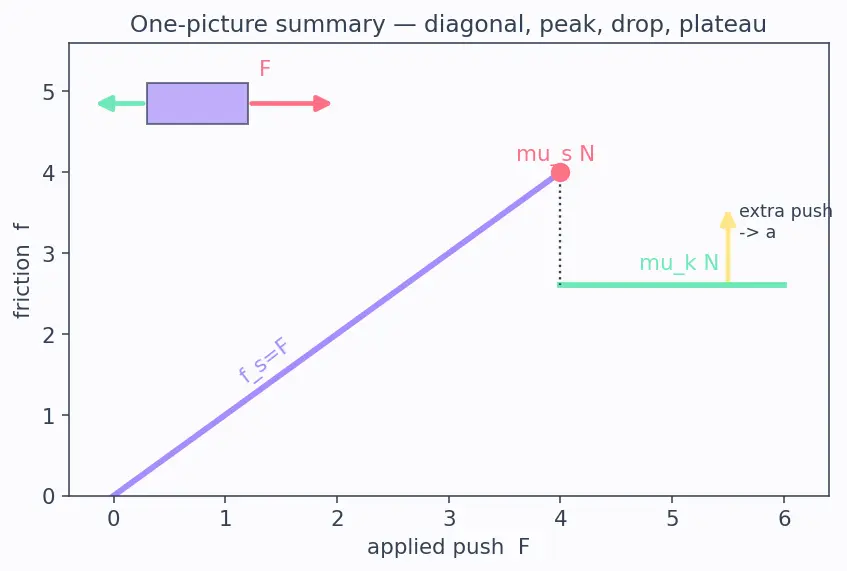

The one-picture summary

This final figure compresses all nine steps: the block with its forces, the rising diagonal $f_{s} = F$ , the peak at $μ_{s} N$ , the drop, and the flat kinetic plateau at $μ_{k} N$ — with the leftover-push-becomes-acceleration arrow at the far right.

Recall Feynman retelling — say it in plain words

Imagine leaning on a stuck box. At first friction just copies your push — you shove with ten, it shoves back with ten; you shove with forty, it shoves back with forty. That is the slanted line: friction equals push. But friction has a limit set by how hard the box presses on the floor times a grip number, $μ_{s} N$ . The instant your push beats that limit, the tiny bonds all snap at once — the box lurches free. Now it is sliding, and sliding friction is weaker ( $μ_{k} N$ ), a flat, constant value that no longer cares how fast you go. Everything you push beyond that flat value goes straight into speeding the box up. So the graph is: a diagonal that copies you, a sharp peak where the bonds break, and a lower flat shelf while it slides. Diagonal, peak, drop, plateau — that is friction's whole life.

Recall Quick self-check

On the diagonal, what does friction equal? ::: The applied push $F$ (self-adjusting). What sets the height of the peak? ::: $μ_{s} N$ , the maximum static friction. Why does the curve drop after the peak? ::: Sliding friction $μ_{k} N$ is smaller than the static ceiling since $μ_{k} < μ_{s}$ . With $μ_{s} = 0.5$ , $N = 100$ , what is the peak height? ::: $50 N$ . Push $60 N$ on that box ( $μ_{k} = 0.3$ ) — acceleration? ::: $3 m/s^{2}$ .
