Visual walkthrough — Newton's first law — inertia, operational definition of force

We assume nothing. Every symbol is drawn before it is used.

Step 1 — A dot, a moment later, and the arrow between them

WHAT. Put a single object — think of it as a tiny dot — on a sheet of blueprint paper. Mark where it is now. Wait one tick of a clock. Mark where it is then. Draw a straight arrow from the first mark to the second.

WHY. Before we can talk about "force" or "motion" we need a way to record motion. The arrow is that record: it says how far the dot moved and in which direction, in one tick. We call this arrow the displacement, and displacement-per-tick is what we name velocity, written $\vec{v}$. The little arrow on top ($\stackrel{⃗}{}$) is just a reminder: this thing has a direction, not only a size.

PICTURE.

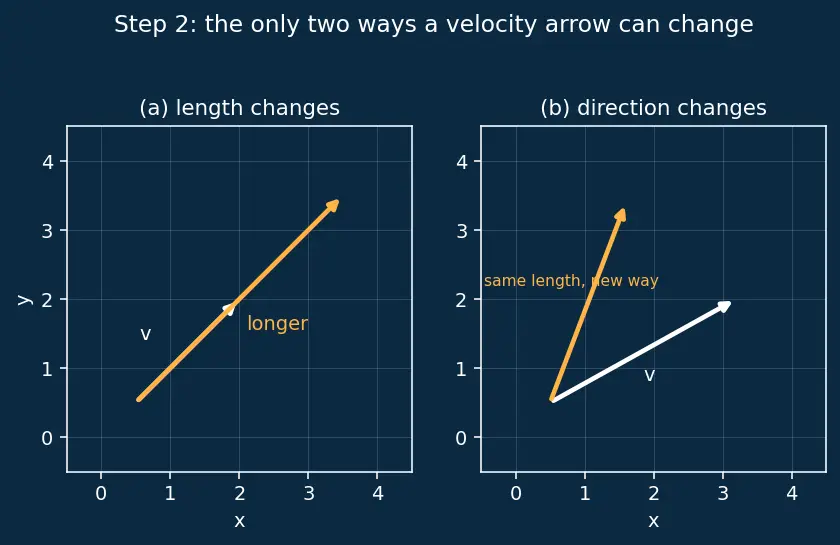

Step 2 — Two ways the arrow can change

WHAT. Take the velocity arrow from Step 1 and ask: in how many independent ways can it become a different arrow next tick? Exactly two. (a) It can get longer or shorter — same direction, new length. (b) It can swing to point elsewhere — same length, new direction.

WHY. This is the whole game. The first law is a claim about when the arrow stays the same. To make that claim sharp we must know every way it could fail to stay the same. There are only these two — length-change and direction-change — and either one counts as "velocity changed."

PICTURE.

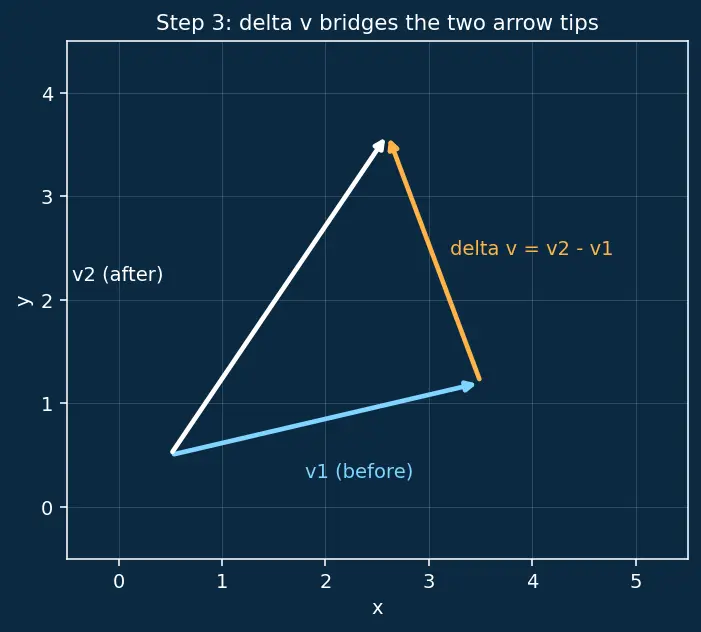

Step 3 — Naming the change: the difference of two arrows

WHAT. Draw the "now" velocity ${\vec{v}}_1$ and the "later" velocity ${\vec{v}}_2$ starting from the same point. The short arrow that reaches from the tip of ${\vec{v}}_1$ to the tip of ${\vec{v}}_2$ is the change in velocity, written $\Delta \vec{v}$.

WHY. We want a single object that is zero exactly when nothing changed. Subtraction gives it: $\Delta \vec{v}={\vec{v}}_2-{\vec{v}}_1$

• ${\vec{v}}_2$ — the velocity arrow after one tick,
• ${\vec{v}}_1$ — the velocity arrow before,
• $\Delta$ (Greek "delta", plain meaning "the change in") — the instruction "later minus earlier",
• $\Delta \vec{v}$ — the little arrow bridging the two tips.

If the arrow didn't change, ${\vec{v}}_2={\vec{v}}_1$, so $\Delta \vec{v}=\vec{0}$: the bridge collapses to a point. Why subtraction and not, say, a ratio? Because we need something that vanishes precisely when the two arrows coincide, in any direction. Only the difference of vectors does that.

PICTURE.

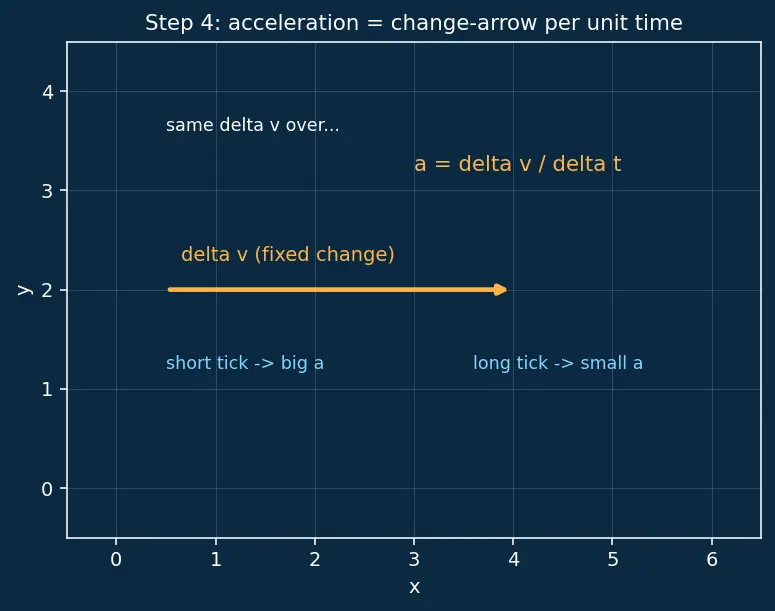

Step 4 — Rate of change: dividing by the tick

WHAT. Take $\Delta \vec{v}$ and divide it by the length of the clock tick, $\Delta t$. Call the result acceleration: $\vec{a}=\frac{\Delta \vec{v}}{\Delta t}$

WHY. $\Delta \vec{v}$ alone hides a cheat: a small change spread over a long time is gentle; the same change crammed into a blink is violent. Dividing by $\Delta t$ measures how fast the velocity arrow is changing, independent of how long we watched.

• $\Delta \vec{v}$ — the change-arrow from Step 3,
• $\Delta t$ — the time elapsed (a plain positive number, the tick length),
• dividing an arrow by a positive number keeps its direction and rescales its length, so $\vec{a}$ points the same way $\Delta \vec{v}$ does.

Why this tool and not the raw difference? Because the law we are chasing must not care whether you measured over one second or one millisecond. A rate is the frame-rate-free version of a change. Crucially: $\vec{a}=\vec{0}⟺\Delta \vec{v}=\vec{0}⟺\vec{v}=\text{constant}.$ Zero acceleration and constant velocity are the same statement.

PICTURE.

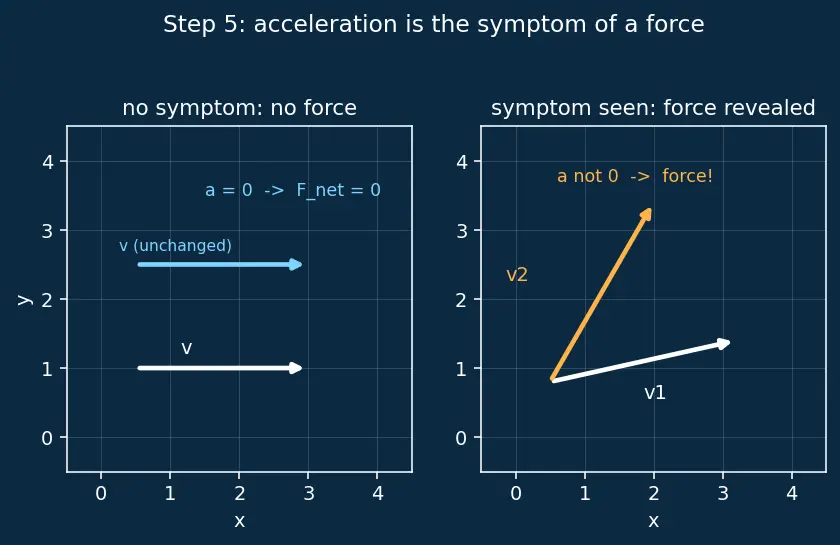

Step 5 — The symptom principle: acceleration reveals force

WHAT. Now bring in the invisible actor. We cannot see a force. We can see the dot's velocity arrow bend or grow — i.e. we can see $\vec{a}\ne \vec{0}$. We declare: whenever a free dot's velocity changes, a force acted; whenever it doesn't, no net force acted.

WHY. This is Newton's genius move — an operational definition. A force is not defined by a picture of a hand pushing; it is defined by its symptom, exactly as a doctor names an unseen bug by the fever it causes. The symptom is acceleration. So: ${\vec{F}}_{\text{net}}=0⟺\vec{a}=0⟺\vec{v}=\text{constant}.$ Read the chain of arrows both ways — that double arrow $⟺$ means "each side forces the other." Reading right-to-left: constant velocity means no force. Reading left-to-right: no net force means the arrow is frozen. The middle link $\vec{a}=0$ is the bridge we built in Step 4.

PICTURE.

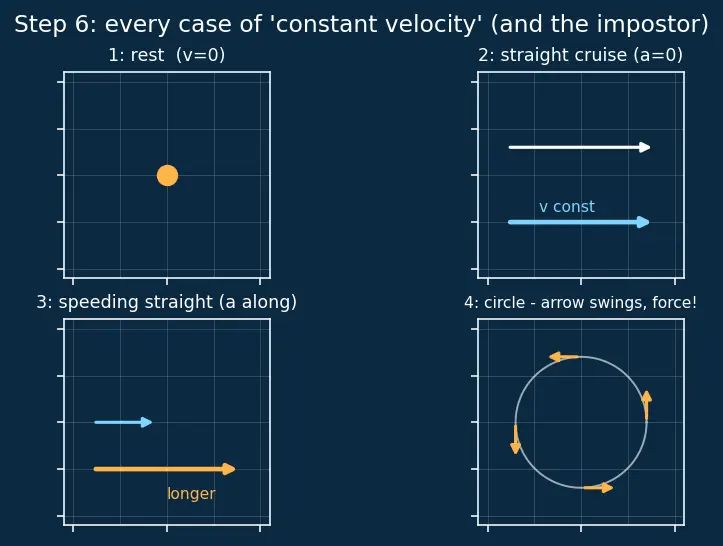

Step 6 — Case sweep: every way "constant velocity" can look

WHAT. The law hides four distinct pictures inside the phrase "$\vec{v}=\text{constant}$." We must show the law is consistent in each, and identify the impostor that violates it.

WHY. Rule 4 of honest physics: never leave a scenario undrawn. Here are all the cases the reader can meet.

1. Rest — $\vec{v}=\vec{0}$. The arrow has zero length and stays zero. Length constant (at 0), direction irrelevant ⇒ $\vec{a}=0$ ⇒ no net force. A body at rest is the special case $\vec{v}=0$, not a separate law.
2. Straight-line cruise — $\vec{v}$ a fixed nonzero arrow, tick after tick identical. Length constant, direction constant ⇒ $\vec{a}=0$ ⇒ no net force. (The cruising plane: engines roar, but thrust cancels drag, lift cancels weight — the net is zero.)
3. Speeding up / slowing in a straight line — same direction, changing length. $\Delta \vec{v}$ points along the line ⇒ $\vec{a}\ne 0$ ⇒ a force acts. Law obeyed: something changed the arrow.
4. The impostor — circular motion at constant speed — length fixed, direction spinning. Even though the number on the speedometer is constant, the arrow is not: it swings each tick, so $\Delta \vec{v}\ne \vec{0}$, so $\vec{a}\ne 0$, so a net force must act (the inward pull — see Uniform circular motion). This is exactly why the law insists on "straight line," not merely "constant speed."

PICTURE.

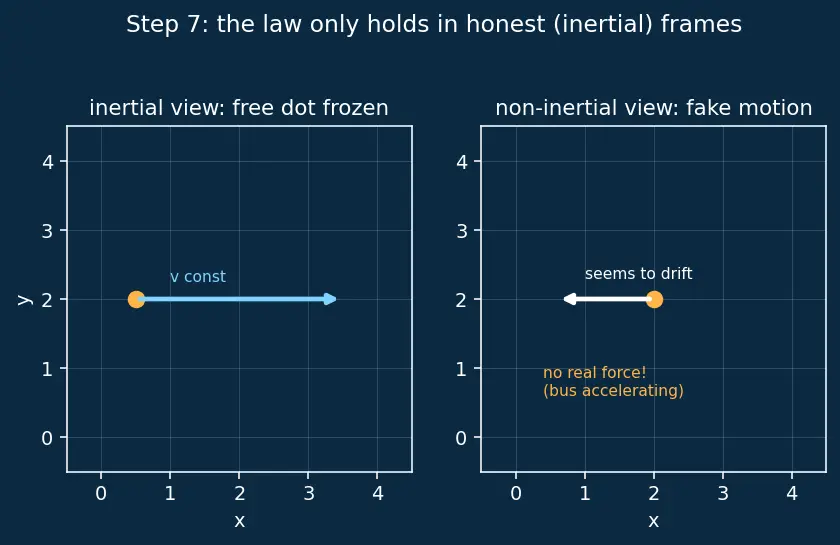

Step 7 — The honesty test: which frame is the law even true in?

WHAT. Watch the same free dot from two viewpoints: a platform standing still, and a bus that is itself speeding up. On the platform the free dot's arrow is frozen ($\vec{a}=0$). From inside the accelerating bus the very same dot appears to drift backward — its arrow seems to change — with nothing touching it.

WHY. If the first law held in every frame it would be empty. It doesn't. It holds only in frames where a genuinely free body shows $\vec{a}=0$. We name those the honest frames.

• Inertial frame — one in which a free body keeps a constant velocity arrow, i.e. where the first law is true.
• Non-inertial frame — an accelerating viewpoint where a free body seems to accelerate for no reason; to save $F=ma$ there you must invent Pseudo-forces.

So the first law does a second, deeper job: it is the litmus test that tells you whether your viewpoint is inertial. (More in Inertial vs non-inertial frames.)

PICTURE.

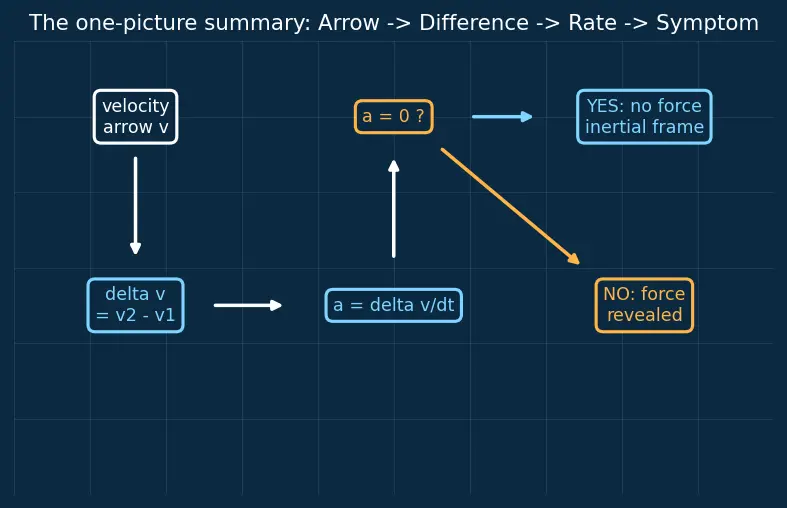

The one-picture summary

Everything above collapses into one chain of arrows: a free dot's velocity arrow → is it changing? → if not, no net force (Law 1 holds, frame is inertial) → if yes, a force is revealed.

Quick self-check

Connections

• Newton's first law — inertia, operational definition of force — the parent statement this page derives visually.
• Newton's second law — F=ma — puts a number on the force this page only names.
• Newton's third law — action-reaction — how those forces come in pairs.
• Inertial vs non-inertial frames — Step 7 in full.
• Pseudo-forces — the fictitious arrows a non-inertial viewer must invent.
• Friction — the hidden force behind Aristotle's illusion.
• Uniform circular motion — the impostor case (4) explained.
• Mass vs weight — mass measures the inertia driving this whole picture.
