Foundations — Moment generating function (MGF) — definition, use

The characters in the story

Below is the full cast of symbols the parent note uses. We meet them in an order where each one only needs the ones before it.

1. $X$ — the random variable

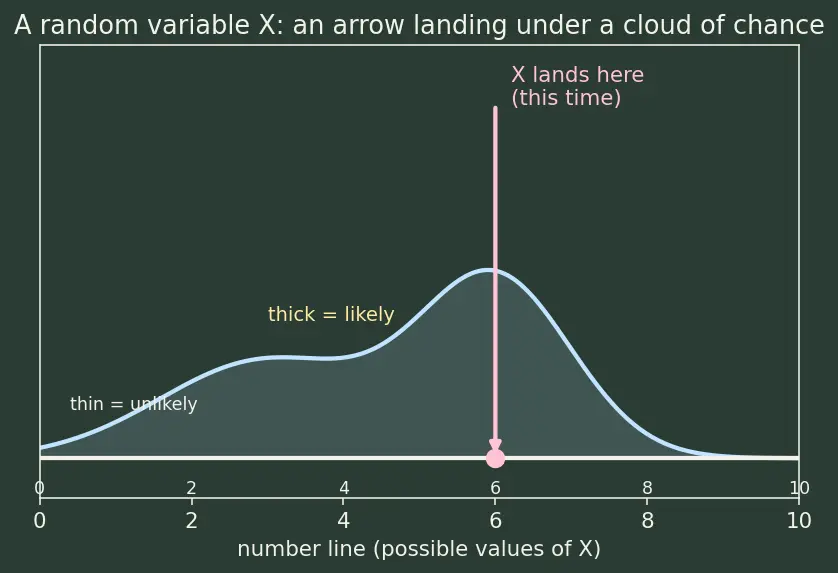

Figure s01 (below): the horizontal chalk line is the number line of possible values of $X$; the blue curve above it is the cloud of chance (taller where a value is more likely); the pink arrow shows one particular landing of $X$ at the value $6$. Read it as "this run of the experiment happened to give $X=6$, and $6$ sat under a thick part of the cloud, so it was a likely outcome."

Why the topic needs it: the MGF is a fingerprint of a distribution. No random variable, nothing to fingerprint. See Probability Distributions for how that "cloud of chance" is written down.

2. $p(x)$ and $f(x)$ — how the chance is spread

Why the topic needs it: the two MGF formulas in the parent — a sum and an integral — are literally "add up $e^{tx}$ weighted by how likely $x$ is". $p$ and $f$ are the weights.

3. $E[\cdot ]$ — expectation, the weighted average

Figure s02 (below): five blue bars sit at the values $x=1,2,3,5,8$ with heights proportional to their probabilities $p(x)=0.1,0.15,0.3,0.25,0.2$. The pink arrow marks the balance point — the value at which the loaded ruler tips level. That balance point is $E[X]=1(0.1)+2(0.15)+3(0.3)+5(0.25)+8(0.2)=4.15$. Notice it leans toward $8$ because that value, though not the most likely, is far out and carries real weight.

Why the topic needs it: the MGF is an expectation: $M_X(t)=E[e^{tX}]$. Every derivation is "apply $E$, use linearity".

4. $X^n$ and the word "moment"

Why the topic needs it: the whole point of the MGF is to store this infinite list $E[X],E[X^2],E[X^3],\dots$ compactly. No moments, no reason for a moment-generating function.

5. $e$ and the exponential $e^u$

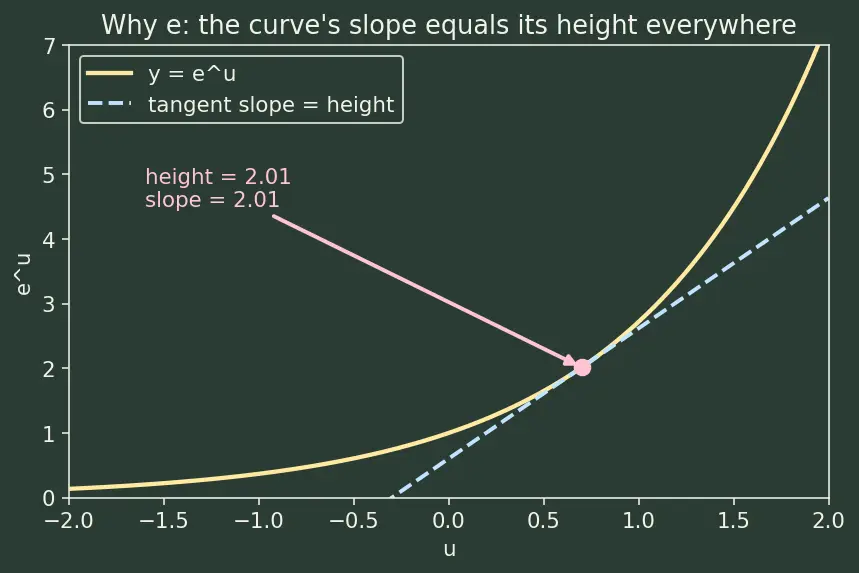

Figure s03 (below): the pale-yellow curve is $y=e^u$. At the marked pink point ($u=0.7$) the dashed blue line is the tangent; its slope is drawn equal to the curve's height there ($\approx 2.01$). This picture is the equation $\frac{d}{du}{e}^u=e^u$ — height and slope coincide at every point.

Why the topic needs it: the MGF is built on $e^{tX}$. When we later differentiate the MGF many times to extract moments, the exponential's self-derivative property is what makes the algebra clean instead of monstrous.

6. $t$ — the dial, and $e^{tX}$ as a function of $t$

Why the topic needs it: $M_X(t)=E[e^{tX}]$ is a function of $t$. Every property (shift-scale $M_X(at)$, moment extraction "${|}_{t=0}$") is an operation on this dial — and every one of them silently assumes we are inside the convergence interval.

7. The Taylor series — how a function becomes a power stack

Why the topic needs it: this is the bridge from "MGF" to "moments". Deepen it in Taylor Series.

8. Independence and the $\prod$ / product idea

Why the topic needs it: Property 2 of the parent — $M_{X+Y}(t)=M_X(t)M_Y(t)$ — is exactly this factoring applied to $g(x)=e^{tx}$ and $h(y)=e^{ty}$. Without independence the split is illegal. See Independence (Probability).

9. Derivative notation $M_X^{(n)}(0)$ and the "evaluate at" bar

Why the topic needs it: this is the moment-extraction formula — the payoff line of the whole topic.

How the foundations feed the topic

Everything on the left is prerequisite plumbing; the node $M_X(t)=E[e^{tX}]$ is the topic itself, and the two outputs (moments via derivatives, sums via multiplication) are why we bothered — all guarded by convergence near $0$.

Equipment checklist

Test yourself — cover the right side.

Ready? Then head back to the parent note and watch these pieces assemble into $M_X(t)=E[e^{tX}]$.
