Foundations — Matrices — review, operations, types

This page assumes nothing. If the parent note used a symbol, we build it here, from the picture up, in an order where each idea rests on the one before it.

0. The very first picture: a number line, then a plane

Before matrices, before vectors, there is a number. A number like $3$ is a position on a line: walk $3$ steps right from a marked zero.

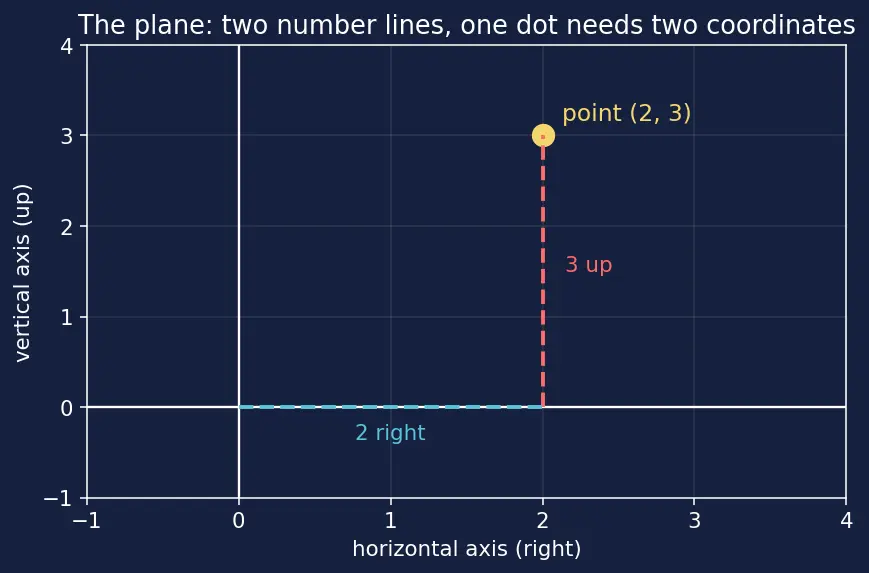

Now glue two number lines at right angles — one horizontal, one vertical. That crossing gives the plane (graph paper). Every point needs two numbers to be pinned down: how far right, how far up.

Why the topic needs this: a matrix moves points and arrows on this plane. If you cannot picture the two axes, you cannot picture what a matrix does.

1. The vector — an arrow, not just a dot

Why a column and not a row? Purely a convention that makes the multiplication rule (Section 6) line up neatly — a matrix will eat a column on its right. Keep that in your pocket; it pays off later.

See the arrows in the figure below — one for $\left[\begin{array}{c}2\\ 1\end{array}\right]$, one for $\left[\begin{array}{c}-1\\ 2\end{array}\right]$.

Why the topic needs this: the parent says a matrix "takes input vectors." Vectors are the food matrices eat. See Dot Product and Vectors to go deeper on arrows themselves.

2. The subscript $a_{ij}$ — an address inside the grid

The parent writes $A=[a_{ij}]$. This scares people. It shouldn't.

The picture: a spreadsheet where you name a cell by "row 2, column 1" — that is $a_{21}$.

Why the topic needs this: every rule — addition, multiplication, transpose — is stated by saying what happens to the entry at address $(i,j)$. Without the address system there is no way to write the rules.

3. The letters $m$ and $n$ — how big is the grid?

The picture: rows are the horizontal shelves, columns are the vertical stacks.

Why the topic needs this: every operation has a shape rule. Addition needs equal shapes; multiplication needs inner shapes to match. You cannot check any rule without knowing $m$ and $n$.

4. Sigma notation $\sum$ — "add up a patterned list"

The multiplication formula uses ${\sum }_{k=1}^p$. Here is that symbol from zero.

The picture: a conveyor belt. Each position $k$ drops one item; the sum is the total at the end.

Why the topic needs this: the entry $(AB{)}_{ij}={\sum }_k{a}_{ik}{b}_{kj}$ is a sum of products. Sigma is the only compact way to write "pair them up and add." It is the heartbeat of matrix multiplication.

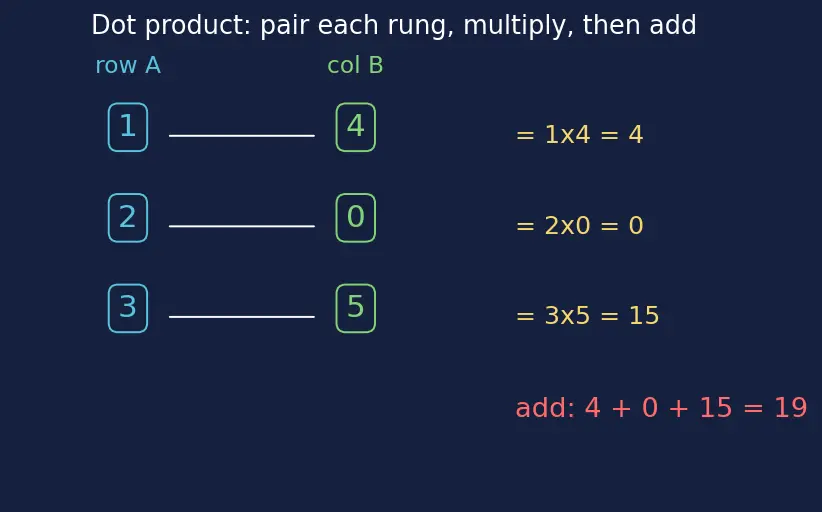

5. The dot product — one number from two arrows

Multiplication of matrices is built from a smaller operation: the dot product of a row and a column.

Why the topic needs this: the parent says "each entry of $AB$ is a dot product." Master the dot product here and matrix multiplication becomes just many dot products. See Dot Product and Vectors.

6. Putting it together — the product $AB$, one entry at a time

Now every symbol above is earned, so the parent's formula reads plainly.

Walk the pieces you now own:

• $a_{ik}$ — Section 2: the address inside $A$, sweeping across row $i$ as $k$ changes.
• $b_{kj}$ — Section 2: the address inside $B$, sweeping down column $j$ as $k$ changes.
• ${\sum }_k$ — Section 4: add all those products.
• The whole thing — Section 5: a dot product of one row and one column.

Why the topic needs this: this is the operation the parent derives from composition. Everything after (properties, transpose, special matrices) leans on knowing what $AB$ is.

7. The transpose flip — turning rows into columns

The picture: hold the grid by its top-left corner and flip it like a page over the diagonal crease. Rows become columns.

Why the topic needs this: symmetric ($A^{\top }=A$), skew-symmetric ($A^{\top }=-A$), and orthogonal ($A^{\top }A=I$) matrices are all defined using this flip. No flip, no vocabulary of special matrices.

8. The identity $I$ and the "do-nothing" idea

The picture: the transformation that leaves every arrow exactly where it was — the "stand still" rule. In arithmetic the number $1$ does this; among matrices $I$ plays that role.

Why the topic needs this: $I$ is the reference point for inverses ($A{A}^{-1}=I$, see Determinant and Inverse of a Matrix) and for orthogonality ($A^{\top }A=I$). It's the origin of the matrix world.

How these foundations feed the topic

Equipment checklist

Test yourself — reveal only after you answer aloud.

Connections

• Dot Product and Vectors — the row·column operation every matrix entry is built from.
• Linear Transformations — the arrows-move-space picture these grids encode.
• Systems of Linear Equations — where the coefficient grid first appears.
• Determinant and Inverse of a Matrix — needs $I$ from Section 8.
• Eigenvalues and Eigenvectors — leans on transpose and special matrix types.
