Foundations — Divergence theorem (Gauss's theorem) — statement, flux-divergence connection

Before we can even read the theorem, we need a small pile of tools. This page builds each one from nothing — a plain-words meaning, a picture, and the reason the topic can't live without it. We go in order, so each idea stands on the one before it.

1. A point in 3D — the coordinates $(x,y,z)$

Picture. Three arrows at right angles meeting at a corner. Any location in the room is "3 right, 2 back, 4 up," written $(3,2,4)$.

Why the topic needs it. The theorem lives in 3D. Every other object — fields, surfaces, volumes — is built by attaching something to each point $(x,y,z)$, so we must be able to name a point first.

2. A solid region $V$ and its skin $S=\partial V$

The symbol $\partial$ (a curly "d") is read "boundary of." So $\partial V$ literally means "the skin of $V$."

Picture. A potato-shaped blob (that's $V$). Its shiny outer surface (that's $S$). "Closed" means the skin fully seals the inside — a balloon, not a bowl.

Why the topic needs it. The whole theorem is a bridge between two places: inside ($V$) and on the skin ($S$). We need clean names for both, and we need the skin to be closed so "the inside" is well defined.

3. Vectors and the arrow field $\mathbf{F}$

First, one arrow.

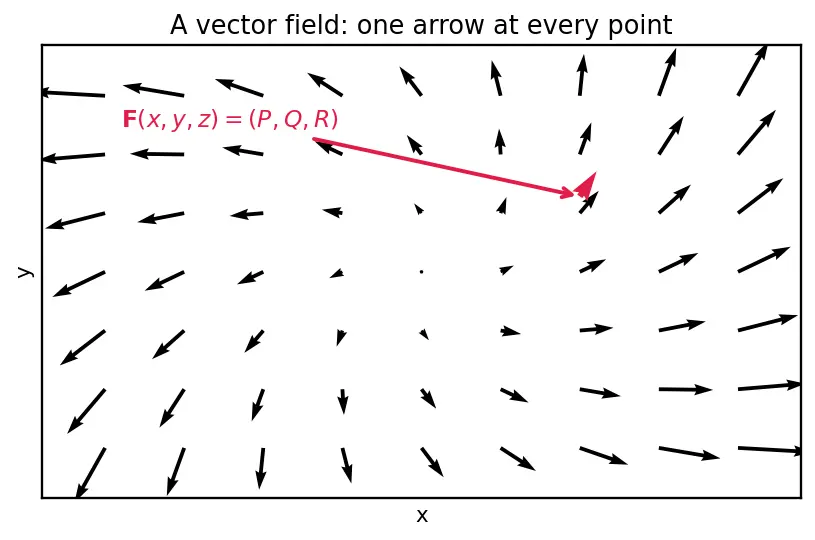

Now, one arrow at every point.

Picture. Imagine wind. At each spot the wind blows a certain speed and direction — that's an arrow. The whole weather map of arrows is the field $\mathbf{F}$. The three functions:

• $P(x,y,z)$ = how strongly it blows rightward there,
• $Q(x,y,z)$ = how strongly backward,
• $R(x,y,z)$ = how strongly upward.

Why the topic needs it. $\mathbf{F}$ is the flowing stuff — water current, wind, electric influence. The theorem is entirely about this field: how much of it leaks out, and where it is being made. See Flux integrals and Divergence and curl for the two things we do to $\mathbf{F}$.

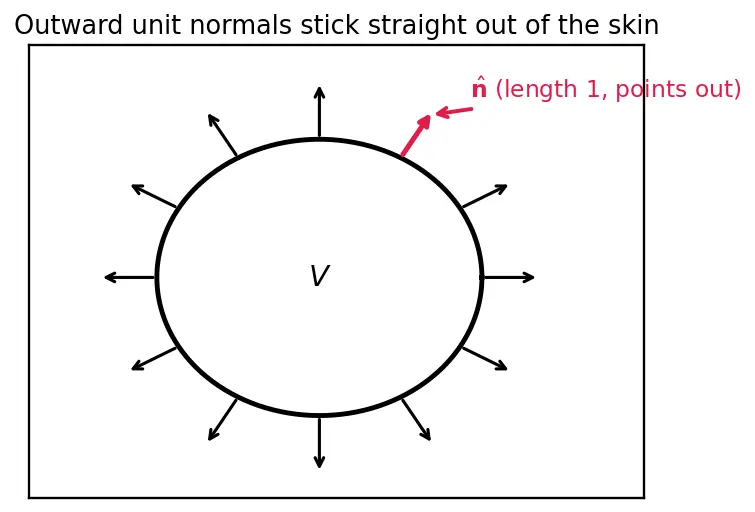

4. The outward unit normal $\hat{\mathbf{n}}$

The little hat $\hat{}$ always means "length one" — a pure direction, no size. "Normal" is the old word for "perpendicular."

Picture. A hedgehog: at every point of its skin a spine points straight out. Each spine is $\hat{\mathbf{n}}$ there. "Outward" means away from the inside, never into the potato.

Why the topic needs it. To measure leaking out, we must know which way "out" is at every skin point. $\hat{\mathbf{n}}$ is that compass. Choosing inward instead of outward flips every sign — see the parent note's first mistake box.

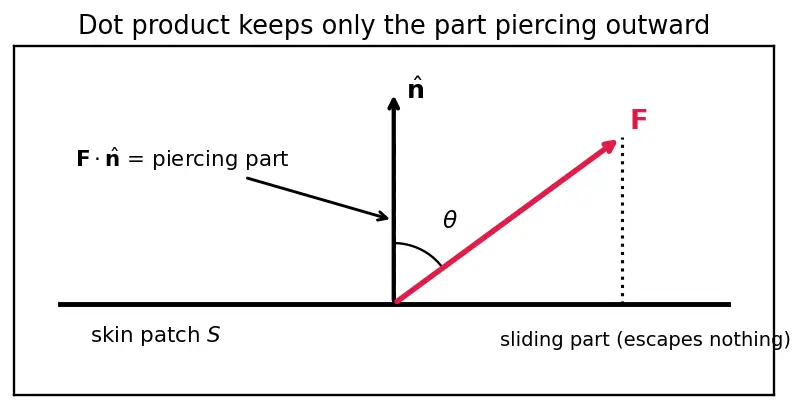

5. The dot product $\mathbf{F}\cdot \hat{\mathbf{n}}$ — how much flows across

Why does this measure "how much of $\mathbf{a}$ points along $\mathbf{b}$"? Because $\cos \theta$ is a dial:

• arrows aligned ($\theta =0$): $\cos =1$, full value — maximum agreement,
• arrows perpendicular ($\theta =90^{\circ }$): $\cos =0$, zero — no agreement,
• arrows opposite ($\theta =180^{\circ }$): $\cos =-1$, full negative.

Why this tool and not another? We need to answer "how much of the flow $\mathbf{F}$ is actually piercing the skin, versus sliding along it?" Flow that slides sideways along the surface never escapes. The dot product $\mathbf{F}\cdot \hat{\mathbf{n}}$ is exactly the machine that keeps only the "piercing" part and discards the sideways part — precisely because $\cos 90^{\circ }=0$ kills the sideways component.

Picture. Rain hitting a window. Rain falling straight through (aligned with $\hat{\mathbf{n}}$) counts fully; rain sliding down the glass (perpendicular to $\hat{\mathbf{n}}$) counts zero.

6. Partial derivatives $\frac{\partial P}{\partial x}$

The curly $\partial$ (not a straight $d$) warns you: "there are other variables, but I'm holding them still."

Picture. Stand on a hillside. Walk one step east only — how much does your height change? That rate is the partial in the east direction. Walk north only — a different partial. Same landscape, different questions.

Why this tool and not another? In the derivation the flux leaving a tiny box's right face minus its left face is a difference $P(x+\Delta x)-P(x)$. A partial derivative is precisely the tool that turns a small difference into a clean rate: $P(x+\Delta x)-P(x)\approx \frac{\partial P}{\partial x}\Delta x.$ Nothing else converts "difference across a small gap" into a per-point quantity.

7. The divergence $\nabla \cdot \mathbf{F}$ — creation per point

The symbol $\nabla$ ("nabla" or "del") is a bookkeeping gadget standing for "take these partial derivatives." The dot recycles the dot-product idea: we're dotting $\nabla =({\partial }_x,{\partial }_y,{\partial }_z)$ with $\mathbf{F}=(P,Q,R)$.

Picture. A tiny box around a point. Arrows come in on some faces, go out on others. If more goes out than comes in, the point is a source (positive divergence, a tap). More in than out: a sink (negative, a drain). Perfectly balanced: divergence $0$.

Why the topic needs it. Divergence is the "inside" number the theorem sums up. It is the local, per-point version of "leaking," which the theorem will connect to the global skin-leaking. Fuller treatment: Divergence and curl.

8. The two integrals — ${\iint }_S$ and ${\iiint }_V$

• ${\iint }_S(\cdots )dS$ — a surface integral: chop the skin $S$ into tiny patches of area $dS$, add up $(\cdots )$ over all patches. Two integral signs = a 2D surface.
• ${\iiint }_V(\cdots )dV$ — a volume integral: chop the solid $V$ into tiny cubes of volume $dV$, add up $(\cdots )$ over all cubes. Three signs = a 3D solid.

Picture. Tiling the potato's skin with tiny stamps ($dS$), versus packing the potato's inside with tiny sugar cubes ($dV$). Add a number written on each stamp / each cube.

Why the topic needs it. The theorem is an equals sign between two total-ups: the total leaking summed over the skin (${\iint }_S$) versus the total creation summed over the inside (${\iiint }_V$).

Putting the symbols together — the flux

Now every piece is defined, so we can finally read the star player without a single unexplained symbol:

And the theorem itself is now fully readable: $\underset{\text{leaking on the skin}}{\underbrace{{\iint }_S\mathbf{F}\cdot \hat{\mathbf{n}}dS}}=\underset{\text{creation inside}}{\underbrace{{\iiint }_V(\nabla \cdot \mathbf{F})dV}}$

How the foundations feed the theorem

Read it top to bottom: points build solids and fields; the field plus the outward normal give flux; partial derivatives build divergence; and the theorem is the bridge joining the two bottom boxes.

Equipment checklist

Cover the right side and test yourself; each should feel obvious before you read the parent note.

Connections

• Flux integrals — the machine ${\iint }_S\mathbf{F}\cdot \hat{\mathbf{n}}dS$ built from the dot product here.
• Divergence and curl — where $\nabla \cdot \mathbf{F}$ (and its cousin, curl) are developed in full.
• Parent: the Divergence Theorem — where all these symbols finally meet.
• Continuity equation — divergence in motion: the physics that makes "creation = leaking" a law.
