Foundations — Divergence — definition, physical meaning (flux density)

This page assumes you have seen nothing. We build each symbol the parent note fired at you — $\vec{F}$, $F_1$, $\partial /\partial x$, $\nabla$, $\hat{n}$, $dS$, $\iint$, $\lim$, the dot $\cdot$ — from the picture up, in an order where each one leans only on the ones before it.

0. What is an arrow, and what is a field of them?

A single arrow is boring. The interesting object is when every point of space gets its own arrow.

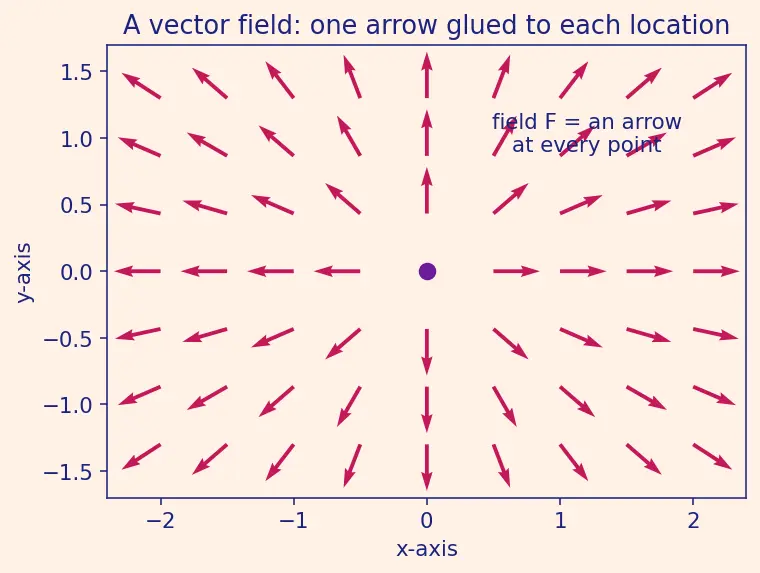

Look at the figure: the same field $\vec{F}$ shown as a whole carpet of arrows. That carpet — not any one arrow — is what divergence chews on.

Why does the topic need this? Because divergence is a question about how the arrows change from spot to spot. Without a field (arrows that vary), there is nothing to measure.

1. Splitting an arrow into pieces: components $F_1,F_2,F_3$

Any arrow can be built from a "how far right", a "how far up", and a "how far forward" instruction.

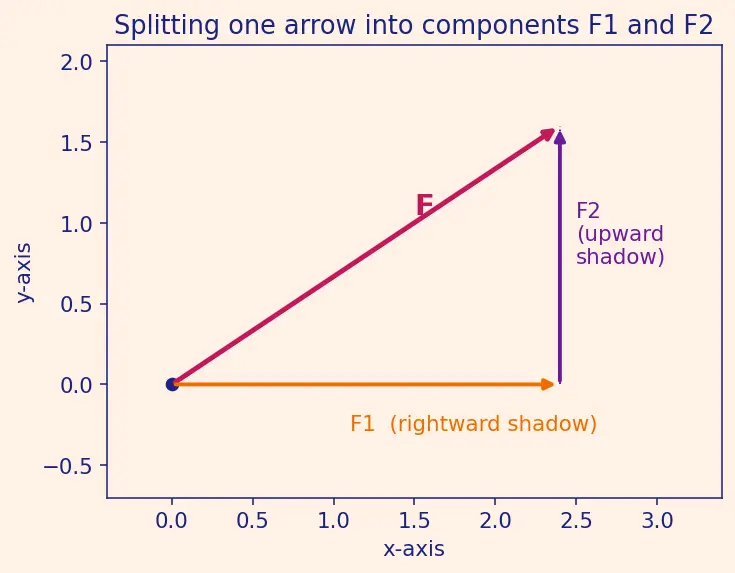

In the figure, the slanted arrow is split into its horizontal shadow $F_1$ and vertical shadow $F_2$. The arrow is exactly "$F_1$ steps right, then $F_2$ steps up."

Why the topic needs this: the divergence formula treats each component separately — the $x$-piece $F_1$, the $y$-piece $F_2$, the $z$-piece $F_3$. To talk about "the $x$-flow" you must first be able to name it: that name is $F_1$.

2. Rate of change in ONE direction: the partial derivative $\frac{\partial F_1}{\partial x}$

Now the key measuring tool. First recall the idea it comes from.

But in a field, position has three knobs ($x$, $y$, $z$). We want the change caused by nudging only one of them.

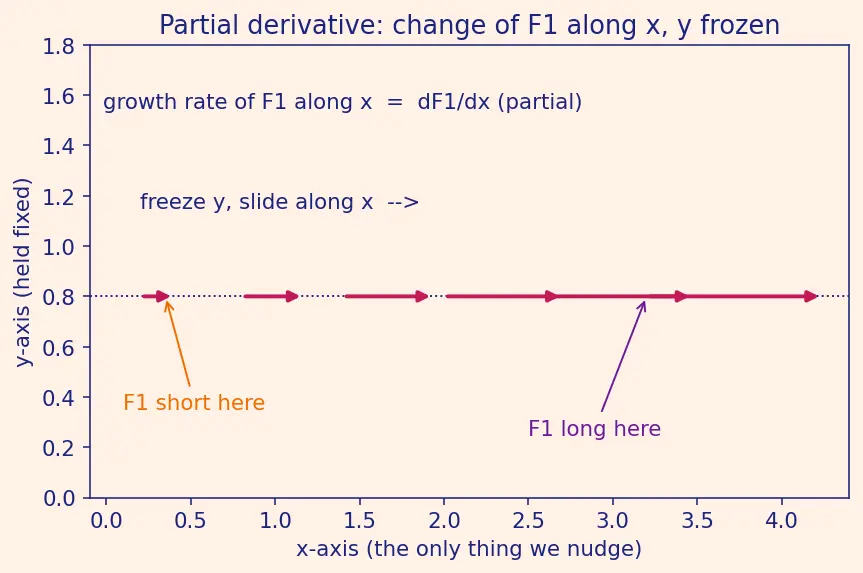

In the figure: freeze $y$, slide right along the dashed line, and watch only how the rightward-arrows lengthen. That growth rate is $\partial F_1/\partial x$.

Why the topic needs it: "more fluid leaves the right face than enters the left" is precisely "$F_1$ is bigger on the right than the left as you step in $x$" — that is $\partial F_1/\partial x$. This one symbol carries the entire physical meaning.

3. Packing the three partials into one symbol: $\nabla$ (del)

We keep writing "$\partial /\partial x$, $\partial /\partial y$, $\partial /\partial z$". Mathematicians bundle these three operations into one symbol so formulas stay short.

Why the topic needs it: it lets us write the whole divergence formula as one tidy expression $\nabla \cdot \vec{F}$ instead of a three-term sum.

4. The dot product $\cdot$: multiply matching parts, then add

To combine $\nabla$ with $\vec{F}$ we use the dot product. Recall what it does to two ordinary vectors.

Now apply it with $\nabla$ in the first slot. "Multiplying" by $\partial /\partial x$ means "take the partial derivative": $\nabla \cdot \vec{F}=\frac{\partial }{\partial x}{F}_1+\frac{\partial }{\partial y}{F}_2+\frac{\partial }{\partial z}{F}_3=\frac{\partial F_1}{\partial x}+\frac{\partial F_2}{\partial y}+\frac{\partial F_3}{\partial z}$

Why the topic needs it: the dot is the exact machine that turns a vector-input ($\vec{F}$) into a scalar-output (a number at each point). "Vector in, scalar out" is the signature of divergence.

5. The normal $\hat{n}$, area $dS$, and flux $\iint \vec{F}\cdot \hat{n}dS$

The parent's geometric definition needs three more pieces. Picture a closed bubble around a point.

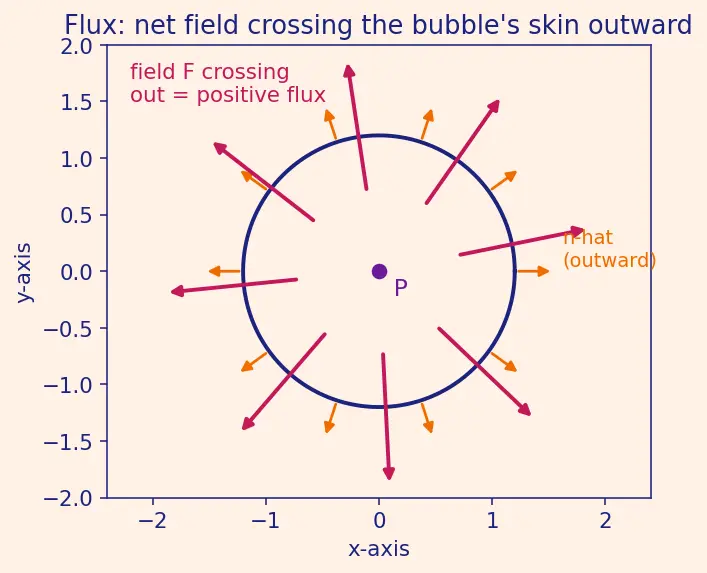

In the figure: arrows crossing the bubble outward (aligned with $\hat{n}$) count positive; arrows crossing inward count negative. Flux is the running total.

Why the topic needs it: divergence is defined as flux per unit volume in the shrinking-bubble limit. Flux is the raw quantity; divergence is flux squeezed down to a single point.

6. The limit ${\lim }_{V\to 0}$ — shrinking the bubble to a point

The degenerate check: if the field is perfectly balanced (same in as out at every scale, e.g. a uniform wind), the flux is $0$ for every bubble, so the limit is $0$. Divergence $=0$ means "no net creation here."

Putting the symbols together

$\underset{\text{one number at }P}{\underbrace{\mathrm{div}\vec{F}(P)}}=\underset{\S 6}{\underbrace{\underset{V\to 0}{\lim }}}\frac{1}{V}\underset{\S 5\text{ flux}}{\underbrace{\iint \vec{F}\cdot \hat{n}dS}}=\underset{\S 3,\S 4}{\underbrace{\nabla \cdot \vec{F}}}=\underset{\S 1,\S 2}{\underbrace{\frac{\partial F_1}{\partial x}+\frac{\partial F_2}{\partial y}+\frac{\partial F_3}{\partial z}}}$

Every symbol above was earned in the sections marked beneath it. The left half is why you care (geometry); the right half is how you compute (partials). The parent note proves they are the same object.

How the foundations feed the topic

Equipment checklist

Test yourself — you should be able to answer each before reading the parent note.
