Visual walkthrough — Volume of revolution — disk method, washer method

We rotate a flat region about a straight line and ask: how much stuff is inside the solid it sweeps out? Every symbol below is earned before it appears.

Step 1 — What "rotate a region" even means

WHAT. Take a flat shaded region drawn on paper. Pick a straight line — call it the axis. Now imagine spinning the paper region around that line, very fast. The blur it leaves is a solid 3D object.

WHY. We need a mental picture before any algebra. The word "volume of revolution" is scary; the picture (a shape spun on a skewer) is not. Everything later is just measuring this blur.

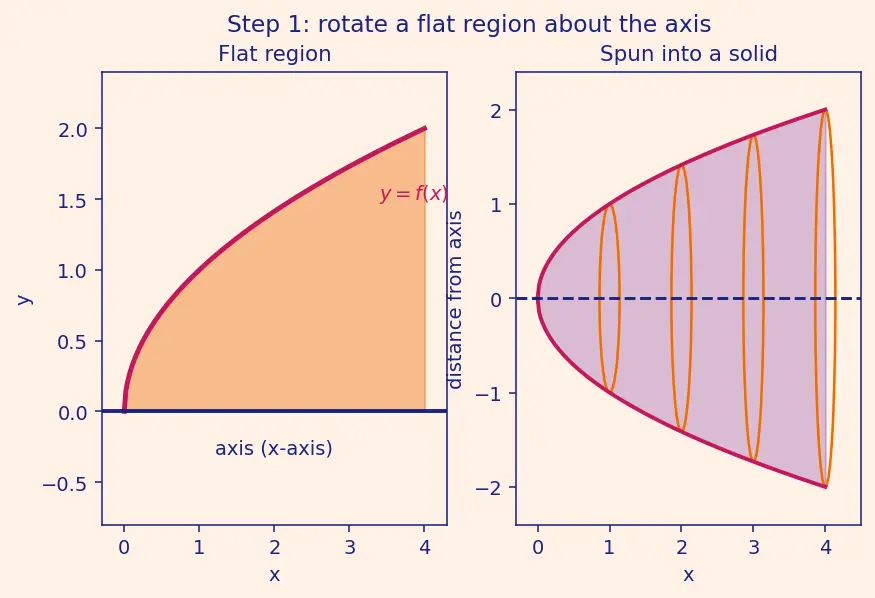

PICTURE. The left panel shows a flat region under a curve. The right panel shows the same region spun around the horizontal line — it becomes a bowl-like solid.

Step 2 — One thin slice is (almost) a cylinder

WHAT. Instead of the whole curvy solid, cut out one thin slice at horizontal position $x$, perpendicular to the axis. Give it a small thickness we'll call $\Delta x$ — read "a small change in $x$."

WHY. The full solid is curvy and we have no formula for it. But a thin slice barely curves, so it is almost a perfect cylinder — and a cylinder's volume we do know. This is the whole trick: replace one impossible shape with many easy ones.

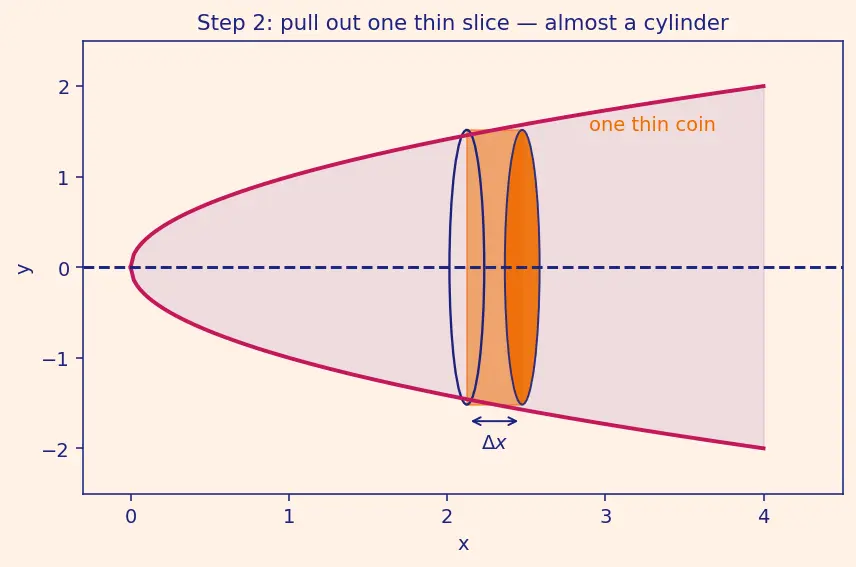

PICTURE. A single upright coin pulled out of the solid. Its round face points along the axis; its thickness $\Delta x$ is the width of the coin.

Step 3 — The radius of that circle is the curve's height

WHAT. The round face of our coin is a circle. Its radius $r$ is the distance from the axis out to the curve. If the curve is $y=f(x)$ and the axis is the x-axis, that distance is just the height $f(x)$.

WHY. A circle is completely decided by its radius. So to know the coin's face, we only need one number: how far the curve sits from the axis. Spinning that gap sweeps the full circle.

PICTURE. A red arrow from the axis straight up to the point $(x,f(x))$ on the curve. Its length is labelled $r=f(x)$. That arrow, swept around, is the circle.

Every symbol so far, in plain words:

$r=\underset{\begin{array}{c}\text{height of the curve}\\ \text{above the axis at position }x\end{array}}{\underbrace{f(x)}}$

Step 4 — Volume of the coin: area of face × thickness

WHAT. A cylinder's volume is the area of its circular face times how thick it is. The face is a circle of radius $r$, whose area is $\pi r^2$. The thickness is $\Delta x$. So:

$\Delta V\approx \underset{\begin{array}{c}\text{area of the}\\ \text{round face }\pi r^2\end{array}}{\underbrace{\pi [f(x){]}^2}}\times \underset{\begin{array}{c}\text{thickness}\\ \text{of the coin}\end{array}}{\underbrace{\Delta x}}$

WHY $\pi r^2$? Because the face is a genuine circle, and the area of a circle of radius $r$ is $\pi r^2$ — that is why the tool "$\pi r^2$" and not something else: our slice is round, not square. We square the radius because area grows with two directions (across and up), not one.

Why the $\approx$ (almost-equals)? The coin's edge is not perfectly straight — the curve rises a little across the width $\Delta x$. For a fat coin this error is visible; for a thin coin it vanishes. Step 5 makes it exactly zero.

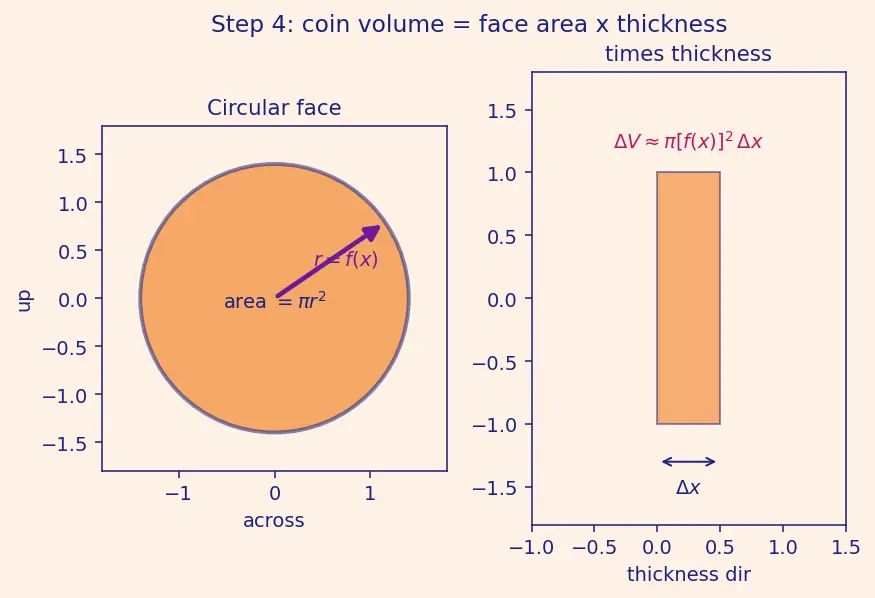

PICTURE. The coin flattened: a circle of radius $f(x)$ shaded, with its area $\pi [f(x){]}^2$ named, next to the thin gap $\Delta x$.

Step 5 — Stack the coins, then shrink them: the integral appears

WHAT. Line up all the coins from $x=a$ to $x=b$ and add their volumes:

$V\approx \sum \pi [f(x){]}^2\Delta x.$

Now make every coin thinner and thinner ($\Delta x\to 0$, meaning the thickness shrinks toward nothing). Infinitely many infinitely-thin coins — that limiting sum is exactly the definite integral (this is the whole point of Definite Integral as a Limit of Sums):

$\boxed{V=\pi {\int }_a^b[f(x){]}^{2}dx}$

WHY a limit, and why does it become an integral? The $\approx$ from Step 4 becomes $=$ only when the coins are infinitely thin, because then their curved-edge error is zero. The symbol $\int$ is defined as "the limit of a sum of tiny pieces" — so the $\sum$ literally turns into $\int$, and $\Delta x$ (a small width) becomes $dx$ (an infinitesimal width).

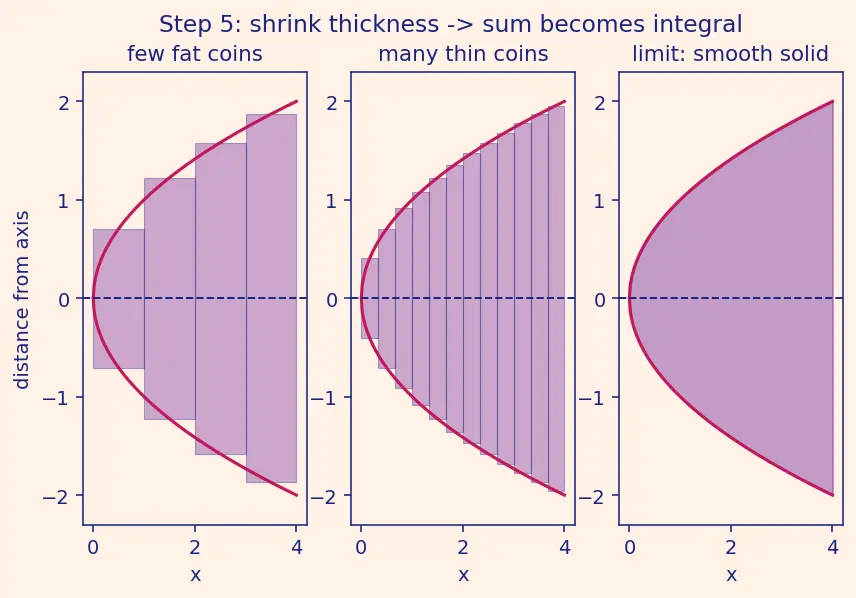

PICTURE. Three panels: a few fat coins (rough), many thin coins (better), the smooth filled solid (exact). The rougher stack overshoots/undershoots; the fine one hugs the true solid.

Term-by-term of the boxed result:

$V=\underset{\text{from }\pi r^2}{\underbrace{\pi }}\underset{\begin{array}{c}\text{add all coins}\\ \text{from }x=a\text{ to }b\end{array}}{\underbrace{{\int }_a^b}}\underset{r^2\text{, the face}}{\underbrace{[f(x){]}^2}}\underset{\begin{array}{c}\text{infinitesimal}\\ \text{thickness}\end{array}}{\underbrace{dx}}$

Step 6 — When the region has a gap: punch a hole (the washer)

WHAT. Suppose the region lives between two curves, an outer (far) one $y=f(x)$ and an inner (near) one $y=g(x)$, both above the axis with a gap beneath. Spin it. Each coin now has a hole through its middle — it is a ring, called a washer.

WHY. The gap between the near curve and the axis never gets filled, so nothing is there — a hole. A ring's area is the big circle minus the little hole:

$\Delta V\approx (\underset{\begin{array}{c}\text{big circle,}\\ \text{radius }R=f(x)\end{array}}{\underbrace{\pi [f(x){]}^2}}-\underset{\begin{array}{c}\text{hole,}\\ \text{radius }r=g(x)\end{array}}{\underbrace{\pi [g(x){]}^2}})\Delta x$

Sum and shrink exactly as in Step 5:

$\boxed{V=\pi {\int }_a^b([R(x){]}^2-[r(x){]}^2)dx}$

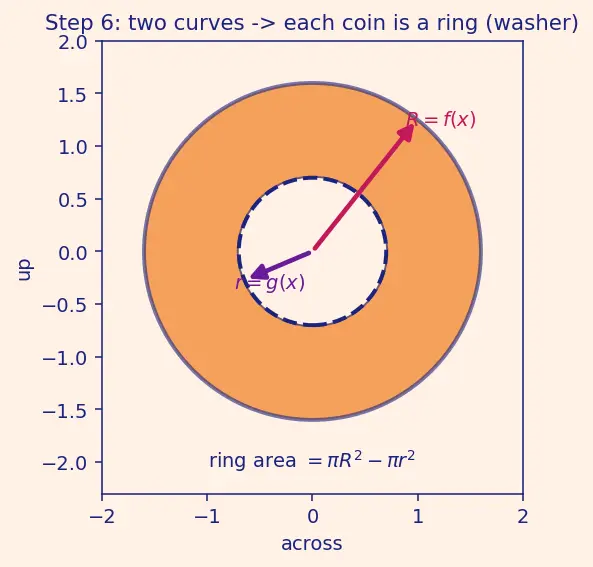

PICTURE. A washer face: outer circle radius $R$, inner hole radius $r$, the ring shaded between them. Two arrows from the centre: a long one to $R$, a short one to $r$.

Step 7 — Edge & degenerate cases (so nothing surprises you)

WHAT. The disk is just the washer with no hole: set the inner radius $r=0$ and $R^2-r^2=R^2$ — you recover Step 5 exactly. Two more edges:

• Region touches the axis (curve meets the axis at a point). There the radius is $0$, so the coin shrinks to a point — the solid comes to a tip. Perfectly fine: a zero-radius coin has zero area, contributing nothing, and the integral handles it automatically.
• Axis is a shifted line $y=k$, not the x-axis. The radius is no longer the height $f(x)$; it is the distance from the curve to the line, $|f(x)-k|$. Distance is always positive, which is why the absolute value appears. But we then square it, and squaring erases any sign — so in the formula $|f(x)-k{|}^2=(f(x)-k{)}^2$ and you may drop the bars.

WHY collect these here? So you never meet a case the derivation didn't cover: hole/no-hole, touching/not-touching, on-axis/off-axis are all the same formula with different radii.

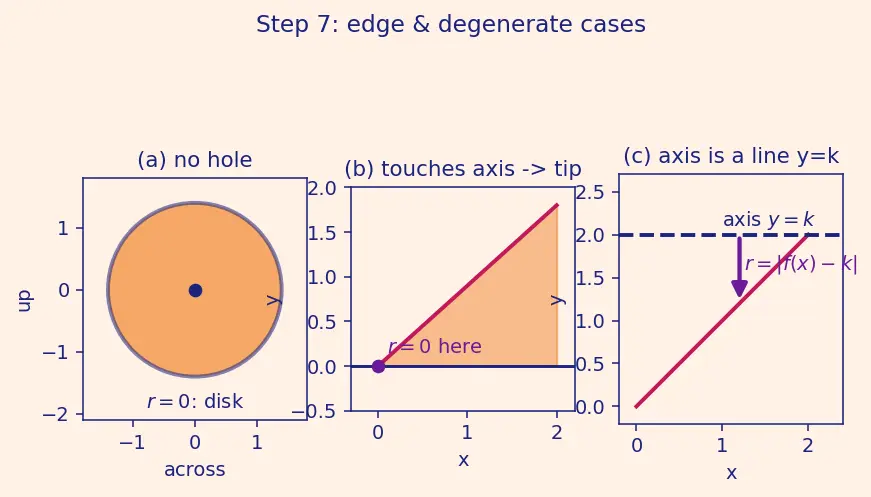

PICTURE. Three mini-panels: (a) $r=0$ disk-as-washer, (b) curve tipping to a point at the axis, (c) a curve with the axis drawn as the raised line $y=k$ and the radius arrow measured from there.

$r=0\Rightarrow R^2-r^2=R^2\text{(washer collapses to disk)}$ $\text{axis }y=k\Rightarrow r=\underset{\text{distance to the line}}{\underbrace{|f(x)-k|}},r^2=(f(x)-k{)}^2$

The one-picture summary

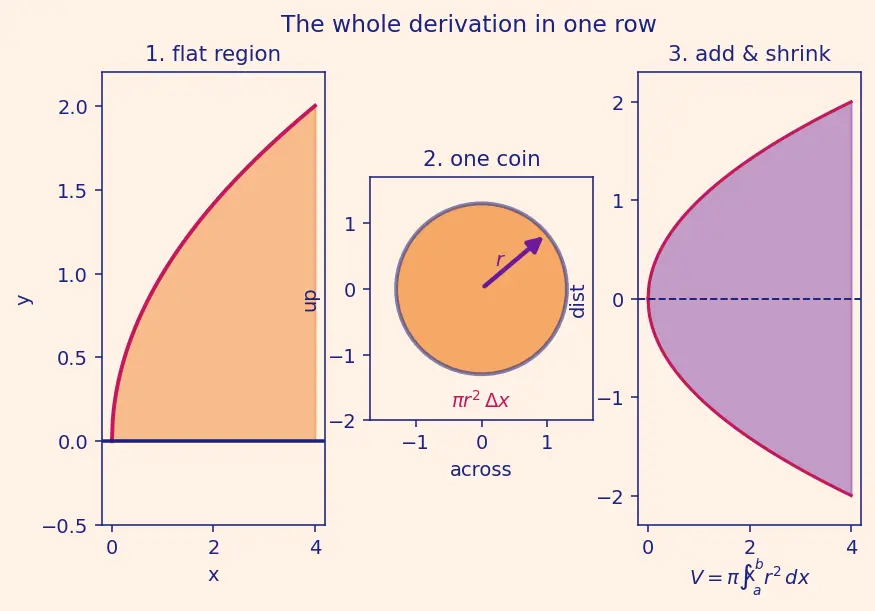

Everything on one canvas: the flat region (left) → one coin pulled out with its radius arrow (middle) → the stacked coins becoming the solid, with the boxed integral underneath (right). Follow the arrows left to right and you have re-derived both formulas.

Active Recall

Connections

• Definite Integral as a Limit of Sums — Step 5 is this: sum of coins → integral.
• Area Between Curves — same two-curve picture; there you subtract heights, here you subtract squared radii.
• Volume by Cross-Sections — disk/washer are the circular case of this general slicing idea.
• Shell Method — the alternative: slice parallel to the axis instead of perpendicular.
• u-substitution — the tool that evaluates the shifted-axis integral from Step 7.
