Foundations — Intuitive concept of a limit — table of values, graphical

This page assumes nothing. We will meet every symbol the parent note used — $f(x)$, $x$, $a$, $L$, the arrow $\to$, the tiny superscripts $a^{-}$ and $a^{+}$, the word $\lim$, the "$⟺$", and the "$0/0$ trap" — one at a time, each anchored to a picture, each earning its place before the next arrives. By the end you can read $\underset{x\to a^{-}}{\lim }f(x)=\underset{x\to a^{+}}{\lim }f(x)=L$ out loud and mean it.

0. The number line — where everything lives

Before any function, we need a place for numbers to sit. That place is the number line: a straight ruler stretching left (negative) and right (positive), with $0$ in the middle.

Figure s01 shows this. A horizontal ruler runs across the screen with ticks at each whole number. A pale-yellow flag is planted at position $a$, and a blue bead labelled $x$ sits to its left. A pink arrow shows the bead sliding toward the flag. The words "LEFT (smaller)" and "RIGHT (larger)" mark the two regions. Read the figure as: a fixed target and a movable traveller, both living on the same line.

Why we need it: the whole story of a limit is about a point creeping toward a target spot. "Creeping toward" only makes sense once we can picture positions and distances between them — and that is exactly what the number line gives us.

• Left of $a$ = the region of numbers smaller than $a$.
• Right of $a$ = the region of numbers larger than $a$.

Hold onto "left" and "right" — those two words become the little superscripts $a^{-}$ and $a^{+}$ later.

1. The letter $x$ — the input we move

Picture: a bead threaded on the number line that we push wherever we like (the blue bead in figure s01).

Why the topic needs it: a limit is a process of moving the input. Without a movable input there is nothing to "approach" with.

2. The letter $a$ — the target spot

Picture: a flag at one position on the number line (the yellow flag in figure s01). The bead $x$ slides toward the flag.

3. The function $f$ and the notation $f(x)$ — a machine and its output

Figure s02 shows this. A box labelled $f$ ("the rule") sits in the middle. A blue arrow carries "input $x$" into the box from the left; a pink arrow carries "output $f(x)$" out to the right. The caption underneath reads "one number in → exactly one number out." Read the figure as: the machine that turns an input into a single output.

Why the topic needs it: the parent's troublemaker was $f(x)=\frac{x^2-1}{x-1}$. A limit watches the output $f(x)$ while the input $x$ moves. So we need a name for "the height the machine produces" — that name is $f(x)$.

4. The graph and the letter $y$ — turning the machine into a picture

A machine that eats one number and gives one number can be drawn. We use two number lines at right angles:

• horizontal line = the input $x$,
• vertical line = the output, whose height we give its own short name, $y$.

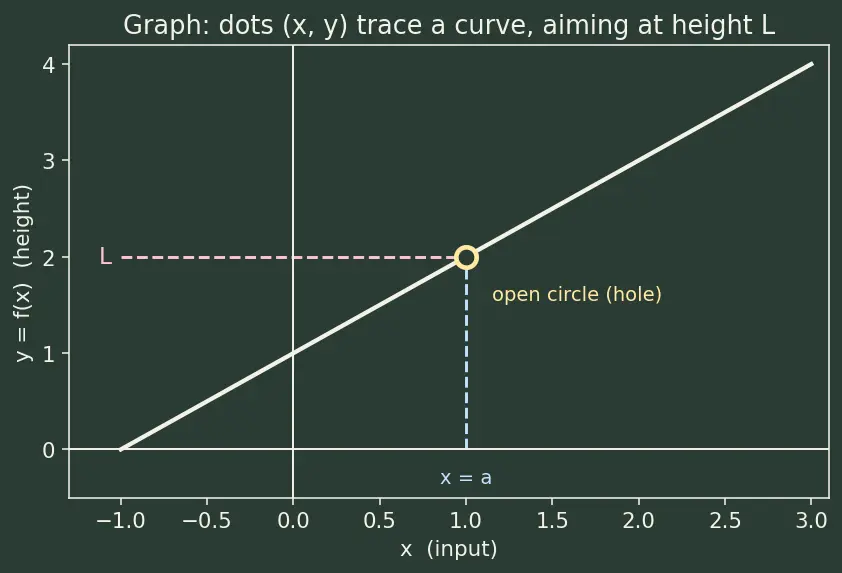

Figure s03 shows this. The straight line $y=x+1$ is drawn on the two axes ($x$ across, $y$ up). At the point $(1,2)$ there is a pale-yellow open circle — a hole where that single point is missing. A blue dashed line drops from the curve to the $x$-axis at $x=a$, and a pink dashed line runs across to the $y$-axis at height $L$, showing the curve aiming at height $L$ even though the point itself is punched out. Read the figure as: the curve heads to a definite height $L$ regardless of the hole.

Why the topic needs it: "Method 2: Graphical reading" in the parent literally means trace this curve with your finger. A limit becomes a height you aim your finger at — impossible to picture without the graph, and impossible to name without $y$.

Two picture-features you must be able to spot on a graph:

• Open circle (hole) ⭘ — the curve reaches a spot but that single point is missing. The machine has no output there.
• Filled dot ● — the machine does have a value there (possibly off the curve, a "stray dot").

5. The arrow $\to$ and the word $\lim$

Now we combine everything.

Picture: your finger walks along the curve toward the vertical dashed line at $x=a$, and you note the height it is aiming at — even if there is a hole exactly there (as in figure s03).

6. The letter $L$ and the equals sign in $\lim =L$

Picture: a horizontal dashed line at height $L$ (the pink dashed line in figure s03) — the curve's finger-trace snuggles up to this line as $x\to a$.

7. The superscripts $a^{-}$ and $a^{+}$ — the two directions of approach

Recall "left" and "right" from the number line. We tag the arrow with a tiny sign to say which side we creep in from.

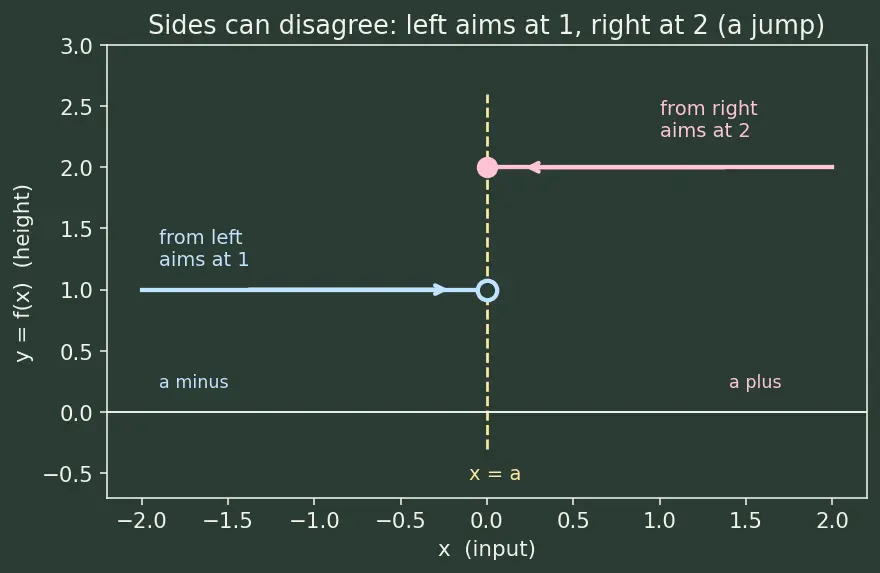

Figure s04 shows this. The graph of a jump function is drawn: a blue horizontal piece at height $1$ for inputs left of $a$, and a pink horizontal piece at height $2$ for inputs right of $a$. At the jump, a hollow blue circle sits at height $1$ and a solid pink dot at height $2$. A blue arrow walks in from the left ("from left aims at 1"); a pink arrow walks in from the right ("from right aims at 2"). Read the figure as: the two sides can aim at different heights, so there is no single destination.

Why the topic needs it: a curve can aim at two different heights depending on the side you walk in from (a "jump", exactly as in figure s04). The superscript is the only way to say which walk we mean. See One-sided limits and limits at infinity for where this idea goes next.

8. The symbol $⟺$ — "exactly when, both ways"

The parent wrote: ${\lim }_{x\to a^{-}}f(x)={\lim }_{x\to a^{+}}f(x)=L⟺{\lim }_{x\to a}f(x)=L$

Read the parent's line as: "Both one-sided limits equal the same $L$" holds exactly when "the two-sided limit is $L$" holds — neither can be true without the other.

9. The "$0/0$ trap" — why limits are needed at all

Picture: the machine jams. At $x=1$, $\frac{x^2-1}{x-1}=\frac{0}{0}$ — the box lights up "ERROR". Yet the curve around that point behaves perfectly. The limit lets us read off the aimed-at height without ever pressing the jammed button. Handling these is the subject of Indeterminate forms and algebraic simplification.

Why the topic needs it: this jam is the whole reason limits exist. If plugging in always worked, we would never need to ask "what is it heading for?".

10. When a limit does NOT exist — the two failure modes

A destination can fail to exist in more than one way. You should recognise both before moving on.

Putting the symbols together (read the parent line aloud)

${\lim }_{x\to a}f(x)=L$

Now decode, left to right:

• $\lim$ — "the destination height of"
• $f(x)$ — "the machine's output"
• $x\to a$ — "as the input slides toward the flag $a$ (never landing on it)"
• $=L$ — "is the height $L$."

Full sentence: "As the input creeps toward $a$, the machine's output homes in on the height $L$." That is the entire topic in one line — and you can now read every character of it.

Prerequisite map

The diagram below reads top to bottom, and every arrow means "feeds into / is needed for". At the very top is the number line — the foundation everything else stands on. It branches into the three things that live on it: the movable input $x$, the fixed target $a$, and the notion of a point's left/right sides. The input $x$ feeds the function machine $f(x)$, which in turn lets us draw the graph (dots $(x,y)$). Meanwhile $x$ and $a$ together power the arrow $x\to a$, and the left/right sides give birth to the one-sided approaches $a^{-}$ and $a^{+}$. The arrow and the graph combine into the word $\lim$ (the aimed-at height), which produces the limit value $L$. The one-sided approaches and $L$ meet at $⟺$ (both sides must agree). Off to the side, the $0/0$ trap feeds directly into $\lim$ — it is the reason we ask the limit question. All of these streams pour into the bottom node: the intuitive concept of a limit.

Equipment checklist

Read each prompt, answer in your head, then reveal.

Connections

• Parent: Intuitive concept of a limit — table of values, graphical
• One-sided limits and limits at infinity
• Formal epsilon-delta definition of a limit
• Continuity at a point
• Indeterminate forms and algebraic simplification
• The derivative as a limit of difference quotients
• Squeeze (Sandwich) Theorem
