Visual walkthrough — Determinant of 2×2 matrix

We only need one idea from before: a vector is an arrow from the origin $(0,0)$ to a point. We write the arrow to $(3,1)$ as the column $\left[\begin{array}{c}3\\ 1\end{array}\right]$: the top number is how far right, the bottom number is how far up.

---

Step 1 — Two arrows make a corner

WHAT: We plant two arrows at the origin, $\vec{u}=(a,c)$ (blue) and $\vec{v}=(b,d)$ (yellow).

WHY: The determinant is going to measure the area they enclose, so first we must actually draw the shape they enclose. Two arrows from a shared corner sketch out a parallelogram — that is the shape.

PICTURE: Look at the blue arrow leaning right, the yellow arrow leaning up-left, and the faint parallelogram they open up between them.

---

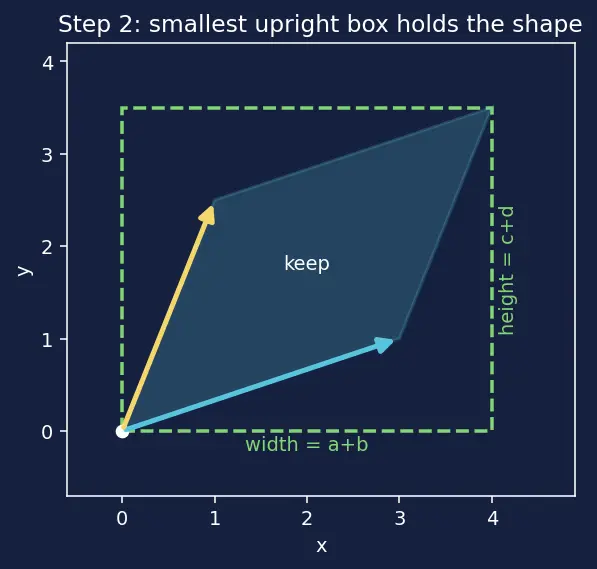

Step 2 — Trap the parallelogram in a box

WHAT: Draw a rectangle whose width reaches the farthest-right point and whose height reaches the highest point. Its width is $(a+b)$ and its height is $(c+d)$, so its area is $\underset{\text{total width}}{\underbrace{(a+b)}}\times \underset{\text{total height}}{\underbrace{(c+d)}}.$

WHY: We chose a rectangle because area of a rectangle = width × height, no cleverness required. Everything left over inside the rectangle will be triangles and small rectangles — also easy.

PICTURE: The green dashed box hugs both arrow-tips. The blue parallelogram sits inside it, and there are coloured off-cuts in the corners we will remove next.

Multiply the box area out (this is just $(a+b)(c+d)$ expanded — each term is one word): $(a+b)(c+d)=\underset{\text{box under }\vec{u}}{\underbrace{ac}}+\underset{\text{keep!}}{\underbrace{ad}}+\underset{\text{cut off}}{\underbrace{bc}}+\underset{\text{box under }\vec{v}}{\underbrace{bd}}$

---

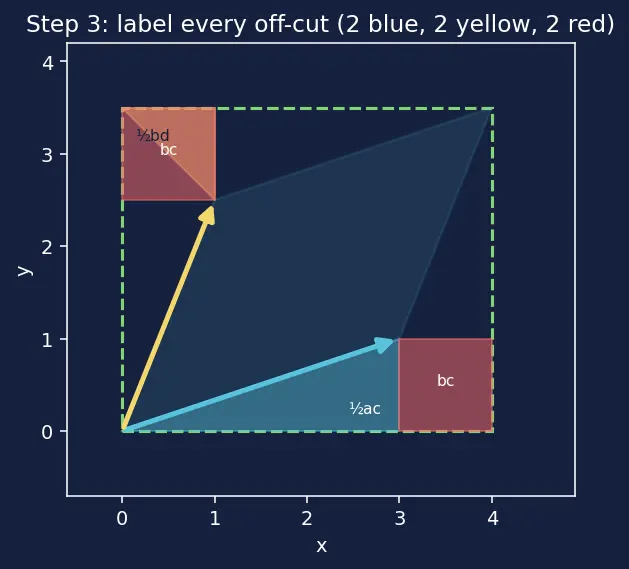

Step 3 — Name the off-cuts we must throw away

WHAT: Each off-cut piece has an area we can name:

• Triangle under $\vec{u}$: base $a$, height $c$ → area $\frac{1}{2}ac$. There are two of these (top and bottom), together $ac$.
• Triangle beside $\vec{v}$: base $b$, height $d$ → area $\frac{1}{2}bd$. Two of these, together $bd$.
• Corner rectangle: width $b$, height $c$ → area $bc$. There are two of these, together $2bc$.

WHY: We separate the box into "the parallelogram we want" plus "junk we can compute". If we can total the junk, then

$\text{parallelogram}=\text{box}-\text{junk}.$

PICTURE: Each off-cut is shaded a different colour and labelled with its own area. Count them: two blue triangles, two yellow triangles, two red corner rectangles.

---

Step 4 — Subtract the junk and watch it collapse

WHAT: Total junk area = the two blue triangles + two yellow triangles + two red rectangles: $\text{junk}=\underset{\text{2 blue }△}{\underbrace{ac}}+\underset{\text{2 yellow }△}{\underbrace{bd}}+\underset{\text{2 red }\square }{\underbrace{2bc}}.$

Now subtract junk from the box area: $\text{Area}=\underset{\text{box}}{\underbrace{(ac+ad+bc+bd)}}-\underset{\text{junk}}{\underbrace{(ac+bd+2bc)}}.$

Cancel term by term — this is the whole magic: $\text{Area}=\cancel{ac}+ad+bc+\cancel{bd}-\cancel{ac}-\cancel{bd}-2bc=ad+bc-2bc=ad-bc.$

WHY: The $ac$ and $bd$ pieces exactly cancel (the box under each arrow was never part of the parallelogram). The $bc$ pieces don't fully cancel: we counted one $bc$ inside the box but must remove two red rectangles, leaving $-bc$. That surviving minus is the whole story.

PICTURE: The animation-style panel shows junk pieces sliding out of the box; what remains is exactly the blue parallelogram, stamped with its area $ad-bc$.

---

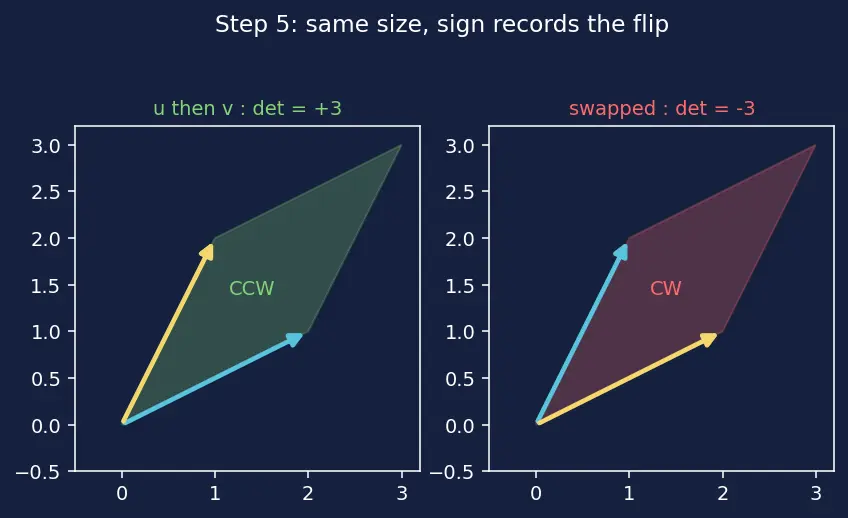

Step 5 — Where did the sign go? (the flip case)

WHAT: Take $\vec{u}=(2,1)$, $\vec{v}=(1,2)$: $\det =2\cdot 2-1\cdot 1=3>0$ (counterclockwise). Now swap them, $\vec{u}=(1,2),\vec{v}=(2,1)$: $\det =1\cdot 1-2\cdot 2=-3<0$. Same parallelogram, area still $3$, but orientation reversed.

WHY: Area itself can never be negative — that is why the parent note writes $|ad-bc|$ for actual area. The signed value $ad-bc$ carries one extra bit: which arrow is "first". This is exactly the orientation flip described in the parent's Example 3.

PICTURE: Two side-by-side parallelograms of equal size. On the left the corner labels run counterclockwise (green, $+$); on the right, after swapping the arrows, they run clockwise (red, $-$).

---

Step 6 — The degenerate case: area zero

WHAT: Let $\vec{u}=(6,4)$ and $\vec{v}=(3,2)$. Notice $\vec{v}=\frac{1}{2}\vec{u}$. Then $\det =6\cdot 2-3\cdot 4=12-12=0.$

WHY: With no area, the transformation squashes the plane onto a line — information is lost and no inverse exists. This is the parent's singular / linearly dependent case, and Cramer's rule (Cramer's rule) breaks precisely here (you'd divide by $0$).

PICTURE: Both arrows lie on one line; the "parallelogram" is a flat sliver with area label $0$.

---

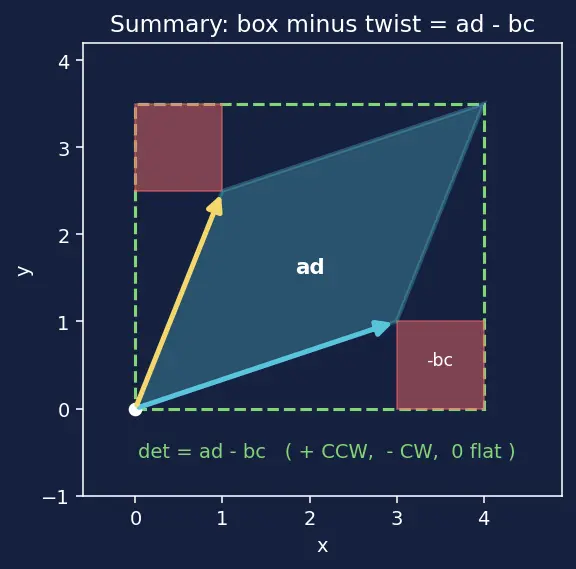

The one-picture summary

Everything above compressed: the green box $(a+b)(c+d)$, the red twist $bc$ removed twice, the blue kept-area $ad$, giving $ad-bc$ — and the small sign badge showing $+$ (counterclockwise) vs $-$ (clockwise) vs $0$ (collapsed).

Recall Feynman retelling (say it to a friend)

I want the area of the slanted shape made by two arrows. Slanted shapes are annoying, so I trap the whole thing in an upright box — width is total-right, height is total-up, so the box area is $(a+b)(c+d)$. But the box is too big: it includes triangles under each arrow and two little corner rectangles. When I subtract those off-cuts, the pieces belonging under each arrow ($ac$ and $bd$) cancel perfectly, and the corner rectangles leave behind a single $-bc$. So the true area is $ad-bc$. If I list my two arrows in the "wrong" rotational order, the same sum comes out negative — that minus sign is just remembering that I flipped the shape over. And if the two arrows sit on one straight line, there is no shape at all, so the answer is exactly $0$. That is the determinant: kept-area minus twist, with a sign for flips and a zero for collapse.

Recall

Where does the $ad$ come from in the box picture? ::: It is the part of the enclosing box that actually belongs to the parallelogram — the "kept" area. Why does only $-bc$ survive and not $-2bc$? ::: The box already contained one $bc$; we must remove two corner rectangles, so one $bc$ is left over as a subtraction. What does a negative determinant mean geometrically? ::: Same area magnitude, but the two arrows are in reversed (clockwise) order — the shape is flipped over. What does $\det =0$ look like? ::: The two arrows are collinear (parallel), so the parallelogram is squashed flat to a line with no area.

---

Connections

• Area of parallelogram — this whole page is its box-minus-junk proof.
• Linear independence — Step 6: zero area ⟺ dependent columns.
• Cramer's rule — fails exactly at the Step 6 degenerate case.
• Inverse of a 2×2 matrix — exists only when Step 6 does not happen.
• Transformations and scaling — the box→parallelogram map is the transformation.
• Cross product in 3D — the 3D big brother of this signed-area idea.
• Determinant of 2×2 matrix — parent topic.
