Addition and subtraction of algebraic expressions: Visual walkthrough

This page rebuilds the single central result of Addition and subtraction of algebraic expressions from the ground up, in pictures. We will discover, step by step, why

$a x^{n} + b x^{n} = (a + b) x^{n}$

and why $3 x + 5 y$ refuses to simplify. Every symbol below is earned before it is used. A smart 12-year-old who has never seen a variable can follow from line one.

Step 1 — What is a "term"? A box holding copies of one thing

WHAT. Before any adding happens, we need to know what the pieces are. A term like $3 x$ is just shorthand for "three copies of $x$ added together":

$how many copies 3 what we are copying x = x + x + x$

The number in front, $3$ , is called the coefficient — it counts how many copies.
The letter $x$ is a variable — it stands for one fixed but unknown number. Every $x$ on the page is the same secret number.

WHY. If we don't know what $3 x$ means, we can't say what adding two of them does. Turning $3 x$ into "three identical $x$ -blocks" makes it something we can literally count on a picture.

PICTURE. Below, $x$ is drawn as one blue block. $3 x$ is three of those blocks stacked in a row. The number of blocks is the coefficient.

Figure — Addition and subtraction of algebraic expressions

Step 2 — Adding two like terms is just sliding blocks together

WHAT. Now take $3 x + 5 x$ . Written as blocks:

$3 x + 5 x = 3 blocks (x + x + x) + 5 blocks (x + x + x + x + x)$

Push both groups into one line. Count: $3 + 5 = 8$ identical blocks.

$3 x + 5 x = 8 blocks x + x + x + x + x + x + x + x = 8 x$

WHY. The two groups are made of the same block ( $x$ ), so putting them side by side just makes a longer row of that same block. Counting a longer row of identical things is addition of the counts — nothing else changes.

PICTURE. Blue row of 3, orange row of 5, then the merged green row of 8. Notice the block never changes shape — only how many changes.

Step 3 — The distributive property: what we just did, in symbols

WHAT. Sliding the blocks together is exactly the Distributive Property read backwards. The distributive property says:

$a (b + c) = ab + a c$

Read it right to left with $b = 3$ , $c = 5$ pulled out of a shared $x$ :

$a \cdot x 3 x + a \cdot x 5 x = add the counts (3 + 5) shared block, factored out x = 8 x$

Term by term: the $x$ is the common factor we lift out front; the coefficients $3$ and $5$ are the only things left inside the bracket, so they add.

WHY. We want a rule we can trust without drawing blocks every time. The distributive property is the algebra that certifies the block picture: pulling out the shared $x$ is legal, and it leaves the coefficients alone to add.

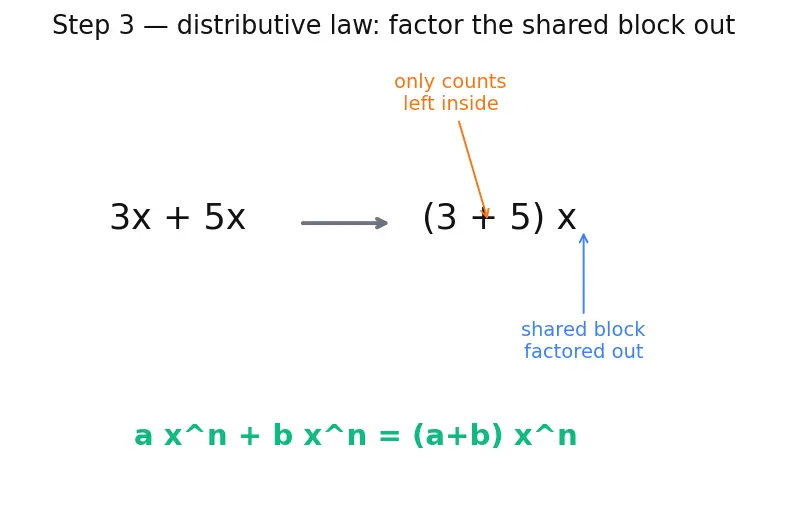

PICTURE. The shared $x$ -block is drawn "factored out" to the front of a bracket; inside the bracket only the numbers $3$ and $5$ remain, joined by a $+$ .

Step 4 — Unlike terms: no shared block, nothing to factor

WHAT. Try the same trick on $3 x + 5 y$ . Now $x$ and $y$ are different blocks (different secret numbers). Write it out:

$3 x + 5 y = 3 blue blocks (x + x + x) + 5 orange blocks (y + y + y + y + y)$

There is no common factor to pull out — $x \neq = y$ — so the distributive property has nothing to grab:

$3 x + 5 y = (3 \cdot x) + (5 \cdot y) \Rightarrow stays 3 x + 5 y$

WHY. Counting only works for identical things. Three apples and five oranges are eight pieces of fruit, but not eight apples and not eight oranges — so we simply keep both counts. Merging them would throw away real information.

PICTURE. A blue row of 3 and an orange row of 5 sitting apart. An arrow tries to merge them and hits a red "✕": the blocks are different shapes, they don't stack.

Step 5 — Subtraction is "adding the opposite" — every sign flips

WHAT. What does the minus in $(5 x + 3) - (2 x + 7)$ do? A minus in front of a bracket means "multiply the whole bracket by $- 1$ ", using Distributive Property again:

$- (2 x + 7) = (- 1) \cdot 2 x + (- 1) \cdot 7 = - 2 x - 7$

Term by term: the $- 1$ reaches every term inside, not just the first. So

$(5 x + 3) - (2 x + 7) = 5 x + 3 - 2 x - 7 = (5 - 2) x + (3 - 7) = 3 x - 4$

WHY. Subtraction of a group is removal of all of it. If you only flipped the first term you'd remove $2 x$ but keep the $7$ — you'd be adding what you meant to take away. The picture: taking away a red bar takes the entire bar, both its parts.

PICTURE. The bracket $(2 x + 7)$ shown as one red bundle; the $- 1$ multiplies through so both pieces $2 x$ and $7$ turn negative (drawn below the line).

Step 6 — The degenerate cases: zero, and "the last block standing"

WHAT. Two edge cases the rule must survive.

Case A — coefficients cancel to zero. If $a + b = 0$ , the term vanishes: $5 x - 5 x = (5 - 5) x = 0 \cdot x = 0$ Zero copies of a block is no blocks — an empty spot, written simply as $0$ .

Case B — a lonely unlike term. If a variable appears only once (like $5 y$ in Example 3 of the parent), there is nothing to combine it with, so it rides through untouched: $5 y ⟶ 5 y$

WHY. A good rule must not break at the extremes. Zero must give an empty row (not a mysterious " $0 x$ " left dangling), and a term with no partner must not be dropped or altered.

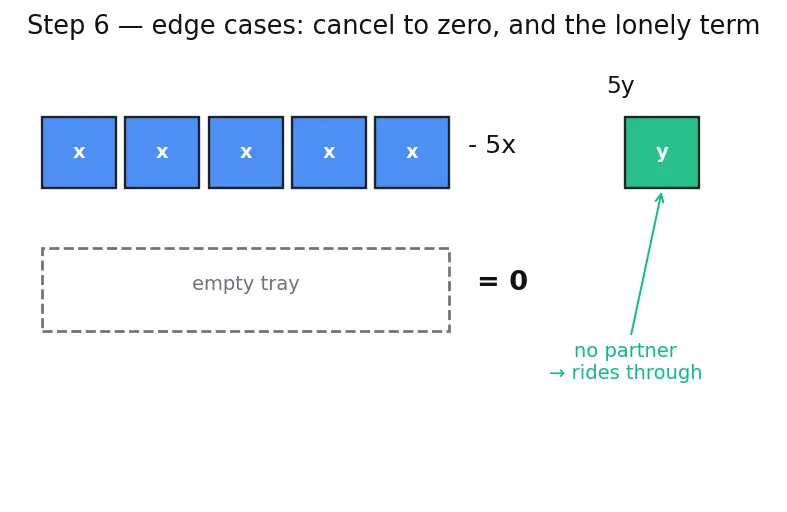

PICTURE. Left: 5 blue blocks minus 5 blue blocks leaves an empty tray labelled $0$ . Right: a single green block with no partner, arrow showing it copied unchanged to the answer.

Recall Quick self-check

$9 x - 9 x$ simplifies to what? ::: $0$ (zero copies of the block) In $3 a^{2} + 7 a - 10$ , why can't $7 a$ and $- 10$ combine? ::: $- 10$ has no variable ( $a^{0}$ ); $7 a$ has $a^{1}$ — different powers, unlike terms. $- (x - 4)$ equals? ::: $- x + 4$ (both signs flip).

The one-picture summary

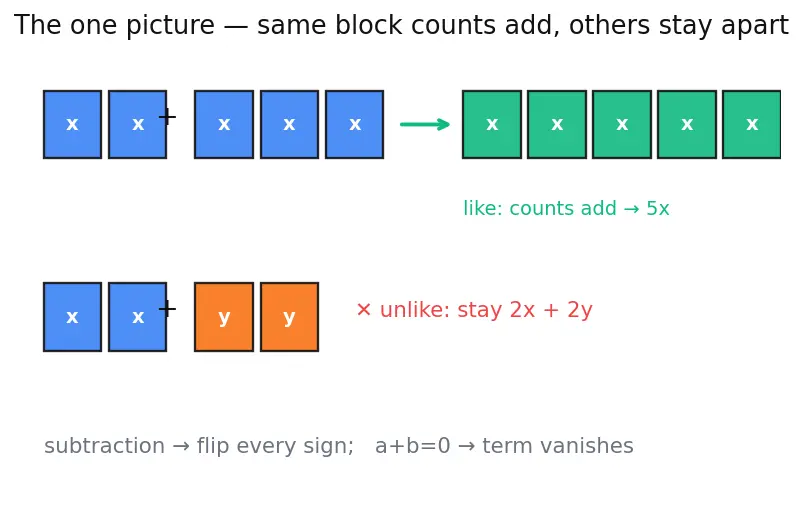

Everything above is one idea: line up identical blocks, count them, keep different blocks apart. The figure below compresses the full journey — define a term, merge like blocks (add coefficients, factor out the block), refuse to merge unlike blocks, flip all signs under subtraction, and handle the zero/lonely edge cases.

Recall Feynman retelling (explain it to a 12-year-old)

Think of blocks. A term like $3 x$ is just three copies of the same little block called $x$ . When you add $3 x$ and $5 x$ , you're pushing a row of 3 and a row of 5 of the same block into one long row — count them, that's $8 x$ . The block never changes; only how many you have changes. That "count-the-copies" move is what grown-ups call the distributive property: pull the shared block out front, add the little numbers inside.

Now $3 x + 5 y$ is like 3 red cars and 5 blue cars. There's no shared block to pull out, so you can't smush them into "8 red-blue cars" — you just say "3 red and 5 blue" and stop. That's why unlike terms stay apart.

Subtraction is taking a whole bundle away. The minus reaches every piece inside the bracket, so every sign inside flips — miss one and you've secretly added back what you meant to remove. Finally, if you take away exactly as many blocks as you had, you're left with an empty tray: zero. And a block with no twin just walks straight into the answer, unchanged.

See also: Combining Like Terms · Distributive Property · Order of Operations · Polynomials · यही Hinglish में
