Like and unlike terms — simplification: Visual walkthrough

This page builds the single most important rule of like and unlike terms from the ground up — no rule memorised, everything seen. By the end you will know not just that $3 x + 5 x = 8 x$ , but why the picture forces it to be true, and why $3 x + 5 y$ refuses to collapse.

We assume you know what a variable, constant and coefficient are. If not, read that first. Everything else, we build here.

Step 1 — What is a "term", really? (a box holding copies)

WHAT. A term like $3 x$ is just shorthand. The number in front — the coefficient — tells you how many copies of the letter-part you are holding.

$how many 3 copies of what x = x + x + x$

WHY. Before we can add terms, we must agree what a term means. If $3 x$ literally means "three $x$ 's stacked together", then adding terms is just counting objects — the easiest thing in the world.

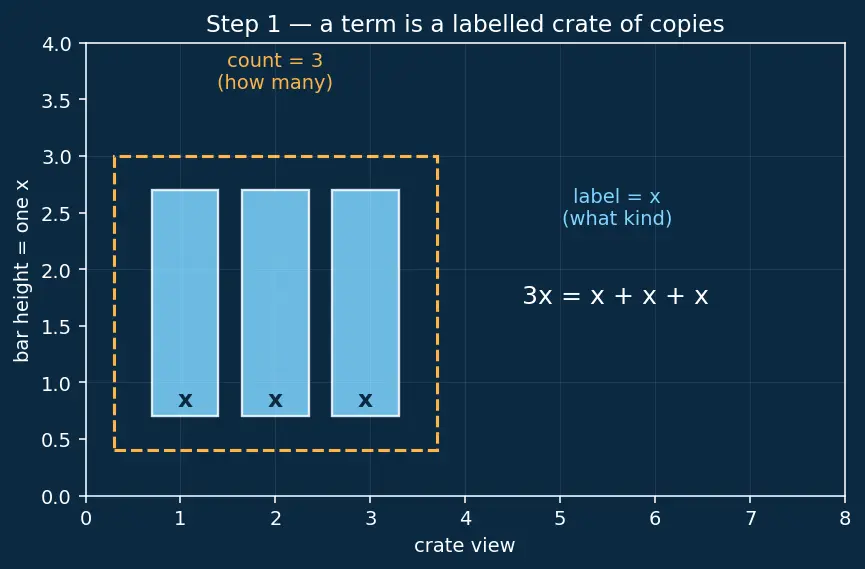

PICTURE. Below, each $x$ is a cyan bar of one unit. $3 x$ is three of those bars in a box.

Figure — Like and unlike terms — simplification

Step 2 — Adding two terms of the SAME label

WHAT. Put the crate $3 x$ next to the crate $5 x$ . Both crates are labelled $x$ . Tip them into one crate.

$3 x + 5 x = 3 copies (x + x + x) + 5 copies (x + x + x + x + x) = 8 copies x + x + x + x + x + x + x + x = 8 x$

WHY. Because both crates carry the identical label $x$ , the items are interchangeable — an $x$ from the left crate is the same object as an $x$ from the right crate. Counting them together is legal. We simply counted: $3 + 5 = 8$ .

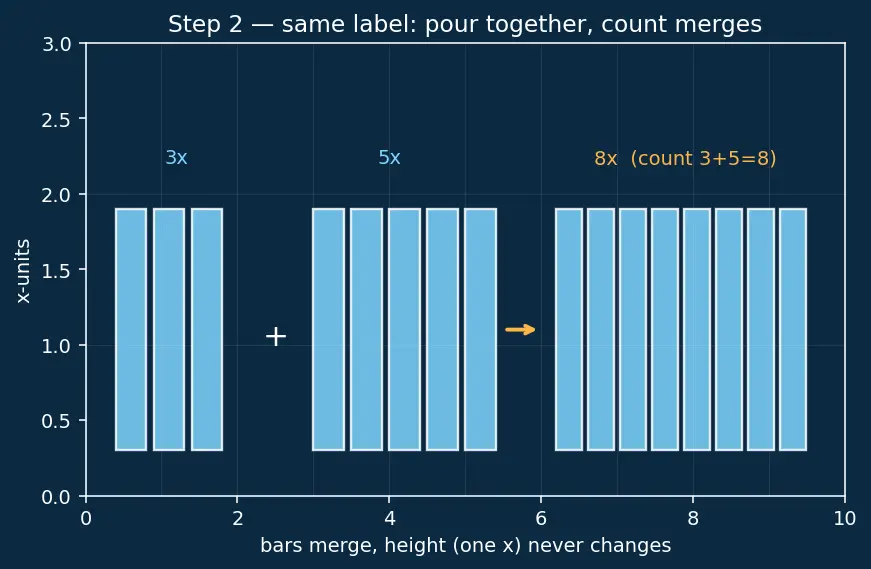

PICTURE. Watch the two boxes merge. The number of bars is what changes; each bar stays exactly one $x$ tall — the label never mutates.

Step 3 — The same picture, written as algebra (distributive property)

WHAT. The picture in Step 2 is the distributive property running in reverse. Read it term by term:

$a copies of x a \cdot x + b copies of x b \cdot x = merged count (a + b) \cdot shared label x$

WHY this tool and not another? We need one exact statement that says "a common factor can be pulled out front". That statement already exists in arithmetic — it is the distributive property, $a \cdot c + b \cdot c = (a + b) \cdot c$ . We are not inventing a new rule for algebra; we are reusing the arithmetic one, because $x$ behaves like any ordinary number under $+$ and $\times$ .

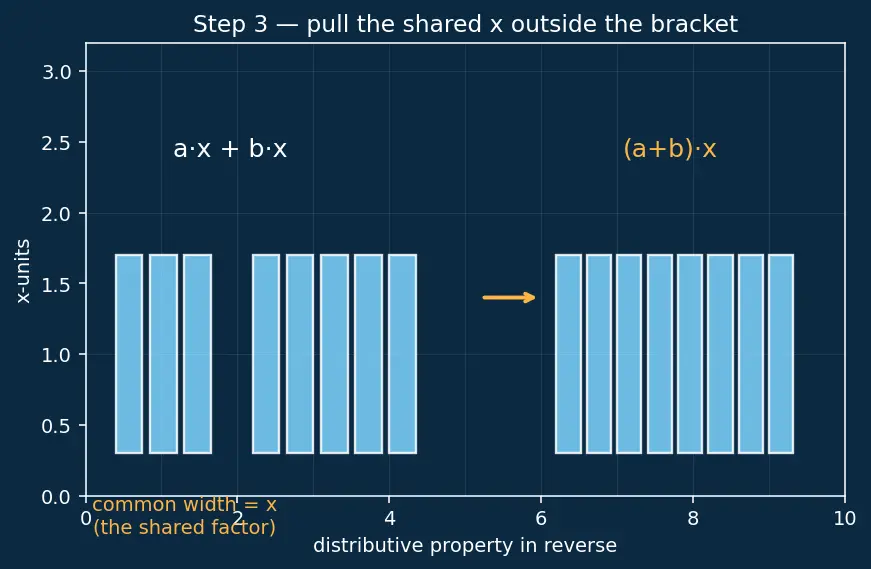

PICTURE. The shared factor $x$ is the common width of every bar. Pulling it out front is literally sliding the width outside a bracket.

Step 4 — Why $3 x + 5 y$ REFUSES to combine (mismatched labels)

WHAT. Now the two crates carry different labels: one holds $x$ -bars, the other holds $y$ -bars. There is no single label to write on a merged crate.

$3 x + 5 y = 3 x + 5 y (stuck — nothing to pull out)$

WHY. The distributive property needs a common factor. In $3 x + 5 y$ there is nothing shared: $x \neq = y$ . Try to factor and you get $x (3) + y (5)$ — no single bracket, no simplification. The bars are different heights; you cannot count them as one pile.

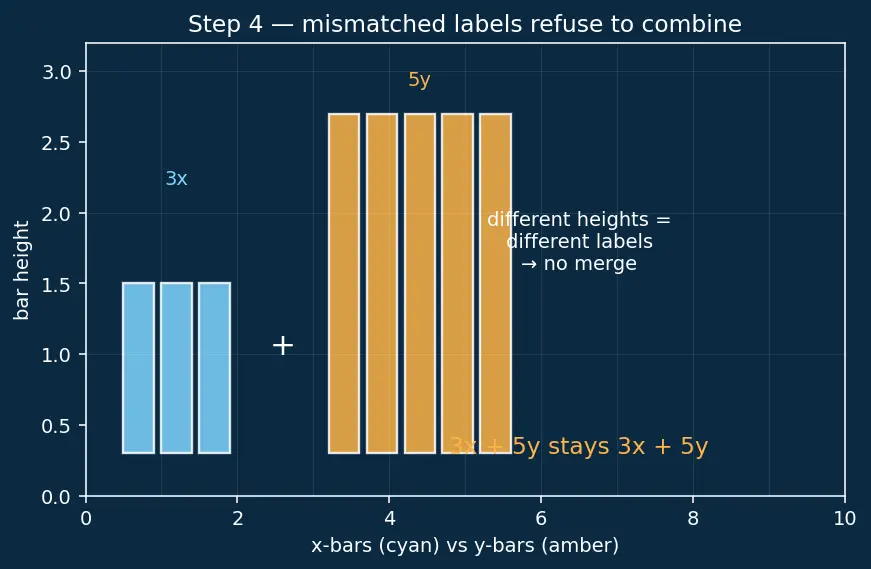

PICTURE. Cyan $x$ -bars and amber $y$ -bars stand side by side. They never merge — different heights, different meaning.

Step 5 — Powers are labels too: $x^{2}$ vs $x^{3}$

WHAT. $x^{2}$ means $x \cdot x$ ; $x^{3}$ means $x \cdot x \cdot x$ . These are different-sized objects — a flat tile versus a cube. So $x^{2}$ and $x^{3}$ are unlike terms, exactly like $x$ and $y$ were.

$2 x^{2} + 3 x^{2} = 5 x^{2} (✓ same label x^{2})$ $2 x^{2} + 3 x^{3} = 2 x^{2} + 3 x^{3} (stuck — different labels)$

WHY. The rule cares about the whole variable part, powers included. $x^{2}$ and $x^{3}$ share the letter $x$ , but not the power — so they are as different as a square and a cube. No common factor as a complete label means no merge.

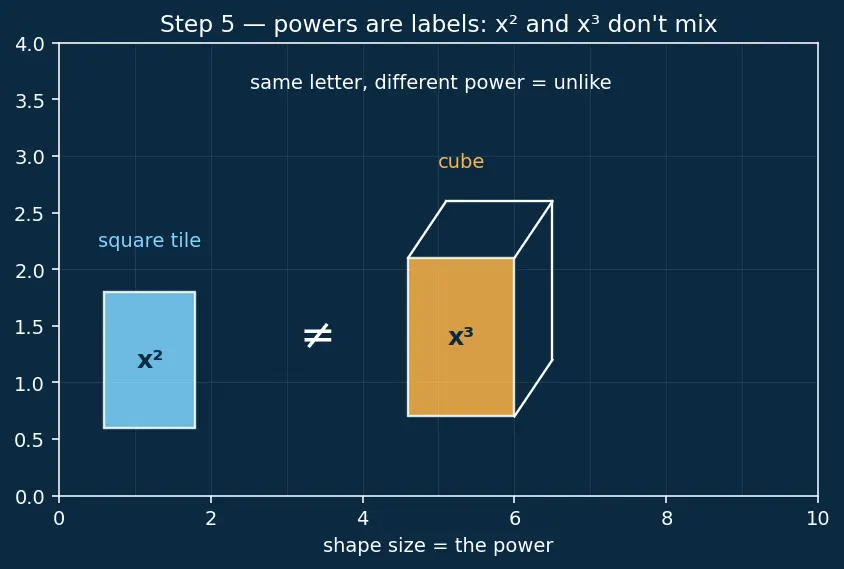

PICTURE. An $x^{2}$ is drawn as a square tile; an $x^{3}$ as a cube. You can stack squares with squares, cubes with cubes — never mix.

Step 6 — Signs are part of the count (subtraction)

WHAT. A minus sign is not a separate operation floating between crates — it belongs to the term as a negative count. Rewrite subtraction as "adding a negative pile":

$5 x - 2 x = 5 x + (- 2 x) = (5 + (- 2)) x = 3 x$

WHY. If we glue each sign onto its coefficient, then every combination becomes plain addition of signed counts — one uniform rule, no special cases. This is exactly how you will later move things across an equals sign in solving linear equations.

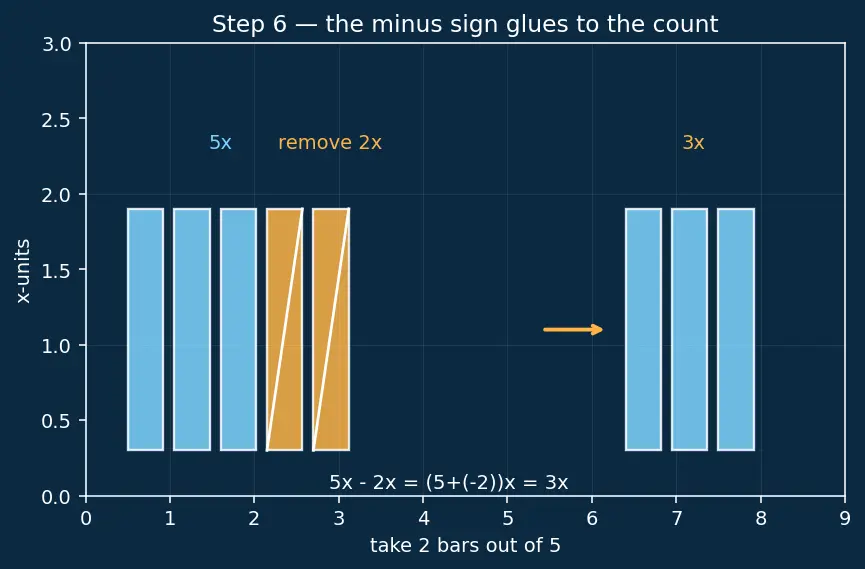

PICTURE. Two bars are removed (shown faded/struck) from a pile of five, leaving three.

Step 7 — Many labels at once (the full sorting picture)

WHAT. A real expression mixes labels. Simplify $5 x^{2} + 3 x - 2 x^{2} + 7 x - 4$ by sorting into labelled bins, then combining inside each bin only.

x^{2} bin: 5 x^{2} - 2 x^{2} = (5 - 2) x^{2} = 3 x^{2} x^{1} bin: 3 x + 7 x = (3 + 7) x = 10 x const bin: - 4

$\Rightarrow 3 x^{2} + 10 x - 4$

WHY. Sorting first guarantees you never accidentally merge across labels (Steps 4–5 warned us). Combining inside a bin is just Step 3 repeated. Writing in descending powers is the standard tidy form you will meet again in polynomials.

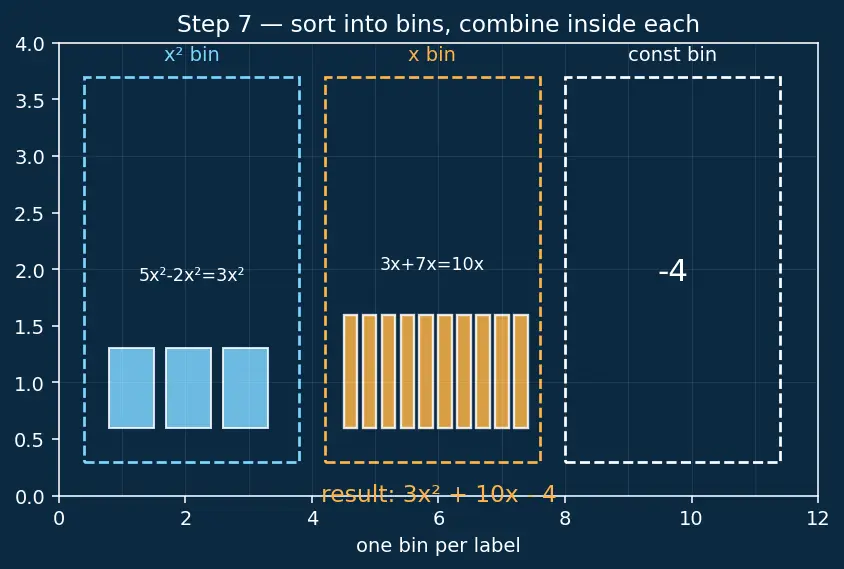

PICTURE. Three bins — square-tiles, bars, and plain constants — each with its own tally.

Step 8 — Degenerate cases: zero counts and a lonely constant

WHAT. Two edge cases the rule must survive:

Coefficients cancel to zero: $4 x - 4 x = (4 - 4) x = 0 \cdot x = 0$ . An empty crate is just $0$ — the label vanishes with nothing to count.
A constant has an invisible label $x^{0}$ : $- 4$ lives in its own bin because $x^{0} = 1$ , and no other term here has that label, so it stays alone.

WHY. A good rule never breaks at its boundaries. Zero copies really means nothing there, and constants are simply terms with the empty variable part — so the same like-term rule already covers them; we invent nothing new.

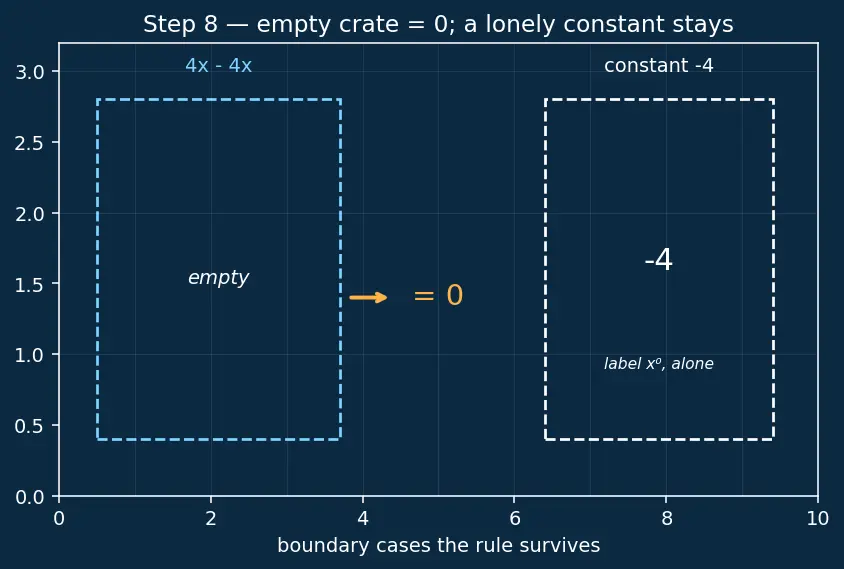

PICTURE. An empty crate collapsing to $0$ , beside a solitary constant crate that finds no partner.

Recall Quick check: what is

$7 ab - 7 ab + a$ ? $7 ab - 7 ab = 0$ , leaving just $a$ . Answer ::: $a$

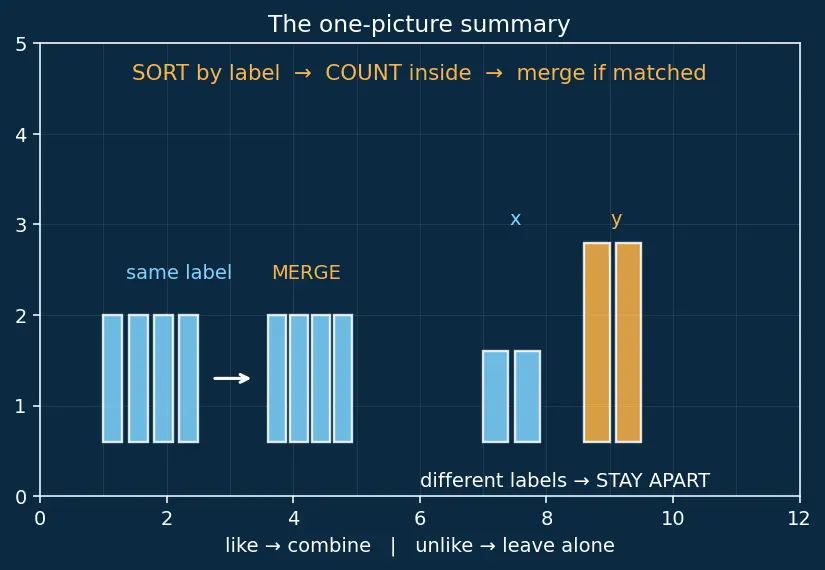

The one-picture summary

Everything above compresses into one diagram: sort by label → count inside each bin → labels with matching parts merge, mismatched labels stay apart.

Recall Feynman retelling — say it to a 12-year-old

Every term is a crate with a label and a count. The label is the letter-and-power part ( $x$ , $y$ , $x^{2}$ , $ab$ ...); the count is the number in front.

To simplify an expression, you sort the crates by label. Crates with the exact same label pour into one crate — you just add up their counts (minus signs mean "take some out"). If two counts cancel, the crate is empty, which is $0$ .

Crates with different labels — like $x$ vs $y$ , or $x^{2}$ vs $x^{3}$ — cannot mix, because there's no single label to write on a merged crate. So they stay side by side, unsimplified.

That's the whole rule: same label, merge the counts; different label, leave them alone. Constants are just crates with an empty label. Nothing else to it.

Connections

2.1.01-Variables-constants-and-coefficients — the label/count split starts here
2.2.01-Distributive-property — the engine behind Step 3
2.1.03-Addition-and-subtraction-of-algebraic-expressions — this rule in action, expression by expression
3.1.01-Solving-linear-equations-one-variable — signed counts (Step 6) power equation solving
4.1.01-Polynomials-introduction — sorting bins (Step 7) is polynomial standard form
