Visual walkthrough — Prime factorization — factor trees, ladder method

Before we start, let's agree on words so no symbol sneaks in undefined.

Step 1 — Start with dots, not symbols

WHAT. Take the number $12$ and draw it as a collection of $12$ dots. Ask: can I arrange these dots into a rectangle wider than 1?

WHY. A rectangle of dots with $r$ rows and $c$ columns holds exactly $r\times c$ dots. So finding a rectangle is finding two factors. This turns "does it split?" into "can I see a rectangle?" — a question your eyes can answer instantly.

PICTURE. In the figure, $12$ dots form a $3\times 4$ rectangle. Because a rectangle exists (with both sides $>1$), $12$ is not prime — it is composite. Beside it, $5$ dots refuse: no rectangle, only a lonely line. That lonely line is what "prime" looks like.

Step 2 — Composite numbers can always be split further

WHAT. Take any composite number. By definition it forms a rectangle $r\times c$ with $r>1$ and $c>1$. So we can write it as a product of two smaller numbers.

WHY. This is the engine of the whole method. If $r>1$ then $c=n/r<n$, and if $c>1$ then $r<n$ too. Both pieces are strictly smaller than $n$. "Strictly smaller" is the magic phrase — it guarantees we can't split forever.

PICTURE. The figure shows $12=3\times 4$ as the rectangle, then peels the $4$-column into a $2\times 2$ block ($4=2\times 2$). Each split hands us pieces that are shorter than what we started with. Watch the numbers only ever shrink.

$\underset{\text{start}}{\underbrace{12}}=\underset{\text{a smaller factor}}{\underbrace{3}}\times \underset{\text{another smaller factor}}{\underbrace{4}},\underset{\text{still composite}}{\underbrace{4}}=\underset{\text{prime}}{\underbrace{2}}\times \underset{\text{prime}}{\underbrace{2}}$

Here $3$ is prime (it stops), and $4$ keeps going because it's composite.

Step 3 — Why the splitting must end (the "staircase down")

WHAT. Every time we split a composite piece, both new pieces are strictly smaller. Numbers can't shrink below $2$ and still be worth splitting (primes stop). So the process must halt — you can only walk down a staircase of whole numbers so many times before you hit the bottom.

WHY. This answers a hidden worry: what if splitting never stops and we're stuck forever? It can't. Each piece is a whole number $\ge 2$, and each split lowers it. A strictly decreasing list of whole numbers bigger than $1$ has to end. This principle — "you can't descend through the whole numbers forever" — is the reason factorization always terminates.

PICTURE. The figure draws a staircase: $12\to 6\to 3$, each step lower than the last, hitting the floor at a prime. No arrow ever points back up.

Step 4 — But is the pile always the same? Two trees, one experiment

WHAT. We now have a factorization for any number. The scary question: could two people, splitting differently, get different piles of primes? Let's test it on $60$ with two totally different first splits.

WHY. This is exactly where beginners assume "of course it's the same" — but assuming is not seeing. We build both trees side by side and check the leaves. If they match, we have evidence; then Step 6 proves it must match.

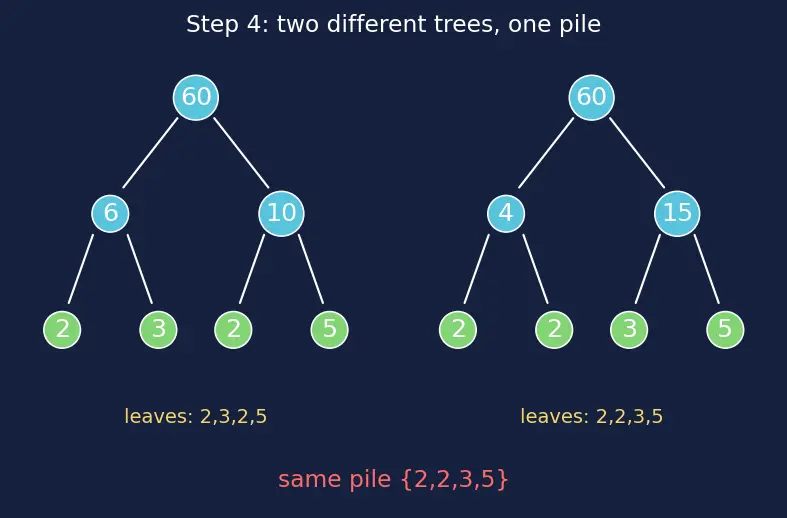

PICTURE. Two factor trees for $60$. Left starts $60=6\times 10$; right starts $60=4\times 15$. Follow every branch down to its prime leaves.

• Left tree leaves: $2,3,2,5$.
• Right tree leaves: $2,2,3,5$.

Sort both piles: both are $\{2,2,3,5\}$. Identical.

$60=2\times 2\times 3\times 5=\underset{\text{two }2\text{’s}}{\underbrace{2^2}}\cdot \underset{\text{one }3}{\underbrace{3}}\cdot \underset{\text{one }5}{\underbrace{5}}$

The exponent on each prime is just how many copies of that prime sit in the pile.

Step 5 — The ladder makes the "same pile" inevitable-looking

WHAT. Redo $60$ with the ladder: always divide out the smallest prime that fits.

WHY. The tree lets you split any way; the ladder removes all choice — you're forced to take $2$ first while the number is even, then $3$, then $5$. Because there's no freedom, there's obviously only one output. The ladder demonstrates uniqueness by leaving you no options.

PICTURE. The ladder figure peels one prime per rung off the left, quotient shrinking down the right, until $1$ is reached.

Same $\{2,2,3,5\}$ as both trees. Three methods, one pile. Now we prove it can never be otherwise.

Step 6 — The keystone: why two piles can never disagree

WHAT. We prove uniqueness. The whole thing hinges on one property of primes:

WHY this exact tool? Composite numbers fail this: $6\mid (4\times 9)=36$, yet $6\nmid 4$ and $6\nmid 9$ — the $6$ smuggled a $2$ into the $4$ and a $3$ into the $9$. Primes are indivisible, so they can't be smuggled in pieces. This "no smuggling" fact is precisely what forces two factorizations to match.

PICTURE. The figure shows a prime $p$ (a red indivisible block) meeting a product $a\times b$: it cannot be sliced between the two boxes, so it must sit entirely inside one box. Contrast with a composite $6$-block that can be sliced.

Now the argument. Suppose $n$ had two different prime piles: $n=\underset{\text{pile A}}{\underbrace{p_1{p}_2\cdots p_r}}=\underset{\text{pile B}}{\underbrace{q_1{q}_2\cdots q_s}}$ Take $p_1$ from pile A. It divides $n$, hence divides $q_1{q}_2\cdots q_s$. By the key property, $p_1$ must divide one of the $q$'s — say $q_1$. But $q_1$ is prime: its only divisors are $1$ and itself, so $p_1=q_1$. Cancel that matched pair from both sides and repeat. Every prime in pile A finds an exact twin in pile B. When you run out, neither pile has leftovers (a leftover product of primes can't equal $1$). So the piles were identical all along. That is FTA. $■$

Step 7 — Cover the corners: $1$, primes themselves, and prime powers

WHAT. Check the edge cases so no reader hits an unshown scenario.

WHY. A proof that ignores boundary inputs is a trap. Three corners:

• The number $1$. Its prime pile is empty — zero primes. That's why $1$ is excluded from FTA ("$n>1$"): an empty product equals $1$, and if we let $1$ be prime we could pad any pile with extra $1$'s and break uniqueness ($6=2\cdot 3=1\cdot 2\cdot 3=\dots$). So $1$ is a unit, kept out on purpose.
• A prime $p$ itself. Its factorization is just $p$ — a pile with a single block. The tree is one leaf; the ladder is one rung: $7÷7=1$. Fully consistent.
• A prime power like $8=2^3$. Every leaf is the same prime. The pile is $\{2,2,2\}$, exponent $3$. Nothing special breaks.

PICTURE. Three mini-panels: $1$ as an empty tray, $7$ as one lonely block, $8$ as three identical blocks stacked.

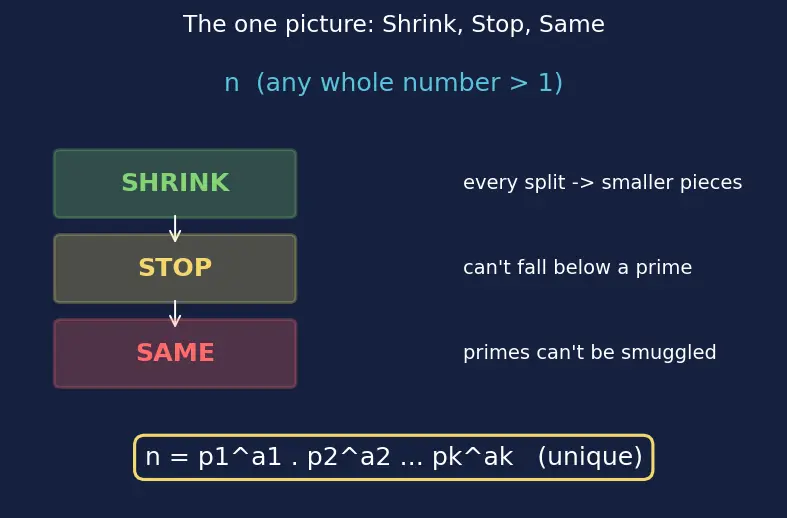

The one-picture summary

WHAT the whole story was. Every number $>1$ is either a lonely prime block or a rectangle that splits into strictly smaller pieces (Steps 1–2). Splitting can't run forever because whole numbers can't fall below $2$ (Step 3), so we always reach an all-prime pile. Different splitting routes (trees, ladder) land on the same pile (Steps 4–5) because a prime can never be smuggled across a product in halves (Step 6) — and the corner cases $1$, primes, prime powers all obey (Step 7). Result: one number, one prime fingerprint.

where each $p_i$ is a distinct prime and $a_i$ counts its copies in the pile. This single line powers HCF and LCM, Number of Divisors, Simplifying Fractions, Divisibility Rules, and the Sieve of Eratosthenes.
