Before anything else, let's pin down the one measurement everything rests on.

The scenario matrix

Every false-sharing situation is one of these case classes. Each worked example is tagged with the cell it fills.

#	Case class	The question it answers	Example
A	Adjacent, tightly packed	Do neighbouring array elements share a line?	Ex 1
B	Boundary straddle	What if one variable spans two lines?	Ex 2
C	Zero-cost / no sharing	When does spacing already save us?	Ex 3
D	Degenerate: single writer	Is it still false sharing with one core?	Ex 4
E	Padding fix, exact	How much padding is just enough?	Ex 5
F	Over-alignment trap	Why 8-byte align fails, 64 works	Ex 6
G	Limiting case: many cores	How does cost scale as cores → large?	Ex 7
H	Real-world word problem	Timing a counter benchmark end-to-end	Ex 8
I	Exam twist: partial sharing	Some cores clash, some don't — count them	Ex 9

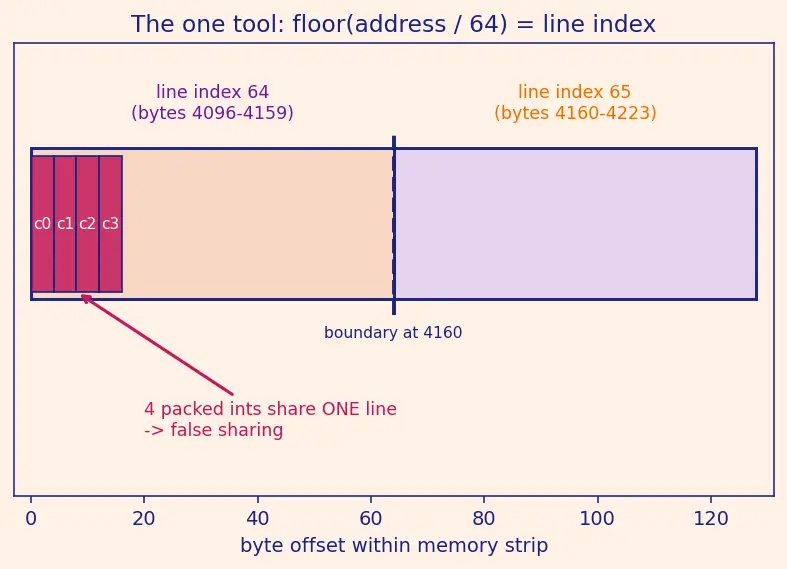

We build the same tool for all of them: compute $line (A) = ⌊ A /64 ⌋$ for each variable, then check which indices collide.

Worked examples

Worked example Example 1 — Case A: Adjacent packed counters

An int is 4 bytes. We have int counter[4] starting at address 0x1000. Cores 0–3 each increment their own element in a loop. Which elements share a cache line?

Forecast: Guess now — how many distinct cache lines do these four counters occupy? One? Two? Four?

Write down each address. Element $i$ sits at $0 x 1000 + 4 i$ : so 0x1000, 0x1004, 0x1008, 0x100C. Why this step? Addresses are the only thing the hardware sees. Variable names mean nothing to the coherence protocol.
Convert 0x1000 to decimal. $0 x 1000 = 4096$ . The four addresses are $4096, 4100, 4104, 4108$ . Why this step? The line-index formula divides a plain number; we must leave hex first.
Compute each line index with $⌊ A /64 ⌋$ : $⌊ 4096/64 ⌋ = 64$ , $⌊ 4100/64 ⌋ = 64$ , $⌊ 4104/64 ⌋ = 64$ , $⌊ 4108/64 ⌋ = 64$ . Why this step? Equal line indices ⇒ same line ⇒ false sharing. All four are index 64.
Conclusion: all four counters live in one cache line. Every core's increment invalidates the other three copies → maximal ping-pong. Why this step? This is the classic worst case the parent note warned about.

Verify: $4096 = 64 \times 64$ exactly, and $4108 - 4096 = 12 < 64$ , so all four fit inside block $[4096, 4159]$ . Answer: 1 line, full contention. ✓

Worked example Example 2 — Case B: Boundary straddle

A struct is 16 bytes, and an array of them begins at 0x1000. Which array element is the first one whose start address lands in a new cache line, and does any single 16-byte element ever get split across two lines here?

Forecast: Will any element be cut in half by a line boundary?

Element $i$ starts at $0 x 1000 + 16 i = 4096 + 16 i$ . Elements: 4096, 4112, 4128, 4144, 4160, ... Why this step? Stride is sizeof(struct) = 16, not 4; the spacing sets everything.
Line index of each: $⌊ 4096/64 ⌋ = 64$ , $⌊ 4112/64 ⌋ = 64$ , $⌊ 4128/64 ⌋ = 64$ , $⌊ 4144/64 ⌋ = 64$ , $⌊ 4160/64 ⌋ = 65$ . Why this step? We watch for the first jump in the index. It happens at element 4 (0x1010 = 4160), the start of line 65.
Check for a split element. Line 64 covers bytes $[4096, 4159]$ . Element 3 starts at 4144 and ends at $4144 + 15 = 4159$ — fits exactly. Element 4 starts fresh at 4160. Why this step? A split happens only if an element's start and end fall in different blocks. Since $4096$ is a multiple of 64 and 16 divides 64, no 16-byte element ever straddles.
Conclusion: first element in a new line is element 4; no element straddles because 16 divides 64 evenly and the base is line-aligned. Why this step? Straddling matters when a struct is not a divisor of $L$ — then one variable can cost two invalidations.

Verify: Elements 0–3 share line 64; element 4 opens line 65. $4160 = 65 \times 64$ . ✓

Worked example Example 4 — Case D: Degenerate single writer

int counter[4] at 0x1000, but only Core 0 ever writes; Cores 1–3 never touch the array. Is there false sharing?

Forecast: Same layout as Example 1 — does the answer change?

Recall the definition: false sharing needs writes from different cores to the same line. Why this step? The layout alone is not enough; there must be a conflict of writers.
Here only one core writes. The line sits Modified in Core 0's cache and never gets invalidated by anyone else. Why this step? With a single writer, the MESI Modified state is never disturbed.
Conclusion: identical addresses to Example 1, but zero false sharing — because there is no second writer to trigger invalidation. Why this step? This is the crucial degenerate case: false sharing is a property of the access pattern, not of the layout alone.

Verify: Number of invalidating remote writers $= 0 \Rightarrow$ coherence traffic $= 0$ . ✓ (See Cache coherence protocols for why a lone Modified line stays cheap.)

Worked example Example 5 — Case E: Exact padding fix

We want each int counter on its own 64-byte line. What is the padded struct size, and how many padding bytes go after the 4-byte int?

Forecast: 60 bytes of padding? 64? Something else?

Padded size formula. To round sizeof = 4 up to a whole number of lines: $padded = ⌈ \frac{4}{64} ⌉ \times 64 = 1 \times 64 = 64 bytes .$ The symbol $⌈ x ⌉$ (ceiling) rounds up — we round up because we can never use less than one whole line to isolate. Why this step? Any leftover in the line would let a neighbour share it.
Padding bytes = padded − payload $= 64 - 4 = 60$ bytes. Why this step? The int uses 4, so 60 bytes of filler complete the line.
Check separation. Element $i$ now starts at $0 x 1000 + 64 i$ . Line indices: $⌊(4096 + 64 i) /64 ⌋ = 64 + i$ — all distinct. Why this step? Distinct indices guarantee the fix worked; this is the padding formula from the parent note in action.

Verify: Padded size $64$ , padding $60$ , and consecutive line indices $64, 65, 66, 67$ are all different. ✓ (Cross-check the C++17 route in Cache line size and alignment.)

Worked example Example 6 — Case F: The over-alignment trap

A colleague aligns each counter to 8 bytes and expects the false sharing to vanish. Addresses become 0x00, 0x08, 0x10, 0x18, 0x20, 0x28, 0x30, 0x38. How many share the first cache line?

Forecast: Does 8-byte alignment fix it?

List decimal addresses: $0, 8, 16, 24, 32, 40, 48, 56$ . Why this step? Alignment sets the stride, but 8 ≪ 64.
Line index of each: $⌊ 0/64 ⌋$ through $⌊ 56/64 ⌋$ all equal $0$ . Why this step? Every address below 64 is in line 0. Eight counters, one line.
Contrast 64-byte alignment: addresses $0, 64, 128, 192, \dots$ give line indices $0, 1, 2, 3, \dots$ — all distinct. Why this step? The alignment must equal (or exceed) $L$ to guarantee isolation; anything smaller repacks multiple variables per line.
Conclusion: 8-byte alignment leaves 8 counters in line 0 → still full false sharing. Only $\geq 64$ -byte alignment works. Why this step? This is the exact mistake flagged in the parent note.

Verify: $⌊ 56/64 ⌋ = 0$ so all 8 in line 0; $⌊ 64/64 ⌋ = 1 \neq = 0$ so 64-align separates. ✓

Worked example Example 7 — Case G: Limiting behaviour, many cores

$N$ cores each own one int in a single shared 64-byte line and all spin-increment. Roughly how does total coherence cost scale as $N$ grows? Take a single remote write at $\approx 150$ cycles.

Forecast: Linear in $N$ ? Quadratic? Constant?

Per line-transfer cost is fixed at $T_{coherence} \approx 150$ cycles (one invalidate-and-fetch round trip). Why this step? This is the atomic unit of ping-pong cost.
Rounds until every core has written once: in the worst case the line bounces between cores, so producing $K$ total writes across all cores costs about $K \times 150$ cycles — the writes serialize. Why this step? Only one core can hold the line Modified at a time, so parallelism collapses to a queue.
Limiting behaviour: for $K$ writes total, time $\approx 150 K$ cycles regardless of how you split them among cores — adding cores gives no speedup, and the effective throughput falls as $N$ rises because contention worsens. Why this step? This is why false sharing destroys Multicore scaling: the workload that "should" be embarrassingly parallel runs strictly serially.
Numeric anchor: $K = 1 0^{6}$ contended writes $\Rightarrow\approx 150 \times 1 0^{6} = 1.5 \times 1 0^{8}$ cycles. On a 3 GHz core that is $0.05$ s of pure coherence stall. Why this step? Turns the abstract scaling into a wall-clock feel.

Verify: $150 \times 1 0^{6} = 1.5 \times 1 0^{8}$ cycles; $\frac{1.5 \times 1 0 ^{8}}{3 \times 1 0 ^{9}} = 0.05$ s. ✓

Worked example Example 8 — Case H: Real-world benchmark

Two configs run $1 0^{7}$ increments per core on 4 cores. Padded version: each write $\approx 2$ cycles. False-shared version: each write $\approx 100$ cycles. Core clock $= 2 GHz$ . Find both wall-clock times and the slowdown factor.

Forecast: How many seconds apart are they?

Padded total cycles = writes × cost. But padded writes proceed in parallel across 4 cores, so per-core time uses $1 0^{7}$ writes: $1 0^{7} \times 2 = 2 \times 1 0^{7}$ cycles per core. Why this step? No shared line → cores overlap → measure one core.
Padded time: $\frac{2 \times 1 0 ^{7}}{2 \times 1 0 ^{9}} = 0.01$ s. Why this step? cycles ÷ (cycles/second) = seconds. Units: $\frac{cycles}{cycles / s} = s$ .
False-shared total serializes: all $4 \times 1 0^{7} = 4 \times 1 0^{7}$ writes queue, each $100$ cycles: $4 \times 1 0^{7} \times 100 = 4 \times 1 0^{9}$ cycles. Why this step? Contention forces one-at-a-time (Example 7's logic).
False-shared time: $\frac{4 \times 1 0 ^{9}}{2 \times 1 0 ^{9}} = 2$ s. Why this step? Same clock conversion.
Slowdown: $\frac{2}{0.01} = 200 \times$ . Why this step? Quantifies the disaster.

Verify: padded $0.01$ s, shared $2$ s, ratio $200$ . Sanity: matches order-of-magnitude "50–100×+" from the parent note (higher here because we also serialize across 4 cores). ✓

Worked example Example 9 — Case I: Exam twist, partial sharing

Eight int counters at 0x3000, so addresses 0x3000, 0x3004, ..., 0x301C (first 8). Cache line $L = 64$ . Eight cores each write one. How many distinct cache lines, and how many cores clash per line?

Forecast: All 8 in one line, or split?

Addresses: $0 x 3000 = 12288$ up to $12288 + 4 \times 7 = 12316$ . Why this step? Stride 4 bytes across 8 ints spans $32$ bytes.
Line indices: $⌊ 12288/64 ⌋ = 192$ and $⌊ 12316/64 ⌋ = 192$ — every one is 192. Why this step? $12316 - 12288 = 28 < 64$ , so all fit in line 192.
Count: 1 distinct line, 8 cores clashing on it — the densest possible contention. Why this step? This is the trap answer: people assume 8 ints "must" spread out, but $32$ bytes is half a line.
Twist follow-up: to split into two groups of 4 (2 lines), pad each int to 8 bytes? No — Example 6 killed that. You need 64-byte stride so each opens its own line: 8 counters → 8 lines. Why this step? Reinforces that only $\geq L$ stride isolates.

Verify: $⌊ 12316/64 ⌋ = 192 = ⌊ 12288/64 ⌋$ ; one line, 8 writers. ✓

Recall Self-test

All hex→decimal, then $⌊ A /64 ⌋$ . Do two variables 40 bytes apart starting at a line boundary share a line? ::: Yes — $40 < 64$ , both floor to the same index. How many padding bytes isolate a 4-byte int on a 64-byte line? ::: $64 - 4 = 60$ bytes. Does 8-byte alignment stop false sharing? ::: No — 8 variables still pack into one 64-byte line. Is there false sharing if only one core ever writes the line? ::: No — false sharing needs writes from ≥ 2 different cores. Why does adding cores not help a false-shared counter loop? ::: The single Modified line serializes all writes; parallelism collapses.
