Step 1 — What a "combinational rule" really is

WHAT. Imagine a light with one switch called $enable$ and one wire of data called $data$. We want to build a box that produces an output $y$. A combinational box is a lookup table: for every possible input, it lists exactly one output. Nothing is left blank.

Here $enable$ is a single wire that is either $0$ (off) or $1$ (on). $data$ is likewise $0$ or $1$. So there are only four possible input situations. A complete combinational rule must fill in all four boxes.

WHY. A rule with a blank box is not a function — it does not say what to do. And "what to do when I didn't say" is the exact crack through which memory leaks in. So before any code, we look at the table and ask: are all boxes filled?

PICTURE. The full 4-row table. The accent (red) column is $y$ — the thing we must define in every row.

Step 2 — Writing the tempting (broken) code

WHAT. A beginner writes exactly what they care about:

always @(*) begin
    if (enable)
        y = data;   // only says what happens when enable == 1
end

Let us read this like a sentence. always @(*) means "re-run this whole block whenever any input changes." The if (enable) means "when $enable$ is $1$, do the next line." y = data copies $data$ onto $y$.

WHY. It feels efficient: "I only need $y$ when $enable$ is on, so why write the off case?" This intuition is the trap — it is why the bug feels correct.

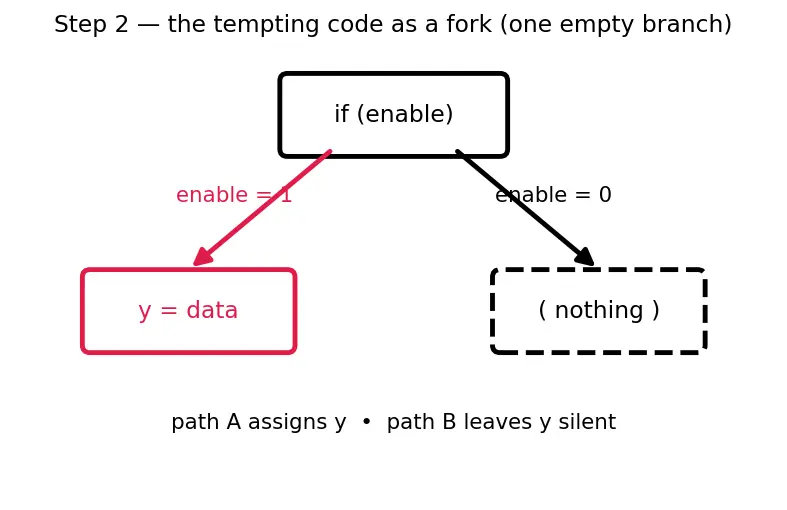

PICTURE. The code drawn as a decision fork. The red branch (the if body) is the only path that assigns $y$. The other branch is empty — no assignment.

Step 3 — Overlaying the code onto the table

WHAT. We now colour the truth-table rows by which code path handles them. The two rows where $enable=1$ are covered by path A (red — assigned). The two rows where $enable=0$ are covered by path B — but path B does nothing, so those output cells stay blank.

WHY. This is the moment of proof. Step 1 said a combinational box needs all four boxes filled. Step 2's code only fills two. So the code does not describe the complete table — half of it is missing.

PICTURE. The table again, but now the two $enable=0$ output cells are shown as red empty boxes: "undefined by the code."

Step 4 — What the tool must do with a hole

WHAT. The synthesizer (the program that turns your code into gates) reads the code and asks: "When $enable=0$, what should $y$ be?" Your code never answers. But real hardware wires cannot be "undefined" — a wire must carry a value. So the tool needs a rule for the silent case. The only rule consistent with "you didn't tell me to change it" is: keep whatever $y$ was before.

WHY. "Keep the previous value" is memory. To keep a value, the hardware must store it — and a storage element that holds a value while $enable=0$ and passes new data while $enable=1$ has a name: a transparent latch. The tool is not being clever or dumb; it is doing the only thing that satisfies your incomplete description.

PICTURE. A single arrow diagram: your code (with the hole) → the tool's forced question → the latch it must build. The latch symbol is the red key object.

Step 5 — Watching the latch remember (a timing walk)

WHAT. Let us feed the buggy circuit real signals over time and watch $y$. Suppose:

1. $enable=1,data=1$ → $y$ follows → $y=1$.
2. $enable$ drops to $0$ (while $data$ later changes to $0$) → $y$ stays $1$, ignoring the new $data$.
3. $enable$ rises to $1$ again → $y$ follows $data$ once more.

WHY. This is the observable symptom of the bug: $y$ holds a stale value through the whole $enable=0$ window. That "stuck at the old value" plateau is the latch remembering. A pure combinational $y$ would have no dependence on the past at all — but here it clearly does.

PICTURE. Three stacked waveforms — $enable$, $data$, and (red) $y$. The red plateau where $y$ ignores $data$ is the memory made visible.

Step 6 — The fix: fill every box with a default

WHAT. We add one line before the if so that no path can be silent:

always @(*) begin
    y = 1'b0;        // DEFAULT: fills the enable==0 rows
    if (enable)
        y = data;    // overrides in the enable==1 case
end

Read the flow: first $y$ is set to $0$ unconditionally. Then — only if $enable=1$ — it is overwritten with $data$. Because the block uses blocking = (executes in order, top to bottom, like signals rippling through gates), the second line simply replaces the first when it runs.

WHY. Now trace both paths: if $enable=1$, $y$ becomes $0$ then $data$ → defined. If $enable=0$, the if body is skipped, so $y$ keeps its default $0$ → also defined. Every row of the Step 1 table is now filled. No hole ⇒ no forced memory ⇒ no latch. The tool builds a plain multiplexer instead.

PICTURE. The same table as Step 3, but now the two formerly-empty cells are filled with a red $0$ from the default — the hole is closed.

Step 7 — The edge cases (so no scenario surprises you)

WHAT. We check the corners a careless reader might hit.

• Multi-bit outputs. If $y$ is a bus (many wires), the default must cover every bit, e.g. y = 4'b0000;. A default that sets only some bits leaves the rest with holes → per-bit latches.
• case without default. A case (sel) that lists some values but not all is the same hole in disguise — unlisted $sel$ values leave $y$ silent → latch. Fix: add default: (Verilog) or when others => (VHDL). See Multiplexers, adders, decoders.
• The "always driven" idiom. A continuous assign y = enable ? data : 1'b0; has no branch that can be skipped — the ?: names both outcomes. This is why assign is inherently safe (parent, Idiom 1).
• Genuinely wanting memory. If you do want $y$ to hold — that is Sequential logic in HDL, built on purpose with a clock and non-blocking <=. The latch is only a bug when it appears in code that was meant to be combinational.

WHY. The latch trap is not one line of code — it is the general shape "a path that leaves an output unassigned." Every case above is that same shape. Recognising the shape is the real skill.

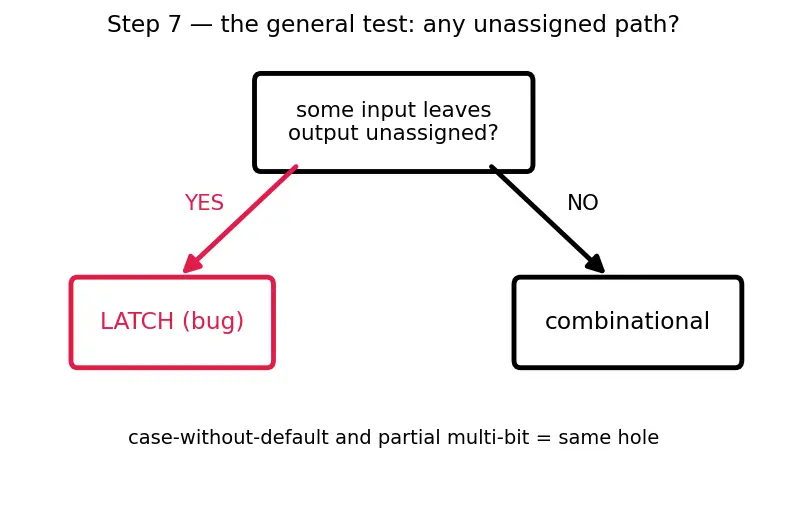

PICTURE. A "hole detector" flow: does some input combination leave the output unassigned? Yes → latch (red). No → combinational.

The one-picture summary

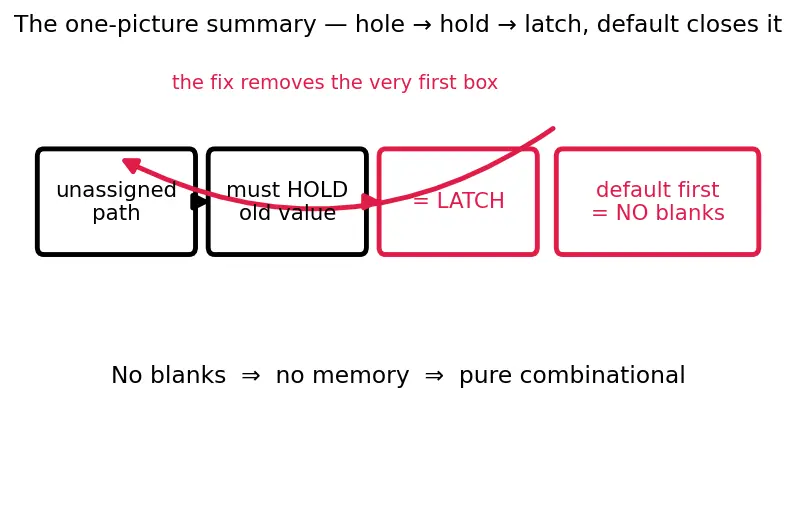

Everything on this page compressed into a single diagram: an unassigned path forces a hold, a hold is a latch, and a default closes the path.
