2.4.12

MOSFET I-V curves (triode and saturation)

1,705 words8 min readdifficulty · medium

1. The three things that must happen (WHAT)

We study the n-channel enhancement MOSFET (NMOS). Terminals: Gate (G), Source (S), Drain (D), Body/Bulk (tied to source).

The three regions:

  1. Cutoff: VGS<VthV_{GS} < V_{th} → no channel → ID=0I_D = 0.
  2. Triode (linear/ohmic): VGS>VthV_{GS} > V_{th} and VDS<VovV_{DS} < V_{ov} → continuous channel → resistor-like.
  3. Saturation (active): VGS>VthV_{GS} > V_{th} and VDSVovV_{DS} \ge V_{ov} → channel pinched off at drain → current-source-like.

2. Deriving IDI_D from first principles (HOW)

We build the current from scratch. No memorizing.

Step 1 — How much charge is in the channel? The gate + oxide + channel form a parallel-plate capacitor with capacitance per unit area Cox=εox/toxC_{ox} = \varepsilon_{ox}/t_{ox}. The mobile sheet charge (per area) at a point where the channel potential is V(x)V(x) is only the charge above threshold: Qn(x)=Cox(VGSV(x)Vth)Q_n(x) = -C_{ox}\big(V_{GS} - V(x) - V_{th}\big) Why this step? Only the gate voltage in excess of VthV_{th} pulls in mobile electrons; and the local channel voltage V(x)V(x) reduces the effective gate-to-channel voltage as we move toward the drain.

Step 2 — Current from drift. Current == charge density ×\times velocity ×\times width. Velocity =μnE=μndVdx=\mu_n E = -\mu_n \frac{dV}{dx}: ID=WQn(x)μndVdx=WμnCox(VGSVthV)dVdxI_D = W\,|Q_n(x)|\,\mu_n \frac{dV}{dx} = W\mu_n C_{ox}\big(V_{GS}-V_{th}-V\big)\frac{dV}{dx} Why this step? IDI_D is constant along the channel (charge conservation), so we can integrate.

Step 3 — Integrate along the channel from source (x=0,V=0x=0,\,V=0) to drain (x=L,V=VDSx=L,\,V=V_{DS}): ID0Ldx=WμnCox0VDS(VGSVthV)dVI_D \int_0^L dx = W\mu_n C_{ox}\int_0^{V_{DS}}\big(V_{GS}-V_{th}-V\big)\,dV IDL=WμnCox[(VGSVth)VDSVDS22]I_D\,L = W\mu_n C_{ox}\left[(V_{GS}-V_{th})V_{DS} - \frac{V_{DS}^2}{2}\right]

Step 4 — Where does saturation come from? The triode parabola peaks when dIDdVDS=0\frac{dI_D}{dV_{DS}}=0: (VGSVth)VDS=0    VDS,sat=Vov(V_{GS}-V_{th}) - V_{DS} = 0 \;\Rightarrow\; V_{DS,\text{sat}} = V_{ov} At this point QnQ_n at the drain end 0\to 0 (pinch-off). Push VDSV_{DS} higher and the current doesn't keep rising — the extra voltage drops across the tiny pinched region. So we freeze IDI_D at its peak value: substitute VDS=VovV_{DS}=V_{ov} into the triode formula: ID=kn[VovVovVov22]=kn2Vov2I_D = k_n\left[V_{ov}\cdot V_{ov} - \frac{V_{ov}^2}{2}\right] = \frac{k_n}{2}V_{ov}^2

Notice the current is now quadratic in VGSV_{GS} but (nearly) independent of VDSV_{DS} — a current source controlled by the gate.

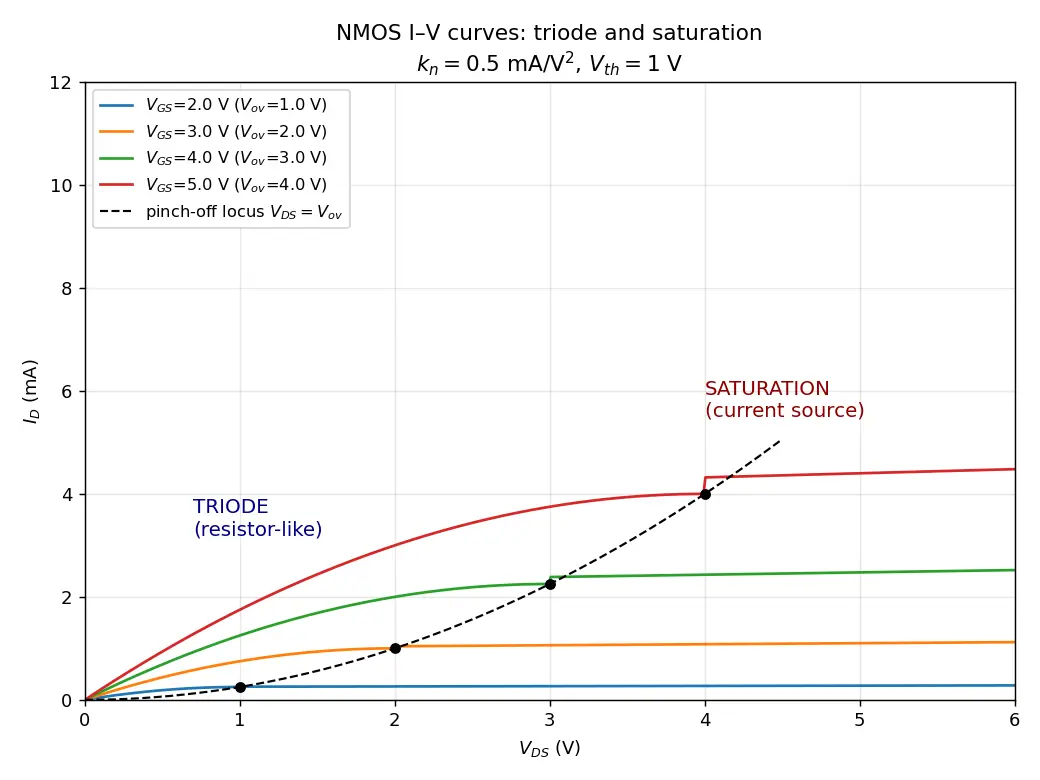

Figure — MOSFET I-V curves (triode and saturation)

3. Worked examples


4. Common mistakes (Steel-man + fix)


5. Active recall

Recall Test yourself (hide the answers)
  • What determines the triode↔saturation boundary? → VDS=Vov=VGSVthV_{DS}=V_{ov}=V_{GS}-V_{th}.
  • Why does current stop rising in saturation? → channel pinches off; extra VDSV_{DS} drops across the pinched region.
  • What is RonR_{on} in deep triode? → 1/(knVov)1/(k_n V_{ov}).
What condition defines cutoff for an NMOS?
VGS<VthV_{GS} < V_{th}, so no channel exists and ID0I_D \approx 0.
Define the overdrive voltage VovV_{ov}.
Vov=VGSVthV_{ov}=V_{GS}-V_{th}; the gate voltage in excess of threshold that sets channel charge.
State the triode-region current equation.
ID=kn[(VGSVth)VDSVDS2/2]I_D = k_n[(V_{GS}-V_{th})V_{DS} - V_{DS}^2/2], valid for VDSVovV_{DS}\le V_{ov}.
State the saturation-region current (ideal).
ID=12kn(VGSVth)2I_D = \tfrac12 k_n (V_{GS}-V_{th})^2, valid for VDSVovV_{DS}\ge V_{ov}.
What is the boundary between triode and saturation?
VDS=Vov=VGSVthV_{DS} = V_{ov} = V_{GS}-V_{th} (pinch-off condition).
Why is saturation called the "active" region?
Channel is pinched at the drain; IDI_D is nearly independent of VDSV_{DS} → acts as a VGSV_{GS}-controlled current source (used for amplification).
What does channel-length modulation add?
A factor (1+λVDS)(1+\lambda V_{DS}), giving finite output resistance ro1/(λID)r_o\approx 1/(\lambda I_D).
Derive VDS,satV_{DS,sat}.
Set dID/dVDS=0dI_D/dV_{DS}=0 in triode: (VGSVth)VDS=0VDS=Vov(V_{GS}-V_{th})-V_{DS}=0 \Rightarrow V_{DS}=V_{ov}.
On-resistance of a MOSFET switch (deep triode)?
RDS(on)1/(knVov)R_{DS(on)} \approx 1/(k_n V_{ov}); larger gate drive lowers it.
Where does the channel charge equation Qn=Cox(VGSVVth)Q_n=-C_{ox}(V_{GS}-V-V_{th}) come from?
Gate-oxide-channel parallel-plate capacitor; only voltage above threshold and above local channel potential V(x)V(x) holds mobile charge.
Recall Feynman: explain to a 12-year-old

Imagine a garden hose. The gate is your hand squeezing a valve: press harder (VGSV_{GS} up) and you open a wider path for water. The drain voltage is how hard you turn on the tap. When the tap is barely open, more tap-turn = more water (that's triode, like a resistor). But once the path is opened as wide as your squeeze allows, turning the tap harder doesn't give you more water — the flow is capped by your squeeze, not the tap (that's saturation). So the squeeze (gate) sets the max flow, and the transistor becomes a steady water source.

Connections

  • BJT I-V curves and active region — MOSFET saturation ≈ BJT active region.
  • MOSFET as a switch (digital logic) — deep triode RonR_{on} and cutoff.
  • Small-signal transconductance gmgm=ID/VGS=knVovg_m=\partial I_D/\partial V_{GS}=k_n V_{ov} from the square law.
  • Channel-length modulation and output resistance
  • CMOS inverter — both NMOS and PMOS traversing these regions.

Concept Map

controls

must exceed

defines with Vth

defines

absent when VGS below Vth

sets

scales

drift current

integrate along channel

small, below Vov

large, above Vov

channel pinches off

resistor-like

amplifier

Gate voltage VGS

Conducting channel

Threshold voltage Vth

Overdrive Vov = VGS - Vth

Cutoff: ID = 0

Oxide capacitance Cox

Channel charge Qn

Drain current ID

Triode region

Drain voltage VDS

Saturation region

Current-source behavior

Switch and amplifier uses

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, MOSFET ko samajhne ka sabse aasan tarika: ye ek voltage-controlled switch/resistor hai. Gate pe voltage VGSV_{GS} lagao — jab ye VthV_{th} (threshold) se zyada hoga tabhi source aur drain ke beech ek channel banega jismein current flow karega. Is extra voltage ko hum overdrive kehte hain: Vov=VGSVthV_{ov}=V_{GS}-V_{th}. Yahi VovV_{ov} har formula ka asli hero hai.

Ab do situations. Jab VDSV_{DS} chhota hai (specifically VDS<VovV_{DS}<V_{ov}), transistor ek resistor ki tarah behave karta hai — jitna VDSV_{DS} badhao utna current badhta hai. Isko triode region kehte hain. Lekin jaise hi VDSV_{DS} badha kar VovV_{ov} ke barabar ho jaata hai, drain wale end pe channel pinch-off ho jaata hai, aur uske baad VDSV_{DS} aur badhao to bhi current nahi badhta — ab transistor ek constant current source ban gaya. Isko saturation (ya active) region kehte hain, aur yahi region amplifier banane ke kaam aata hai.

Ek common galti: log samajhte hain "saturation matlab transistor off" — galat! MOSFET mein saturation matlab useful, constant-current wala on-state. Off state to cutoff hai (jab VGS<VthV_{GS}<V_{th}). Isliye hamesha pehle VovV_{ov} nikalo, phir VDSV_{DS} se compare karo: agar VDS<VovV_{DS}<V_{ov} → triode formula, warna → square-law 12knVov2\tfrac12 k_n V_{ov}^2. Boundary pe dono formule same answer dete hain — yahi continuity check karke apna confidence build karo.
