This page assumes you have seen none of the notation in Varactor diodes. We build every letter, every symbol, and every picture from the ground up, in an order where each idea rests on the one before it. Nothing is used before it is earned.

0. What a capacitor even is

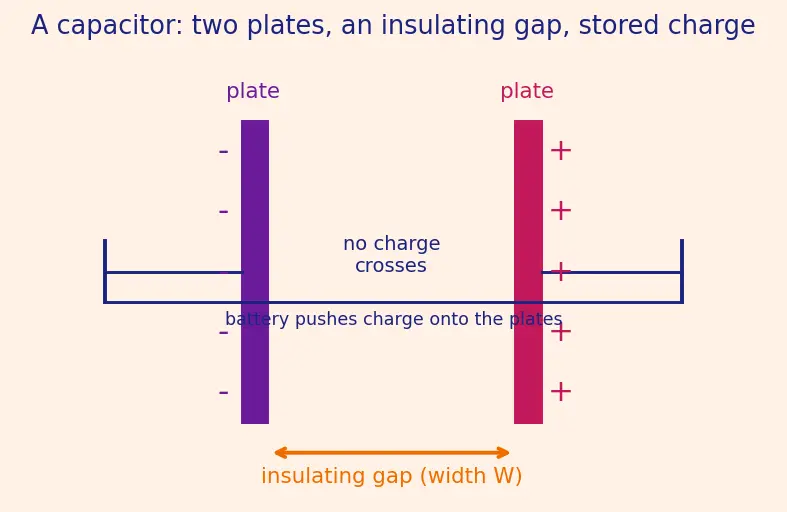

Before we can call a diode a "voltage-controlled capacitor", you must feel what a capacitor is — as a picture, not a formula.

The single number that describes "how much charge this thing holds per volt you push" is called the capacitance, written $C$.

Why does the topic need $C$? Because the entire varactor is a machine for changing $C$. If you don't own $C$ as a picture, nothing else lands.

1. What makes $C$ big or small — the three knobs

Look again at the two plates. Three things obviously matter, and we can derive each one out from two simple physical facts.

Two building-block ideas we need first:

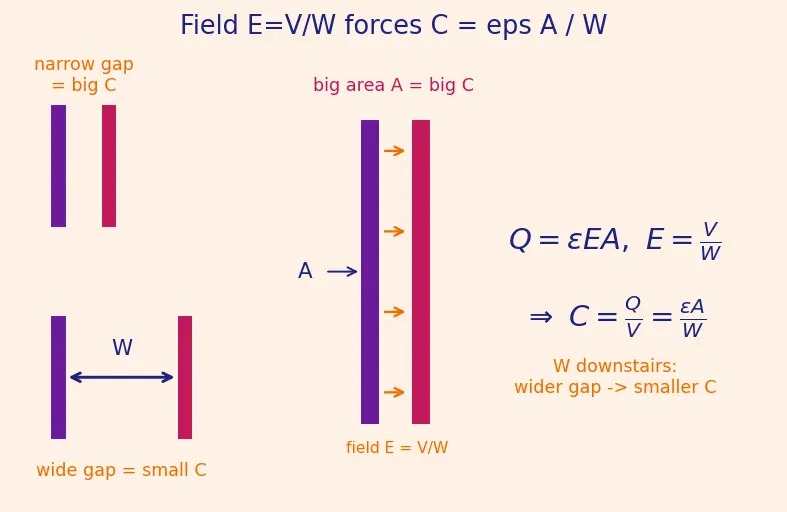

Why does the topic need this whole formula? Because the varactor changes only one of its three letters — the gap width $W$ — and this formula tells us that changing $W$ inversely changes $C$.

2. What a diode is, and the "PN junction"

A diode is a two-sided crystal of silicon. We deliberately pollute (dope) one side with atoms that donate spare electrons, and the other side with atoms hungry for electrons.

The "free carriers" (electrons and holes) are what let electricity flow. Where carriers are, the material conducts. Where carriers are gone, it insulates — hold that thought, it becomes the capacitor's gap. See PN Junction Diode for the full device.

3. Reverse bias and the depletion region — where the gap is born

Now connect a battery the "blocking" way round — positive terminal to the n-side, negative to the p-side. This is called reverse bias.

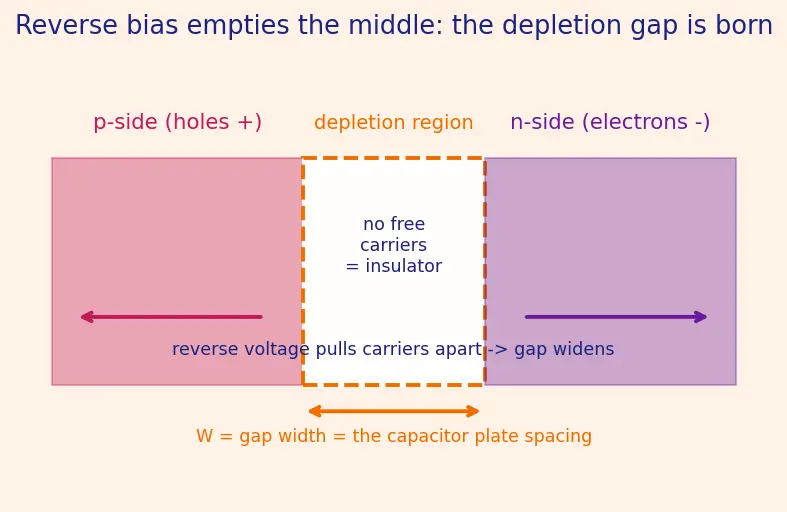

When carriers get pulled away from the junction, they leave behind a middle strip that has no free carriers left. Because it has nothing free to conduct with, this strip is an insulator.

Why does the topic need this? This paragraph is the entire bridge: it maps diode → capacitor by identifying the depletion width as the plate gap. See Reverse Bias & Depletion Region for more.

4. Why the gap widens with voltage — the built-in barrier $V_{bi}$

Even with no battery attached, a bit of charge naturally spills across the junction and sets up a small voltage that opposes further spilling. That is the junction's own private battery.

Here is the key chain of cause-and-effect the topic leans on constantly:

You only need to own the arrow here, not the algebra. The exact width formula, with the electron-charge constant, appears in the parent note — this page deliberately keeps that algebra out so no undefined symbol sneaks in.

5. The exponent $n$ — what "grading" means

The parent's law has a mysterious power $n$ sitting on top. Let's demystify it before it appears.

You now own every letter in the parent's master law:

$C_j(V_R)=\frac{C_0}{{\left(1+\frac{V_R}{V_{bi}}\right)}^n}$

• $C_j$ — the junction capacitance (the useful one).
• $C_0$ — its value when $V_R=0$ (set the bracket to $1$ and you get $C_j=C_0$).
• $V_R,V_{bi},n$ — all defined above.

6. The safe voltage window — don't tune past breakdown

Reverse bias is your tuning knob, but you cannot turn it up forever.

Prerequisite map

The foundations feed the topic in this order — capacitor basics and the depletion gap meet inside the junction-capacitance law, which then tunes an LC frequency:

For the tuning payoff itself, see LC Resonant Circuits, which drives a Voltage Controlled Oscillator (VCO) and ultimately a Phase Locked Loop (PLL).

Equipment checklist

Hide the right side and test whether you can rebuild each idea from zero.
