Band gap and its meaning for conductivity: Exercises

Throughout, we reuse three constants. Let us pin them down once so no symbol is ever unexplained.

The single formula that powers most of this page: $n \propto e^{- E_{g} / (2 k_{B} T)}, σ \propto e^{- E_{g} / (2 k_{B} T)}$ Here $n$ is the intrinsic carrier concentration (how many mobile electrons per cubic metre) and $σ$ is the conductivity. Both share the same exponential, so any ratio of $n$ equals the same ratio of $σ$ .

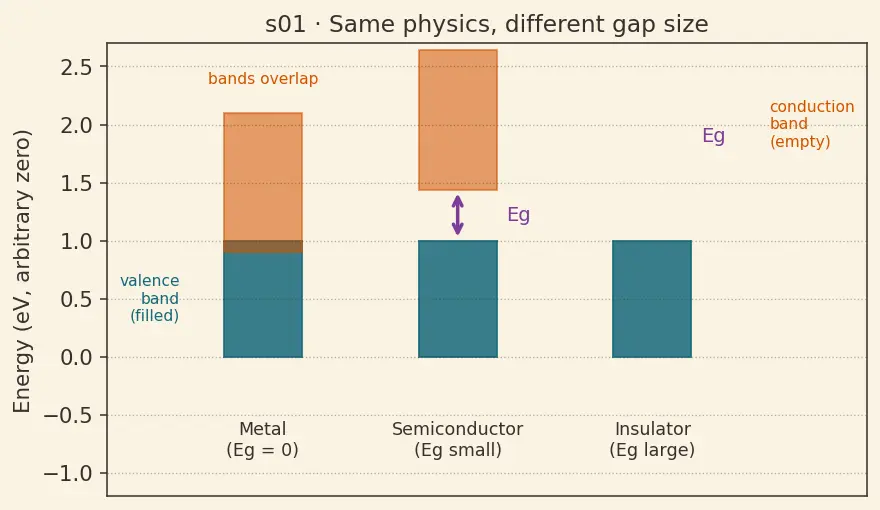

Figure — Band gap and its meaning for conductivity

L1 — Recognition

Q1.1 Read the gap off the band diagram

A crystal has its valence-band top at $E_{v} = 4.0 eV$ and its conduction-band bottom at $E_{c} = 5.1 eV$ (energies measured from some fixed zero). State $E_{g}$ and classify the material.

Recall Solution

WHAT: The band gap is by definition the height of the forbidden zone. $E_{g} = E_{c} - E_{v} = 5.1 - 4.0 = 1.1 eV .$ Classify: $1.1 eV$ lies in the $0.1$ – $3 eV$ window → this is a semiconductor (essentially silicon, $E_{g}^{Si} = 1.12$ eV). Look at figure s01: the gap here is the middle-sized orange bar.

Q1.2 Which cannot conduct, and why?

You are told: material A has bands that overlap; material B has a completely full valence band and a $9 eV$ gap; material C has a half-filled band. Which one carries essentially no current at room temperature? Give the one-line reason.

Recall Solution

Answer: material B. Why: conduction needs an empty state next to an occupied one so an electron can shift. A completely full band is a packed parking lot — no empty adjacent spot, no motion — and the next empty band is $9 eV$ away, far beyond the $\sim 0.026 eV$ of thermal energy. So B is an insulator. A (overlap → partly filled → metal) and C (half-filled → metal) both conduct freely.

L2 — Application

Q2.1 Thermal energy at a temperature

Compute $k_{B} T$ in eV at $T = 300 K$ and at $T = 77 K$ (liquid-nitrogen temperature).

Recall Solution

$k_{B} T = (8.617 \times 1 0^{- 5} eV/K) \times T$ .

At $300 K$ : $8.617 \times 1 0^{- 5} \times 300 = 0.02585 eV \approx 0.026 eV$ .
At $77 K$ : $8.617 \times 1 0^{- 5} \times 77 = 0.006635 eV \approx 0.0066 eV$ . Meaning: cooling to $77 K$ shrinks the available thermal jiggle by a factor $300/77 \approx 3.9$ . Fewer electrons will manage the jump.

Q2.2 Boltzmann suppression for silicon

For silicon ( $E_{g} = 1.12 eV$ ) at $300 K$ , evaluate the exponent $\frac{E _{g}}{2 k _{B} T}$ and the factor $e^{- E_{g} / (2 k_{B} T)}$ .

Recall Solution

WHY the $2$ : the Fermi level sits mid-gap, so an electron only climbs $E_{c} - E_{F} = E_{g} /2$ to reach the conduction band. That is why the exponent carries $E_{g} /2$ , not $E_{g}$ . $\frac{E _{g}}{2 k _{B} T} = \frac{1.12}{2 \times 0.02585} = \frac{1.12}{0.05170} = 21.66.$ $e^{- 21.66} \approx 3.9 \times 1 0^{- 10} .$ So only about 4 in ten billion electrons (relative to the prefactor scale) make the crossing — tiny, but non-zero, which is exactly what makes silicon a semiconductor and not an insulator.

Q2.3 Same calculation for diamond

Repeat Q2.2 for diamond, $E_{g} = 5.5 eV$ , at $300 K$ . Comment.

Recall Solution

$\frac{E _{g}}{2 k _{B} T} = \frac{5.5}{0.05170} = 106.4, e^{- 106.4} \approx 6 \times 1 0^{- 47} .$ Comment: this is unimaginably small — effectively zero carriers. Diamond is an insulator not because its physics is different, but because the same exponential formula, fed a big gap, collapses to nothing.

L3 — Analysis

Q3.1 Heating a semiconductor

By what factor does the intrinsic carrier concentration $n$ of silicon change when $T$ goes from $300 K$ to $400 K$ ? (Ignore the weak prefactor; use only the exponential.)

Recall Solution

Step 1 — collapse the constants. Define the temperature scale $\frac{E _{g}}{2 k _{B}} = \frac{1.12}{2 \times 8.617 \times 1 0 ^{- 5}} = 6499 K \approx 6500 K .$ Why: it turns the messy exponent into one number with units of kelvin, so the ratio is clean. Step 2 — take the ratio. $\frac{n ( 400 )}{n ( 300 )} = \frac{e ^{- 6500/400}}{e ^{- 6500/300}} = e^{6500 (\frac{1}{300} - \frac{1}{400})} .$ $\frac{1}{300} - \frac{1}{400} = \frac{400 - 300}{300 \times 400} = \frac{100}{120000} = 8.333 \times 1 0^{- 4} K^{- 1} .$ $= e^{6500 \times 8.333 \times 1 0^{- 4}} = e^{5.417} \approx 225.$ Meaning: a $100 K$ warm-up multiplies the carrier population by ~225×. Conductivity of a semiconductor rises steeply with temperature.

Q3.2 The metal behaves oppositely

Your friend says: "By the same logic, heating copper (a metal) should also raise its conductivity a lot." Explain in words why this is wrong, referencing figure s02.

Recall Solution

In a metal there is no gap to cross — the conduction band is already partly full, so $n$ barely changes with $T$ . What does change is scattering: higher $T$ means the lattice ions vibrate more violently (bigger displacement), electrons collide more often, mobility drops, so $σ$ decreases. See Temperature dependence of resistivity in metals and Conductivity, mobility and drift current. Figure s02 contrasts the two: the semiconductor curve (teal) shoots up with $T$ ; the metal curve (orange) gently sags.

L4 — Synthesis

Q4.1 Find the gap from two measurements

A mystery semiconductor's conductivity rises by a factor of 50 when heated from $300 K$ to $350 K$ . Estimate its band gap $E_{g}$ (in eV).

Recall Solution

WHAT we know: $\frac{σ ( 350 )}{σ ( 300 )} = 50 = e^{\frac{E _{g}}{2 k _{B}} (\frac{1}{300} - \frac{1}{350})}$ . Step 1 — the temperature bracket. $\frac{1}{300} - \frac{1}{350} = \frac{350 - 300}{300 \times 350} = \frac{50}{105000} = 4.762 \times 1 0^{- 4} K^{- 1} .$ Step 2 — take logs (the tool that undoes an exponential — we want the exponent, so we invert $e^{x}$ ): $ln 50 = \frac{E _{g}}{2 k _{B}} \times 4.762 \times 1 0^{- 4} .$ $ln 50 = 3.912.$ Step 3 — solve for $E_{g}$ . $\frac{E _{g}}{2 k _{B}} = \frac{3.912}{4.762 \times 1 0 ^{- 4}} = 8214 K .$ $E_{g} = 2 \times (8.617 \times 1 0^{- 5}) \times 8214 = 1.416 eV .$ Sanity check: $\approx 1.42 eV$ — this is essentially GaAs! We recovered a real material's gap from two resistance readings.

Q4.2 Two knobs at once

Silicon is cooled to $200 K$ . By what factor does $n$ drop from its $300 K$ value, and does this push silicon toward "metal-like" or "insulator-like" behaviour?

Recall Solution

Using the scale $E_{g} /2 k_{B} = 6499 K$ from Q3.1: $\frac{n ( 200 )}{n ( 300 )} = e^{6499 (\frac{1}{300} - \frac{1}{200})} .$ $\frac{1}{300} - \frac{1}{200} = \frac{200 - 300}{60000} = - 1.6667 \times 1 0^{- 3} K^{- 1} .$ $= e^{6499 \times (- 1.6667 \times 1 0^{- 3})} = e^{- 10.83} \approx 1.98 \times 1 0^{- 5} .$ So $n$ falls by a factor $\approx 5.1 \times 1 0^{4}$ — carriers plummet by about $50, 000 \times$ . Cooling makes silicon behave more like an insulator (very few carriers). This is why cooled intrinsic semiconductors are nearly non-conducting, and why real devices rely on doping rather than intrinsic carriers.

L5 — Mastery

Q5.1 The "activation energy" plot (Arrhenius reasoning)

An engineer measures $σ$ at several temperatures and plots $ln σ$ against $1/ T$ . She gets a straight line of slope $- 7500 K$ . From ONLY that slope, what is the band gap? Sketch (via figure s03) why the plot is a straight line and what its slope encodes.

Recall Solution

WHY this tool — the logarithm and the reciprocal axis: starting from $σ \propto e^{- E_{g} / (2 k_{B} T)}$ , taking $ln$ gives $ln σ = const - \frac{E _{g}}{2 k _{B}} \cdot \frac{1}{T} .$ This is exactly the form $y = c + m x$ with $y = ln σ$ , $x = 1/ T$ , and slope $m = - \frac{E _{g}}{2 k _{B}}$ . A curved exponential becomes a straight line — that is why we plot $ln σ$ vs $1/ T$ : the slope directly hands us the gap. See figure s03: the red dashed line's steepness is the gap. Extract $E_{g}$ : $- \frac{E _{g}}{2 k _{B}} = - 7500 K \Rightarrow E_{g} = 2 \times (8.617 \times 1 0^{- 5}) \times 7500 = 1.293 eV .$ So $E_{g} \approx 1.29 eV$ .

Q5.2 Why the observed slope can double

A subtle point: sometimes the measured slope gives an " $E_{g}$ " that is exactly half the true gap. Explain the physics, using the definition of the exponent.

Recall Solution

The intrinsic law is $n \propto e^{- E_{g} / (2 k_{B} T)}$ , so the carrier slope is $- E_{g} / (2 k_{B})$ and one recovers the full $E_{g}$ (as in Q5.1). But some textbooks/experiments plot with the exponent written as $e^{- E_{a} / (k_{B} T)}$ , calling $E_{a}$ the activation energy. Matching the two forms: $\frac{E _{a}}{k _{B} T} = \frac{E _{g}}{2 k _{B} T} \Rightarrow E_{a} = \frac{E _{g}}{2} .$ So an "activation energy" of $0.56 eV$ measured for silicon is not a contradiction — it is $E_{g} /2 = 1.12/2$ . The lesson: always check whether the exponent in your model carries the $2$ or hides it inside a redefined $E_{a}$ . The factor of 2 (from the mid-gap Fermi level) is the single most-confused number in this entire topic.

Recall Verify Q5.2 numerically

If $E_{g} = 1.12 eV$ for Si, then $E_{a} = 0.56 eV$ . A slope-based plot using $e^{- E_{a} / (k_{B} T)}$ has slope $- E_{a} / k_{B} = - 0.56/ (8.617 \times 1 0^{- 5}) = - 6499 K$ — the same $6499 K$ scale we met in Q3.1. Everything is consistent.

Recall Self-test summary (cover the right side)

Formula linking $n$ , $E_{g}$ , $T$ ::: $n \propto e^{- E_{g} / (2 k_{B} T)}$ Value of $k_{B} T$ at 300 K ::: $\approx 0.026 eV$ Silicon exponent $E_{g} / (2 k_{B} T)$ at 300 K ::: $\approx 21.7$ Temperature scale $E_{g} /2 k_{B}$ for Si ::: $\approx 6500 K$ $n (400) / n (300)$ for Si ::: $\approx 225$ Why metals lose conductivity when heated ::: more lattice vibration → more scattering → lower mobility How to get $E_{g}$ from a $ln σ$ vs $1/ T$ slope ::: $E_{g} = - 2 k_{B} \times (slope)$
