Intuition What this page is for
The parent note taught you the ideas. This page drills them until no scenario can surprise you on an exam. We list every kind of question the topic can ask, then solve one of each — with you guessing first.
Before we start, three symbols must be earned. If any of these feels unfamiliar, read the box; we never use a symbol you haven't met.
Definition The three symbols we will keep reusing
E g — the band gap : the minimum energy (in electron-volts, eV) needed to rip one bonded electron loose. Picture a step height an electron must climb.
n i — the intrinsic carrier concentration : how many free electrons (equal to the number of holes) exist per cubic centimetre in pure silicon at a given temperature. Picture counting freed hand-holders in a crowd.
k B T — the thermal energy scale : k B is Boltzmann's constant (8.617 × 1 0 − 5 eV/K), T is temperature in kelvin. Their product is roughly "how hard the heat is shaking each atom." At room temperature (T = 300 K), k B T ≈ 0.0259 eV.
Common mistake The prefactor is not really constant
The full derivation (from the effective density of states , see Band theory of solids ) gives n i ∝ T 3/2 e − E g / ( 2 k B T ) — there is a T 3/2 factor out front because the number of available states an electron can jump into itself grows with temperature. We drop it on this page only because the exponential changes so violently (factors of hundreds over 100 K) that the gentle T 3/2 (a mere ( 400/300 ) 1.5 ≈ 1.5 × over that same range) is a small correction. So our ratio answers are exponential-only estimates ; for exam-grade precision you multiply by the ( T 2 / T 1 ) 3/2 correction. Every example below states its answers as approximate for exactly this reason.
E g itself shrinks as the crystal heats up
There is a second hidden temperature dependence: the band gap is not fixed. As atoms vibrate harder, bond lengths stretch and the gap narrows . Silicon follows the empirical Varshni relation
E g ( T ) = E g ( 0 ) − T + β α T 2 , E g ( 0 ) ≈ 1.170 eV , α ≈ 4.73 × 1 0 − 4 eV/K , β ≈ 636 K .
At 300 K this yields ≈ 1.12 eV (the number we quote); at 400 K it drops to ≈ 1.10 eV. Because a smaller gap means more carriers, band-gap narrowing makes n i rise slightly faster than our fixed-E g estimate predicts. We use a constant E g = 1.12 eV throughout for clarity, but a rigorous exam answer would note this pushes our ratios upward by a few tens of percent. See Band theory of solids .
Every question this topic can throw sits in one of these cells. The examples below are tagged with the cell they cover — the example numbers match the cell order exactly.
Cell
Case class
What makes it tricky
Example
A
Counting electrons per atom
confusing bonds vs electrons
Ex 1
B
Coordination / geometry
tetrahedral 3D vs flat cartoon
Ex 2 (figure)
C
Temperature raised
ratio of exponentials
Ex 3 (figure)
D
Temperature lowered toward 0 K
limiting/degenerate value
Ex 4
E
Different material, different E g
insulator vs semiconductor decision
Ex 5
F
Absolute count from proportionality
needs a reference point (anchor)
Ex 6
G
Real-world word problem
translate English → equation
Ex 7
H
Exam twist / trap
spot the wrong assumption
Ex 8
We also flag the degenerate inputs so no scenario is left uncovered:
T → 0 K → exponent → − ∞ → n i → 0 (perfect insulator). Worked in Ex 4.
T → ∞ → exponent → 0 → n i saturates toward its prefactor. Worked in Ex 4, Step 4.
E g → 0 → no gap → conducts like a metal at any T . Worked in Ex 5, Step 4.
Worked example Example 1 (Cell A) — how many electrons does one Si atom "feel"?
Q: Inside the crystal, how many outer-shell electrons does a single silicon atom effectively surround itself with, and how many bonds is that?
Forecast: Guess now — is the answer 4, 8, or 16? And is the bond count the same number?
Step 1. Own valence electrons = 4 .
Why this step? Silicon is group IV → its n = 3 shell holds 3 s 2 3 p 2 = 4 electrons. This is the atom's own contribution.
Step 2. Add one shared electron from each neighbour: + 4 .
Why this step? Coordination number is 4 — four nearest neighbours, each lending one electron into a shared pair.
Step 3. Total electrons felt = 4 + 4 = 8 .
Why this step? Eight = a full octet → stable, low-energy, no free carriers at 0 K.
Step 4. Count bonds: 4 , not 8 .
Why this step? Each bond is a pair (2 electrons). Four bonds × two electrons = eight electrons, but only four bonds . This is the classic trap.
Verify: Electrons = (own 4) + (borrowed 4) = 8 ✓. Bonds = 4 bonds each holding 1 of Si's own electrons + 1 neighbour's = 4 bonds, 8 electrons. Octet satisfied, sanity holds.

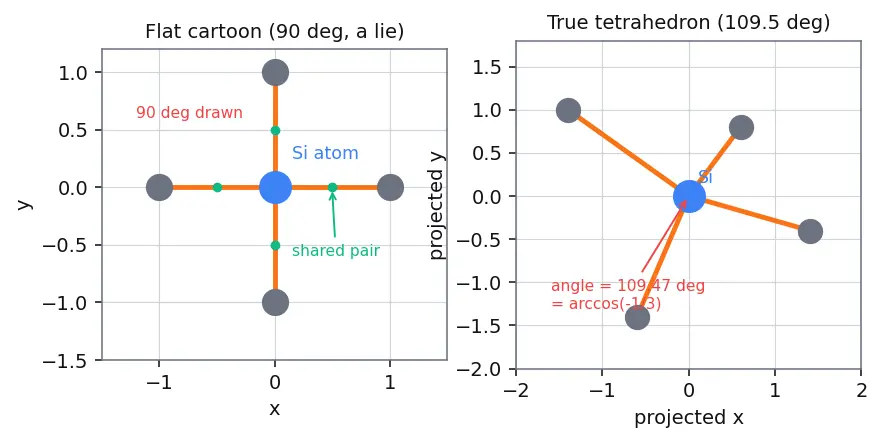

The figure below is the whole point of this example: on the left is the flat textbook cartoon (bonds drawn at 90°), on the right is the true 3D tetrahedron (bonds at 109.5°). As you read Example 2, look at the right panel — the orange bonds fan out into space, and the red arrow marks the angle we are about to compute. Notice the left panel's four bonds sit on a plane, which is why its 90° is only a drawing convenience, not physics.
Worked example Example 2 (Cell B) — what angle sits between two Si–Si bonds?
Q: Four bonds point from one silicon atom to the corners of a regular tetrahedron. What is the angle between any two of them, and why is the flat 90° grid a lie?
Forecast: Guess: is the angle 90°, 109.5°, or 120°?
Step 1. Place the four bond directions at the corners of a cube's alternating vertices — the standard tetrahedron construction (the right panel of the figure). Two such directions are ( 1 , 1 , 1 ) and ( 1 , − 1 , − 1 ) .
Why this step? The diamond-cubic lattice literally builds each atom's four bonds toward alternate cube corners; using coordinates lets us compute the angle instead of guessing.
Step 2. The dot product of two direction vectors gives the cosine of the angle between them:
cos θ = ∣ a ∣ ∣ b ∣ a ⋅ b .
Why this tool? The dot product is the one operation that turns two directions into a single number encoding "how aligned" they are — exactly the angle question we're asking. No other simple operation reads off an angle directly.
Step 3. Compute: a ⋅ b = ( 1 ) ( 1 ) + ( 1 ) ( − 1 ) + ( 1 ) ( − 1 ) = − 1 , and each length is 3 , so
cos θ = 3 ⋅ 3 − 1 = − 3 1 .
Why this step? Plugging the actual bond vectors in turns the abstract formula into a real number.
Step 4. θ = arccos ( − 3 1 ) ≈ 109.47° .
Why this step? arccos answers "which angle has this cosine?" — it undoes the cosine to hand us the angle in degrees.
Verify: cos ( 109.47° ) ≈ − 0.333 ✓. The flat 90° drawing is a cartoon: it correctly shows 4 bonds, 8 electrons but distorts the true 109.5° tetrahedral geometry (left vs right panel). See Diamond cubic crystal structure .

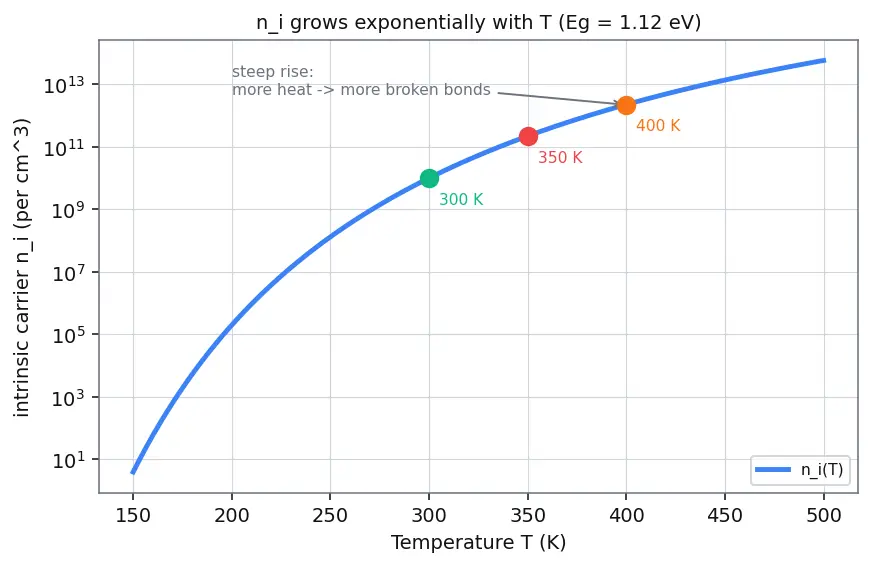

The figure below plots n i against temperature on a log vertical axis (each gridline up is ×10). Follow the blue curve as you read Example 3: it climbs steeply, and the three coloured dots mark the temperatures we compute (green 300 K, red 350 K, orange 400 K). The gray arrow labels the physical meaning — more heat breaks more bonds . Because the vertical axis is logarithmic, a straight-looking rise is actually an exponential explosion in carrier count.
Worked example Example 3 (Cell C) — heat 300 K → 400 K
Q: By roughly what factor does n i grow when silicon is heated from 300 K to 400 K? (E g = 1.12 eV.)
Forecast: Guess the factor: about ×2, ×20, or ×200?
Step 1. Exponent at 300 K: 2 k B T E g = 2 ( 8.617 × 1 0 − 5 ) ( 300 ) 1.12 ≈ 21.66 .
Why this step? The whole T -dependence of the exponential part lives here; evaluate it at each temperature.
Step 2. Exponent at 400 K: 2 ( 8.617 × 1 0 − 5 ) ( 400 ) 1.12 ≈ 16.25 .
Why this step? Same formula, hotter T → smaller exponent → less suppression.
Step 3. Take the ratio. Because n i ∝ e − exponent (dropping the gentle T 3/2 prefactor),
n i ( 300 ) n i ( 400 ) ≈ e − 16.25 / e − 21.66 = e 21.66 − 16.25 = e 5.41 .
Why this step? Dividing exponentials subtracts exponents — the unknown constant cancels, so we get a clean ratio without knowing it.
Step 4. e 5.41 ≈ 224 .
Why this step? Convert the exponent to a plain multiplier.
Verify: ln ( 224 ) ≈ 5.41 ✓. So n i jumps roughly ×220 — about two orders of magnitude — for just a 100 K rise. (Including the T 3/2 correction ( 400/300 ) 1.5 ≈ 1.54 would nudge this to ~×340, still the same order.) More heat → more broken bonds → more conduction. Ties to Electron-hole pair generation and recombination .
Worked example Example 4 (Cell D) — what happens at absolute zero (and at infinite heat)?
Q: As T → 0 K, what does n i approach, and what does that mean physically? Also, what happens as T → ∞ ?
Forecast: Guess n i ( 0 K ) : infinite, some fixed number, or zero?
Step 1. Look at the exponent − 2 k B T E g as T → 0 + .
Why this step? The behaviour of n i is dictated by what the exponent does at the extreme (the T 3/2 prefactor only makes n i vanish faster , so it doesn't change the conclusion).
Step 2. As T → 0 + , the denominator → 0 + , so 2 k B T E g → + ∞ , hence the exponent → − ∞ .
Why this step? Dividing a fixed positive number by a shrinking positive number blows up; the minus sign sends it to negative infinity.
Step 3. e − ∞ = 0 , so n i → 0 .
Why this step? e raised to a very negative power collapses to zero — no bonds have the energy to break.
Step 4. Opposite limit: as T → ∞ , the exponent → 0 , so e 0 = 1 and the exponential part saturates. (The T 3/2 prefactor keeps growing, but the exponential — the dominant physics — no longer suppresses carriers.)
Why this step? Covers the other degenerate end so no scenario is missing — the exponential can't grow past 1; the crystal is limited by how many bonds exist to break.
Verify: n i ( 0 K ) = 0 ✓ — matches the parent claim "silicon is a perfect insulator at 0 K." Every electron is locked in a bond; there is literally nothing to move.
Worked example Example 5 (Cell E) — diamond vs silicon, and what if the gap vanished?
Q: Carbon (diamond) shares the same bonding and lattice but has E g ≈ 5.5 eV. Compare its n i to silicon's at 300 K. Insulator or semiconductor? Then: what would n i do if E g → 0 ?
Forecast: Guess how many orders of magnitude fewer carriers diamond has: 10, 50, or 90?
Step 1. Exponent for diamond at 300 K: 2 ( 8.617 × 1 0 − 5 ) ( 300 ) 5.5 ≈ 106.4 .
Why this step? Same master equation, just swap in the larger gap.
Step 2. Compare to silicon's exponent 21.66 . Ratio of carrier counts:
n i C n i Si ≈ e 106.4 − 21.66 = e 84.7 .
Why this step? Subtracting exponents again cancels the prefactor, isolating the pure effect of E g .
Step 3. Convert to base 10: e 84.7 = 1 0 84.7/2.303 ≈ 1 0 36.8 .
Why this step? Orders of magnitude are easiest to grasp in base 10; divide the natural exponent by ln 10 ≈ 2.303 .
Step 4. Degenerate case E g → 0 : the exponent − 2 k B T E g → 0 , so e 0 = 1 — the exponential no longer suppresses anything and carriers are abundant at any temperature, i.e. metal-like conduction.
Why this step? Closes the E g → 0 degenerate input promised in the matrix — a zero gap means no barrier to breaking bonds, exactly what a metal looks like.
Verify: Diamond has roughly 1 0 37 times fewer free carriers than silicon → effectively zero → insulator ✓. Same bonding, but the size of E g decides the fate; and E g → 0 gives metal-like behaviour ✓. This is why bond type alone does not settle conductivity — the gap does.
Worked example Example 6 (Cell F) — put an absolute number on it
Q: Given n i ( 300 K ) ≈ 1.0 × 1 0 10 cm − 3 , estimate n i ( 400 K ) using the ratio from Ex 3.
Forecast: Guess the order of magnitude: 1 0 11 , 1 0 12 , or 1 0 13 ?
Step 1. Multiply the known 300 K value by the factor found in Ex 3:
n i ( 400 ) ≈ ( 1.0 × 1 0 10 ) × 224.
Why this step? Proportionality only gives ratios ; you need one measured anchor value to convert a ratio into an absolute count.
Step 2. = 2.24 × 1 0 12 cm − 3 .
Why this step? Simple multiplication finishes the estimate.
Verify: Units: cm − 3 × ( dimensionless factor ) = cm − 3 ✓. Order of magnitude 1 0 12 ✓ — a huge jump, yet still vastly fewer carriers than a metal (∼ 1 0 22 cm − 3 ), confirming silicon stays a semiconductor. See Intrinsic vs extrinsic semiconductors .
Worked example Example 7 (Cell G) — a chip in the desert
Q: A sensor chip runs at 300 K indoors but reaches 350 K in a hot desert enclosure. Its leakage current scales with n i . By what factor does intrinsic leakage roughly increase? (E g = 1.12 eV.)
Forecast: Guess: barely changes (×1.5), or noticeably (×15)?
Step 1. Translate "leakage scales with n i " into "find n i ( 350 ) / n i ( 300 ) ."
Why this step? The physics word "leakage" hides the same ratio calculation — spotting that is the whole skill of a word problem.
Step 2. Exponent at 350 K: 2 ( 8.617 × 1 0 − 5 ) ( 350 ) 1.12 ≈ 18.57 .
Why this step? Evaluate the exponent at the new temperature.
Step 3. Ratio ≈ e 21.66 − 18.57 = e 3.09 ≈ 22 .
Why this step? Subtract exponents; the prefactor cancels (a ( 350/300 ) 1.5 ≈ 1.26 correction leaves the order unchanged).
Verify: ln ( 22 ) ≈ 3.09 ✓. A modest 50 K rise multiplies leakage by ~20× — a genuine engineering headache, and why chips need cooling. Units cancel (dimensionless ratio) ✓.
Worked example Example 8 (Cell H) — spot the wrong assumption
Q: A student writes: "Each Si atom shares 8 electrons, one with each of its 8 neighbours." Two errors are hidden here. Find and fix both.
Forecast: Can you spot both before reading on?
Step 1. Error 1 — neighbour count. Silicon's coordination number is 4 , not 8.
Why this step? The tetrahedral geometry (Ex 2) allows exactly four nearest neighbours.
Step 2. Error 2 — electron vs bond. Silicon feels 8 electrons but forms only 4 bonds , each a shared pair .
Why this step? The number 8 refers to the octet of electrons, never to a count of neighbours or bonds.
Step 3. Corrected sentence: "Each Si atom forms 4 bonds with 4 neighbours , sharing a pair (2 electrons) per bond, so it feels 8 electrons total."
Why this step? Restating cleanly cements the distinction the exam is testing.
Verify: 4 bonds × 2 electrons = 8 electrons, from 4 neighbours ✓. Consistent with Ex 1.
Recall Every cell is now covered
A counting (Ex 1) · B geometry (Ex 2) · C heating up (Ex 3) · D cold/hot limits (Ex 4) · E other materials + zero-gap limit (Ex 5) · F absolute number from an anchor (Ex 6) · G word problem (Ex 7) · H exam trap (Ex 8).
Degenerate inputs all shown: T → 0 (Ex 4), T → ∞ (Ex 4), E g → 0 (Ex 5).
Two real-world corrections flagged for rigour: the T 3/2 prefactor and Varshni band-gap narrowing — both push carrier estimates up , never down.
If a fresh exam question appears, drop it into one of these eight cells and reuse the matching recipe. That is the point: no scenario should now surprise you.
Recall Quick self-test
As T → 0 K, what does n i approach and why? ::: n i → 0 ; the exponent − E g / ( 2 k B T ) → − ∞ so e − ∞ = 0 — no bond has energy to break.
Heating Si from 300 K to 400 K multiplies n i by roughly what? ::: About ×220 (e 5.41 ), exponential-only estimate.
Why does diamond (E g = 5.5 eV) stay an insulator with the same bonding as Si? ::: Its far larger gap makes the exponent ~106 vs ~22; carriers are ~1 0 37 × fewer → effectively zero.
Bonds vs electrons for one Si atom? ::: 4 bonds, 8 electrons felt (own 4 + borrowed 4).
What angle sits between two Si–Si bonds, and how do we get it? ::: 109.47° , computed from arccos ( − 1/3 ) using the dot product of two tetrahedral bond vectors.
What two temperature corrections did we drop from the master equation? ::: The T 3/2 density-of-states prefactor and the Varshni band-gap narrowing E g ( T ) — both mild, both raise n i .
Mnemonic Ratio shortcut for any two temperatures
"Subtract the exponents, the constant cancels." For any T 1 , T 2 : n i ( T 1 ) n i ( T 2 ) ≈ exp ( 2 k B E g ( T 1 1 − T 2 1 ) ) — you never need the messy prefactor (add a ( T 2 / T 1 ) 3/2 factor and Varshni's E g ( T ) for full precision).
