Intuition Why this page exists
The parent note gave you two master formulas — the rising current i ( t ) = R V ( 1 − e − t / τ ) and the decaying current i ( t ) = I 0 e − t / τ . But a real problem never says "here, use formula 2." It hands you a switch, a coil already carrying current, a question about voltage instead of current, or a limiting case (t → ∞ , R → 0 ). This page walks every distinct kind of question an RL circuit can ask, so no scenario ever surprises you.
Before anything, let's re-anchor the three symbols we will use constantly, in plain words:
Definition The three characters
i ( t ) — the current , in amps (A): how much charge flows per second at time t . Picture the density of a stream of marbles rolling through the wire.
v L ( t ) — the inductor voltage , in volts (V): the "push-back" the coil generates, equal to L d t d i (inductance times how fast current is changing). When current changes fast, v L is big.
τ = R L — the time constant , in seconds (s): the natural clock of the circuit. See Time Constant . Everything happens on a schedule set by τ .
Every RL problem is one (or a blend) of these case classes . Each row is a distinct "shape" of question; the examples below are labelled with the row they cover.
#
Case class
What makes it different
Covered by
A
Energizing (source switched on , i starts at 0)
Current rises , use 1 − e − t / τ
Ex 1
B
De-energizing (source removed, i starts at I 0 )
Current decays , use e − t / τ
Ex 2
C
Non-zero initial current + new source (general case)
Neither pure rise nor pure decay
Ex 3
D
Voltage question (v L , v R ) instead of current
Must differentiate / use KVL
Ex 4
E
Inverse problem (given i , find t or L )
Solve for the unknown parameter , needs ln
Ex 5
F
Limiting / degenerate inputs (t = 0 + , t → ∞ , R → 0 )
Check the edges where formulas "break"
Ex 6
G
Real-world word problem (energy, relay, spark)
Translate words → symbols
Ex 7
H
Exam twist (two-stage: charge then discharge)
Output of stage 1 becomes I 0 of stage 2
Ex 8

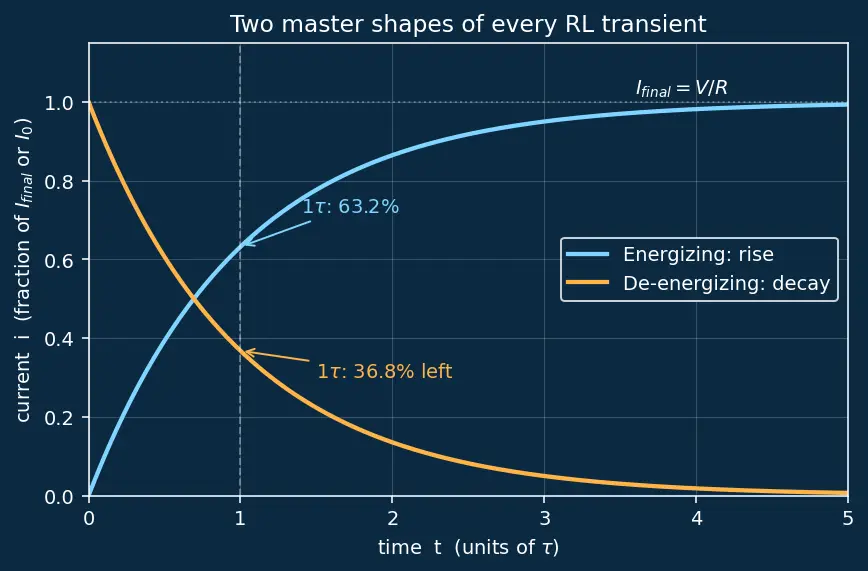

We will hit all eight . Keep this figure of the two master curves nearby — every example lives somewhere on one of these two shapes:
A battery V = 12 V drives a series R = 4 Ω , L = 8 mH . The switch closes at t = 0 with zero current. Find (a) τ , (b) the final current, (c) i at t = 4 ms .
Forecast: Will i at 4 ms be above or below half of the final current? (Guess before reading — 4 ms is exactly 2 τ , so think about the 86.5% row.)
Step 1 — Compute τ = L / R = 0.008/4 = 0.002 s = 2 ms .
Why this step? The time constant is the clock; every later answer is measured in multiples of it. See Time Constant .
Step 2 — Final current I final = V / R = 12/4 = 3 A .
Why this step? After a long time d i / d t → 0 , so v L = 0 and the inductor is just a wire — pure Ohm's law. This is Steady-State Analysis .
Step 3 — At t = 4 ms = 2 τ : i = 3 ( 1 − e − 2 ) = 3 ( 1 − 0.13534 ) = 3 ( 0.86466 ) = 2.594 A .
Why this step? We plug t / τ = 2 into the rise formula (Case A shape). The exponent is dimensionless — that's why we always work in units of τ .
Verify: 2.594 A is 86.5% of 3 A , matching the 2 τ row of the parent's table. Above half — forecast confirmed. Units: ( V ) / ( Ω ) = A ✓.
An inductor is already carrying I 0 = 5 A . At t = 0 the source is shorted out, leaving just R = 10 Ω and L = 20 mH in a loop. Find i at t = 6 ms .
Forecast: After 6 ms = 3 τ , roughly what fraction of 5 A is left — half? A tenth? Twentieth?
Step 1 — τ = L / R = 0.020/10 = 0.002 s = 2 ms .
Why this step? Same clock, even though there is no source now — τ depends only on L and R , not on V .
Step 2 — Identify the shape: no source, so KVL gives 0 = i R + L d i / d t , whose solution is pure decay i = I 0 e − t / τ .
Why this step? With V = 0 the "target" the current heads toward is 0 ; the exponential just eats the initial value away.
Step 3 — t = 6 ms = 3 τ : i = 5 e − 3 = 5 ( 0.049787 ) = 0.2489 A .
Why this step? Substitute t / τ = 3 .
Verify: 0.2489/5 = 4.98% , matching the 3 τ "remaining 5.0% " row. Sanity: decaying answer is below the start 5 A ✓.
A coil already carries I 0 = 1 A when, at t = 0 , a source is switched in so the circuit would eventually settle at I final = 4 A . With τ = 3 ms , find i at t = 3 ms .
Forecast: The current must climb from 1 A toward 4 A . After one τ it covers 63.2% of the gap . What is the gap, and where does that put us?
Step 1 — Write the general first-order solution: i ( t ) = I final + ( I 0 − I final ) e − t / τ .
Why this step? Every first-order transient is "final value plus a decaying memory of how far you started off." This one formula contains Case A (I 0 = 0 ) and Case B (I final = 0 ) as special cases. See First-Order Differential Equations .
Step 2 — The gap is I 0 − I final = 1 − 4 = − 3 A (negative because we start below the target).
Why this step? The sign tells us the exponential term is negative, i.e. it adds current over time — the curve rises.
Step 3 — At t = τ : i = 4 + ( − 3 ) e − 1 = 4 − 3 ( 0.36788 ) = 4 − 1.10364 = 2.896 A .
Why this step? Substitute t / τ = 1 .
Verify: Gap covered = ( 2.896 − 1 ) / ( 4 − 1 ) = 1.896/3 = 63.2% ✓ — exactly the 1 τ rule, just applied to the gap rather than to the final value. Answer sits between start (1 ) and target (4 ) ✓.
Same circuit as Example 1 (V = 12 V , R = 4 Ω , L = 8 mH , τ = 2 ms , energizing from 0). Find v L and v R at (a) t = 0 + , (b) t = 2 ms .
Forecast: At the very instant of switch-on, who takes the full 12 V — the resistor or the inductor?
Step 1 — Get v L ( t ) . Differentiate the rise current, or use the shortcut v L = V e − t / τ .
Why this step? v L = L d t d i ; differentiating R V ( 1 − e − t / τ ) gives R V ⋅ τ 1 e − t / τ ⋅ L , and since τ = L / R the L and R cancel to leave V e − t / τ . This is why we needed calculus here rather than just plugging numbers — voltage is about the rate of change of current, per Inductor Fundamentals .
Step 2 — At t = 0 + : v L = 12 e 0 = 12 V , and v R = i R = 0 (current still zero).
Why this step? At the switch instant current is continuous from before (= 0 ), so the resistor drops nothing and the inductor must swallow the entire source. Forecast answer: the inductor takes all 12 V .
Step 3 — At t = 2 ms = 1 τ : v L = 12 e − 1 = 4.4146 V ; v R = 12 − 4.4146 = 7.5854 V .
Why this step? KVL says v R + v L = V at every instant, so once we have v L the resistor voltage is just the leftover. See Kirchhoff's Voltage Law .
Verify: Cross-check v R from current: at 1 τ , i = 3 ( 1 − e − 1 ) = 1.8964 A , so v R = i R = 1.8964 × 4 = 7.5854 V ✓ — matches. And v R + v L = 7.5854 + 4.4146 = 12 V ✓ (KVL).
In an energizing RL circuit with I final = 2 A and τ = 5 ms , at what time t does the current first reach 1.5 A ?
Forecast: 1.5 A is 75% of the final value — between the 1 τ (63%) and 2 τ (86%) marks. So expect t between 5 and 10 ms .
Step 1 — Start from i = I final ( 1 − e − t / τ ) and isolate the exponential: e − t / τ = 1 − I final i = 1 − 2 1.5 = 0.25 .
Why this step? We know i and want t , so we must undo the exponential — which means the logarithm is unavoidable. That's why ln appears in every "find the time" problem.
Step 2 — Take natural log: − τ t = ln ( 0.25 ) = − 1.38629 , so t = 1.38629 τ .
Why this step? ln is the exact inverse of e ( ⋅ ) ; it converts "what exponent gives 0.25?" into a number.
Step 3 — t = 1.38629 × 5 ms = 6.931 ms .
Why this step? Convert back to real time by multiplying by τ .
Verify: Plug back: i = 2 ( 1 − e − 6.931/5 ) = 2 ( 1 − e − 1.38629 ) = 2 ( 1 − 0.25 ) = 1.5 A ✓. And 6.93 ms lies between 5 and 10 ms — forecast confirmed.
For the general rise i ( t ) = R V ( 1 − e − t / τ ) , evaluate the three "edge" behaviours: (a) t = 0 + , (b) t → ∞ , (c) the degenerate case R → 0 (ideal wire + coil, no resistor).
Forecast: With no resistor, what stops the current — does it settle, or keep climbing forever?
Step 1 — At t = 0 + : e 0 = 1 , so i = R V ( 1 − 1 ) = 0 .
Why this step? Confirms current is continuous through the switch — it starts exactly where it was (0 ), no jump. This is the edge that kills the "current jumps to V / R " mistake.
Step 2 — As t → ∞ : e − t / τ → 0 , so i → R V = I final .
Why this step? The exponential memory of the start fades completely; the circuit forgets the transient and reaches steady state.
Step 3 — Degenerate R → 0 : here τ = L / R → ∞ (infinitely slow clock) and I final = V / R → ∞ . Expanding for small t , i ( t ) ≈ R V ⋅ τ t = R V ⋅ L R t = L V t .
Why this step? Notice the R cancels! With no resistance, current rises linearly at rate V / L and never levels off — matching physics (v L = V constant forces constant d i / d t ). Forecast answer: it ramps forever .
Verify: Take V = 12 , L = 8 mH . At t = 0.5 ms the ramp gives i = 0.008 12 ( 0.0005 ) = 0.75 A . The full formula with a tiny R = 0.001 Ω gives i = 12000 ( 1 − e − 0.0005/8 ) ≈ 0.75 A ✓ — the linear ramp is the R → 0 limit.
A relay coil (L = 50 mH , winding resistance R = 25 Ω ) is driven by a 5 V supply. The relay pulls in when its current reaches 150 mA . How long after switch-on does it click? Also, how much energy is stored in the coil at that instant?
Forecast: Final current is 5/25 = 200 mA ; we need 150 mA = 75% of it. From Example 5's pattern, expect about 1.39 τ .
Step 1 — τ = L / R = 0.050/25 = 0.002 s = 2 ms ; I final = V / R = 5/25 = 0.2 A .
Why this step? Translate the words "supply 5 V , coil R , L " into circuit numbers first.
Step 2 — Find t for i = 0.15 A : e − t / τ = 1 − 0.2 0.15 = 0.25 ⇒ t = τ ln 4 = 2 ms × 1.38629 = 2.773 ms .
Why this step? Same inverse-log method as Case E; the relay "clicks" the moment current hits threshold.
Step 3 — Energy stored: E = 2 1 L i 2 = 2 1 ( 0.050 ) ( 0.15 ) 2 = 2 1 ( 0.050 ) ( 0.0225 ) = 5.625 × 1 0 − 4 J = 0.5625 mJ .
Why this step? The inductor's magnetic energy is 2 1 L I 2 (from Inductor Fundamentals ); the question asked for stored energy at the click instant, so we use the current at that time .
Verify: Time check — plug back: i = 0.2 ( 1 − e − 2.773/2 ) = 0.2 ( 1 − 0.25 ) = 0.15 A ✓. Energy units: H ⋅ A 2 = ( V⋅s/A ) ⋅ A 2 = V⋅A⋅s = W⋅s = J ✓.
Two-stage problem. Stage 1: V = 20 V , R = 10 Ω , L = 5 mH , switch closed for a long time so the coil reaches steady current. Stage 2: at t = 0 the source is disconnected and the coil discharges through the same R . Find the current 3 τ after disconnection.
Forecast: "A long time" in Stage 1 means the coil is fully charged to V / R . After that, Stage 2 decays it. So the Stage-1 final current becomes the Stage-2 starting current — that's the whole trick.
Step 1 — Stage 1 steady current: I 0 = V / R = 20/10 = 2 A .
Why this step? "A long time" (≫ 5 τ ) means the transient is over and d i / d t = 0 ; inductor is a wire, so pure Ohm's law. This value is the hand-off to Stage 2.
Step 2 — τ = L / R = 0.005/10 = 0.0005 s = 0.5 ms (same R , L in both stages).
Why this step? The clock is unchanged because R and L are unchanged; only the source condition flipped.
Step 3 — Stage 2 decay at t = 3 τ : i = I 0 e − 3 = 2 ( 0.049787 ) = 0.09957 A ≈ 99.6 mA .
Why this step? Case B pure decay, now with I 0 = 2 A inherited from Stage 1.
Verify: 0.09957/2 = 4.98% — the 3 τ "5% remaining" rule again ✓. Two-stage sanity: the answer must be below the Stage-1 steady 2 A , and it is ✓.
Mnemonic Which formula, fast
Starts at 0, source on → rise , R V ( 1 − e − t / τ ) .
Starts at I 0 , source gone → decay , I 0 e − t / τ .
Starts at I 0 , new target → general , I f + ( I 0 − I f ) e − t / τ .
Asked for time → take ln . Asked for voltage → v L = V e − t / τ , then KVL for v R .
Recall Quick self-test
A coil at 2 A discharges through R with τ = 1 ms . Current at 2 ms ? ::: 2 e − 2 = 0.271 A .
Rising circuit reaches what fraction of final at t = τ ln 4 ? ::: 75% (since e − l n 4 = 0.25 , and 1 − 0.25 = 0.75 ).
With no resistor, current does what over time? ::: Rises linearly at V / L , never settles.
