Apply Kirchhoff's Current Law (KCL): Question bank

Before you start, recall the one idea: an ideal node stores no charge, so at every instant $\sum i_{k} = 0$ . Everything below is a consequence of that single sentence.

Symbols and pictures you need first

Because this page is self-contained, let's earn every symbol before using it. Look at the figure below as you read each definition.

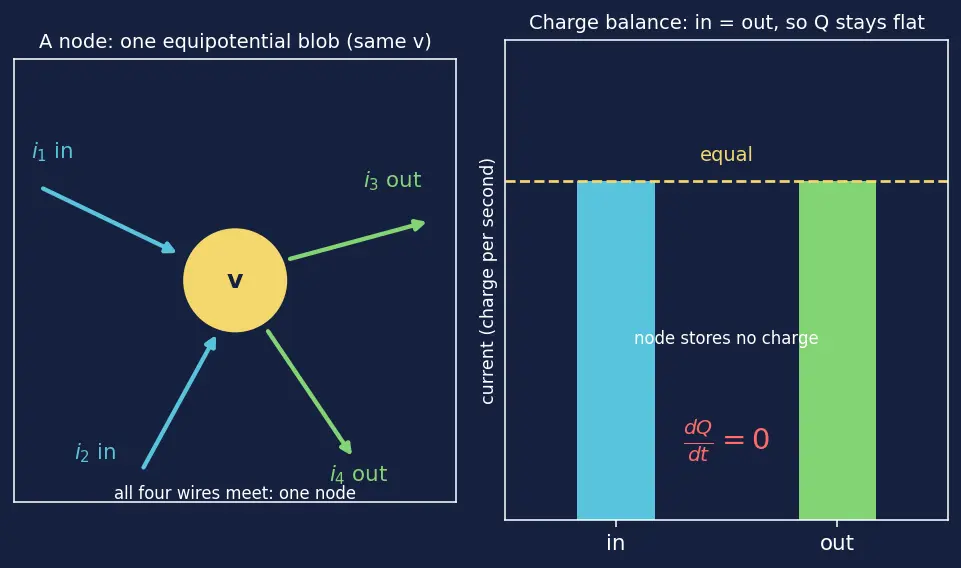

Figure — Apply Kirchhoff's Current Law (KCL)

Two vault pages support these definitions, so here is the one-line gist of each so you needn't leave:

Recall Gist of the linked pages

Ideal Wires and Nodes — an ideal wire has zero resistance, hence zero voltage drop, hence all its points are one equipotential node. ::: This is exactly why "same wire ⇒ same node." Capacitor i-v Relationship — a capacitor obeys $i = C \frac{d v}{d t}$ : current flows through it (in one lead, out the other) whenever its voltage changes, even though charge accumulates on its internal plates. ::: So a capacitor never breaks KCL at a node.

True or false — justify

State true/false, then give the reason.

True or false: Two current-carrying wires soldered together at a point form a node where charge can briefly pile up.

False — an ideal node has zero capacitance, so it stores no charge at any instant;

\frac{d Q}{d t} = 0

and current in equals current out immediately.

True or false: KCL only holds in steady state (DC), not for time-varying currents.

False — KCL comes from Conservation of Charge, which holds at every instant; the equation

\sum i_{k} (t) = 0

is valid for AC, transients, everything.

True or false: If three wires meet at a node and two currents flow in, the third must flow out.

True — with only three branches, if two carry charge inward the only remaining branch must carry all of it back out, else charge would accumulate.

True or false: The sum of the magnitudes of currents at a node is zero.

False — magnitudes are all positive and can't sum to zero; it is the algebraic (signed) sum that vanishes, because direction is encoded by the sign.

True or false: A capacitor branch violates KCL because charge collects on its plates.

False — charge collects inside the component on its plates, not at the node; the terminal current

i = C \frac{d v}{d t}

enters one lead and leaves the other, so KCL at each node still holds (Capacitor i-v Relationship).

True or false: If you guess a current arrow backwards, your final circuit answer is wrong.

False — you simply get a negative number; its magnitude is correct and the true direction is opposite your guess. The algebra self-corrects.

True or false: KCL and Kirchhoff's Voltage Law (KVL) are the same law written two ways.

False — KCL is charge conservation at a node; KVL is energy conservation around a loop. Independent physical principles, complementary tools.

True or false: A node with only one wire attached can still satisfy KCL.

True but only if that single current is zero — one wire means

i = 0

, otherwise charge would accumulate at a dead end.

True or false: Adding an ideal wire (zero resistance) between two existing nodes merges them into one node.

True — an ideal wire has no voltage drop, so both endpoints are equipotential (same

v

) and become a single node (Ideal Wires and Nodes).

True or false: KCL as

\sum i_{k} = 0

is the complete truth even for a fast-changing electric field in empty space between capacitor plates.

False in that full electromagnetic setting — there you must add Maxwell's displacement current (see the Edge cases section); ordinary conduction-current KCL is the special case where you draw your node around actual wires, not through changing fields.

Spot the error

Each line states a flawed claim; the reveal names the flaw and fixes it.

"A resistor sits between points P and Q, so P and Q are the same node."

Wrong — a resistor has a voltage drop, so P and Q are at different

v

and are different nodes. Only points joined by pure zero-resistance wire (equal

v

) share a node.

"Any two points on the same physical piece of metal are automatically one node."

Wrong — only if there is no voltage drop between them; a long thin resistive trace does drop voltage, so its two ends differ in

v

and are distinct nodes. "One node" means equipotential, not merely connected.

"I have 4 wires at a node, so I write four separate KCL equations there."

Wrong — one node gives one KCL equation summing all its branch currents; the four wires are four terms, not four equations.

"5 A enters and 5 A enters, so 10 A must leave — I'll write

5 + 5 + 10 = 0

Sign error — with 'leaving = +', entering currents are negative:

- 5 - 5 + 10 = 0

. Writing all terms positive double-counts direction.

"The node has a current source forcing 3 A in, but the resistors only want 2 A total, so 1 A vanishes."

Wrong — charge can't vanish; the source's 3 A must fully appear in the exit branches. If your resistor currents don't sum to 3 A, your voltages (not KCL) are miscomputed.

"Between two capacitors in series, no wire, so KCL doesn't apply at the middle point."

Wrong — the junction between them is a node; the same current flows through both, which is exactly KCL: current in one lead equals current out the other.

"Current splits at a node, so each branch gets an equal share automatically."

Wrong — KCL only fixes the total (in = out). How it splits depends on the branch resistances/voltages, not on KCL alone.

"A node is grounded, so charge can leak out to ground and KCL is broken."

Wrong — ground is just another branch/node; current to ground is one more term in

\sum i_{k} = 0

. Nothing leaks unaccounted.

Why questions

Why does KCL require an ideal node (zero stored charge) rather than a real physical junction?

A real junction has tiny stray capacitance that can momentarily hold charge

Q

; the idealization

Q = 0

makes

\frac{d Q}{d t} = 0

exact, giving the clean

\sum i = 0

. In practice the stray charge is negligible.

Why can we choose current arrow directions freely before solving, and what is the algebraic mechanism that fixes a wrong guess?

Say we guess

i_{x}

into a node and write

\sum i_{k} = 0

. If the true flow is 1 A outward, the equation is forced to satisfy itself by returning

i_{x} = - 1

. The minus sign is the algebra saying "your assumed arrow points the wrong way"; flip the arrow and read

+ 1

A. Geometrically: reversing an arrow just multiplies that term by

- 1

, so the single linear equation has exactly one consistent solution regardless of the guess — the sign carries the direction, the magnitude is guess-independent.

Why does the single equation

\sum i_{k} = 0

contain the same physics as

\sum i_{in} = \sum i_{out}

Choosing 'leaving = +' makes entering currents negative; moving them to the other side turns

\sum i = 0

into 'in = out'. Just algebra rearranging one conservation statement.

Why is KCL a point statement while Conservation of Charge is often stated for a region?

A node is a region shrunk to a point with no interior storage; the general continuity law

\frac{d Q}{d t} = i_{in} - i_{out}

specializes to KCL when

Q = 0

Why does Nodal Analysis apply KCL at nodes rather than KVL at loops?

KCL written at each node produces one equation per unknown node voltage

v

, giving a compact, systematic linear system that a computer or student can solve directly.

Why doesn't the type of component (resistor, source, inductor, capacitor) change how KCL is written?

KCL constrains only the currents at the node, independent of what's inside each branch; the component's

i

–

v

relationship is a separate equation used later.

Why must all currents in KCL be measured at the same instant?

Charge conservation is instantaneous — a node cannot 'save' charge from one moment to spend later — so

\sum i_{k} (t) = 0

must hold for each time

t

separately.

Edge cases

At a node where every branch carries exactly 0 A, does KCL still hold?

Yes trivially —

0 + 0 + \dots = 0

. The degenerate case satisfies KCL, meaning an isolated or unpowered node is consistent.

Two branches carry

+ i

and

- i

(equal and opposite) into a node and nothing else connects. Valid?

Yes — they sum to zero, so KCL holds; physically it's a single current passing straight through the point with no splitting.

A node connects to a capacitor whose voltage is constant in time. What is the capacitor branch current?

Zero, since

i = C \frac{d v}{d t} = 0

when

v

is constant; in DC steady state the capacitor acts like an open branch and contributes 0 to the node sum.

An ideal current source of 5 A feeds a node with no other branch attached. Is KCL satisfiable?

No — it's a contradiction (an inconsistent circuit); the 5 A has nowhere to go, violating

\sum i = 0

. Real circuits always provide a return path.

At the limit where a branch resistance

\to \infty

(open), what current does that branch contribute to KCL?

Zero — an open branch carries no current, so it drops out of the node equation; the remaining branches must balance among themselves.

At the limit where a branch resistance

\to 0

(short across a node to itself), does KCL break?

No — a zero-resistance loop just merges points into one node; KCL still holds, though that branch can carry arbitrary current set by the rest of the circuit.

The subtle one: draw a surface that cuts between the plates of a charging capacitor, where no wire crosses it. Doesn't the conduction current vanish there while it's non-zero in the wire, breaking continuity?

This is exactly why Maxwell added the displacement current

i_{d} = ε_{0} \frac{d Φ _{E}}{d t}

(rate of change of electric flux through the surface). In the gap, the changing electric field supplies a "current" equal to the conduction current in the wire, so the generalized KCL

\sum (i_{cond} + i_{d}) = 0

still holds. Ordinary lumped-circuit KCL is the low-frequency case where we choose node surfaces around wires and the displacement term is negligible.

Why is lumped-circuit KCL safe to use without the displacement term almost always?

Because we draw our node boundary tightly around metal wires, not through regions of fast-changing electric field; there the conduction current fully accounts for charge crossing, so

i_{d} \approx 0

and

\sum i_{k} = 0

is exact enough.

Recall Feynman check

If a friend claims 'this weird component eats a little current at the node,' what's your one-line rebuttal? ::: 'A node stores no charge, so whatever enters must leave this instant — the current isn't eaten, it's inside the component or in a branch you forgot to count.'

Connections

Apply Kirchhoff's Current Law (KCL) — the parent topic these traps stress-test.
Kirchhoff's Voltage Law (KVL) — the loop-based counterpart; don't confuse the two.
Nodal Analysis — where KCL becomes a solving engine.
Conservation of Charge — the bedrock these questions keep returning to.
Current and Current Density — defines the $i = \frac{d q}{d t}$ used throughout.
Ideal Wires and Nodes — settles the 'same node?' disputes via the equipotential rule.
Capacitor i-v Relationship — resolves the capacitor 'storage' trap.
