Before you can read the parent note, you must be able to look at each symbol and hear what it says out loud. This page walks the entire alphabet of a neuron, from the humble subscript to the exponential $e^{-z}$, building each one on the one before it. Nothing here assumes you have seen algebra beyond "multiply and add".

1. A number that stands for something: the variable

Think of a cockpit gauge. The gauge labelled airspeed shows $150$ at one moment and $210$ a minute later. The label is $x$; the needle reading is the number inside. We use letters so we can talk about the reading without freezing it to one value.

The parent note uses $x$ for a sensor reading — airspeed, altitude, temperature. That is all $x$ ever means: one input number.

2. Many of the same thing: the subscript

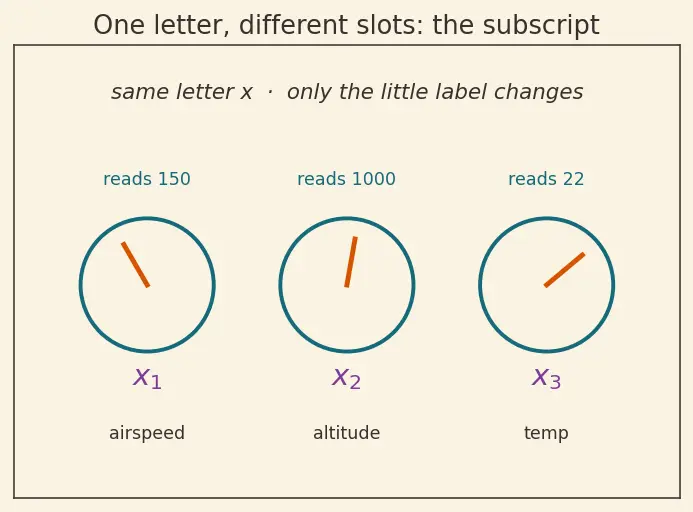

Look at the figure. We have a row of gauges, one per input. Instead of inventing a fresh letter for each ($a$ for airspeed, $h$ for altitude, …) we reuse the single letter $x$ and change only the little label underneath. This is the only reason subscripts exist: to say "same kind of thing, different slot".

3. The counting shorthand: $i$, $n$, and $\sum$

Now the scary symbol. The parent note writes ${\sum }_{i=1}^n{w}_i{x}_i$.

The figure shows the loop unrolled. ${\sum }_{i=1}^3{w}_i{x}_i$ is literally the same as writing $w_1{x}_1+w_2{x}_3?\text{no —}{w}_1{x}_1+w_2{x}_2+w_3{x}_3.$ Same counter under both letters, so slot $1$ pairs with slot $1$. The $\sum$ is only there so we don't have to write a hundred + signs when there are a hundred inputs. Why the topic needs it: a real sensor bank has dozens of readings; the loop notation keeps the neuron formula one line long no matter how many.

4. Multiply-then-add together: the weighted sum $z$

Now we can read the heart of the neuron. Two words:

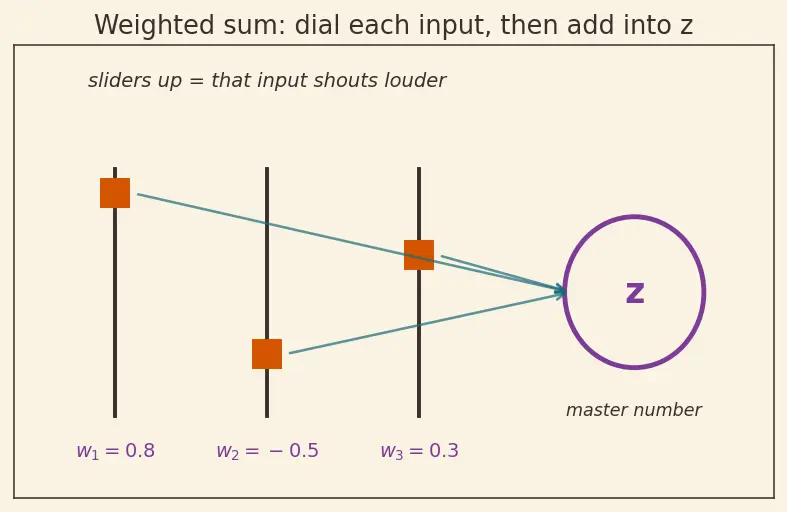

Picture a mixing desk (the figure). Each sensor feeds a slider $w_i$. Slide it up, that sensor's contribution to the final knob $z$ grows. The single output number $z$ is the "master volume" the neuron will react to. Why we need it: the whole point of learning is turning these dials — the network discovers, from data, which sensors matter for predicting pitch or spotting a fault.

5. The resting nudge: the bias $b$

Imagine a bathroom scale that reads $2\text{kg}$ with nothing on it. That constant $+2$ is a bias. In a neuron, if every input happens to be $0$, the weighted sum is $0$ too — without a bias the neuron would be forced to output "nothing" in that case. The bias gives it a resting value it can lean on, so it can fire even when inputs are quiet. Why the topic needs it: it lets each neuron pick where its decision line sits, not just how steep it is.

6. The bending machine: what a function $f(\cdot )$ is

The parent note's neuron is $y=f(z)$: take the master number $z$, run it through machine $f$, call the result $y$. The three machines the parent introduces — ReLU, sigmoid, tanh — are three different bending rules. To read them we need two last tools: the exponential and the idea of steepness.

7. Curves need this: the exponential $e^{-z}$

Sigmoid and tanh both contain $e^{-z}$. Let's earn it.

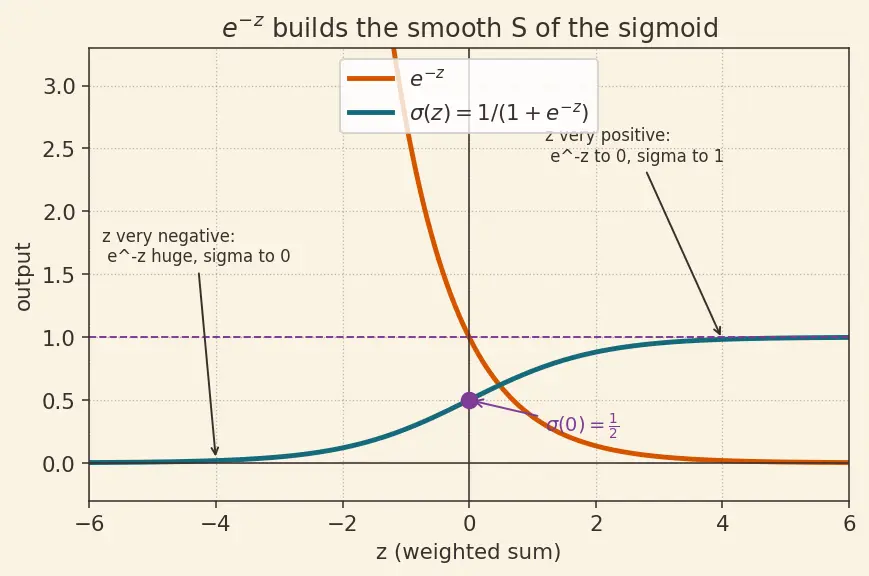

Follow the two curves in the figure. Why sigmoid uses $e^{-z}$: we want a machine whose output slides smoothly from $0$ to $1$. The trick $\frac{1}{1+e^{-z}}$ does exactly that:

• When $z$ is very negative, $e^{-z}$ is huge, so $\frac{1}{1+\text{huge}}\to 0$.
• When $z$ is very positive, $e^{-z}\to 0$, so $\frac{1}{1+0}\to 1$.
• At $z=0$, $e^0=1$, so $\frac{1}{1+1}=\frac{1}{2}$ — dead centre.

So $e^{-z}$ is the ingredient that gives sigmoid its smooth S-shape between $0$ and $1$. We use this tool and not a plain straight line precisely because we want a gentle, always-differentiable squash rather than a hard cut.

8. How steep is the curve here: derivative $f^{\prime }(z)$

The parent note keeps writing $f^{\prime }(z)$, ${\sigma }^{\prime }(z)$, ${\tanh }^{\prime }(z)$. Read the dash out loud as "prime".

Picture standing on the curve and asking "if I step a hair to the right, how much do I rise?" That rise-per-step is the derivative. Why the topic needs it: learning (see Backpropagation and Gradient Descent) works by nudging weights in the direction the slope points. If a machine is flat ($f^{\prime }\approx 0$) over a wide range — as sigmoid is for big $|z|$ — the nudge signal dies. That flat-region death is exactly the vanishing gradient the parent warns about.

9. Putting it together — the neuron in one breath

Read the parent's master formula now, symbol by symbol: $y=f\left({\sum }_{i=1}^n{w}_i{x}_i+b\right)$

• $x_i$ — the $i$-th input gauge (§1–3)
• $w_i$ — its importance dial (§4)
• ${\sum }_{i=1}^n$ — loop that multiply-adds all $n$ of them (§3–4)
• $+b$ — the resting nudge (§5)
• $f(\cdots )$ — the bending machine, one of ReLU / sigmoid / tanh (§6–7)
• $y$ — the single output number

That is the whole neuron. Everything else on the parent page is choosing which bending machine $f$ to use, and how steep ($f^{\prime }$) it is for learning.
