Exercises — MISRA C — rules for safety-critical C code

Not compliant. This violates Rule 21.3 (Required) — the memory allocation/deallocation functions of <stdlib.h> (malloc, calloc, realloc, free) shall not be used. Why banned: dynamic allocation can fail at runtime, fragment the heap unpredictably, and inject timing non-determinism — all fatal in a hard real-time system (see Real-Time Operating Systems (RTOS)). Fix: static allocation with a compile-time bound.

#define BUF_LEN 64
int buf[BUF_LEN];

Violates Rule 10.1 (Required) — bitwise/shift operators shall not be applied to essentially signed operands. Why: right-shifting a signed value is implementation-defined (the compiler may fill with the sign bit or with zeros). The bit pattern of a negative int depends on two's-complement details you should never lean on. Fix: make the operands unsigned.

unsigned int flags = 0xF0U;
unsigned int high  = flags >> 4;   /* logical shift, defined */

Not compliant. Violates Rule 15.6 (Required) — the body of a selection/iteration statement shall be a compound statement ({ }). The trap: the indentation lies. Only arm() is guarded by the if; fire() runs unconditionally. This is the classic dangling-body bug. Fix:

if (ready) {
    arm();
}
fire();   /* now visibly unconditional */

The write itself relies on an implicit signed→unsigned conversion that silently wraps. On a 32-bit unsigned int, $-1$ becomes $2^{32}-1=4294967295=\text{0xFFFFFFFF}$. This offends the essential type model (Rule 10.3, Required) because you assign a signed constant to an unsigned object. Fix — write the intended pattern directly:

unsigned int u = 0xFFFFFFFFU;   /* value visible, no hidden wrap */

Now $u=4294967295$ on purpose, and a reviewer sees the intent.

Violates Rule 18.7 (Required) — the address of an object with automatic storage shall not be copied to something that outlives it. (Historically MISRA C:2004 Rule 17.6.) Why fatal: reading lives on the stack. The instant get_reading returns, that stack slot is free to be reused; the returned pointer dangles. See Memory Safety. Fix — return by value:

int get_reading(void) {
    int reading = 42;
    return reading;   /* a copy travels out, no address escapes */
}

Two problems, both from Rule 18.1 (Required) — a pointer produced by arithmetic must still address an element of the same array (one-past-the-end is allowed to hold but not to dereference). On the final iteration (i == 4) the loop dereferences *p when p points one past the end — undefined behaviour and a read of garbage. Fix: use < n, and if you keep the loop simple you don't even need a raw pointer.

int data[4] = {1, 2, 3, 4};
int s = 0;
for (int i = 0; i < 4; i++) {   /* strictly less-than */
    s += data[i];
}
/* s == 10 */

Correct sum: $1+2+3+4=10$.

Promotion analysis. In adc * 130, adc (a uint8_t) is promoted to int and 130 is int, so the product is computed in int. For adc = 255: $255\times 130=33150$, which fits in a 16-bit int's guaranteed range? No — the C standard only guarantees int holds $[-32767,32767]$, and $33150>32767$. On a 16-bit target this overflows signed int → undefined behaviour. This is the essential-type danger MISRA warns about: relying on the width of int. Fix: force a wide unsigned intermediate so the math is defined and portable. The uint32_t/int16_t types below also come from <stdint.h>.

#include <stdint.h>

uint8_t  adc;
int16_t  celsius;
uint32_t scaled = ((uint32_t)adc * 130U);   /* defined, wide */
celsius = (int16_t)(scaled / 255U) - 40;

Values:

• adc = 255: $\lfloor 255\cdot 130/255\rfloor -40=130-40=90$.
• adc = 0: $0-40=-40$. Both land inside [-40, 125], so int16_t holds them safely.

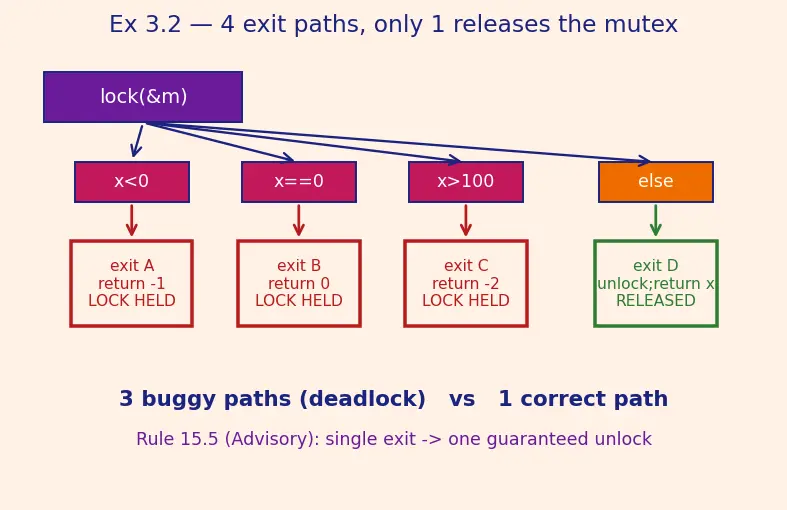

There are $n=4$ exit paths (A, B, C, D). The unlock sits only before exit D.

• Exits A, B, C return while still holding the lock → 3 buggy paths (deadlock on next entry).
• Exit D → 1 correct path. This is exactly why Rule 15.5 (Advisory) recommends a single exit: with $n$ returns you get up to $n$ places cleanup can be forgotten. Collapsing to one exit makes the unlock happen in one place. Single-exit fix:

int handle(int x) {
    int result;
    lock(&m);
    if (x < 0)        { result = -1; }
    else if (x == 0)  { result =  0; }
    else if (x > 100) { result = -2; }
    else              { result =  x; }
    unlock(&m);        /* one guaranteed release */
    return result;
}

Buggy paths in the original: 3.

-1 in two's complement is all-ones (0xFFFF...).

• Arithmetic shift (sign-preserving): fills the top bit with the sign → stays all-ones → result -1.
• Logical shift (zero-fill): top bit becomes 0 → 0x7FFF... → result $2^{31}-1=2147483647$ on 32-bit. Because the choice is implementation-defined, Rule 10.1 forbids shifting essentially-signed operands at all. Portable code shifts only unsigned.

#include <stdint.h>
#define TABLE_LEN (8U)
#define SENTINEL  (0xFFFFU)

static uint16_t lookup(uint16_t idx);   /* Rule 8.2 prototype form */

static uint16_t lookup(uint16_t idx) {
    static const uint16_t table[TABLE_LEN] =
        { 10U, 20U, 30U, 40U, 50U, 60U, 70U, 80U };
    uint16_t result;
    if (idx < TABLE_LEN) {          /* 14.4: genuine Boolean compare */
        result = table[idx];        /* 18.1: idx proven in-range */
    } else {                        /* 15.6: braces on both arms */
        result = SENTINEL;
    }
    return result;                  /* 15.5: single exit */
}

Justifications:

• static const table → no malloc (21.3), lives in flash, compile-time bounded.
• idx < TABLE_LEN is a comparison → essentially Boolean, satisfying 14.4; it also proves the subsequent index is valid for 18.1.
• Every branch braced (15.6); one return at the end (15.5).
• All arithmetic in unsigned — no signed shift/mask worries (10.1).
• uint16_t comes from <stdint.h> (included at the top). Test values: lookup(0) == 10, lookup(7) == 80, lookup(8) == 0xFFFF (=65535), lookup(100) == 65535.

Rule 21.3 is Required (not Mandatory), so deviation is possible but not free. Option 1 — Formal documented deviation. Because Required rules permit deviation only with a formal, recorded deviation, you must: document the rationale, the safety analysis showing the residual risk is controlled (e.g. all hal_alloc calls occur once at init, never in the hard-real-time loop), get it reviewed/approved, and log it. This is the ISO 26262 / DO-178C-style paper trail. Option 2 — Redesign. Replace hal_alloc with a static pool allocated at startup, eliminating the violation entirely. Preferred for ASIL-D because it removes the hazard rather than arguing it away. Note: had 21.3 been Mandatory (a category new to C:2012), no deviation would be permitted and only Option 2 would remain.

Violations found (with rule numbers):

1. Returning out → Rule 18.7 (Required). out has automatic storage (a stack array); the returned pointer dangles the instant scale returns.
2. i <= n off-by-one → Rule 18.1 (Required) + Rule 14.2 loop discipline. On the last iteration it reads src[n] and writes out[n], both one element past the intended range; worse, out has only 8 slots, so any n >= 8 overruns the stack buffer entirely (see Memory Safety).
3. src[i] << 1 in signed context → Rule 10.1 (Required). src[i] is promoted to int (signed) before the shift, so a shift is applied to an essentially-signed operand — implementation-defined and banned.
4. Missing braces on the if and else bodies → Rule 15.6 (Required).
5. Implicit narrowing out[i] = v (int → int8_t) → Rule 10.3 (Required), essential-type model. The assignment silently narrows a wider signed type into int8_t with no explicit cast.
6. Multiple exit / structure concerns → Rule 15.5 (Advisory). The original returns a pointer at the end; the redesign below returns void and writes through a caller-owned buffer, sidestepping the dangling-pointer class entirely.

Compliant rewrite — caller owns the output buffer (no dangling pointer, so 18.7 is satisfied); bounded loop clamped to the buffer (18.1); unsigned math (10.1); braces on every body (15.6); explicit narrowing cast (10.3); single exit (15.5):

#include <stdint.h>
#define OUT_LEN (8U)

static void scale(const uint8_t *src, uint16_t n, int8_t *out);

static void scale(const uint8_t *src, uint16_t n, int8_t *out) {
    uint16_t i;
    uint16_t count = (n < OUT_LEN) ? n : OUT_LEN;  /* clamp to buffer */
    for (i = 0U; i < count; i++) {                 /* strict <, bounded */
        uint16_t v = ((uint16_t)src[i]) << 1U;     /* unsigned shift */
        if (v > 127U) {
            out[i] = 127;
        } else {
            out[i] = (int8_t)v;                    /* explicit narrow */
        }
    }
}

Worked value check: src[i] = 100 → v = 200, clamped to 127. src[i] = 40 → v = 80, stays 80. src[i] = 0 → 0.

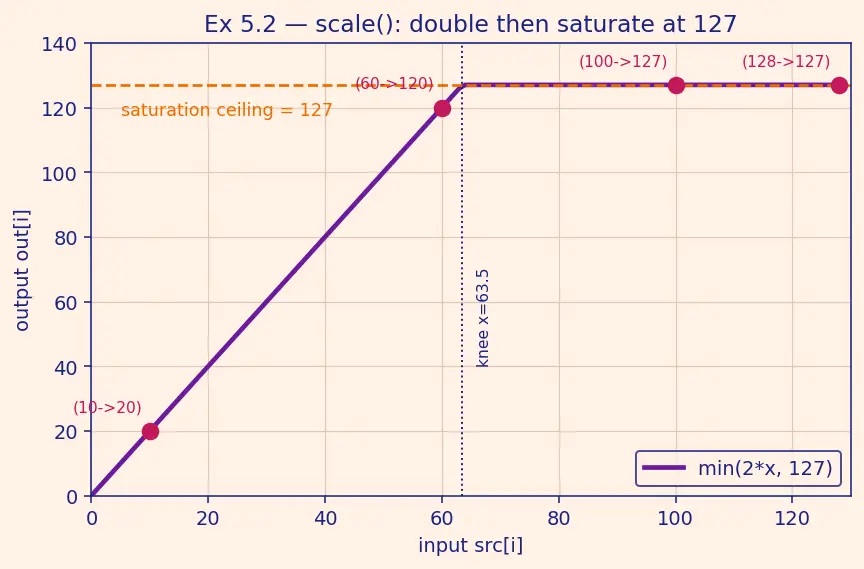

Double each, then saturate at 127:

• $10\to 20$
• $60\to 120$
• $100\to 200\to$ 127 (clamped)
• $128\to 256\to$ 127 (clamped)

Output = {20, 120, 127, 127}.

Rule 21.3 bans ::: dynamic memory (malloc/free from <stdlib.h>) Rule 18.1 requires ::: pointer arithmetic stays within the same array Rule 18.7 prevents ::: returning/storing the address of automatic (stack) storage Rule 10.1 forbids ::: bitwise/shift operators on essentially signed operands Rule 10.3 forbids ::: assigning across incompatible essential types without an explicit cast Rule 15.6 requires ::: braces around every if/else/loop body Rule 15.5 (Advisory) recommends ::: a single point of exit per function The exact-width types uint8_t/int16_t/etc. come from ::: the standard header <stdint.h> The three C:2012 categories are ::: Mandatory, Required, Advisory
