Matplotlib — figure - axes architecture: Worked examples

You already met the containers in the parent note: Figure (the whole page), Axes (one plot with its own rulers), Artist (anything drawn). This page does one thing: it walks through every kind of situation you can hit when you create and address these containers — and it makes you predict the answer before revealing it.

Before we start, one word we will lean on constantly:

The scenario matrix

Matplotlib's container model has a small, finite set of situations. If you can handle every cell below, nothing can surprise you. Each example that follows is tagged with the cell it covers.

#	Case class	The specific situation	Covered by
A	Single plot, OO	`nrows*ncols == 1` → one bare `Axes`	Ex 1
B	Return-shape: 1-D	one row or one column → 1-D array	Ex 2
C	Return-shape: 2-D	grid → 2-D array `axes[r][c]`	Ex 3
D	Degenerate / zero	empty figure, no Axes, or blank plot	Ex 4
E	Sign/order trap	pyplot's hidden current points at the wrong box	Ex 5
F	Figure-level vs Axes-level	which action belongs to `fig`, which to `ax`	Ex 6
G	Real-world word problem	temperature dashboard, save one file	Ex 7
H	Exam-style twist	mixed API, indexing a flattened grid	Ex 8

The "sign/quadrant" idea here is not about numbers — it is about which box is current. That hidden state is the exact analogue of a sign trap: it silently flips and ruins your output with no error. We hunt it in cells D and E.

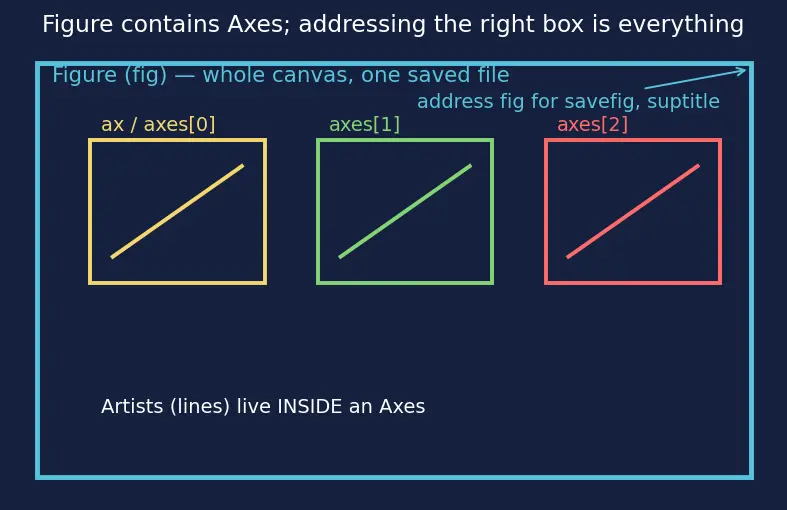

Figure — Matplotlib — figure - axes architecture

Example 1 — Single plot (cell A)

Worked example The safe default

Create one Figure with one Axes, draw $sin x$ on it, label both rulers, save the file.

Forecast: how many objects does plt.subplots() return, and what type is the second one? (Guess before reading.)

import matplotlib.pyplot as plt
import numpy as np
x = np.linspace(0, 2*np.pi, 200)
fig, ax = plt.subplots(figsize=(5, 3))   # step 1
ax.plot(x, np.sin(x), label="sin")       # step 2
ax.set_xlabel("x [rad]")                 # step 3
ax.legend()                              # step 4
fig.savefig("one.png", dpi=150)          # step 5

fig, ax = plt.subplots() — Why? nrows*ncols = 1*1 = 1, so the second return value is a single Axes, not an array. We unpack it straight into ax.
ax.plot(...) — Why? a Line2D Artist must live inside an Axes; we address ax so there is no doubt which box receives it.
ax.set_xlabel(...) — Why? labels are Axes-level Artists (each plot has its own rulers), so they must be set on the Axes.
ax.legend() — Why? a legend reads the label= of Artists in this Axes only.
fig.savefig(...) — Why? saving writes the whole canvas to a file, which is a Figure-level job. See Saving figures — dpi, formats, bbox.

Verify: type(ax).__name__ contains "Axes" and it is not a NumPy array. The returned tuple has length $2$ . ✅

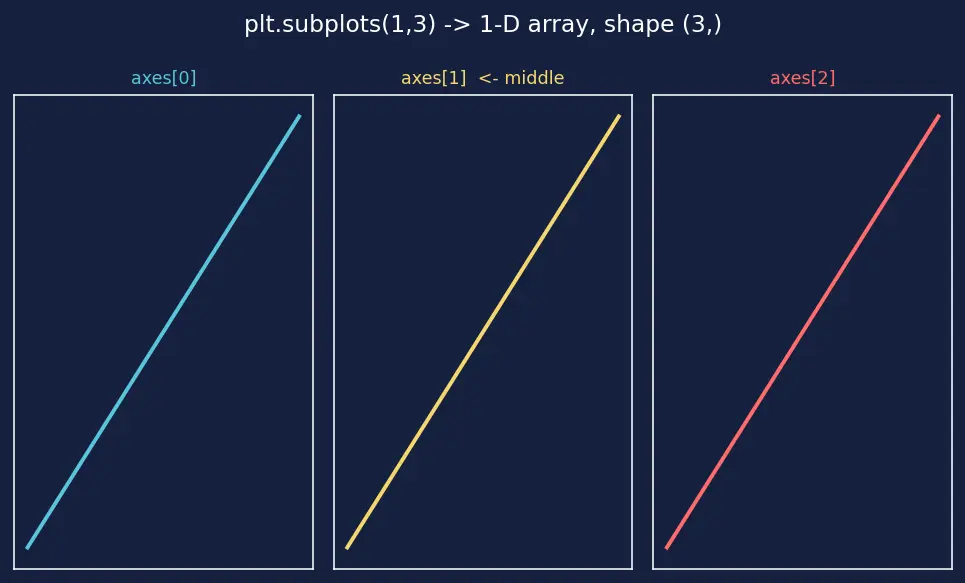

Example 2 — One row of plots → 1-D array (cell B)

Worked example

plt.subplots(1, 3) Make three side-by-side panels. Address the middle one.

Forecast: is axes a single Axes, a 1-D array, or a 2-D array? What index selects the middle panel?

fig, axes = plt.subplots(1, 3, figsize=(9, 3))   # step 1
axes[1].plot([0, 1], [0, 1])                      # step 2
axes[1].set_title("middle")                       # step 3

Why 1-D? exactly one of nrows, ncols equals 1, so Matplotlib "collapses" the grid into a 1-D array of length $3$ . No row/column index is needed — just one number.
axes[1] — Why index 1? counting from $0$ , the panels are $0, 1, 2$ ; the middle is index $1$ .
Title lands on that middle Axes only.

Verify: axes.ndim == 1 and axes.shape == (3,). ✅

Example 3 — A grid → 2-D array (cell C)

Worked example

plt.subplots(2, 2) Four panels. Draw a line top-left, a scatter bottom-right, give the whole page one title.

Forecast: what is axes.shape? What index is the bottom-right cell?

fig, axes = plt.subplots(2, 2, figsize=(6, 5))
axes[0, 0].plot([0, 1], [0, 1])       # top-left  (row 0, col 0)
axes[1, 1].scatter([1, 2], [3, 1])    # bottom-right (row 1, col 1)
fig.suptitle("Grid")                  # figure-wide title
fig.tight_layout()

Why 2-D? both nrows and ncols exceed 1, so the array keeps two indices: axes[row, col].
axes[0, 0] — top-left: row $0$ (top) column $0$ (left).
axes[1, 1] — bottom-right: row $1$ (bottom, rows count downward) column $1$ (right).
fig.suptitle — Why fig? one title spanning all four Axes is a Figure-level Artist.

Verify: axes.shape == (2, 2) and the number of Axes equals $2 \times 2 = 4$ . ✅

See Matplotlib — subplots and GridSpec layout for uneven grids.

Example 4 — Degenerate / blank (cell D)

Worked example The empty and the invisible

Two sub-cases of "nothing drawn":

4a — Figure with no Axes.

fig = plt.figure(figsize=(4, 3))   # a canvas, zero plots on it
fig.savefig("empty.png")

Forecast: how many Axes does this Figure contain?

plt.figure() makes only the outer container. Why blank? no Axes were requested, so len(fig.axes) == 0 — an empty scrapbook page.

Verify (4a): len(fig.axes) == 0. ✅

4b — Blank plot despite code running (the classic).

fig, ax = plt.subplots()
plt.plot([0, 1, 2], [0, 1, 4])   # DANGER: not ax.plot!

Forecast: does the line appear inside ax, or somewhere else?

plt.plot addresses the hidden current Axes. Here that is ax (it was just created), so it happens to work — but this is fragile: add one more plt.subplots() and the current box moves. The lesson: address ax explicitly. This is the mechanism behind the "blank figure" bug from the parent note.

Verify (4b): right after plt.subplots(), plt.gca() is ax → the current Axes is ax. ✅ (True only because nothing else was created afterwards — that's the trap.) See Matplotlib — pyplot vs object-oriented API.

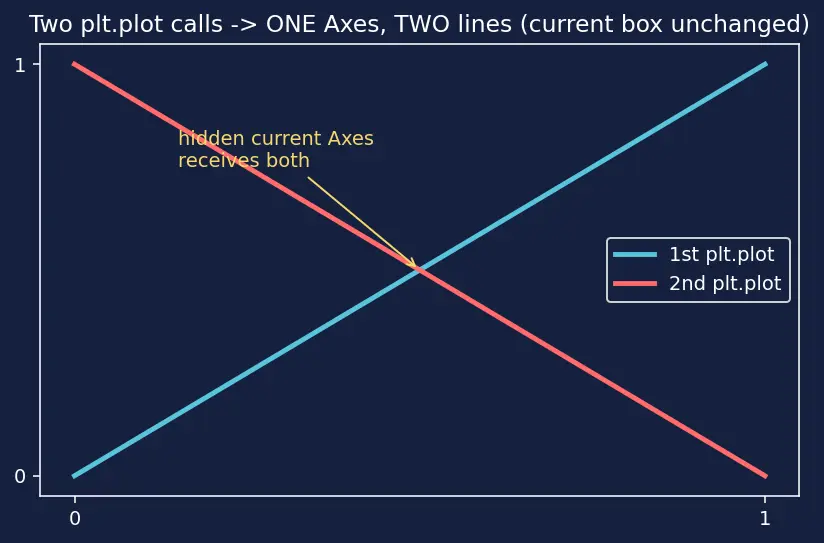

Example 5 — The current-box "sign flip" (cell E)

Worked example Two

plt.plot calls, one panel

plt.plot([0, 1], [0, 1])   # first curve
plt.plot([0, 1], [1, 0])   # second curve

Forecast: do you get one Axes with two lines, or two Axes with one line each?

First plt.plot finds no current Axes, so gca() creates one and draws into it.
Second plt.plot finds that same current Axes still active, so it adds a second line to it — no new plot is made. Why? the current box never changed; pyplot keeps piling Artists into it.
Result: one Axes, two Line2D Artists. To force separate panels you must address new boxes: fig2, ax2 = plt.subplots().

Verify: after both calls, len(plt.gcf().axes) == 1 (one Axes) and that Axes holds $2$ lines. ✅

Example 6 — Figure-level vs Axes-level actions (cell F)

Worked example Who owns which method?

Sort these calls into "belongs to fig" vs "belongs to ax": savefig, set_xlabel, suptitle, plot, legend, tight_layout.

Forecast: write your split before revealing.

Call	Owner	Why
`savefig`	`fig`	writes the whole canvas
`suptitle`	`fig`	one title over all Axes
`tight_layout`	`fig`	re-packs all Axes to avoid overlap
`plot`	`ax`	a Line2D lives inside one Axes
`set_xlabel`	`ax`	each Axes has its own rulers
`legend`	`ax`	reads labels of Artists in that Axes

Rule of thumb: if it affects the whole page or the file, it's fig.…; if it affects one plot region or its contents, it's ax.….

Verify: the count of Figure-level calls in the list is $3$ (savefig, suptitle, tight_layout). ✅

Example 7 — Real-world word problem (cell G)

Worked example A weather dashboard

A station logs 24 hourly temperatures. You must show them as a line in the left panel and their histogram in the right panel, put the city name across the top, and export exactly one PNG for a report.

Forecast: how many Figures, how many Axes, how many savefig calls?

temps = np.array([12,11,11,10,10,11,13,16,19,21,23,24,
                  25,25,24,23,21,19,17,16,15,14,13,12])
hours = np.arange(24)
fig, axes = plt.subplots(1, 2, figsize=(9, 3))  # 1 fig, 2 axes (1-D)
axes[0].plot(hours, temps)                       # left: time series
axes[0].set_xlabel("hour")
axes[1].hist(temps, bins=6)                      # right: distribution
fig.suptitle("Delhi — 24h")                      # page-wide title
fig.tight_layout()
fig.savefig("dashboard.png", dpi=150)            # ONE file

One Figure — the whole report image is a single file.
Two Axes in a 1-D array (one row, two cols → cell B rules).
axes[0] / axes[1] — address each panel explicitly; no "current box" guessing.
suptitle on fig, one savefig on fig.

Verify: number of Axes $= 2$ ; there are $24$ data points; the mean of temps rounds to $17$ . ✅ (NumPy supplies the arrays.)

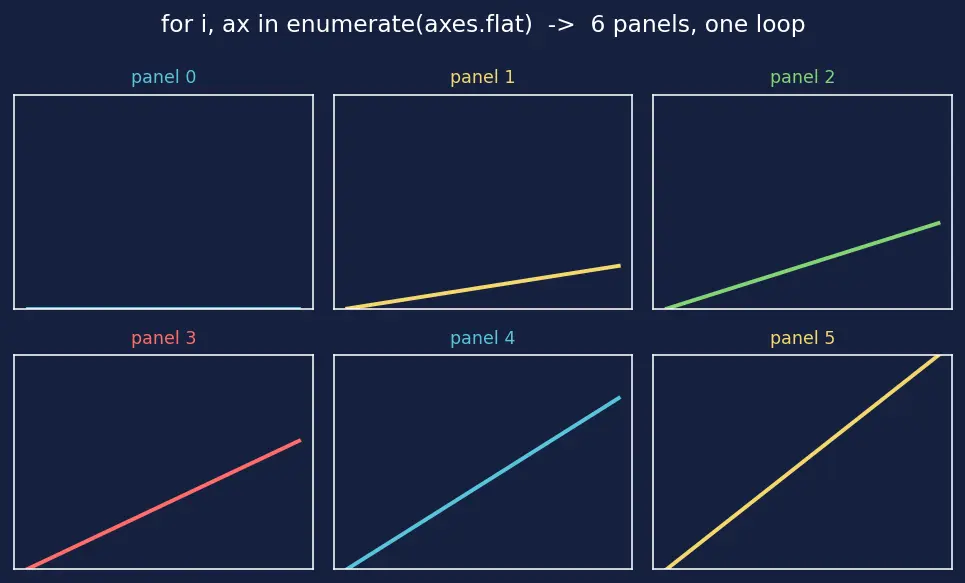

Example 8 — Exam-style twist: flatten the grid (cell H)

Worked example Loop over a 2×3 grid with one index

You have 6 datasets and want to plot each in its own panel using a single for loop. Indexing axes[r, c] needs two counters — annoying. The trick is .flat.

Forecast: how many panels, and what does axes.flat give you?

fig, axes = plt.subplots(2, 3, figsize=(9, 5))
for i, ax in enumerate(axes.flat):     # flat = 1-D view, length 6
    ax.plot([0, 1], [0, i])            # each panel gets a steeper line
    ax.set_title(f"panel {i}")

axes.shape == (2, 3) → $2 \times 3 = 6$ Axes.
axes.flat — Why? it gives a 1-D iterator over all 6 Axes in row-major order (row 0 left→right, then row 1). Now one loop counter i (from $0$ to $5$ ) addresses every panel.
enumerate pairs each Axes with its index, so panel 0 … panel 5 are titled in order.

Verify: total panels $= 6$ ; the last index visited is $5$ ; axes.flat yields exactly $6$ items. ✅

Recap of the matrix

Recall Did every cell get covered?

A → Ex 1 · B → Ex 2, 7 · C → Ex 3 · D → Ex 4 · E → Ex 5 · F → Ex 6 · G → Ex 7 · H → Ex 8. Every return-shape (single / 1-D / 2-D), the degenerate/blank cases, the hidden-current-box trap, the fig-vs-ax split, a real dashboard, and the flatten twist — all shown.
