Foundations — Disassembly — objdump, reading assembly

Before you can read a single line of objdump output, a stack of small ideas must already be solid. This page builds every one of them from zero, in the order they depend on each other. If a term in the parent note ever felt hand-wavy, it is defined here.

1. The bit and the byte — the alphabet of the machine

The picture: imagine 8 light switches in a row. Each switch is a bit — up or down. The whole row of 8 switches is one byte. There are 256 distinct patterns those 8 switches can make.

Why the topic needs it: every instruction the CPU runs is stored as bytes. When objdump prints 48 83 ec 08, those are four bytes — four rows of switches. Disassembly is literally the art of reading these switch-patterns.

2. Hexadecimal — a shorthand for bytes

Why this tool and not plain decimal? One byte = 8 bits = a number from 0 to 255. Written in decimal that takes 1–3 digits of unpredictable width. But 8 bits split neatly into two groups of 4 bits, and each group of 4 bits is exactly one hex digit (4 bits = 16 values = one hex digit). So every byte is always exactly two hex characters — tidy and aligned.

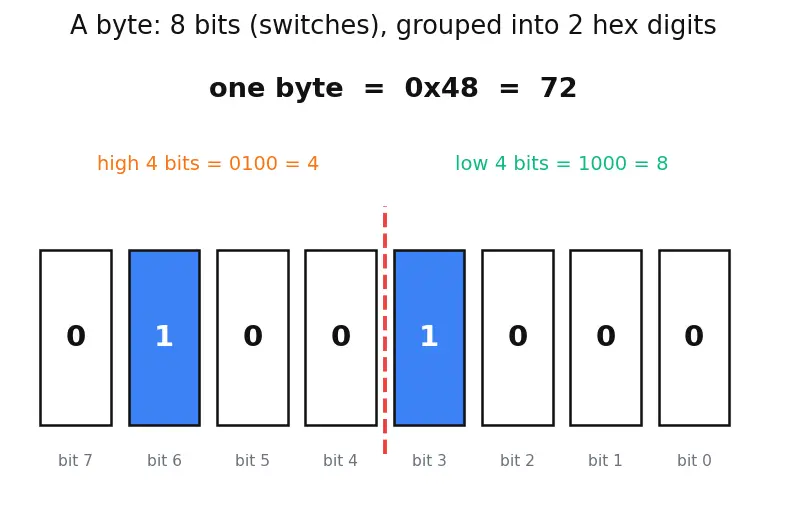

The picture: split your row of 8 switches down the middle. The left 4 switches make one hex digit, the right 4 make another. 48 in the objdump line means the byte whose switches read 0100 1000.

Why the topic needs it: every column of objdump output — addresses, raw bytes, immediate values like 0x8 — is printed in hex. You cannot read a disassembly line without reading hex.

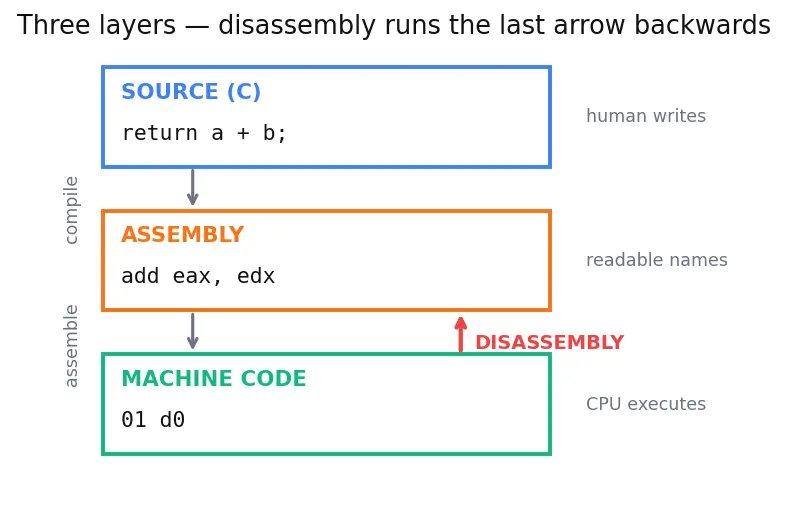

3. Machine code vs. assembly vs. source — three languages

Assembly and machine code are the same instructions — one is bytes, the other is the readable label for those bytes. There is a one-to-one map between them.

Why the topic needs it: disassembly is the arrow from machine code back to assembly. Compilation goes source → asm → machine code; disassembly runs the last arrow backwards. The Compilation Pipeline covers the forward direction. Because the source→asm step is not reversible (comments, variable names, and structure are lost), disassembly can only ever recover the assembly layer — never your original C.

4. The CPU, registers, and memory

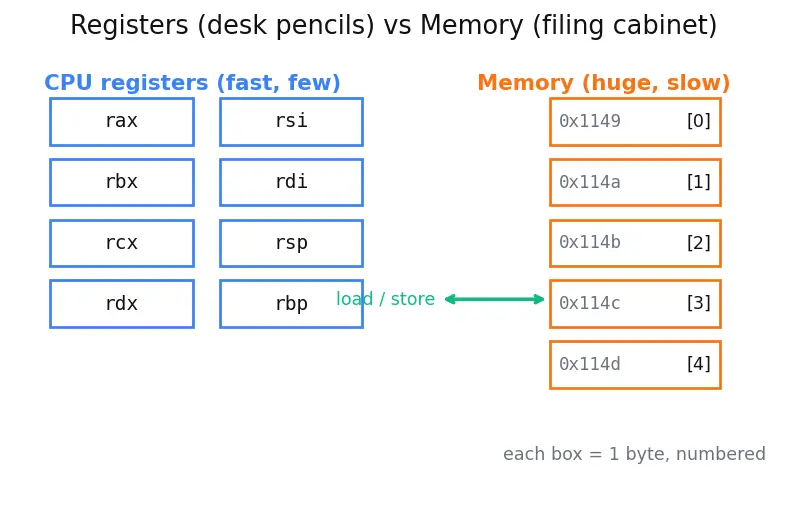

The picture: registers are the few pencils on your desk (instant reach); memory is the giant filing cabinet across the room (slower, but vast). The CPU works on pencils and shuttles paper to/from the cabinet.

Why the topic needs it: every operand in disassembly is either a register (rbp, eax), a memory address ([rbp-0x4]), or an immediate constant (0x8). You must recognise all three on sight.

5. The instruction — opcode + operands

$\underset{\text{opcode}}{\underbrace{\text{add}}}\underset{\text{operands}}{\underbrace{\text{eax},\text{edx}}}$

The picture: a sentence in imperative mood. "Add edx into eax." Verb first, then the things.

Why the topic needs it: this is exactly why you cannot find the next instruction by counting a fixed number of bytes. objdump does the hard work of decoding where one instruction ends and the next begins.

6. Operand notation — [...], immediates, and offsets

The picture: rbp is a house address written on paper. [rbp-0x4] means "walk to that house, then look 4 boxes back, and open it." Brackets = open the box.

Why the topic needs it: the whole add function in the parent note is a dance of loading from [rbp-0x…] into registers and back. Miss the brackets and you'll think a memory access is a number.

7. Object files, sections, and .text

Why the topic needs it: objdump -d disassembles only the .text section — because only code is meant to be read as instructions. Point objdump's -D at data and it will try to decode numbers as if they were instructions, producing nonsense. Knowing sections exist explains why.

8. The flags register and conditional jumps

The picture: after every subtraction the CPU flips a few status LEDs — a "was-zero" LED, a "was-negative" LED. cmp x, 5 subtracts x - 5 only to light these LEDs, then throws the number away. jle looks at the LEDs and jumps if $x\le 5$.

Why the topic needs it: this is how every if and loop appears in assembly (cmp then a conditional jump). Without knowing flags exist, the branch logic looks like magic.

The prerequisite map

Each foundation feeds the next; the four arrows into Disassembly are the four skills you actually use per line: recognise the layer, read the operands, know it lives in .text, and follow the flags/jumps control flow.

Where these lead next

• Calling Conventions (System V x86-64) — which registers hold arguments and returns (builds on §4).
• Stack Frames & The Stack Pointer — what rbp/rsp and [rbp-0x4] really organise (builds on §4, §6).
• Compiler Optimization Levels — why -O0 and -O2 produce wildly different asm.
• Debugging with GDB — using these same registers/addresses live.
