Thread Sanitizer (TSan): Worked examples — Coding deep dive

You already met the machinery in Thread Sanitizer (TSan): each thread carries a vector clock $V_{t}$ , every synchronization event merges clocks, and a race is write + concurrent. This page does nothing new theoretically — instead it runs the machine by hand on every kind of case the topic can throw at you, so no scenario ever surprises you.

We will write clocks as $⟨ A, B ⟩$ (thread A's counter, thread B's counter) for two-thread cases, extending to three when needed.

The scenario matrix

Every data-race question is one cell of this grid. The examples below are labelled with the cell they hit.

#	Cell (case class)	Access kinds	Ordering present?	Race?	Example
C1	Both read, no sync	read + read	—	No	Ex 1
C2	Write + write, no sync	W + W	none	Yes	Ex 2
C3	Read + write, no sync	R + W	none	Yes	Ex 3
C4	Write + write, mutex ordered	W + W	release→acquire	No	Ex 4
C5	Write + read, thread join ordered	W + R	join edge	No	Ex 5
C6	Degenerate: same thread twice	W + W	program order	No	Ex 6
C7	Transitive order via 3 threads	W + R	$A \to B \to C$	No	Ex 7
C8	Boundary: `volatile` / relaxed without ordering	W + W	none	Yes	Ex 8
C9	Real-world word problem (bank balance)	W + W	depends	decide	Ex 9
C10	Exam twist: order edge on the wrong object	W + W	mismatched lock	Yes	Ex 10

The matrix has three axes: (a) what the two accesses are (RR / RW / WW), (b) whether a happens-before edge exists, and (c) if an edge exists, does it actually connect these two accesses. Every real bug is a failure on axis (b) or (c).

Worked example Ex 1 — Cell C1: two readers, no synchronization

int g = 42;                 // never written after startup
void* reader(void*){ return (void*)(long)g; }   // two threads read g

Forecast: two threads both touch g. Does the "same memory + concurrent" part alone make a race? Guess before scrolling.

List the two accesses. A reads g; B reads g. Why this step? The formal rule from Data Race vs Race Condition needs the access kinds first — that is axis (a).
Check the "at least one write" clause. Both are reads. Why this step? A read never changes the stored value, so the final value of g is 42 regardless of who went first.
Apply the rule. (write involved?) = false, so the whole conjunction is false — no race, even though nothing orders them.

Verify: final value of g is order-independent: 42 in both interleavings. TSan is silent. ✓

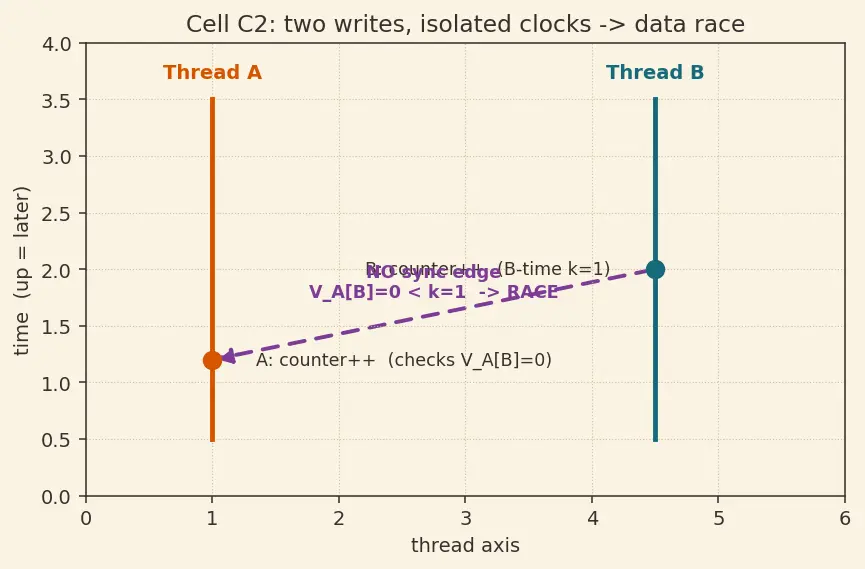

Worked example Ex 2 — Cell C2: two writers, no synchronization (the canonical race)

int counter = 0;
void* w(void*){ counter++; return 0; }   // A and B each run once, no lock

Forecast: both threads write counter. What are their vector clocks when they collide, and which inequality fires?

Initialize clocks. Both start at $V_{A} = ⟨ 0, 0 ⟩$ , $V_{B} = ⟨ 0, 0 ⟩$ . Why this step? No sync has happened, so neither thread knows anything about the other.
B writes first. B ticks its own entry: $V_{B} = ⟨ 0, 1 ⟩$ . The shadow cell for counter records "written by B at B-time $k = 1$ ." Why this step? Step-1/2 of the Vector Clocks rules: local tick on the event.
A writes next. A looks at the recorded access: it belongs to B at $k = 1$ . A checks $V_{A} [B]$ . Since A never acquired anything B released, $V_{A} [B] = 0$ .
Fire the rule. $V_{A} [B] = 0 < k = 1$ and a write is involved ⇒ race.

Verify: $0 < 1$ is true and both accesses are writes ⇒ conjunction true. This matches the parent note's textbook race. ✓

Worked example Ex 3 — Cell C3: one reader, one writer, no synchronization

bool ready = false;   // written by A
// A: ready = true;
// B: while(!ready){}   // spins reading ready

Forecast: only one side writes. Is one write enough, or do you need both to write?

Classify. A writes ready (tick → $V_{A} = ⟨ 1, 0 ⟩$ , shadow says "W by A at $k = 1$ "). B reads ready. Why this step? Axis (a): the rule says at least one write, not two.
B's clock when it reads. B never acquired anything from A, so $V_{B} [A] = 0$ .
Fire the rule. Write involved (A's write) and $V_{B} [A] = 0 < k = 1$ ⇒ race.

Verify: $0 < 1$ true, write present ⇒ race. Note this is also a broken spin-lock — see std::atomic and Memory Ordering for the correct ready.store/load fix. ✓

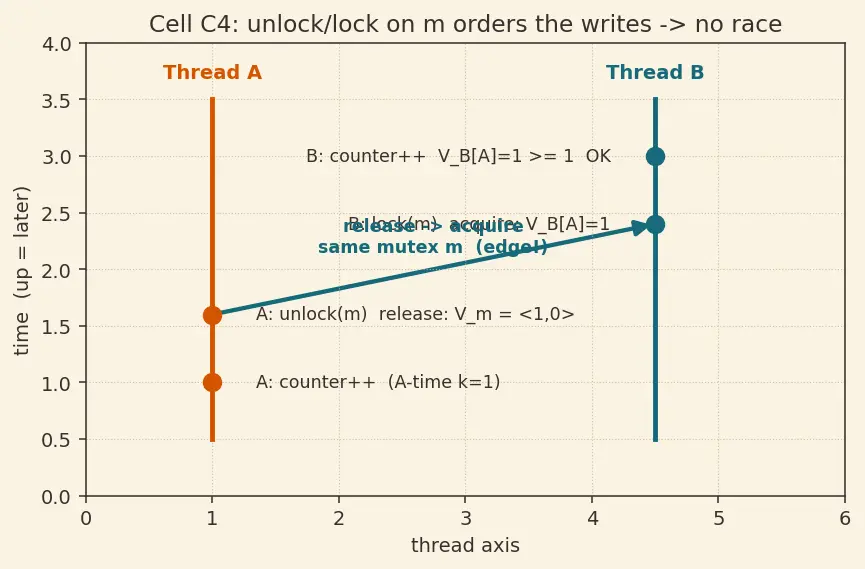

Worked example Ex 4 — Cell C4: writers ordered by a mutex (the fix)

pthread_mutex_t m;
// A: lock(m); counter++; unlock(m);
// B: lock(m); counter++; unlock(m);   // A's unlock happens before B's lock

Forecast: same two writes as Ex 2. Which merge operation makes the inequality flip from < to ≥?

A ticks and writes. $V_{A} = ⟨ 1, 0 ⟩$ ; shadow: "W by A at $k = 1$ ." Why this step? Same start as the racing case — the only difference will be the mutex edges.
A unlocks (release). Copy A's clock into the lock: $V_{m} \leftarrow V_{m} ⊔ V_{A} = ⟨ 1, 0 ⟩$ . Why this step? Release rule from Mutexes and Locks: componentwise max ( $⊔$ ) pushes A's history into m.
B locks (acquire). B absorbs the lock: $V_{B} \leftarrow V_{B} ⊔ V_{m} = ⟨ 1, 0 ⟩$ , then ticks itself: $V_{B} = ⟨ 1, 1 ⟩$ . Why this step? Acquire pulls A's knowledge out of the lock — this is the happens-before edge.
B writes. It re-checks the old access "W by A at $k = 1$ ": now $V_{B} [A] = 1 \geq 1$ . No race.

Verify: $V_{B} [A] = 1$ , need $\geq k = 1$ : $1 \geq 1$ true ⇒ ordered ⇒ silent. ✓

Worked example Ex 5 — Cell C5: write then read ordered by

pthread_join

int result;
// A: result = compute();          // write
// main: pthread_join(A, ...);      // waits for A to finish
// main: use(result);               // read AFTER join

Forecast: the read happens on a different thread than the write. Is that automatically a race, or does join save us?

A writes. $V_{A} = ⟨ 1, 0 ⟩$ (indices A, main); shadow: "W by A at $k = 1$ ."
join is a release→acquire pair. A's termination releases its clock; join in main acquires it: $V_{main} \leftarrow V_{main} ⊔ V_{A} = ⟨ 1, 0 ⟩$ . Why this step? Thread termination/join is a synchronization event (parent's Forecast drill #2) — it forges the edge exactly like unlock/lock.
main reads. $V_{main} [A] = 1 \geq k = 1$ ⇒ no race.

Verify: $1 \geq 1$ true ⇒ ordered. Matches the parent's "join creates happens-before." ✓

Worked example Ex 6 — Cell C6 (degenerate): the

same thread writes twice

// A: x = 1;   x = 2;   // two writes, same thread, no lock

Forecast: no lock anywhere. Surely that's a race? Watch the axis carefully.

Both accesses are by A. The second write records shadow "W by A at $k = 1$ "; but the checking thread is also A. Why this step? The race rule compares accesses by different ordering status — within one thread, program order (happens-before axiom 1) always applies.
Program-order edge. The first write happens-before the second because they are in the same thread and the first comes first. $V_{A} [A]$ always equals A's own current time, so $V_{A} [A] = 1 \geq 1$ .
Result: no race — degenerate single-thread case.

Verify: $V_{A} [A] = 1 \geq k = 1$ true ⇒ ordered. A thread never races with itself. ✓

Worked example Ex 7 — Cell C7: transitive order through three threads

// A: data = 5;  release(f1);              // hand off to B
// B: acquire(f1); acquire→release(f2);    // just passes the baton on
// C: acquire(f2); read data;              // reads data

Forecast: A never talks to C directly. Can the read still be safe?

A writes and releases f1. $V_{A} = ⟨ 1, 0, 0 ⟩$ (A,B,C); shadow "W by A at $k = 1$ "; $V_{f 1} = ⟨ 1, 0, 0 ⟩$ .
B acquires f1, then releases f2. $V_{B} \leftarrow V_{B} ⊔ V_{f 1} = ⟨ 1, 0, 0 ⟩$ , tick $\to ⟨ 1, 1, 0 ⟩$ ; then $V_{f 2} \leftarrow V_{f 2} ⊔ V_{B} = ⟨ 1, 1, 0 ⟩$ . Why this step? B carries A's knowledge forward — this is happens-before transitivity (axiom 3) made mechanical.
C acquires f2, then reads. $V_{C} \leftarrow V_{C} ⊔ V_{f 2} = ⟨ 1, 1, 0 ⟩$ . Now $V_{C} [A] = 1 \geq k = 1$ ⇒ no race.

Verify: $V_{C} [A] = 1 \geq 1$ true. $A \to B \to C$ chains, so C safely sees A's write it never directly received. ✓

Worked example Ex 8 — Cell C8 (boundary):

volatile gives no ordering

volatile int counter;
// A: counter++;   B: counter++;   // no lock, no atomic

Forecast: volatile looks concurrency-flavored. Does it move any vector clock?

What volatile does. It forbids the compiler from caching counter in a register. It performs zero synchronization events. Why this step? No release, no acquire ⇒ no $⊔$ merge ever happens (see Undefined Behavior in C and C++).
Clocks stay isolated. Exactly like Ex 2: $V_{A} [B] = 0 < k = 1$ with two writes.
Result: race — TSan whistles identically to the un-annotated version.

Verify: $0 < 1$ , two writes ⇒ race. The correct tool is std::atomic from std::atomic and Memory Ordering, which does inject acquire/release into the clock. ✓

Worked example Ex 9 — Cell C9 (word problem): the shared bank balance

Two ATMs run balance -= 20; on the same account object at the "same time," each doing a read-modify-write. Starting balance is $100. Is it a race, and what wrong answer can appear?

Forecast: predict the value a race can leave behind, not just yes/no.

Decompose the -=. Each ATM does: read balance, subtract 20, write back. Two writes to the same location. Why this step? A read-modify-write is not one indivisible step unless it's atomic (see Data Race vs Race Condition).
No lock stated ⇒ clocks isolated ⇒ $V_{A} [B] = 0 < k$ on the collision ⇒ race (cell C2 shape).
Lost-update value. Both read 100, both compute 80, both write 80. One -20 vanished: final $80 instead of the correct $60.

Verify: correct answer $100 - 20 - 20 = 60$ ; lost-update answer $100 - 20 = 80$ ; they differ, confirming a real observable bug. Fix: hold a mutex across the whole read-modify-write. ✓

Worked example Ex 10 — Cell C10 (exam twist): edge on the

wrong lock

pthread_mutex_t m1, m2;
// A: lock(m1); x++; unlock(m1);
// B: lock(m2); x++; unlock(m2);   // different mutex!

Forecast: both writes are inside locks. Trap: does "has a lock" equal "ordered"?

A releases into m1. $V_{m 1} = ⟨ 1, 0 ⟩$ ; shadow "W by A at $k = 1$ ." Why this step? Release always pushes into the object being unlocked — m1, not m2.
B acquires m2. $V_{B} \leftarrow V_{B} ⊔ V_{m 2}$ . But $V_{m 2}$ is still $⟨ 0, 0 ⟩$ — A never touched m2. Why this step? Axis (c): a happens-before edge only connects a release and acquire of the same object.
B checks the old access. $V_{B} [A] = 0 < k = 1$ , two writes ⇒ race.

Verify: $0 < 1$ true ⇒ race. Locks help only when both threads use the same lock protecting the same data. ✓

Recall Self-test: name the deciding fact for each cell

C1 no race because ::: both accesses are reads (no write involved) C2 races because ::: two writes and $V_{A} [B] < k$ (isolated clocks) C4 is safe because ::: unlock→lock on the same mutex sets $V_{B} [A] \geq k$ C5 is safe because ::: pthread_join is a release/acquire edge C6 is safe because ::: program order orders same-thread accesses C7 is safe because ::: transitivity chains $A \to B \to C$ C8 races because ::: volatile performs no synchronization event C10 races because ::: the release/acquire used different mutexes
