Undefined Behavior Sanitizer (UBSan): Worked examples

Everything here rests on one number system: Two's Complement Representation for a 32-bit int, whose range is $[- 2^{31}, 2^{31} - 1]$ , i.e. $[- 2147483648, 2147483647]$ . Keep those two edge numbers in your head — most of the traps live right at them.

The scenario matrix

Each cell is a distinct way a program can (or cannot) commit Undefined Behavior. We will hit every one.

Cell	Case class	The trap	UBSan verdict?
A	Signed add, same sign, past the edge	`INT_MAX + 1`	✅ overflow
B	Signed add, opposite sign	`INT_MAX + (-1)`	❌ always safe
C	Signed negative edge overflow	`INT_MIN + (-1)`	✅ overflow
D	Unsigned overflow (the twist)	`UINT_MAX + 1u`	❌ well-defined wrap
E	Division degenerate	`INT_MIN / -1`	✅ overflow
F	Division by zero	`x / 0`	✅ (separate check)
G	Shift out of range	`n << 32`, `n << -1`	✅ bad shift
H	Pointer misalignment / null	`((S*)1)->a`	✅ alignment
I	Word problem (real bug)	averaging two big sensor ints	✅ overflow
J	Exam twist (optimizer + UB)	null-check deleted at `-O2`	✅ / silent

The single most important column is the last: for each cell you must know whether it is UB at all. Cells B and D look dangerous but are perfectly legal — knowing why is half the skill.

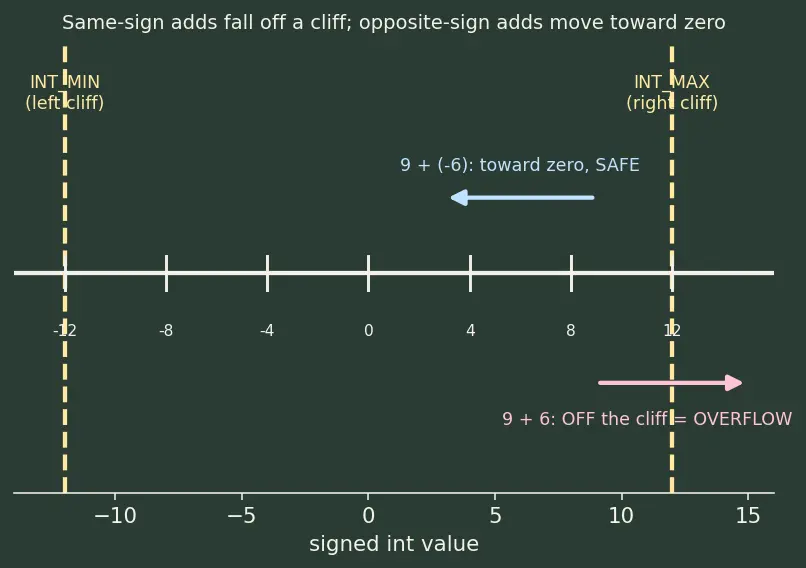

Case B vs A vs C — the sign logic, drawn

Before the examples, look at the picture that decides cells A, B, and C. The parent gave you the rule: only same-sign additions can overflow. Here is why, on a number line.

Figure — Undefined Behavior Sanitizer (UBSan)

Worked examples

Cell A — signed add, same sign, over the top

Worked example

INT_MAX + 1

int a = 2147483647;  // INT_MAX
int b = 1;
int s = a + b;       // UB?

Forecast: does UBSan fire? What number does the "true" sum want to be?

Identify the signs. $a \geq 0$ , $b \geq 0$ — same sign. Why this step? From the figure, only same-sign adds can overflow, so this cell is a candidate.
Compute the true mathematical sum in unbounded integers: $s_{true} = 2147483647 + 1 = 2147483648 = 2^{31}$ . Why this step? UB is defined by "is the true value representable?", not by whatever the CPU wraps to.
Compare to the range. Is $2^{31} \leq 2^{31} - 1$ ? No — it exceeds INT_MAX by exactly $1$ . Why this step? Out of range $\Rightarrow$ the hardware overflow flag OF is set $\Rightarrow$ handler fires.

Verify: $2^{31} - (2^{31} - 1) = 1 > 0$ , so the value overshoots. Verdict: signed integer overflow: 2147483647 + 1 cannot be represented in type 'int'. ✅ (See Integer Overflow & Wraparound.)

Cell B — signed add, opposite sign, always safe

Worked example

INT_MAX + (-1)

int a = 2147483647;
int b = -1;
int s = a + b;       // UB?

Forecast: clean, or does the umpire whistle?

Signs differ ( $a \geq 0$ , $b < 0$ ). Why this step? Opposite-sign adds move toward zero — the pink/blue figure says they cannot overflow.
True sum $= 2147483647 - 1 = 2147483646$ . Why this step? Show it lands strictly inside the range.
Range check: $- 2^{31} \leq 2147483646 \leq 2^{31} - 1$ ? Yes.

Verify: result magnitude $2147483646 \leq ∣ a ∣ = 2147483647$ , confirming "toward zero." Verdict: no UB, no report. ✅ silent and correct.

Cell C — the negative cliff

Worked example

INT_MIN + (-1)

int a = -2147483648;  // INT_MIN
int b = -1;
int s = a + b;        // UB?

Forecast: symmetric to cell A?

Both negative — same sign, candidate for overflow. Why this step? The left cliff of the number line.
True sum $= - 2147483648 - 1 = - 2147483649 = - (2^{31} + 1)$ .
Range check: is $- 2^{31} - 1 \geq - 2^{31}$ ? No — it is $1$ below INT_MIN. Why this step? Below the floor $\Rightarrow$ overflow toward the negative side.

Verify: $- 2^{31} - (- 2^{31} - 1) = 1 > 0$ , so we fell off the left edge by one. Verdict: signed integer overflow. ✅

Cell D — the unsigned twist (NOT UB)

Worked example

UINT_MAX + 1u

unsigned a = 4294967295u;  // UINT_MAX = 2^32 - 1
unsigned b = 1u;
unsigned s = a + b;        // UB?

Forecast: it "overflowed" — surely UBSan fires? (Trap!)

Note the type: unsigned, not int. Why this step? The standard treats them oppositely. Unsigned arithmetic is defined to wrap modulo $2^{32}$ .
Compute the defined result: $s = (4294967295 + 1) mod 2^{32} = 4294967296 mod 4294967296 = 0$ . Why this step? This is a specified value, so there is nothing undefined to catch.
Therefore plain -fsanitize=undefined stays silent. Why this step? You can opt in to catch this with -fsanitize=unsigned-integer-overflow, but it is not UB and off by default.

Verify: $4294967296 mod 4294967296 = 0$ . Verdict under undefined: no report, s == 0. This is the single most-tested gotcha: signed overflow = UB, unsigned overflow = defined wrap.

Cell E — division that overflows

Worked example

INT_MIN / -1

int a = -2147483648;  // INT_MIN
int r = a / -1;       // UB?

Forecast: division making things bigger? How?

Mathematically, $- (- 2^{31}) = 2^{31}$ . Why this step? Negating the most-negative number is the one negation that escapes the range — there is no +2^{31} in a signed 32-bit type.
Range check: $2^{31} \leq 2^{31} - 1$ ? No, off by one. Why this step? Same overflow test as addition — "is the true result representable?"
UBSan reports it (some CPUs also raise #DE hardware trap).

Verify: $2^{31} - (2^{31} - 1) = 1 > 0$ . Verdict: signed integer overflow: division of -2147483648 by -1 cannot be represented. ✅

Cell F — division by zero (a different check)

Worked example

x / 0

int x = 7;
int q = x / 0;   // UB?

Forecast: overflow, or something else?

This is not an overflow — it's the float-divide-by-zero/integer-divide-by-zero check. Why this step? Division by zero has no mathematical value at all, a separate class of UB.
The inserted guard is if (divisor == 0) report(); — straight from the standard's constraint. Why this step? Shows UBSan checks constraints, not just ranges.

Verify: divisor $= 0 \Rightarrow$ guard true. Verdict: division by zero. ✅ (Distinct message from cell E — don't confuse them.)

Cell G — shift out of range, both directions

Worked example

n << 32 and n << -1

int n = 1;
int r1 = n << 32;   // UB?
int r2 = n << -1;   // UB?

Forecast: what's the legal shift range, and what does x86 actually do to 32?

The standard requires shift amount $\in [0, width) = [0, 32)$ . Why this step? Both 32 and -1 fall outside, so both are UB.
The inserted guard: if (shift < 0 || shift >= 32) report();. Why this step? Directly encodes the constraint from step 1.
Note the silent danger: x86 masks the count as & 31, so 32 & 31 = 0, and 1 << 0 = 1 — a wrong-but-non-crashing answer without UBSan. Why this step? Explains why "it ran fine" is worthless (see the parent's [!mistake]).

Verify: $32 \geq 32$ is true (out of range), and $32 mod 32 = 0$ so the masked result would be $1 << 0 = 1$ . Verdict: shift exponent 32 is too large for 32-bit type 'int'. ✅

Cell H — misaligned / null pointer

Worked example Reading through a bad pointer

struct S { int a; };
struct S *p = (struct S*)1;  // address 1
int v = p->a;                // UB?

Forecast: what does int demand of an address?

alignof(int) == 4 on typical platforms. Why this step? A 4-byte load must sit on a 4-byte boundary.
UBSan's alignment guard: if (addr % 4 != 0) report();. Here $1 mod 4 = 1 \neq = 0$ . Why this step? The address is not a multiple of the alignment.

Verify: $1 mod 4 = 1 \neq = 0$ . Verdict: member access within misaligned address 0x1 ... requires 4 byte alignment. ✅ For the memory-validity side of bad pointers, pair with AddressSanitizer (ASan).

Cell I — real-world word problem (the classic overflow bug)

Worked example Averaging two large sensor readings

Two temperature-scaled sensors return lo = 2000000000 and hi = 2000000000 (both int). A junior computes the midpoint as int mid = (lo + hi) / 2;. Does it work?

Forecast: the true average is $2000000000$ , safely below INT_MAX. So the answer's fine, right? (Trap: the intermediate isn't.)

Evaluate the parenthesised sum first, before the divide: $l o + hi = 4000000000$ . Why this step? Operator order means the add happens in int, at full magnitude, before any halving.
Range check the intermediate: is $4000000000 \leq 2147483647$ ? No — overflow inside the expression. Why this step? Both operands positive, sum past INT_MAX $\Rightarrow$ cell A fires here.
The fix is lo + (hi - lo) / 2 (opposite-sign-safe by cell B) or use a wider/unsigned type. Why this step? hi - lo = 0 stays tiny; no intermediate ever exceeds the range.

Verify: naive intermediate $4000000000 - 2147483647 = 1852516353 > 0$ (overflows); safe formula gives $2000000000 + 0/2 = 2000000000$ , in range. UBSan flags the naive line, is silent on the fix. ✅

Cell J — exam twist: the optimizer deletes your check

Worked example Why

-O0 "passes" and -O2 "breaks"

int deref(int *p) {
    int x = *p;          // dereference FIRST
    if (p == NULL)       // ...then check
        return -1;
    return x;
}

Forecast: at -O2, what happens to the if? Call deref(NULL).

Dereferencing a null pointer is UB, so the compiler is allowed to assume p is non-null after line *p. Why this step? This is the whole optimizer license — see Compiler Optimization Levels and the parent's [!mistake].
Under that assumption p == NULL is provably false, so the optimizer deletes the if — the -1 branch vanishes. Why this step? Shows UB doesn't just corrupt data; it can erase your safety code.
With -fsanitize=undefined -g, UBSan reports the null dereference at the exact line before the optimizer's reasoning can bite. Why this step? Dynamic checking (see Static Analysis vs Dynamic Analysis) catches it on the executed path.

Verify: the check-deletion is a boolean fact — p == NULL is assumed false ⇒ branch removed. Verdict: at -O2 the guard is gone (silent corruption); under UBSan: runtime error: load of null pointer of type 'int'. Build with -g so the line number prints. ✅

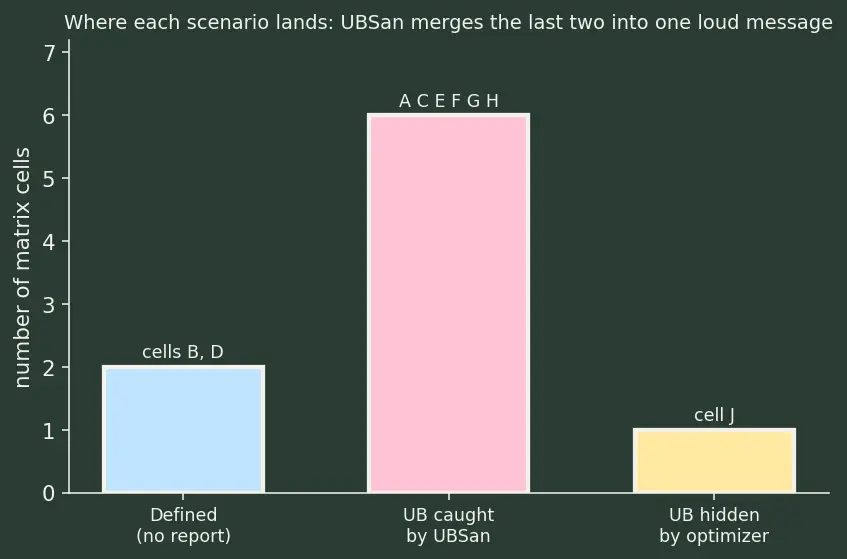

Putting the matrix together

Active recall

Recall Predict the verdict (cover the answers!)

INT_MAX + (-1) — UB? ::: No. Opposite signs move toward zero; result $2147483646$ is in range.
UINT_MAX + 1u — UB? ::: No. Unsigned wraps to $0$ by definition; not caught by default.
INT_MIN / -1 — UB? ::: Yes. True value $2^{31}$ exceeds INT_MAX by 1.
1 << 32 — UB and what does x86 do? ::: UB (shift $\geq$ width); x86 masks to 1<<0 = 1, silently wrong.
(lo+hi)/2 with lo=hi=2000000000 — UB? ::: Yes, the intermediate 4000000000 overflows int before the divide.
Why does the -O2 null-check disappear? ::: Deref before the check is UB, so p is assumed non-null; the if is deleted.
