Exercises — CMake build types — Debug, Release, RelWithDebInfo

Answer: Release. Walk the two flags:

• -O3 = the maximum standard optimization level → this is a "make it fast" build.
• -DNDEBUG = the NDEBUG macro is defined → assert() expands to nothing.

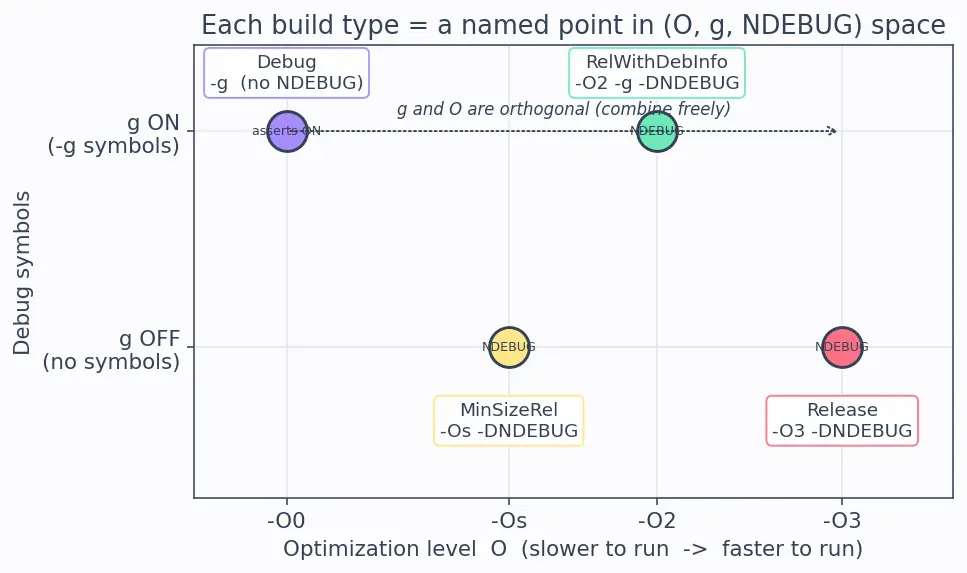

On our picture that's the point $(O=3,g=\text{off},\text{NDEBUG}=\text{on})$ — the far-right, ground-level "clean printed final copy" corner. No -g, so no symbols. That is exactly Release.

Reasoning per row:

• Debug = "messy draft with margin notes": symbols on, no optimization, asserts kept (you want the safety checks firing while developing).
• RelWithDebInfo = "clean copy with a key in the back": nearly-fast (-O2) and carries -g, asserts off like a real release.
• MinSizeRel = optimize for size (-Os), not speed; asserts off, no symbols.

False. -g only appends a symbol table to the binary file — data that sits there for a debugger to read. The CPU never executes it. The only cost is a bigger file on disk. This is why -g and -O are called orthogonal: you can freely combine them (that combination is literally what RelWithDebInfo is). See Debug Symbols & gdb.

cmake -S . -B build -DCMAKE_BUILD_TYPE=Release
cmake --build build

• -S . = source dir is here; -B build = put generated files in build/ (out-of-source, keeps your repo clean).
• -DCMAKE_BUILD_TYPE=Release = select the Release bundle → CMake will append CMAKE_CXX_FLAGS_RELEASE = -O3 -DNDEBUG.
• The second line runs the actual compiler. See Ninja vs Make for which underlying tool runs.

You got -O0 (effectively no optimization). When CMAKE_BUILD_TYPE is left empty, CMake appends none of the per-type flag variables — no -O, no -g, no -DNDEBUG. There is no hidden default of "Release." On our picture you're stuck at the origin $(O=0,g=\text{off},\text{NDEBUG}=\text{off})$, which runs at Debug speed while looking like a normal build. Fix: always pass -DCMAKE_BUILD_TYPE=... explicitly.

cmake -S . -B build            # configure once, no build type here
cmake --build build --config Release

Multi-config generators ignore CMAKE_BUILD_TYPE at configure time — they carry all configs at once and you choose at build time with --config. Setting -DCMAKE_BUILD_TYPE=Release would be silently useless here. See Single-config vs Multi-config Generators.

Cause: Release uses -O3 without -g. With no symbol table embedded, the debugger has no map from machine addresses back to source, so every frame prints ??. Fix: RelWithDebInfo = -O2 -g -DNDEBUG.

• -O2 ≈ nearly Release speed (and behaves like the real workload, unlike -O0 Debug).
• -g re-embeds the symbol table → readable backtrace.
• -DNDEBUG keeps it a true release (asserts off).

On the picture this is the point that is far right on $O$ and up on $g$ — the only standard type living in that upper-right region.

NDEBUG is innocent. The NDEBUG macro gates only:

1. the standard assert() macro (makes it expand to nothing), and
2. any code the teammate personally wrapped in #ifndef NDEBUG ... #endif.

A plain runtime if (debugMode) is ordinary C++ — the preprocessor never touches it. So -DNDEBUG cannot have turned it off. The real cause is elsewhere (e.g. debugMode is false, or an optimizer removed provably-dead code, or a different config was built). See assert and the NDEBUG macro.

Switching to Release adds -DNDEBUG, which makes assert(x > 0) expand to nothing — the check disappears entirely. Risk: the assert was catching x <= 0, a genuine bug. In Release that bug is no longer reported; it silently proceeds with bad data (undefined behaviour, wrong results, or a crash later, far from the cause). The assert firing is the good outcome. The right move is to fix why x <= 0, not to silence the alarm. (For catching such bugs even in optimized builds, see Sanitizers (ASan, UBSan).)

set(CMAKE_CXX_FLAGS_ASAN
    "-O1 -g -fsanitize=address"
    CACHE STRING "" FORCE)

cmake -S . -B build -DCMAKE_BUILD_TYPE=ASAN
cmake --build build

Why this works: a build type is nothing but a variable lookup of the form CMAKE_CXX_FLAGS_<TYPE>. Once CMAKE_CXX_FLAGS_ASAN exists in the cache, the name ASAN becomes a valid CMAKE_BUILD_TYPE. Choices explained:

• -O1 = light optimization so the sanitizer stays fast but code still resembles a real build.
• -g = symbols, so ASan can print source lines in its reports.
• -fsanitize=address = the actual ASan instrumentation.
• CACHE STRING "" FORCE = store it as a cache variable so CMake treats it exactly like a built-in per-type flag string.

Target point on the picture: optimize for size and carry symbols.

set(CMAKE_CXX_FLAGS_MINSIZEDBG
    "-Os -g -DNDEBUG"
    CACHE STRING "" FORCE)

• -Os = optimize for size (the MinSizeRel optimization).
• -g = symbols — remember, zero runtime cost, so it doesn't slow the firmware; it only enlarges the on-disk / debug file. In practice you often strip -g out of the flashed image but keep a separate symbol file, so the device image stays tiny while you can still symbolicate.
• -DNDEBUG = it's a shipping build; asserts off.

Rule: $\text{flags}(T)=\text{CMAKE\_CXX\_FLAGS}+\text{CMAKE\_CXX\_FLAGS\_}T$. So for $T=$ RelWithDebInfo: $\text{-Wall -fPIC}+\text{-O2 -g -DNDEBUG}$ Full line: -Wall -fPIC -O2 -g -DNDEBUG.

• -Wall (always-on base) = enable warnings.
• -fPIC (always-on base) = position-independent code.
• -O2 -g -DNDEBUG = the per-type RelWithDebInfo bundle. Order note: the per-type flags come after the base, so where flags conflict, the per-type ones win.

The source is identical; the flags cause both differences:

1. Missing assert in Release: Release adds -DNDEBUG, so every assert() compiled to nothing. Not a source change — a preprocessor change.
2. Tiny FP differences: Release uses -O3, which lets the compiler reorder/associate floating-point operations, use fused multiply-add, keep values in wider registers, etc. Under -O0 (Debug) these optimizations are off, so rounding happens at different moments → slightly different last bits. See Compiler Optimization Levels (-O0 to -O3). Conclusion: neither the source nor either compiler is "wrong." This is exactly why RelWithDebInfo exists — you debug at production-like -O2 so the behaviour you observe matches the shipped binary, instead of chasing bugs that only exist (or only vanish) at -O0.

Speed ranking (fastest → slowest): $\text{Release }(-O3)\gtrsim \text{RelWithDebInfo }(-O2)\gtrsim \text{MinSizeRel }(-Os)\gg \text{Debug }(-O0)$

• Release (-O3) is generally fastest.
• RelWithDebInfo (-O2) is very close — usually within a few percent.
• MinSizeRel (-Os) trades some speed for size.
• Debug (-O0) is dramatically slower (often several times).

For profiling production performance: RelWithDebInfo. It runs at near-Release speed (so timings are realistic) and carries -g symbols (so the profiler attributes hot spots to real function names and lines). Profiling Debug would measure the wrong thing; profiling bare Release would leave the profiler blind.

Say out loud: "A build type is a named bundle of flags = a point in $(O,g,\text{NDEBUG})$ space; single-config bakes it into the cache, multi-config picks it at build time." If that sentence feels obvious, you've mastered the topic.
