Foundations — Makefiles — targets, prerequisites, recipes, variables, automatic variables

Before you can read a single line of the parent note, you must own every symbol it throws at you. This page builds each one from nothing, in an order where every idea leans only on ideas that came before it. A smart 12-year-old should be able to start at line one.

0. What is a "file" and a "timestamp"?

Everything Make does rests on two facts about your computer's disk.

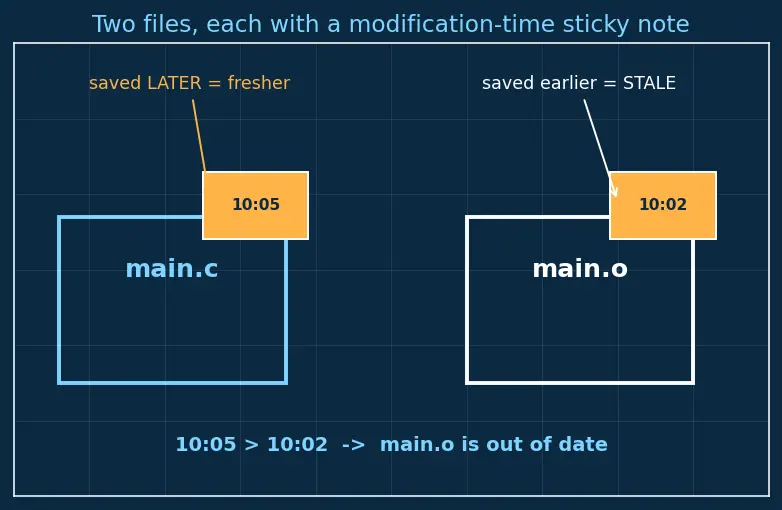

Picture two boxes on a shelf. Each box has a sticky note showing the last time someone opened and changed it. That sticky note is the timestamp.

Why does Make need this? Because its entire job — its whole reason to exist — is to compare these two sticky notes and ask: "Is the ingredient newer than the dish I made from it?" If yes, the dish is stale.

1. The arrow: "is built from"

Files don't live alone — some are made from others. main.o is made from main.c. app is made from main.o.

The word "depends" is not fancy: it means "if you change A, my B is a lie until I remake it."

Why does the topic need arrows? Because a real project has dozens of files feeding into each other. To rebuild the minimum amount, Make must know the exact shape of this web. That web has a special name.

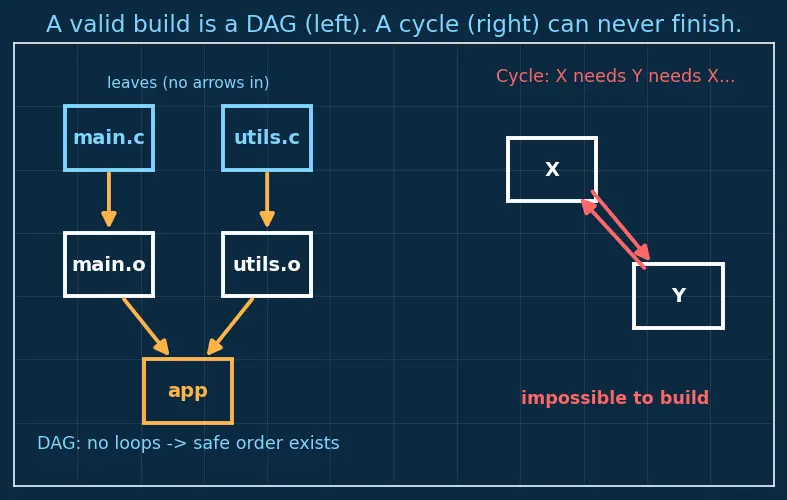

2. The graph — nodes, edges, "leaf", and "DAG"

Why acyclic? Imagine X is built from Y, and Y is built from X. To build X you first need Y, but to build Y you first need X... forever. That's a cycle, and it's impossible to finish. So a valid build must have no loops — it must be a DAG.

This is the same structure studied in Directed Acyclic Graphs (DAG). The parent note leans on it silently — now you know what it means.

3. The build order: a dependency-first (topological) traversal

The parent note says Make uses a "post-order traversal" of the DAG. Let's nail down exactly what that means, and — just as important — why this order and not some other.

First, fix the direction of our arrows so there is zero ambiguity. Throughout this page an arrow $A\to B$ means "$B$ is built from $A$" (Section 1). So the arrow points into the thing being built. When Make sits at a target $T$ and asks "what must I do first?", it looks at the arrows coming into $T$ — those tail-ends are $T$'s ingredients (its prerequisites).

This "finish all my ingredients before you finish me" pattern is called post-order traversal. Two clarifications that matter:

• Which nodes come first? The prerequisites — the nodes at the tails of the arrows pointing into the current node. Not the things the current node feeds; the things that feed the current node. Ingredients before dish.
• Tree post-order vs DAG post-order. The classic "post-order" you may have met visits a tree (each node has exactly one parent). A dependency graph is a general DAG: a single .h file can feed many targets, so a node may be reachable by several paths. So what Make really performs is a DFS-based topological sort — a depth-first walk that emits each node only after all its dependencies, and (crucially) marks nodes already visited so a shared file is built once, not once per path.

Picture building a wall: you can't place the top brick until the bricks under it exist. Make walks down to the bottom of the dependency graph — the leaves — builds those first, then works upward to the target you asked for. And because a target's freshness (Section 4) can only be judged after its ingredients are fresh, checking app before rebuilding main.o would compare against a stale object file and give the wrong answer — which is exactly why dependencies must be finished first.

4. Modification time as a symbol: $t(\cdot )$

The parent writes $t(T)$ and $t(P_i)$. That notation just wraps the sticky-note idea in math shorthand.

So $t(\text{main.c})$ is "when was main.c last saved?" and the comparison $t(P_i)>t(T)$ reads in plain English:

"prerequisite $P_i$ was saved more recently than target $T$" — i.e. the ingredient is fresher than the dish, so the dish is stale.

Why these logic symbols and not words? Because "any one ingredient being newer is enough" is exactly what $\exists$ ("there exists") captures, and "missing file counts as stale" is exactly $\neg \text{exists}$. The math is just an unambiguous compression of the sentence.

5. The dollar-sign shortcuts: $@, $<, $^, $?, $*

The parent's "secret weapon" section is full of $ symbols. Here's the ground floor.

These single-char symbols are called automatic variables because Make fills them in automatically, differently for every rule, based on that rule's own target and ingredients. You never type the filenames twice.

Why do these exist at all? So one generic rule can serve many files. Without them, a rule for main.o and a rule for utils.o would each need their filenames spelled out twice — and those two copies would silently drift apart. The $-symbols keep the recipe glued to this rule's real files.

6. The TAB — the invisible symbol

Picture an ID checkpoint: a real TAB is the badge that gets a line waved through as a recipe. Eight spaces look identical on screen but carry no badge — Make rejects them.

This connects to Shell Scripting Basics — the recipe is shell, and the TAB is Make's way of handing those lines to the shell.

7. Two special kinds of target that bend the rebuild logic

The rebuild test in Section 4 assumes every target is a real file whose freshness you compare. Two common Makefile features deliberately step outside that assumption — you'll meet both in the parent note.

8. Where these files come from: the compilation pipeline

The parent talks about .c files becoming .o files becoming an app. Those transformations aren't magic — they are stages of a pipeline.

The step .c → .o is compilation (see Compilation Pipeline and Incremental Compilation). The step "many .o → one app" is linking (see Linkers and Object Files). Make's whole value is doing only the pipeline stages whose inputs actually changed. When you outgrow hand-written Makefiles, generators like those in CMake and Build Generators write these rules for you.

Equipment checklist

Cover the right side and answer out loud.
