Question bank — Dynamic - shared libraries — .so - .dll, dynamic linking, PIC

False — the big win is RAM: the OS maps the same physical code pages into many processes at once, so disk saving and RAM saving are separate benefits.

False — the bytes are identical but the virtual address differs per process (that's exactly why PIC is required); what is shared is the physical page, not the address.

False — the GOT is writable precisely so the loader can patch per-process addresses into it; keeping it separate from the code is what lets the code stay constant and shareable.

Half-true and misleading — one isolated process may start marginally faster, but system-wide, shared code pages are often already cached, so dynamic linking usually wins on total RAM and page-cache pressure.

False — it changes how addresses are computed (relative + GOT indirection) but not what the code does; it's an addressing strategy, not a logic change.

False — the library is mmapped at startup; laziness applies to symbol resolution of individual functions, resolved on their first call, not to loading the file itself.

False — link time only verifies the symbol exists and records the dependency name; run time still has to physically find libfoo.so in the search paths, which can fail.

False — Windows requires explicit __declspec(dllexport); ELF exports non-static symbols by default, so the two systems have opposite defaults.

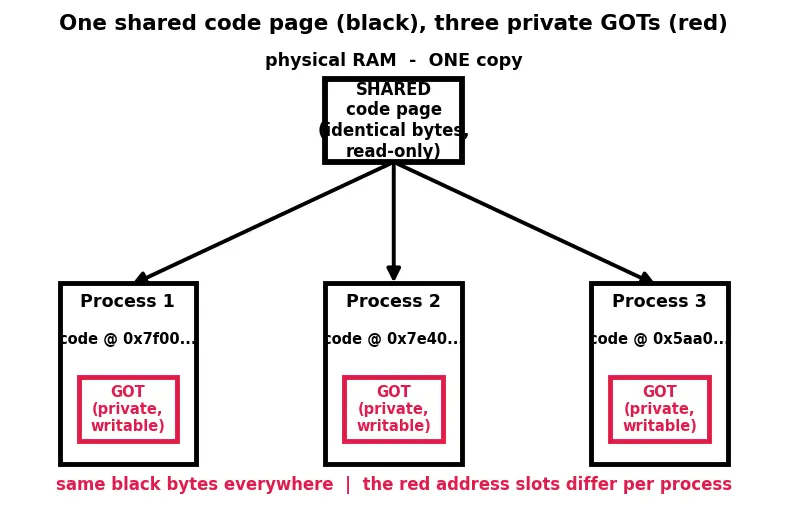

False — PIC is a property of the code (relative addressing); ASLR is an OS policy that randomises the load address (so the black page in the picture lands somewhere unpredictable). ASLR depends on PIC/relocatable code but is not the same thing — the deeper story lives in ASLR & Security.

Error: the GOT stores real absolute addresses filled in at load/run time per process (the red slots in the picture), not compile-time offsets; the PC-relative offset to the GOT is the compile-time part.

Error: the PLT resolves only on the first call and caches the result in the GOT; subsequent calls jump straight through the filled slot with no resolution.

Error: dynamic linking's whole point is you patch libc.so once and programs pick it up on next launch without relinking — relinking-the-world is the static problem.

Error: an absolute address baked into a code page would differ per process, breaking sharing (a red value on the black page); PIC forbids it — absolute addresses live only in the GOT (a data page).

Error: it's a run-time search path used by the dynamic linker ld-linux.so; the compiler/linker never consults it. Symbol existence is a link-time job, covered in The Linker — symbol resolution & relocation; finding the file is a separate run-time search.

Error: ELF leans on PIC by default; Windows DLLs historically preferred a fixed base address and used rebasing/relocation when taken — same problem, different default solution.

Because shared code bytes must be identical for all processes; any per-process-varying value (a red slot) must live in a per-process data page — the GOT — instead.

Most programs call only a fraction of a library's functions, so resolving all symbols at startup would waste time and memory on symbols never used.

The kernel loads the executable but cannot itself resolve external symbols or map dependencies, so it hands control to the dynamic linker named in the file's interpreter field.

PC-relative addressing handles internal jumps easily, but external symbols (in another .so) have addresses unknown until load time — the GOT/PLT provide the indirection needed to fill them in later.

If code must be byte-identical across processes it can hold no per-process value; the only place left for per-process addresses is a writable data page, which is the GOT — so the split (black vs red in the picture) is forced, not arbitrary.

Each static binary holds its own duplicate copy of the library code, so the cache stores many identical copies instead of one shared set of pages. The opposite trade-off (fat, self-contained binaries) is covered in Static libraries — .a .lib.

mmap is the OS call that maps the same physical pages into multiple address spaces (exactly the sharing shown in the picture) and loads pages on demand; the mechanism itself is detailed in Virtual Memory & mmap.

It works — dlopen resolves the file and symbols entirely at run time, which is how plugins load code unknown at build time; that whole pattern is dlopen and Plugin Architectures.

The dynamic linker resolves to the first definition found in its search order, so later definitions are shadowed — a classic source of subtle "wrong function called" bugs.

The Windows loader performs rebasing/relocation, patching the affected addresses; ELF PIC libraries need no such patching because they were already position-independent (the black page runs anywhere).

The program may fail or crash at run time even though it linked fine earlier, which is why libraries carry version SONAMEs so incompatible versions don't silently substitute.

Yes — its own DT_NEEDED entries list dependencies, and the dynamic linker recursively loads and resolves the whole graph before main runs.

When only a single process on the whole machine uses the library — there's nothing to share the black page with, so you pay the indirection cost without the sharing payoff (though disk/update benefits remain).

The loader resolves all symbols at startup and makes the GOT read-only afterward, trading lazy-binding speed for protection against GOT-overwrite attacks — part of the hardening story in ASLR & Security.
