Exercises — Compilation stages — preprocessing, compilation, assembly, linking

(a) Compilation. A missing semicolon is a syntax problem — the parser inside the compiler catches it while building the syntax tree. (b) Linking. The symbol sqrt was used but never defined in any object file or library given to the linker. The compiler was happy because it only needed sqrt's declaration. (c) Preprocessing. #include is a preprocessor directive; it failed while trying to paste the header text. The compiler never even ran.

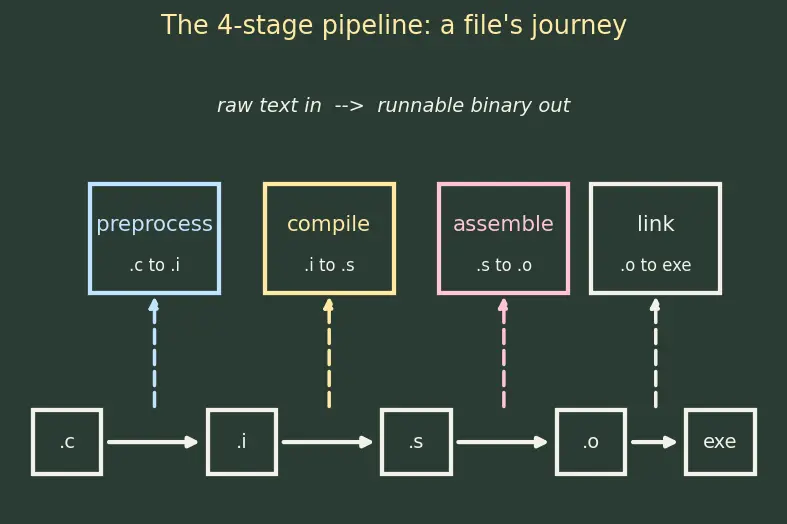

• .i ← Preprocessing (pure C, no # lines).
• .s ← Compilation (human-readable assembly).
• .o ← Assembly (raw machine code, still relocatable).
• hello ← Linking (symbols resolved, runnable).

False. An object file holds machine code but still contains unresolved symbols and placeholder addresses (relocation entries). Only after linking do those placeholders become real addresses, making a runnable executable.

gcc -E prog.c -o prog.i

-E means "stop after preprocessing." Output is a .i translation unit: all #include files pasted in, all macros expanded, comments stripped, no # lines left.

Pure text paste of DBL(5) → (5)+(5), so line 2 becomes:

int z = (5)+(5) * 2;

Now normal C precedence applies: * binds tighter than +, so this is $5+(5\cdot 2)=5+10=15$, not the intended $20$. The bug is a missing outer parenthesis on the whole macro body: it should be #define DBL(x) ((x)+(x)). The preprocessor does not know you meant "the doubled value times two" — it only pastes text.

gcc -c main.c -o main.o   # preprocess + compile + assemble main
gcc -c util.c -o util.o   # same for util
gcc main.o util.o -o app  # link both objects into one executable

-c runs the first three stages but stops before linking, giving relocatable .o files. The final gcc with no -c/-S/-E performs only the link step (it detects the inputs are already objects).

Error: undefined reference to 'area' — a link-time error. main.c compiled fine because it only needed the declaration (signature) of area to type-check the call and generate a "call this symbol" instruction. It emits a symbol-table entry area (undefined). Linking failed because math_helpers.o was never given to the linker, so nothing defines area. Fix: gcc main.c math_helpers.c -o app.

Each .o defines the global symbol counter. When the linker merges them it finds two definitions of the same symbol → multiple definition of 'counter'. Also a link-time error. Why compile succeeds separately: the compiler only sees one file at a time; within one file there is exactly one definition. The clash only appears when both symbol tables meet at the linker. Fix: define counter in one .c and declare extern int counter; in the other.

• Preprocess: each .c gets int limit = 100; pasted in → each translation unit defines limit.
• Compile / assemble: each succeeds independently; each .o defines the symbol limit.
• Link: two definitions of limit → multiple definition of 'limit'. Root cause: putting a definition in a header. Headers should hold declarations (extern int limit;) plus include guards; the single definition lives in one .c.

gcc -c main.c   -o main.o     # main.o: needs parse(), needs sin
gcc -c parser.c -o parser.o   # parser.o: defines parse()
gcc main.o parser.o -lm -o app

parser.h is never compiled — it is pasted into main.c and parser.c during preprocessing, and its include guard stops double-pasting. -lm tells the linker to search the math library libm to resolve sin. Order matters on many linkers: put -lm after the objects that use it.

• Static (libgraph.a): the linker copies draw's machine code into your executable. Bigger binary, but self-contained — no external file needed at run time.
• Dynamic (libgraph.so): only a reference is stored; the real code is loaded from the .so at run time. Smaller binary and shared across programs, but the .so must be present (and findable) when the program runs. The static link gives the self-contained binary. Details in Static vs Dynamic Linking.

• parser.c changed → re-run preprocess + compile + assemble on it, producing a fresh parser.o.
• The other three .o files are unchanged, so a smart build tool (Make) skips them — this is incremental build.
• Linking must still re-run, because the final executable depends on the new parser.o; the linker must re-merge and re-resolve symbols with the updated object. See Make and incremental builds. Count of files recompiled: 1. Files re-linked: 1 executable from 4 objects.

Pure text paste:

• (i) SUB(10,5) → 10-5, line: int r = 10-5 * 2; → precedence: $10-(5\cdot 2)=10-10=0$ (intended $5\cdot 2=10$).
• (ii) SUB(6,1) → 6-1, line: int s = 100 * 6-1; → $(100\cdot 6)-1=600-1=599$ (intended $100\cdot 5=500$). Both wrong for the same reason — missing parentheses. Fix: #define SUB(a,b) ((a)-(b)), giving $r=10$, $s=500$. See Preprocessor macros and include guards.

Traditional linkers process inputs left to right, keeping only symbols that are currently needed. When -lm comes before main.o, nothing needs sin yet, so the linker takes nothing from libm and moves on. Then main.o requests sin — but libm was already passed, so sin stays undefined. Rule: list libraries after the objects that use them. The user of a symbol must appear before the provider on the command line.

• Preprocess: #include <stdio.h> pastes in the declaration int printf(const char*, ...); so the compiler will know printf's signature. No code for printf yet.
• Compile: type-checks the printf(...) call against that declaration; emits assembly with a call printf and marks printf as an external symbol needed later.
• Assemble: turns call printf into machine code with a placeholder address plus a relocation entry: "patch this once printf's address is known."
• Link: finds printf's definition inside libc, resolves the symbol, and patches the placeholder with the real address → runnable executable.

No. All four stages succeeded: preprocessing pasted text, compilation type-checked, assembly produced valid machine code, and linking resolved every symbol (otherwise you'd get undefined reference). A run-time crash (e.g. dereferencing a bad pointer) is a logic/runtime fault, outside the build pipeline entirely. The pipeline guarantees the program is well-formed and linkable, not that it is correct.

Recognition = name the room the noise came from. Application = know which switch (flag) stops the machine where. Analysis = two clean files, one clash — realize it happens where their symbol tables meet (the linker). Synthesis = build a real project and pick static vs dynamic wisely. Mastery = the macro-paste gotchas and left-to-right link ordering that even pros trip on.
