Intuition The one core ideaWhen two workers change the same box of memory at the same time, their steps can tangle and one change silently vanishes. std::atomic is a promise that a change on that box happens as one uninterruptible blink , and that when one worker says "done," the other worker who hears "done" also sees everything packed before it.
This page assumes you know nothing . Before you can read the parent note (topic) , you need a small pile of ideas. We build them one at a time, each earning the next.
A memory cell is a labelled box in the computer that holds one number. The label is its address ; the number inside is its value . Reading = looking inside without changing it. Writing = replacing the number.
Picture a row of school lockers. Each locker has a number painted on it (the address) and a note inside (the value).
Why the topic needs this: everything atomics do is about one box that two people reach into. If you don't picture the box, "shared variable" is just words.
A thread is one independent line of execution: a worker running its own list of instructions, one after another. Two threads run at the same time , but they can pause at any point — the operating system decides when.
Intuition The picture: two hands, one lockerImagine two workers, each following their own checklist, but both allowed to open the same locker. The danger is not that they share — it's that either may be frozen mid-step while the other acts.
The parent note's whole problem exists because a thread can be paused between its tiny steps. See std::thread and std::async for how threads are created.
counter++ is a lie of one line
One line of C++ hides several CPU steps. The CPU cannot add to a locker directly — it must:
load : copy the locker's value into a tiny fast slot (a register ).add 1 inside the register.store : copy the register's value back into the locker.
A register is a tiny, ultra-fast storage slot inside the CPU core . Each thread's core has its own registers, so what one thread holds in a register is invisible to the other until it's stored back to memory.
Why the topic needs this: the "lost update" bug lives in the gap between these three steps . If you think counter++ is one step, the bug is impossible to understand.
Definition Read-Modify-Write (RMW)A read-modify-write is any operation that reads a value, changes it based on what it read, then writes it back. x++, x += 5, x = x * 2 are all RMW.

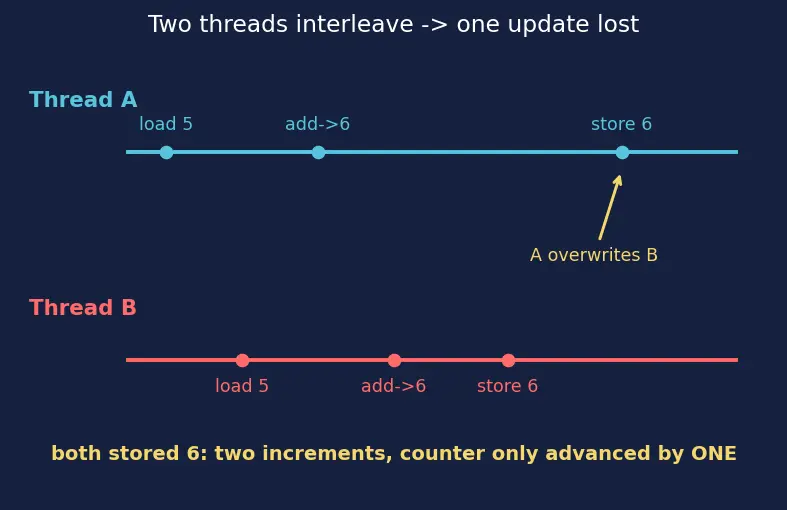

Intuition Why two RMWs collideBoth threads load 5 . Both add 1 in their private registers → both hold 6. Both store 6 . Two increments happened, but the locker only advanced by one. One update was overwritten — "lost."
Follow the figure: the red timeline shows Thread B loading 5 while Thread A is mid-flight . This interleaving is the enemy. An atomic RMW makes steps 1–2–3 an indivisible blink so no one can slip in between.
Atomic (from Greek atomos , "uncuttable") means an operation that other threads observe as fully done or not started — never caught halfway. There is no visible in-between state.
Instead of load → (pause) → add → (pause) → store, an atomic RMW is a single grab-count-replace in one motion. No thread can peek during it, so no update can be lost.
Why the topic needs this: std::atomic<T> is exactly the tool that turns the 3-step RMW into one uncuttable step.
Definition Mutex (mutual exclusion)A mutex is a software padlock. A thread must lock it before touching the shared box and unlock it after. While locked, every other thread that wants in must wait in line .
Intuition Why we'd rather notA mutex is correct but costs waiting: if the lock-holder is paused by the OS, everyone else is stuck. See Mutex and Lock . The whole point of atomics is to get correctness without this padlock and its waiting.
Lock-free means the operation finishes without ever grabbing an OS mutex, and it guarantees system-wide progress : at any moment, at least one thread is making forward progress. It does not promise that every thread advances — one unlucky thread can keep losing its CAS retry and be starved indefinitely while others succeed.

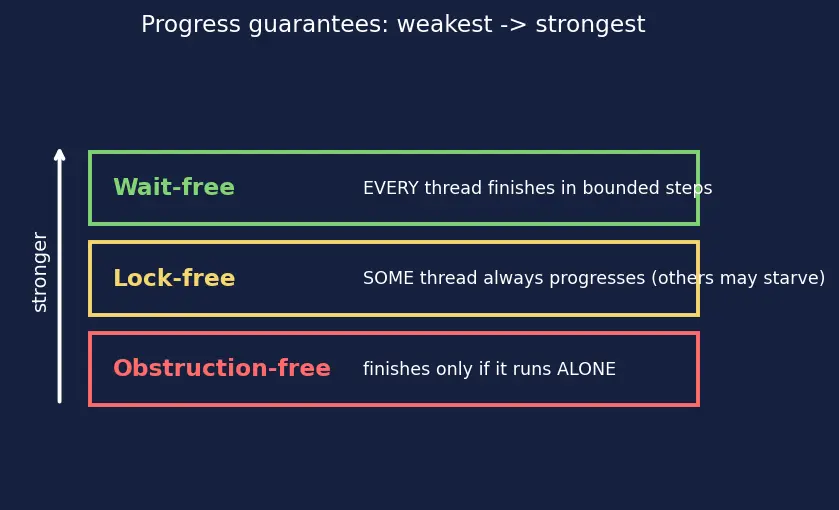

Intuition The three non-blocking progress guaranteesThese are ranked from weakest to strongest — read them as promises about who is guaranteed to make progress:
Obstruction-free (weakest): a thread finishes if it runs alone long enough (no interference). Others may cause it to abort and retry.Lock-free (middle): some thread always progresses, so the system never freezes — but individuals may starve.Wait-free (strongest): every thread finishes in a bounded number of its own steps, no matter what others do. No starvation possible.
Why the topic needs this: "lock-free operations" is literally the title. It's the payoff — atomicity without the padlock's waiting — but you must know it is not the same as "no thread ever waits" (that is wait-free).
A cache is a small fast copy of memory kept next to each CPU core . Cores prefer their own cache copy over slow main memory.
Definition The four MESI statesEach cache line copy a core holds is tagged with one of four states — the name MESI is these four letters:
Modified (M) : this core's copy is changed and is the only valid copy; main memory is stale.Exclusive (E) : this core has the only cached copy, unchanged and matching memory. It may write freely (silently becoming M).Shared (S) : several cores hold a read-only identical copy.Invalid (I) : this copy is stale/unusable — must be re-fetched before use.

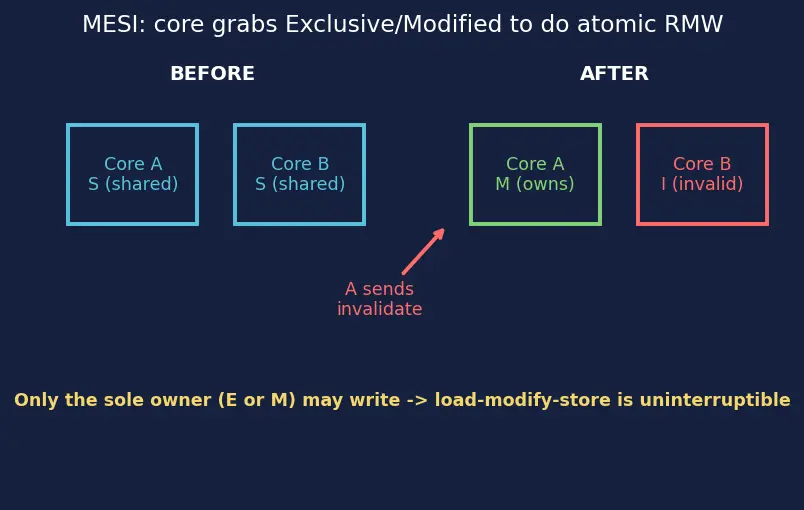

Intuition How an atomic RMW moves through MESITo do an atomic increment, a core must be able to write , which needs the line in M or E — i.e. it must be the sole owner. If another core holds it S or M , the writing core broadcasts an invalidate : every other copy flips to I , ownership transfers, and only then does the RMW proceed. Because the whole load-modify-store happens while this one core holds exclusive ownership, no other core can slip in — that is the hardware giving us atomicity.
See Cache Coherency MESI and False Sharing . Why the topic needs this: this exclusive-ownership grab (an E/M state guarded by invalidations) is how the hardware provides atomicity with no software lock.
Definition Compare-And-SwapCompare-And-Swap is a single atomic instruction meaning: "only write my new value if the box still holds the exact value I expected — otherwise tell me what it holds now."
Intuition Why "compare" then "swap"CAS is optimistic: read the value, compute your change, then swap only if nobody touched it meanwhile . If someone did, the compare fails, you learn the fresh value, and you retry. That retry loop is the heart of every lock-free structure. See Compare-And-Swap .
Memory order is the rule controlling what other writes become visible around an atomic operation. Atomicity stops torn values; memory order controls the visibility and sequencing of the writes surrounding it.
Definition The full set of C++ memory ordersstd::atomic operations accept one of these, from cheapest/weakest to safest/strongest:
==memory_order_relaxed==: atomicity only — no ordering of surrounding memory at all. Use for a pure counter whose value nobody's ordering depends on.
==memory_order_acquire== (on a load ): no read/write written after it may be reordered before it. It "subscribes" to a matching release.
==memory_order_release== (on a store ): no read/write written before it may be reordered after it. It "publishes" all prior writes.
==memory_order_acq_rel==: for a single RMW (like fetch_add) that is both a load and a store — it acts as acquire on the read half and release on the write half at once.
==memory_order_consume==: a rarely-used, weaker acquire that only orders things data-dependent on the loaded value. In practice compilers promote it to acquire; treat it as "avoid unless expert."
==memory_order_seq_cst== (the default ): sequential consistency — all seq_cst operations across all threads share one single global total order. Safest, easiest to reason about, and what you get if you pass no order argument.
Intuition The sealed packageA release store is like sealing a box and putting a "DONE" note on top: everything you packed is guaranteed in before the note. An acquire load is like reading that note: once you see "DONE," you also see everything inside. This acquire/release handshake is defined by the C++ Memory Model (C++) .
Common mistake The default is not freeThe default seq_cst is the safest but often the slowest (it can force extra CPU fences). Dropping to relaxed is correct only when no other variable's visibility depends on this op's ordering — e.g. a standalone hit counter.
Why the topic needs this: correctness across threads needs both atomicity (§5) and ordering (this). One without the other still lets bugs through.
Read the map bottom-up: the ideas at the top are the raw building blocks, and every arrow means "is needed to understand." A memory cell plus a thread and its private register give you the three-step read-modify-write , whose interleaving causes the lost-update bug . That bug forces the idea of an atomic (indivisible) operation. Atomicity, combined with wanting to escape the mutex padlock , and made possible by cache/MESI ownership, yields lock-free operation and the compare-and-swap gate. Finally atomicity pairs with memory order for cross-thread visibility. All of these arrows converge on the std::atomic topic node — the parent note you are preparing to read.
Test yourself — reveal only after answering.
What is stored in a memory cell, and what labels it? A value (a number) inside; an address labels it.
Why can two threads collide even on simple code? The OS can pause a thread between the tiny machine steps of one line.
Name the three steps hidden inside counter++. load into a register, add 1, store back to memory.
What is a register and who can see it? A tiny fast slot inside a CPU core; private to that core until stored back.
Define a read-modify-write and give one example. An op that reads, changes based on the read, then writes back — e.g. x++.
What does "atomic" guarantee about intermediate states? None are visible; the op is seen as fully done or not started.
What cost does a mutex add that atomics try to avoid? Waiting in line while another thread holds the lock.
What progress does lock-free guarantee, and what does it NOT? Some thread always progresses (system-wide); it does NOT prevent an individual thread from starving.
Rank obstruction-free, lock-free, wait-free from weakest to strongest. obstruction-free < lock-free < wait-free (wait-free bounds every thread's own steps).
Name the four MESI states. Modified, Exclusive, Shared, Invalid.
Which MESI state(s) let a core write, and what does it broadcast to get there? Modified or Exclusive; it broadcasts an invalidate so other copies become Invalid.
State what CAS does when the box no longer holds expected. It does not write; it loads the current value into expected and returns false.
What are the six C++ memory orders, and which is the default? relaxed, consume, acquire, release, acq_rel, seq_cst — default is seq_cst.
What does memory order control that atomicity alone does not? The visibility and ordering of surrounding non-atomic writes across threads.
