Smart pointers — unique_ptr (sole ownership), shared_ptr (shared ownership, ref count), weak_ptr (break cycles): Exercises

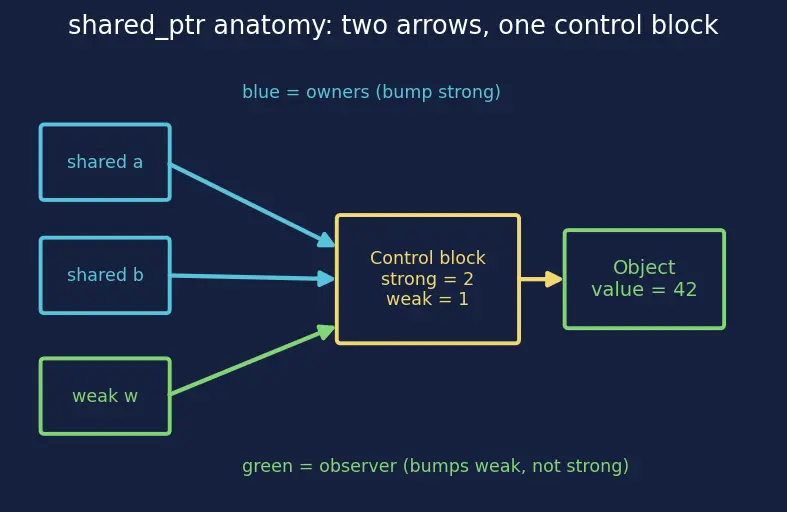

Before we start, one picture to fix vocabulary. Every shared_ptr carries two arrows: one to the object and one to a small bookkeeping struct called the control block which stores two integers — the strong count (real owners) and the weak count (observers).

Figure — Smart pointers — unique_ptr (sole ownership), shared_ptr (shared ownership, ref count), weak_ptr (break cycles)

Read this figure now: the blue arrows are the shared_ptrs pointing at the object; the yellow box is the control block; strong is the number of blue owners, weak is the number of green (non-owning) observers. The object is deleted the instant strong hits 0. The control block itself is freed only when both strong == 0 and weak == 0.

Level 1 — Recognition

Recall Solution L1.1

(a) ==unique_ptr — sole ownership, cheapest, "unique by default." (b) weak_ptr — non-owning observer; does not raise the strong count. (c) shared_ptr== — shared lifetime with a reference count.

Worked example L1.2 — Count the ticks

auto a = std::make_shared<int>(7);   // (1)
auto b = a;                          // (2)
auto c = b;                          // (3)

What is a.use_count() after line (3)?

Recall Solution L1.2

use_count() reports the strong count. Line (1) sets it to 1; each copy (b=a, c=b) is +1. So after line (3) the count is $1 + 1 + 1 = 3$ . All three names point at the same object and the same control block. Answer: 3.

Level 2 — Application

Worked example L2.1 — Trace the strong count

auto a = std::make_shared<int>(9);   // A
{
    auto b = a;                       // B
    {
        auto c = a;                   // C
    }                                 // D
    std::cout << a.use_count();       // E  <-- value?
}                                     // F
std::cout << a.use_count();           // G  <-- value?

Give the printed value at E and at G.

Recall Solution L2.1

Track strong line by line:

A: strong = 1 (just a).
B: copy → strong = 2 (a, b).
C: copy → strong = 3 (a, b, c).
D: c leaves inner scope → strong = 2.
E prints 2.
F: b leaves scope → strong = 1.
G prints 1. After G, a dies at end of program → strong = 0 → the int is deleted exactly once.

Worked example L2.2 — Fix the leak with RAII

This code leaks on the early return. Rewrite it so it cannot leak, without adding any delete.

void f() {
    Widget* p = new Widget();
    if (broken()) return;   // leaks p
    use(p);
    delete p;
}

Recall Solution L2.2

Wrap the resource in a unique_ptr; its destructor runs on every exit path — normal return, early return, or a thrown exception. This is exactly RAII.

void f() {
    auto p = std::make_unique<Widget>();
    if (broken()) return;   // p's destructor runs -> no leak
    use(p.get());           // pass the raw pointer without giving up ownership
}                           // p's destructor runs here too

No hand-written delete survives, so leaks become impossible on this path.

Level 3 — Analysis

Worked example L3.1 — The double-free bug

Widget* raw = new Widget();
std::shared_ptr<Widget> a(raw);
std::shared_ptr<Widget> b(raw);

Explain precisely what goes wrong, and give the numeric strong count that each of a and b believes it holds.

Recall Solution L3.1

Constructing a shared_ptr from a raw pointer creates a brand-new control block. Doing it twice from the same raw makes two independent control blocks, each with strong = 1.

a.use_count() reports 1.
b.use_count() reports 1. Neither knows about the other. When a dies it deletes the Widget (its count → 0); when b dies it deletes the same, already-freed Widget again → double-free → undefined behaviour / crash. Fix: create one shared_ptr and copy it, so both share one control block:

auto a = std::make_shared<Widget>();
auto b = a;   // strong = 2, one control block

Recall Solution L3.2

Copying a shared_ptr copies both pointers verbatim, then does cb->strong++. So:

distinct ptr values: 1 (both aim at the same object).
distinct cb values: 1 (both aim at the same control block — that is why the count is shared). Contrast with L3.1: two raw-pointer constructions → still 1 distinct ptr, but 2 distinct cb — the source of the bug. See Reference-counting.

Level 4 — Synthesis

Worked example L4.1 — Diagnose the cycle leak

struct Node { std::shared_ptr<Node> next, prev; };
auto n1 = std::make_shared<Node>();
auto n2 = std::make_shared<Node>();
n1->next = n2;
n2->prev = n1;
// local names n1, n2 now leave scope

(a) Give the strong count of the object first created as n1 after n1 and n2 leave scope. (b) Are the objects freed? (c) Which one field should change type, and to what, to fix it?

Recall Solution L4.1

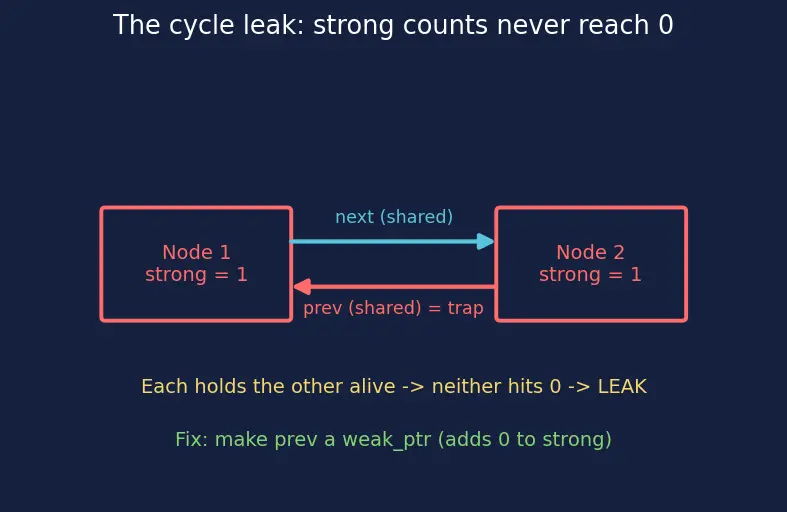

Follow the strong counts. Look at the figure below.

After make_shared: object-1 strong = 1 (name n1), object-2 strong = 1 (name n2).
n1->next = n2; copies into object-1's field → object-2 strong = 2.
n2->prev = n1; copies into object-2's field → object-1 strong = 2.
n1, n2 leave scope → each drops by 1: object-1 strong = 1, object-2 strong = 1.

(a) Object-1's strong count is 1 (never 0) — it is held alive by object-2's prev field, which is held alive by object-1's next field, and so on. A mutual, self-sustaining loop. (b) No — neither is freed. Both leak forever. Plain Reference-counting cannot collect cycles (unlike tracing Garbage-collection). (c) Make one back-pointer non-owning: change prev to std::weak_ptr<Node>. A weak_ptr does not bump the strong count, so after n1, n2 leave scope both counts reach 0 and both objects are freed.

Recall Solution L4.2

n1->next = n2; → object-2 strong = 2 (as before; next is still owning).
n2->prev = n1; → object-1 strong unchanged at 1; the weak assignment bumps only the weak count (to 1).
n1, n2 leave scope: object-1 strong = 0 → object-1 deleted. Deleting object-1 destroys its next field → object-2 strong = 1... then the name n2 was already gone, so object-2 strong = 0 → object-2 deleted. Both freed, no leak. Final strong counts: object-1 = 0, object-2 = 0.

Level 5 — Mastery

Worked example L5.1 — Safe access through a

weak_ptr

std::shared_ptr<int> s = std::make_shared<int>(42);  // A
std::weak_ptr<int>   w = s;                           // B
std::cout << w.use_count();                           // C  value?
s.reset();                                            // D
if (auto p = w.lock()) std::cout << *p;               // E
else                   std::cout << "expired";        // F

Give the value printed at C, and state which branch (E or F) runs.

Recall Solution L5.1

B: w observes s but adds 0 to the strong count.
C: w.use_count() reports the strong count of the managed object, which is still just s → prints 1.
D: s.reset() drops the last strong owner → strong = 0 → the int is deleted. (w is now expired; the object is gone but the control block survives because weak = 1.)
E: w.lock() tries to promote to a shared_ptr. Since strong is already 0, it cannot revive the object → returns an empty shared_ptr → if is false.
The else runs → prints expired. This is why we lock() instead of dereferencing a weak_ptr directly: between "is it alive?" and "use it," another thread could reset the last owner. lock() atomically either pins the object or reports it gone — no dangling read.

Recall Solution L5.2

Ownership flows down the tree (parent owns children), and the back-pointer flows up (child sees parent). So:

struct Node {
    std::vector<std::shared_ptr<Node>> children;  // owns downward
    std::weak_ptr<Node>                parent;    // observes upward
};

Why shared_ptr for children? A parent genuinely co-owns its children (and other structures may too).
Why weak_ptr for parent? If it were shared_ptr, parent↔child would form a cycle → strong count of the parent never hits 0 → leak (exactly L4.1). Weak adds 0 to the strong count, so when the parent's last owner dies its count reaches 0 and the whole subtree tears down.
Rule-of-Zero: because every member is a smart pointer (or a container of them), the compiler-generated destructor, copy, and move already do the right thing. You write no destructor, no delete, no manual copy/move — "zero" special members. RAII plus smart pointers gives correct cleanup for free.

A child reaches its parent safely with if (auto p = parent.lock()) { ... }.

Recall One-line self-check

Own forward with shared_ptr, observe backward with weak_ptr, and reach for unique_ptr first ::: because sole ownership is cheapest and clearest; escalate to shared/weak only when lifetime is genuinely shared or you must break a cycle.
