Visual walkthrough — Namespaces — avoiding name collisions

Everything below assumes you can read a table of names. That is all. We build the rest.

Step 1 — A name is just a label the compiler must match

WHAT. Before any namespaces exist, imagine the whole program as one giant list of labels. Every function, variable, or class you write drops one label onto this list: count, parse, log, max.

WHY start here. The entire collision problem lives in one rule the compiler+linker enforce: each label on the final list must point to exactly one thing. If we understand the list, we understand everything. This rule is the One Definition Rule (ODR) — "one definition per name."

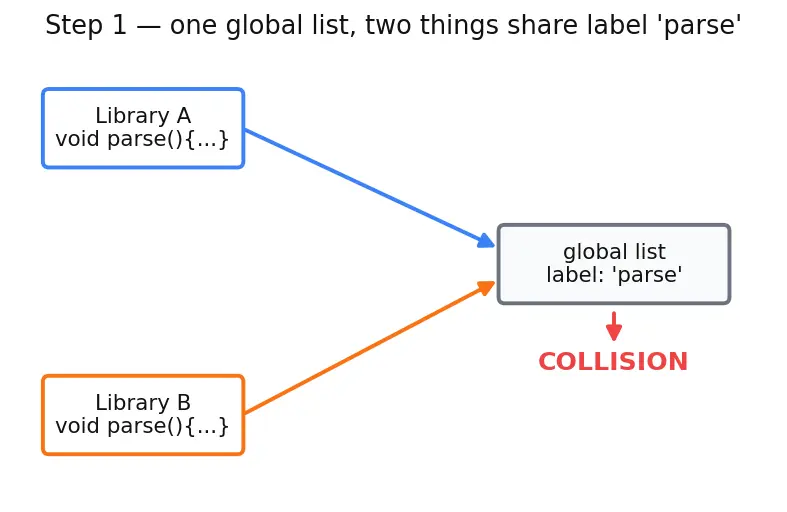

PICTURE. Two libraries each drop a label parse onto the same global list. The compiler now holds one label parse pointing at two different function bodies. That is the crash — coloured red.

Step 2 — Define a collision precisely

WHAT. We say two labels collide when they are the same string but must point to two different things. Let us write that down so we can attack it.

WHY a formula. Vague words ("they clash") can't be tested. A precise condition tells us exactly what to change to make a collision impossible — we just have to break one side of the equation.

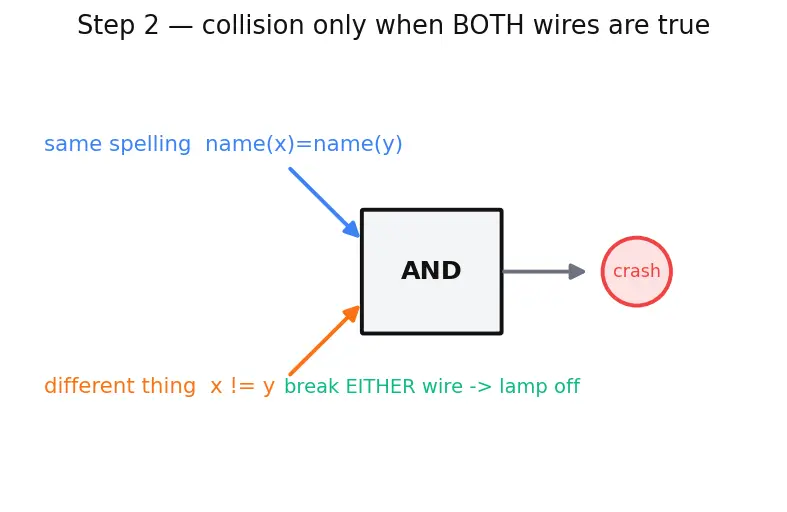

PICTURE. The AND gate: only when both wires are true does the red "COLLISION" lamp light. Kill either wire and the lamp goes dark. Our whole job is to guarantee $\text{name}(x)\ne \text{name}(y)$ — break the top wire, forever.

Step 3 — The fix: glue a prefix onto every name

WHAT. A namespace prepends a label of its own — a prefix — to every name inside it, joined by the two-colon scope-resolution operator ::. So parse living inside a namespace JsonLib has the full name JsonLib::parse.

WHY this exactly. Look back at Step 2: to kill collisions we must make $\text{name}(x)\ne \text{name}(y)$. Adding a different prefix string to each library's names does precisely that — same short spelling, different full spelling.

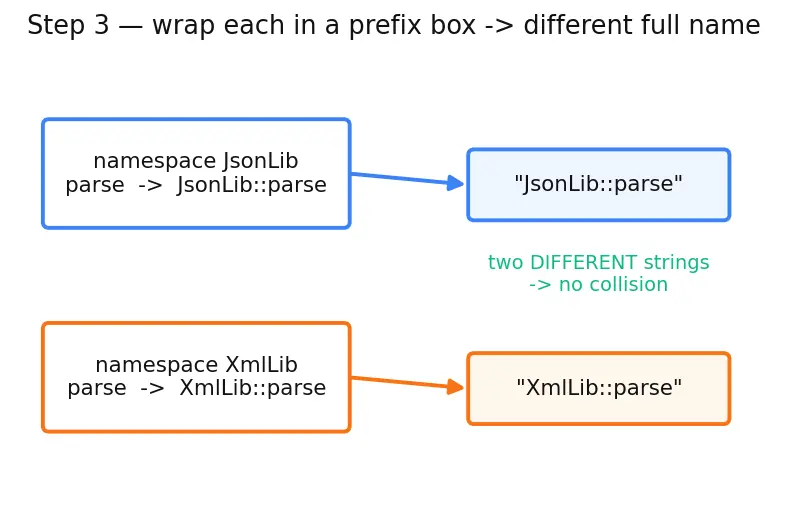

PICTURE. Two parse labels, but each is wrapped by a coloured box and given its box's prefix. Now the compiler stores JsonLib::parse (blue) and XmlLib::parse (orange) — two different strings. The red crash of Step 1 is gone.

namespace JsonLib { void parse() {} }   // full name: JsonLib::parse
namespace XmlLib  { void parse() {} }   // full name: XmlLib::parse
// two different strings -> no collision, both allowed

Step 4 — Prove different prefixes can never collide

WHAT. Plug Step 3 into Step 2. Take $x=\text{JsonLib::parse}$ and $y=\text{XmlLib::parse}$.

WHY. We claimed prefixes guarantee safety. A claim needs a check. String comparison walks left to right; the first differing character decides "not equal."

$\text{name}(x)=\text{"JsonLib::parse"},\text{name}(y)=\text{"XmlLib::parse"}$

Compare character 1: J vs X. Different already ⇒ the strings are unequal ⇒ the top wire of the AND-gate is false ⇒ the collision lamp cannot light. Done — and we never even reached parse.

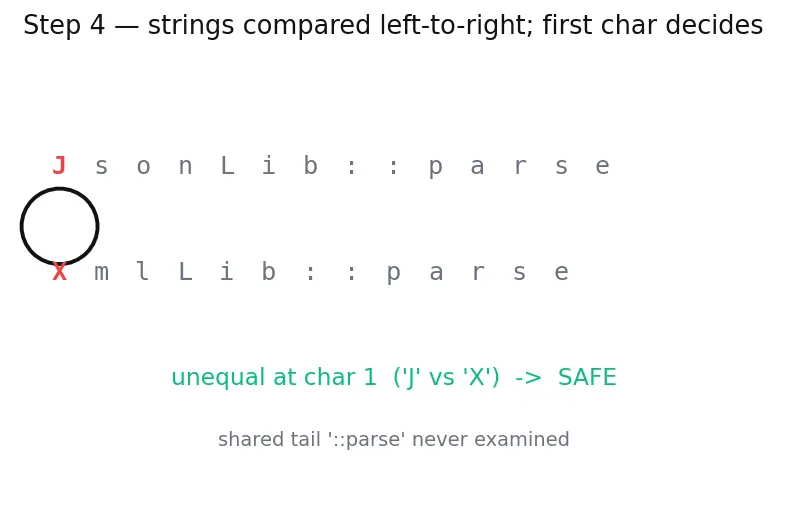

PICTURE. Two strings side by side; a magnifier sits on position 1 where J and X disagree. A green banner: "unequal at char 1 → safe." The trailing identical ::parse is greyed out — it never gets examined.

Step 5 — Using an unqualified name: the lookup search

WHAT. You rarely type the full prefix everywhere. When you write bare cout, the compiler must find which full name you meant. That search is called name lookup.

WHY a search is needed. A bare label is ambiguous by design — it could belong to many boxes. The compiler resolves it by searching scopes in a fixed order and taking the first that yields a match.

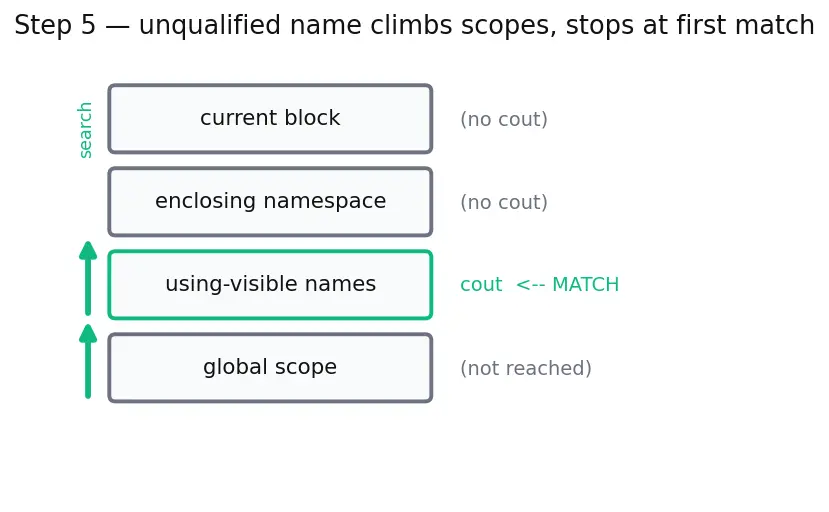

PICTURE. A ladder of scopes searched inner → outer: the current block, then the enclosing namespace(s), then names dragged in by using, finally the global (unnamed) scope. The green arrow climbs until it hits the first shelf holding cout, then stops.

This ladder is exactly Scope and Storage Duration in action — each shelf is a scope.

Step 6 — When one shelf holds two equal matches: ambiguity

WHAT. A using namespace directive tips a whole box's names onto one shelf. If two directives tip A::f and B::f onto the same shelf, that shelf now has two equally-good fs. The search reaches it and cannot pick.

WHY it errors instead of guessing. Guessing would silently run the wrong code. C++ refuses: equal-rank matches on one shelf = ambiguity error. You must re-qualify to shrink the candidate set to one.

PICTURE. The lookup arrow arrives at a shelf holding both A::f (blue) and B::f (orange) at the same height. A red "STOP — which one?" sign. Below, A::f() written explicitly collapses the two candidates down to a single blue box → resolved.

namespace A { void f() {} }
namespace B { void f() {} }
using namespace A;
using namespace B;
// f();     // ERROR: A::f and B::f equally visible -> ambiguous
A::f();      // OK: qualifying shrinks candidates to exactly one

Step 7 — The degenerate case: the unnamed prefix (global + anonymous)

WHAT. What if the prefix is empty? Two possibilities, and they behave oppositely.

1. Global scope — the outermost unnamed namespace, reachable as ::name. Its "prefix" is nothing, so two global parses do collide (back to Step 1).
2. Anonymous namespace namespace { ... } — the compiler secretly invents a unique, invisible prefix per file, giving members internal linkage.

WHY both matter. The empty prefix is the boundary case our formula must still cover. The global one is the danger we started with; the anonymous one is the cure for file-local helpers.

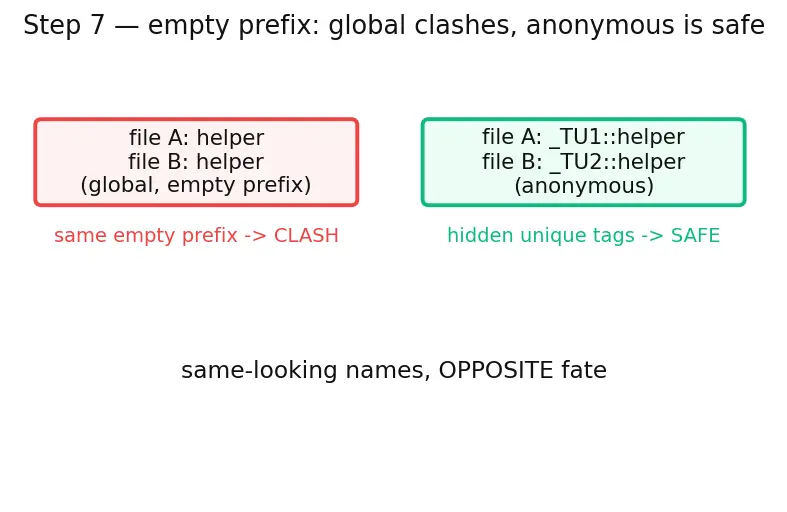

PICTURE. Left: two files both drop bare helper into the global box → they share the empty prefix → red crash across files (an One Definition Rule (ODR) violation the linker catches). Right: each file wraps helper in namespace { }; the compiler stamps a hidden unique tag (_TU1::helper, _TU2::helper) → green, no crash, and neither is visible to the other file.

// file_a.cpp
namespace { int helper = 1; }   // hidden tag, internal linkage
// file_b.cpp
namespace { int helper = 2; }   // DIFFERENT hidden tag -> no ODR clash

Step 8 — Aliases: a short prefix that reuses the safe one

WHAT. Long prefixes are unique but painful: Company::Project::Net::port. A namespace alias creates a short local synonym CPN that expands to the long full name.

WHY it's still safe. An alias is a substitution, not a new box. CPN::port expands to Company::Project::Net::port before the collision check of Step 4 — so uniqueness is untouched. You get short typing with zero risk.

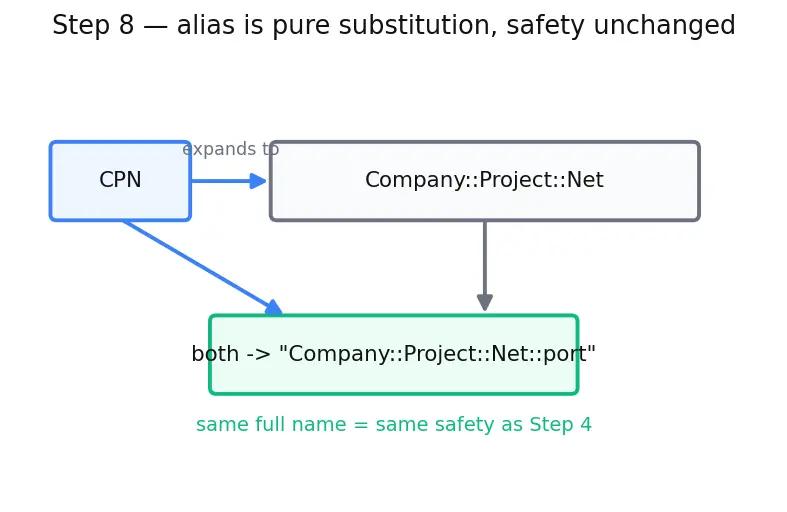

PICTURE. The short label CPN with an arrow "expands to" the long chain; both point at the identical full-name string. A green tick: "same full name, so same safety as Step 4."

namespace Company { namespace Project { namespace Net { int port = 8080; } } }
namespace CPN = Company::Project::Net;   // alias = pure substitution
int y = CPN::port;                       // == Company::Project::Net::port

The one-picture summary

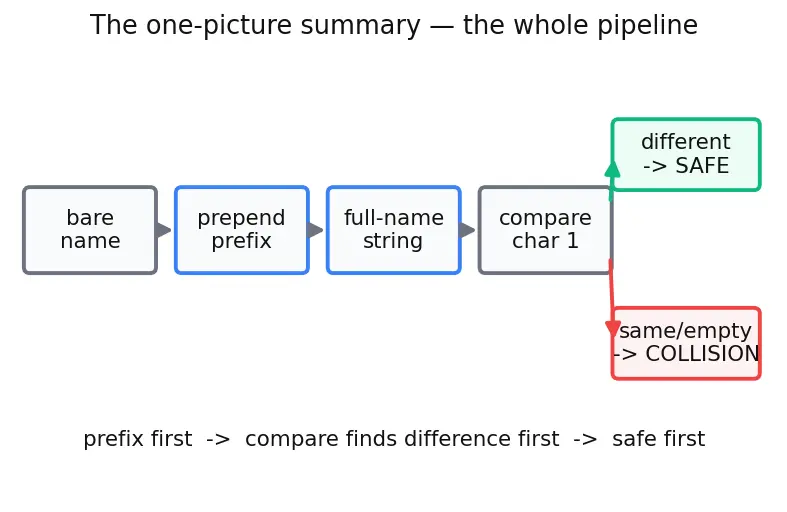

WHAT. One figure compressing the whole chain: a bare name → prepend a prefix → full-name string → first-char comparison → verdict. Every earlier step is one link in this pipeline.

The pipeline reads: a raw label enters; the namespace glues a prefix; the compiler compares full-name strings left-to-right; different prefix → unequal at the first char → safe (green); same/empty prefix → equal strings → collision (red); an ambiguous shelf forces you to re-qualify. That single flow is the whole topic.
