References — lvalue references, difference from pointers: Worked examples

The scenario matrix

Before solving anything, let us enumerate what "every case" even means for references. A reference has only a few axes it can vary along, so the matrix is small and we can genuinely cover all of it.

Cell	Scenario class	What varies	Covered by
C1	Bind to a named variable (the happy path)	write-through, address identity	Example 1
C2	`sizeof` / identity — is there a second box?	object identity	Example 2
C3	Illegal binding — literal / temporary to `int&`	rvalue vs lvalue	Example 3
C4	`const T&` binds a temporary + lifetime extension	const, rvalue	Example 4
C5	Reference parameter (pass-by-reference) vs by-value	copy vs alias	Example 5
C6	Reference to an array element / chained alias	aliasing a sub-object	Example 6
C7	Degenerate / dangling — return reference to a local	lifetime = 0 after return	Example 7
C8	Reference member in a struct — must init in ctor list	binding at construction	Example 8
C9	Real-world word problem — a "score tally"	applied aliasing	Example 9
C10	Exam twist — reference reassignment looks like reseat	`=` on an alias	Example 10

The "signs and quadrants" of a trig topic become, for references, these binding categories: lvalue vs rvalue, const vs non-const, lives-long-enough vs dies-early. Every example below is tagged with its cell.

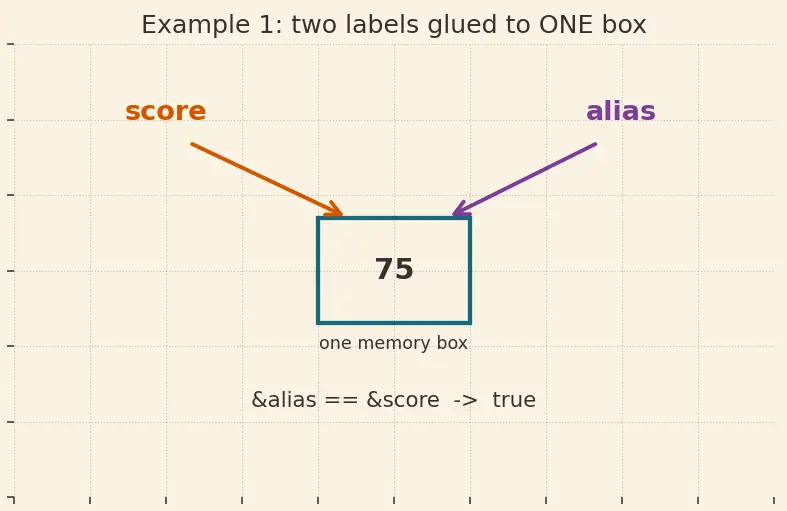

Example 1 — The happy path (Cell C1)

Worked example Bind, write through, check the address

int score = 40;
int& alias = score;   // (1)
alias = 75;           // (2)
int a1 = score;       // what is a1?
bool same = (&alias == &score); // true or false?

Forecast: guess a1 and same before reading on.

int& alias = score; — Why this step? We glue the name alias onto the same box that score names. No copy happens; there is one box, two labels.
alias = 75; — Why this step? Because alias is not a new object, writing through it scribbles the shared box. So score becomes 75 too.
&alias == &score — Why this step? &r on a reference gives the original's address, so both point at the identical byte. The comparison is true.

Verify: a1 == 75, same == true. One box changed → both names report 75. ✓

Example 2 — Is there a second box? (Cell C2)

Worked example

sizeof and identity

double temperature = 98.6;
double& t = temperature;
size_t s = sizeof(t);     // equals sizeof what?

Forecast: does sizeof(t) measure a hidden pointer (8 bytes) or the double itself?

sizeof(t) — Why this step? A reference is not an object, so sizeof "sees through" it to the referred type. It reports sizeof(double), not the size of some hidden pointer.
Conclude s == sizeof(double), which on every mainstream platform is 8.

Verify: sizeof(double) == 8 → s == 8. ✓ (Identity: only one object exists — sizeof and object identity.)

Example 3 — Illegal binding: literal to `int&` (Cell C3)

Worked example Why won't this compile?

int& bad = 5;   // ERROR

Forecast: what category of value is 5, and why does that matter?

5 is an rvalue — Why this step? An rvalue is a value with no stable storage location you can alias — a literal, a temporary. A non-const int& demands an lvalue (a named box) to glue onto.
There is nothing to alias, so binding fails at compile time. The fix is either a real variable (int five = 5; int& r = five;) or a const int& (next example).

Verify: conceptual — the compiler rejects it. We simulate the rule numerically: 5 has no address, whereas a variable does. See the const rescue below.

Example 4 — `const T&` binds a temporary (Cell C4)

Worked example Lifetime extension

const int& r = 3 + 4;   // (1) legal!
int out = r;            // (2) what value?

Forecast: 3 + 4 is a temporary — does r dangle instantly, or survive?

const int& r = 3 + 4; — Why this step? A const T& may bind a temporary and extends its lifetime to match the reference's scope. The temporary 7 now lives as long as r does.
int out = r; — Why this step? Reading through r yields the still-alive 7. Because it is const, we may read but never write (r = 9; would fail — see const correctness).

Verify: out == 7. The lifetime extension is what makes void print(const std::string&) accept print("hi") — the temporary string lives through the call. ✓

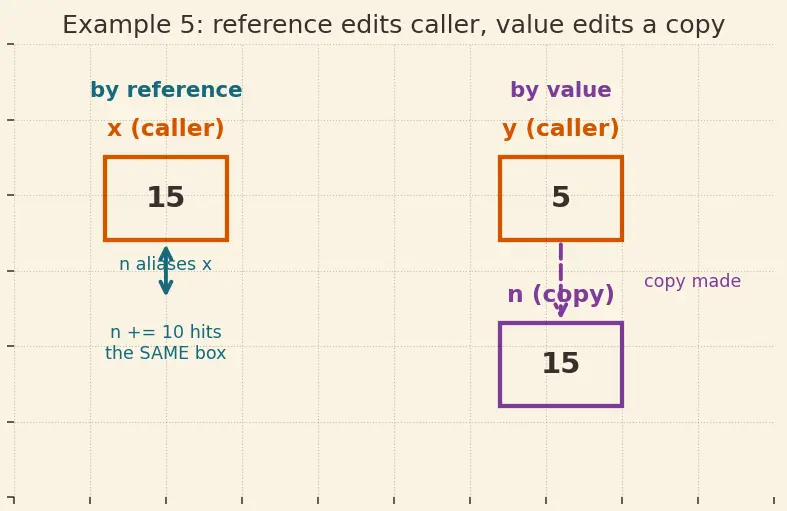

Example 5 — Reference parameter vs by-value (Cell C5)

Worked example Does the caller see the change?

void addTen_ref(int& n) { n += 10; }
void addTen_val(int n)  { n += 10; }

int x = 5, y = 5;
addTen_ref(x);   // x = ?
addTen_val(y);   // y = ?

Forecast: which of x, y changes?

addTen_ref(x) — Why this step? The parameter n is an alias of the caller's x (pass-by-reference). n += 10 writes the caller's box → x becomes 15.
addTen_val(y) — Why this step? Here n is a copy (pass-by-value). n += 10 edits the copy; the caller's y box is untouched → y stays 5.

Verify: x == 15, y == 5. Reference = same box (caller changes); value = private copy (Pass-by-value vs Pass-by-reference). ✓

Example 6 — Reference to an array element (Cell C6)

Worked example Alias a single cell of an array

char letters[4] = {'a','b','c','d'};
char& third = letters[2];   // alias to 'c'
third = 'Z';
char result = letters[2];   // ?
size_t sz = sizeof(third);  // ?

Forecast: guess result and sz — is sz 1 or a pointer size?

char& third = letters[2]; — Why this step? letters[2] is a genuine lvalue (a real cell with an address), so binding is legal. third now names that exact cell.
third = 'Z'; — Why this step? Writing through the alias overwrites the cell → letters[2] becomes 'Z'.
sizeof(third) — Why this step? sizeof sees through the reference to char, giving 1, disproving the "reference is always an 8-byte pointer" myth from Example 2.

Verify: result == 'Z' (its ASCII code is 90), sz == 1. ✓

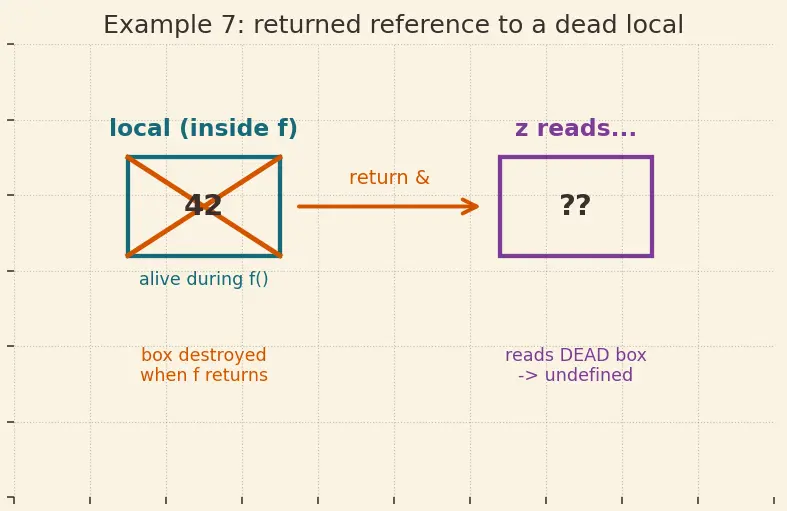

Example 7 — Dangling: reference to a local (Cell C7)

Worked example The lifetime trap

int& makeBad() {
    int local = 42;
    return local;   // DANGER
}
int z = makeBad();  // reads a dead box

Forecast: is the value 42 reliable? (Trick question.)

return local; — Why this step? We return a reference aliasing local. But local is destroyed the instant makeBad returns; its box is reclaimed.
int z = makeBad(); — Why this step? We now read through a reference to a dead object → undefined behaviour. It may print 42, may print garbage, may crash. Never rely on it.
Fix: return by value (int makeBad()), or return a reference only to something that outlives the call — a member, a static, or a parameter passed in (Dangling references and lifetime).

Verify: conceptual — UB has no defined value. We instead verify the safe version: returning local's value by copy would correctly give 42.

Example 8 — Reference member (Cell C8)

Worked example A struct that holds an alias

struct Watcher {
    int& target;                       // reference member
    Watcher(int& t) : target(t) {}     // MUST bind in init list
    void bump() { target += 1; }
};

int counter = 100;
Watcher w(counter);
w.bump();
w.bump();
int c = counter;   // ?

Forecast: guess counter after two bumps.

Watcher(int& t) : target(t) {} — Why this step? A reference member must be initialized in the constructor's initializer list — you cannot write target = t; in the body, because that would be reseating an already-bound reference, which is forbidden.
w.bump(); w.bump(); — Why this step? Each bump writes through target, an alias of counter. Two increments → counter = 102.

Verify: c == 102. The alias reaches straight into the caller's counter. ✓

Example 9 — Word problem: shared score tally (Cell C9)

Worked example A referee and a scoreboard

A game keeps int homeScore. A helper awardGoals gives points directly into the scoreboard without any copy. Home starts at 3, we award 2 then 4.

void awardGoals(int& board, int goals) { board += goals; }

int homeScore = 3;
awardGoals(homeScore, 2);
awardGoals(homeScore, 4);
int final = homeScore;   // ?

Forecast: what is the final score?

int& board — Why this step? We want the helper to edit the real scoreboard, not a throwaway copy — so we alias it by reference.
First call += 2 → 5. Second call += 4 → 9. Each call scribbles the one shared box.

Verify: final == 3 + 2 + 4 == 9. Units: goals are dimensionless counts, sum is a count → consistent. ✓

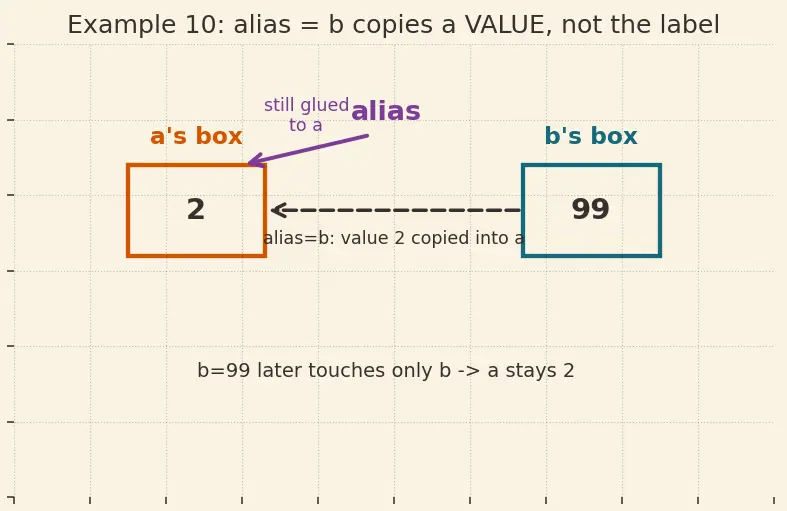

Example 10 — Exam twist: assignment vs reseat (Cell C10)

Worked example Does

alias = other; re-point the alias?

int a = 1, b = 2;
int& alias = a;   // alias names a
alias = b;        // TWIST: does alias now name b?
b = 99;           // change b
int va = a;       // ?
int vb = b;       // ?

Forecast: after alias = b;, does changing b also change a?

int& alias = a; — Why this step? Binding: alias is permanently glued to a's box.
alias = b; — Why this step? This is the trap. It is not a reseat — it is an assignment through the alias. It reads b's value (2) and stores it into a's box. Now a == 2, but alias still names a.
b = 99; — Why this step? This edits b's own box, which alias/a have nothing to do with. So a stays 2.

Verify: va == 2, vb == 99. A reference can never be reseated; the = moved a value, not the alias. ✓

Active recall

Recall Cover the answers

Does sizeof(int&) on a double& t give 8 because of a hidden pointer? ::: No — it gives sizeof(double)=8 because sizeof sees the referent; the pointer myth just coincides here. Why does const int& r = 3+4; survive but int& r = 3+4; fail? ::: const ref binds and lifetime-extends the temporary; non-const ref needs a named lvalue. After int& alias=a; alias=b;, does alias now name b? ::: No — it copied b's value into a; the alias still names a (no reseat). Why must a reference member be set in the constructor's init list? ::: You can't reseat a reference, so it must be bound at construction, not assigned in the body. What is the value of a reference returned to a destroyed local? ::: Undefined — the object is dead; never rely on it.

Connections

Pointers in C++ — the reseatable, nullable cousin used to contrast every cell
Pass-by-value vs Pass-by-reference — Example 5's copy-vs-alias split
const correctness — Example 4's const T& rescue
Rvalue references and move semantics — where rvalue binding (Cell C3/C4) goes next
Dangling references and lifetime — Example 7's trap
sizeof and object identity — Example 2 and 6

In Example 1, what does &alias == &score evaluate to?

true — the reference has no separate address.

In Example 5, after addTen_ref(x) and addTen_val(y) with both starting at 5, what are x and y?

x=15 (reference edits caller), y=5 (value edits a copy).

In Example 10, after int& alias=a; alias=b; b=99; (a=1,b=2 start), what are a and b?

a=2 (value copied in), b=99; alias never reseated.

Why does sizeof(char&) give 1, not 8?

sizeof sees through the reference to the char referent; references are not separate objects.
