Compile-time assertions — static_assert: Worked examples

You have met the parent note and know the one-line rule: static_assert(condition, "message") makes the compiler refuse to build if condition evaluates to zero at compile time. This page does the opposite of theory — it grinds through every kind of case the tool can throw at you, so that when you hit one in the wild you have already seen its twin.

Before any example: the condition is a constant expression (see Constant expressions in C). That means the compiler can compute a single fixed number for it — call that number $v$ — without running the program. Then:

The scenario matrix

Think of static_assert as a machine that eats a constant $v$ and outputs pass or fail. The "cases" are all the different shapes that constant can take. Here is every cell we will cover.

Cell	Case class	Representative question
A	Truthy value (any non-zero → pass)	`sizeof(int) == 4` on a 32-bit box
B	Falsy value (exactly zero → fail)	same check on a 16-bit box
C	Degenerate: bare non-zero literal	`static_assert(1)` — does it even pass?
D	Zero-producing arithmetic	power-of-two mask `x & (x-1)`
E	Two things kept in sync	array length vs `enum` count
F	Boundary / limiting value	smallest legal size, `x = 1`, `x = 0`
G	Negative & signedness twist	`-1` is truthy; unsigned wrap
H	Real-world word problem	packet header must fit a fixed wire size
I	Exam twist	which of these is not a constant expression?

Each example below is tagged with the cell(s) it covers. Together they touch every row.

Cell A + C — truthy values and the degenerate literal

Worked example Example 1 — what counts as "true"?

static_assert(1, "never fails");
static_assert(42, "also never fails");
static_assert(sizeof(char), "char has non-zero size");

Forecast: which of these three, if any, fails the build?

Look at the value $v$ for each. Line 1: $v = 1$ . Line 2: $v = 42$ . Line 3: $v = sizeof(char) = 1$ (the C standard defines sizeof(char) as exactly 1 — see sizeof operator). Why this step? The rule cares only about "is $v$ zero or not", so we first reduce each condition to its number.
Apply the rule. $1 \neq = 0$ , $42 \neq = 0$ , $1 \neq = 0$ — all non-zero. Why this step? "Truthy" in C is any non-zero value, not just literally 1. This is the degenerate cell C: even a bare number is a legal condition.
Conclusion: all three pass and emit no code.

Verify: $v \in {1, 42, 1}$ , none equal $0$ , so none trigger a diagnostic. Runtime cost $= 0$ bytes.

Cell B — the falsy value that stops the build

Worked example Example 2 — a check that fails on purpose

#include <assert.h>
static_assert(sizeof(int) == 4, "This code assumes 32-bit int");

Suppose we compile on an old micro-controller where int is 2 bytes. Forecast: does this build succeed on that micro-controller?

Evaluate sizeof(int). On this platform it is $2$ . Why this step? sizeof is resolved by the compiler for the target machine, so its value is fixed at compile time — a valid constant.
Evaluate the comparison. $2 == 4$ is false, and in C a false comparison produces the integer $0$ . So $v = 0$ . Why this step? Comparisons in C yield int values $1$ (true) or $0$ (false); we need that number, not the English word.
Apply the rule. $v = 0 \Rightarrow$ build fails, printing "This code assumes 32-bit int".

Verify: On a 32-bit box the same line gives $4 == 4 \Rightarrow v = 1 \Rightarrow$ pass. Same source, opposite outcome — decided entirely by the target.

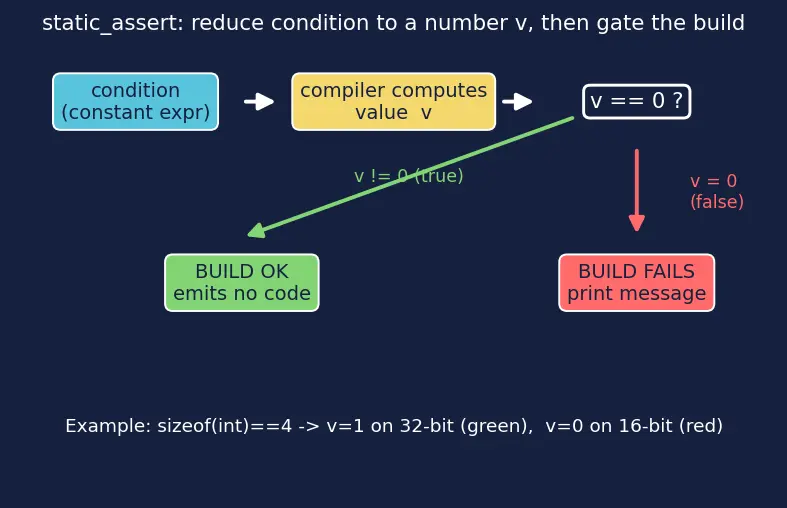

The figure below walks this exact machine. Read it left to right: the blue box is your condition; the yellow box is the compiler computing one fixed number $v$ ; the diamond asks "is $v == 0$ ?". The green branch (taken when $v \neq = 0$ , e.g. the 32-bit sizeof(int)==4 giving $v = 1$ ) leads to build OK, emits no code. The red branch (taken when $v = 0$ , e.g. the 16-bit case giving $v = 0$ ) leads to build fails, print message. That single diamond is the whole behaviour of static_assert.

Figure — Compile-time assertions — static_assert

Cell D + F — arithmetic that produces zero, and the boundary values

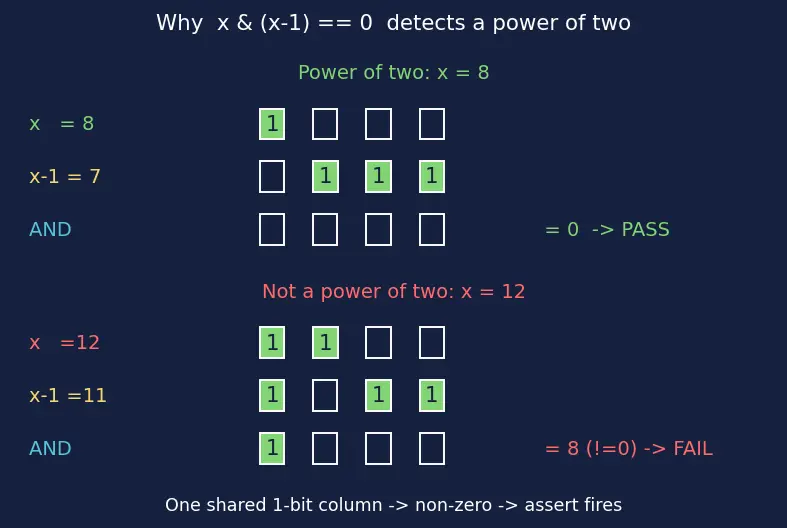

The classic "must be a power of two" test uses the mask $x & (x - 1)$ , where & is bitwise AND. Here is why it works, in binary, before we assert with it.

Worked example Example 3 — the power-of-two guard, boundary sweep

#define BUFFER_SIZE 1024u   /* unsigned constant */
static_assert((BUFFER_SIZE & (BUFFER_SIZE - 1)) == 0,
              "BUFFER_SIZE must be a power of two");

Forecast: pass or fail for BUFFER_SIZE = 1024? for 1000? for 1? for 0?

We write the literal as 1024u so BUFFER_SIZE is an unsigned constant. This matters for the degenerate case below.

$x = 1024 = 2^{10}$ . Then $x - 1 = 1023$ , and $1024 & 1023 = 0$ . So the condition is $0 == 0$ , i.e. $v = 1$ → pass. Why this step? $1024$ has one bit set (bit 10); the mask kills it. This is the intended good case.
$x = 1000$ (not a power of two). $1000 = 111110100 0_{2}$ has several bits set. $1000 & 999 = 992 \neq = 0$ . Condition is $992 == 0$ , i.e. $v = 0$ → fail. Why this step? This is cell D: arithmetic that lands on zero-or-not. A non-power-of-two leaves a bit surviving, so the mask is non-zero and the assert catches it.
Boundary $x = 1 = 2^{0}$ . $1 & 0 = 0$ → condition true → pass. $1$ is a power of two. Why this step? Cell F: the smallest legal value must not be a false negative. It passes correctly.
Degenerate $x = 0$ . Because BUFFER_SIZE is unsigned, 0u - 1 is well-defined: it wraps to the largest unsigned value (all bits $1$ , e.g. $4294967295$ for 32-bit unsigned). Then $0 & (all ones) = 0$ → condition true → pass. But $0$ is not a power of two — the trick has a blind spot at zero. Why this step? Cell F again — the degenerate input. The type matters: for an unsigned BUFFER_SIZE, 0 - 1 wraps and is fully defined; for a signed one, 0 - 1 is simply $- 1$ (no underflow, since $- 1$ is representable). Either way 0 & anything == 0, so the mask alone wrongly accepts $0$ . Add BUFFER_SIZE > 0 if $0$ is possible.

Verify: $1024 & 1023 = 0$ ; $1000 & 999 = 992$ ; $1 & 0 = 0$ ; $0 & (2^{32} - 1) = 0$ . Only the $1000$ case fails the build — exactly the one we wanted to reject.

Cell E — keeping two definitions in sync

Worked example Example 4 — array length vs enum count

#include <assert.h>
enum { COLOR_COUNT = 3 };
const char *names[] = { "red", "green", "blue" };

static_assert(sizeof(names) / sizeof(names[0]) == COLOR_COUNT,
              "names[] and COLOR_COUNT are out of sync");

Forecast: a teammate adds "cyan" to names[] but leaves COLOR_COUNT = 3. Build or break?

Count the array at compile time. sizeof(names) is the total bytes of the array; sizeof(names[0]) is the bytes of one element. Their ratio is the element count — a constant, because array sizes are fixed at compile time. Why this step? We need a compile-time number for the length; this ratio is the standard idiom (see sizeof operator). With 4 strings the ratio is $4$ .
Read the enum value. COLOR_COUNT = 3 — an enumeration constant, which is a constant expression. Why this step? Both sides of == must be compile-time constants for static_assert to accept them.
Compare. $4 == 3$ is false → $v = 0$ → build fails with the sync message. Why this step? Cell E: two independent definitions that must agree. The assert turns a silent "off-by-one over the array" runtime bug into a loud compile error.

Verify: Before the edit, ratio $= 3$ , and $3 == 3 \Rightarrow v = 1 \Rightarrow$ pass. After the edit, ratio $= 4$ , and $4 == 3 \Rightarrow v = 0 \Rightarrow$ fail. The guard fires precisely when the two drift apart.

Cell G — negatives and the signedness twist

Worked example Example 5 — is

$- 1$ true?

static_assert(-1, "does this pass?");
static_assert((unsigned)0 - 1 > 0, "unsigned wrap");

Forecast: Line 1 uses a negative number. Line 2 subtracts $1$ from $0$ . Which build, if any, fails?

Line 1: $v = - 1$ . Is $- 1$ zero? No. The rule is "non-zero → pass", and $- 1 \neq = 0$ . Why this step? Beginners expect only positive values to be "true", but truthiness in C is $\neq = 0$ , so negatives are true too. Line 1 passes.
Line 2: evaluate (unsigned)0 - 1. In unsigned arithmetic there are no negatives; subtracting $1$ from $0$ wraps to the largest unsigned value (e.g. $4294967295$ for 32-bit unsigned). That is a huge positive number. Why this step? Cell G's twist: signed vs unsigned changes the value, and static_assert only sees the final value.
Compare. Is that huge number $> 0$ ? Yes. So the condition is true, $v = 1$ → pass. Why this step? The wrap makes the comparison true — a genuine surprise if you reasoned " $0 - 1$ is negative, so $> 0$ is false". Signedness flips the conclusion.

Verify: $- 1 \neq = 0$ (truthy). $(2^{32} - 1) > 0$ is true. Both lines pass. Moral: reduce the condition to its actual integer value under C's rules before deciding.

Cell H — the real-world word problem

Worked example Example 6 — a network packet header must fit the wire format

A protocol fixes each header at exactly 8 bytes. Your struct is:

#include <assert.h>
#include <stdint.h>

struct Header {
    uint16_t type;      // 2 bytes
    uint16_t length;    // 2 bytes
    uint32_t checksum;  // 4 bytes
};
static_assert(sizeof(struct Header) == 8, "Header must be exactly 8 bytes on the wire");

Forecast: $2 + 2 + 4 = 8$ . Will this always pass?

Add the declared field sizes. uint16_t = 2, uint16_t = 2, uint32_t = 4. Naive sum $= 8$ . Why this step? The wire format demands 8; we are checking the compiler agrees.
Account for padding. The compiler may insert padding between fields to align them. Here type and length are 2-byte aligned and pack tightly; checksum is 4-byte aligned and already starts at offset $4$ — so no padding is needed and sizeof(struct Header) $= 8$ . Why this step? Struct size is not always the sum of fields — padding can inflate it. Cell H's realism is exactly this: sizeof is the truth, not your arithmetic.
Apply the rule. $8 == 8 \Rightarrow v = 1 \Rightarrow$ pass. Why this step? If someone later reorders fields or changes a type so padding appears (say, sizeof becomes $12$ ), the assert fails, protecting the wire contract before deployment.

Verify: $2 + 2 + 4 = 8$ with no forced padding on this layout $\Rightarrow$ sizeof(struct Header) $= 8$ $\Rightarrow$ $8 == 8 \Rightarrow$ pass. This is why static_assert on sizeof is the standard guard for on-wire structs.

Cell I — the exam twist: what is not a constant expression?

Worked example Example 7 — spot the illegal condition

int n = get_count();
static_assert(n == 4, "compile-time?");          // (a)
static_assert(sizeof(n) == 4, "size of n");      // (b)
#define K 4
static_assert(K == 4, "macro constant");         // (c)
static_assert(get_count() == 4, "call it");      // (d)

Forecast: which lines compile at all, and which are outright errors?

Line (a): n == 4. n is a runtime variable (its value comes from get_count()). Not a constant expression → hard error: the condition is not knowable at compile time. Why this step? Cell I tests the boundary of "constant expression". Runtime data is forbidden — that is what runtime `assert` is for.
Line (b): sizeof(n) == 4. sizeof(n) asks the type's size, not n's value — resolved at compile time. Constant! For a 4-byte int, $4 == 4 \Rightarrow v = 1 \Rightarrow$ pass. Why this step? Subtle twist: sizeof on a variable is legal in static_assert because only the type matters, not the runtime value.
Line (c): K == 4. K is a #define → the preprocessor replaces it with 4 → 4 == 4 is a constant → $v = 1 \Rightarrow$ pass. Why this step? #defined numbers and enum constants are the bread-and-butter of static_assert conditions.
Line (d): get_count() == 4. A function call — its result is only known by running the program. Not constant → hard error. Why this step? Same lesson as (a): no runtime evaluation is allowed, ever.

Verify: Legal & passing: (b) and (c). Hard errors (not even a failed assertion — a malformed condition): (a) and (d). The dividing line is always: can the compiler compute one fixed number without running anything?

Coverage check — did we hit every cell?

Recall Matrix cells vs examples (all nine confirmed)

A truthy value → Example 1 (1, 42, sizeof(char) all non-zero)
B falsy value → Example 2 (sizeof(int)==4 gives $v = 0$ on a 16-bit box)
C bare non-zero literal → Example 1 (static_assert(1) passes)
D zero-producing arithmetic → Example 3 (power-of-two mask)
E two things in sync → Example 4 (array length vs COLOR_COUNT)
F boundary / degenerate → Example 3 (the $x = 1$ and $x = 0$ cases)
G negative & signedness twist → Example 5 (-1 truthy; unsigned wrap)
H real-world word problem → Example 6 (8-byte packet header)
I exam twist → Example 7 (which condition is not a constant expression)

All nine cells A–I are covered — no scenario left unshown.

Active recall

Does static_assert(-1) pass?

Yes —

- 1 \neq = 0

is truthy in C.

Does (x & (x-1)) == 0 correctly reject x = 0?

No — it is true for

0

, so add x != 0.

Is sizeof(n) == 4 a valid static_assert even if n is a variable?

Yes — sizeof uses the type, resolved at compile time.

Why is get_count() == 4 illegal in static_assert?

A function call is a runtime value, not a constant expression.

For 1000, what is 1000 & 999?

992 (non-zero), so the power-of-two assert fails.

Which header gives you the static_assert spelling in C11/C17?

<assert.h> (or use the raw _Static_assert keyword with no include).
