Visual walkthrough — Variadic functions — va_list, va_start, va_arg, va_end

We assume you know only one thing: a computer's memory is a long row of numbered mailboxes, each holding one byte, and each with an address (its house number). Everything else we build.

Step 1 — What "arguments on the stack" actually means

WHY this picture: you cannot "walk a cursor" over something invisible. Before any macro makes sense, we must see the row of bytes the cursor walks over. We use a simplified all-on-the-stack model (real CPUs also use registers — that complexity is exactly why the macros hide it, see Calling Conventions and the Stack).

PICTURE: each int is 4 bytes wide. So the four arguments occupy addresses in a strip. The named parameter n is the very first block; the ... values follow.

Step 2 — A cursor is just one number

WHY a pointer and not, say, an index? Because the arguments live at real memory addresses, and a pointer is C's native tool for "hold an address and read what's there." An index would need a base to add to; a pointer already is base+offset in one value. That is the minimal tool for the job.

PICTURE: think of $p$ as a little arrow floating above the memory strip, parked over one byte.

$p=\text{addr of the byte the cursor is looking at}$

• $p$ — the cursor's current position (an address, i.e. a number).
• There is no length stored anywhere. $p$ knows where it is, never how far it may go. Remember this — it is the whole reason we need a count or sentinel.

Step 3 — va_start: park the cursor after the last named arg

WHY "after n"? The named parameters are the slots the compiler did reserve and name. n is the last one you gave a name. Everything you want to read is beyond it. So the cursor's starting line is the finish line of the named region.

PICTURE: the address just past n is $\text{addr}(n)+\text{sizeof(int)}$. In our conceptual model:

$p=\underset{\text{address of }n}{\underbrace{\&n}}+\underset{\text{"one }n\text{ later"}}{\underbrace{1}}$

The green arrow now sits at the first ... value (10). We haven't read anything yet — we've only aimed.

Step 4 — va_arg: read here, then step forward

WHY read-then-advance (and why do YOU state the type)? The bytes in memory are just bits — they carry no label saying "I am an int" or "I am a pointer." Someone must decide how to interpret them. The compiler stopped checking at ..., so you supply the type. va_arg(ap, int) means "trust me: the next 4 bytes are an int."

PICTURE — pulling 10: the cursor is over the 10 block. We copy those 4 bytes out as an int, then slide the cursor right by sizeof(int) = 4.

$\text{value}=\ast \left({\text{int}}^{\ast }\right)pp+=\text{sizeof(int)}$

• $({\text{int}}^{\ast })p$ — "treat $p$ as pointing at an int."
• $\ast (\dots )$ — the star means "give me the value living at that address."
• $p+=\text{sizeof(int)}$ — after reading, move the cursor forward by the width just consumed, so the next va_arg starts fresh.

Call va_arg(ap, int) twice more and you harvest 20, then 30, the cursor stepping 4 bytes each time.

Step 5 — Why the type must be the promoted type

WHY: before a value even reaches the ..., C applies Default Argument Promotions: every char/short is widened to int, and every float is widened to double. The narrow value is never actually placed in the arguments — a fattened copy is. So the byte-strip really holds ints and doubles, no matter what you wrote at the call.

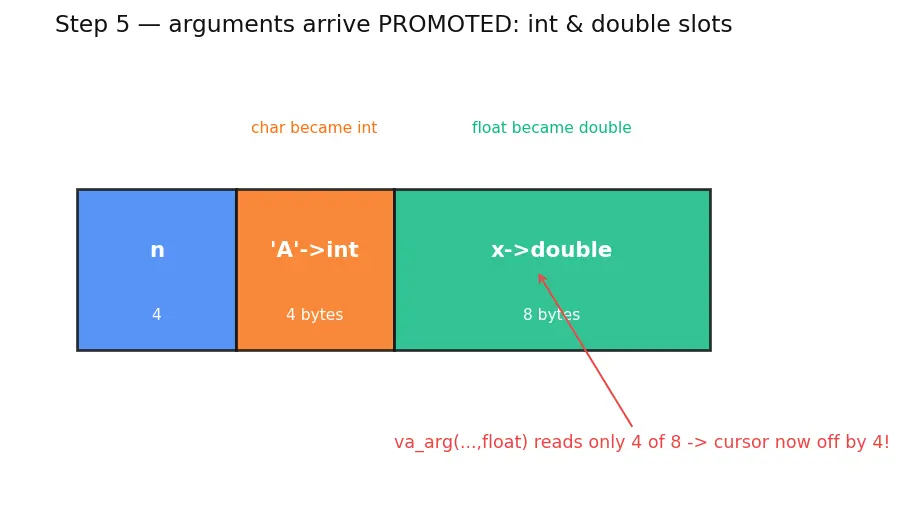

PICTURE: the caller's char c = 'A' becomes a 4-byte int slot; float x becomes an 8-byte double slot. If your cursor tries to read only 1 or 4 bytes, it lands mid-value and every later read is misaligned.

Step 6 — The degenerate case: reading one too many

WHY it's fatal, not just wrong: past the last argument is whatever the stack happened to hold — a return address, saved registers, garbage. Interpreting it as an int gives a nonsense number; the program may print junk or crash. This is textbook Undefined Behavior in C.

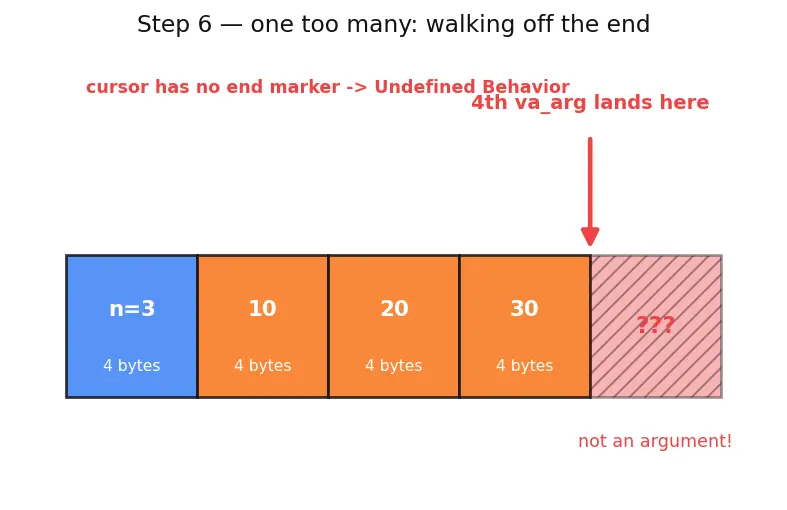

PICTURE: the strip ends after 30. A fourth va_arg lands in the red "no-man's-land."

This is why every variadic function needs a stop rule:

• a count (sum(3, ...) — read exactly 3), or
• a sentinel (a final NULL/-1 that means "STOP").

Nothing in the machinery enforces it — the discipline is entirely yours.

Step 7 — va_end: put the cursor down

WHY bother if we're returning anyway? Because the standard requires it, and on some calling conventions va_start allocates temporary state that leaks or corrupts if never released. Treat va_start and va_end as a matched pair, like opening and closing a bracket.

PICTURE: the arrow is retired; the strip is untouched.

$p=0\text{(cursor no longer points at anything)}$

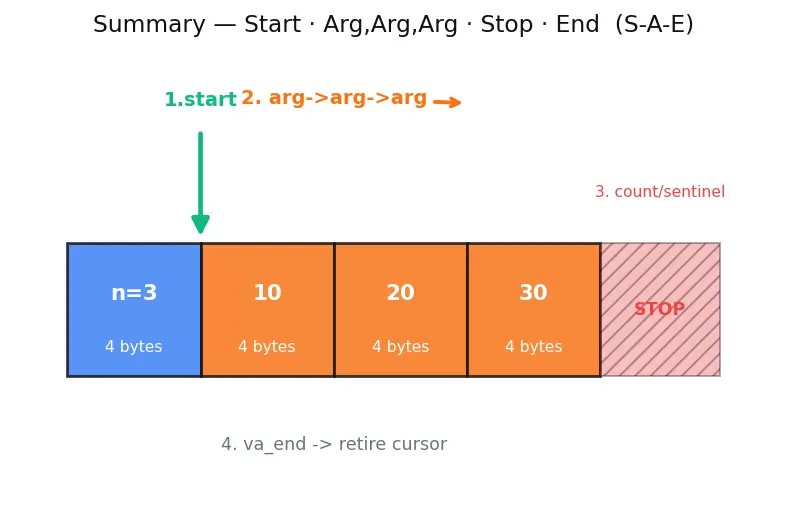

The one-picture summary

Everything above, on one strip: park after the last named arg → read+step, read+step, read+step → stop at the agreed boundary → retire the cursor.
