Preprocessor directives — #define, #ifdef, #ifndef, #include guards: Worked examples

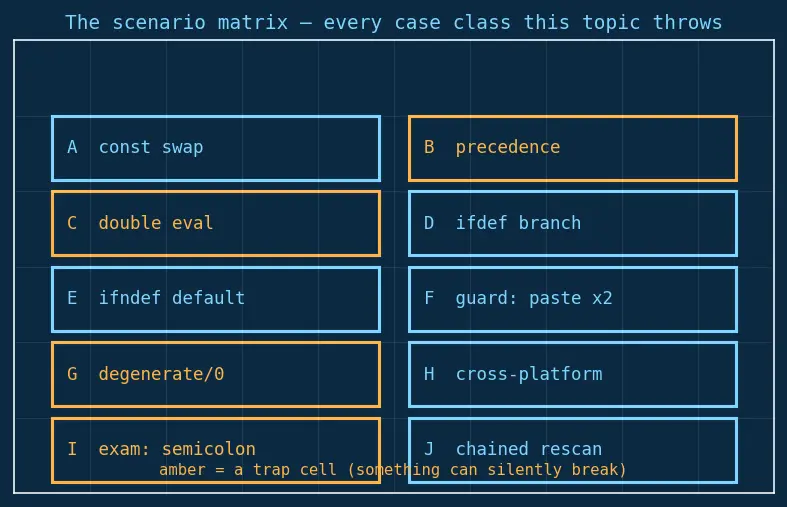

The scenario matrix

Every problem this topic can pose falls into one of these case classes. The worked examples below are each tagged with the cell they cover, and together they hit every cell.

#	Case class	What can go wrong / what to watch	Example that covers it
A	Object-like macro, simple constant	text swap, no arithmetic by preprocessor	Ex 1
B	Function-like macro, precedence danger	missing parens change grouping	Ex 2
C	Function-like macro, side-effect / double-eval	argument evaluated twice	Ex 3
D	`#ifdef` / `#ifndef` branch selection (defined)	which text survives	Ex 4
E	`#ifndef` default value override	external `-D` wins vs built-in default	Ex 5
F	Include guard — paste-twice degenerate case	second paste deleted entirely	Ex 6
G	Degenerate / zero input to a macro	empty arg, `0`, macro-defined-as-nothing	Ex 7
H	Real-world word problem (cross-platform)	choosing the right branch on a real target	Ex 8
I	Exam twist — trailing semicolon + nesting	the classic `arr[MAX;]` and stacked conditions	Ex 9
J	Limiting case — macro that expands to another macro (chained)	rescanning, recursion limits	Ex 10

Figure — Preprocessor directives — #define, #ifdef, #ifndef, #include guards

Worked examples

Worked example Ex 1 — Case A: object-like constant

#define RATE 5
int cost = RATE * 8 + 2;

What integer does cost hold?

Forecast: guess the number before reading on. ______

Substitute the token RATE. The preprocessor scans, finds RATE, pastes 5. → int cost = 5 * 8 + 2; Why this step? This is all the preprocessor does — no math yet. It hands this plain-C line to the compiler.
Now the compiler computes. 5 * 8 = 40, then 40 + 2 = 42. Why this step? Multiplication binds tighter than addition, so * happens first.

Verify: $5 \times 8 + 2 = 42$ . The macro contributed no arithmetic; it only supplied text. ✅

Worked example Ex 2 — Case B: precedence trap in a function-like macro

#define AREA(w, h) w * h
int a = AREA(2 + 3, 4);

What is a?

Forecast: the name suggests $(2 + 3) \times 4 = 20$ . Is it?

Substitute blindly. Replace w with the text 2 + 3 and h with 4: → int a = 2 + 3 * 4; Why this step? Substitution is pure paste — no invisible parentheses are added around your arguments.
Compiler evaluates with real precedence. 3 * 4 = 12, then 2 + 12 = 14. Why this step? * outranks +, so the intended "add first" never happens.

Verify: we got 14, not 20. The fix is #define AREA(w, h) ((w) * (h)), which expands to ((2 + 3) * (4)) = 20. ✅ (Both values checked below.)

Worked example Ex 3 — Case C: double-evaluation / side effects

#define MAX2(a, b) ((a) > (b) ? (a) : (b))
int i = 5;
int m = MAX2(i++, 3);

After this runs, what are m and i?

Forecast: you might expect m = 5, i = 6. Watch the i++.

Expand the macro. a is i++, b is 3: → int m = ((i++) > (3) ? (i++) : (3)); Why this step? Notice a appears twice in the body, so i++ was pasted twice.
Trace execution. First (i++) compares 5 > 3 → true, and increments i to 6. Because the condition is true, the middle branch (i++) runs: it yields 6, then increments i to 7. Why this step? The ? : picks the true-branch, which re-evaluates the argument — a real function would evaluate i++ exactly once.

Verify: m = 6, i = 7. This is the danger Macros vs inline functions warns about: an inline function evaluates each argument once; a macro pastes it as many times as it appears. ✅

Worked example Ex 4 — Case D:

#ifdef / #ifndef branch selection

#define LOG_LEVEL
#ifdef LOG_LEVEL
    int level = 2;
#else
    int level = 0;
#endif
#ifndef LOG_LEVEL
    int hidden = 99;
#endif

Which lines survive to the compiler, and what is level?

Forecast: is LOG_LEVEL defined? What does that make each block do?

First block: #ifdef LOG_LEVEL. LOG_LEVEL is defined, so the #ifdef is true. Keep int level = 2; and delete the #else line. Why this step? #ifdef keeps its body when the name is defined.
Second block: #ifndef LOG_LEVEL. The name is defined, so #ifndef is false. The line int hidden = 99; is deleted as text — the variable hidden never exists. Why this step? #ifndef is the exact mirror of #ifdef.

Verify: the compiler sees only int level = 2;. So level == 2, and hidden is not even declared. ✅

Worked example Ex 5 — Case E:

#ifndef default with external override

/* compiled with:  gcc -DBUFFER_SIZE=1024  prog.c  */
#ifndef BUFFER_SIZE
#define BUFFER_SIZE 256
#endif
char buf[BUFFER_SIZE];

How big is buf?

Forecast: the file says 256, the command line says 1024. Who wins?

The -D flag defines it first. -DBUFFER_SIZE=1024 is exactly like putting #define BUFFER_SIZE 1024 at the very top, before your code — see Build flags -D and the command line. Why this step? Command-line defines are injected ahead of the source.
#ifndef BUFFER_SIZE is now false. It's already defined (=1024), so the inner #define BUFFER_SIZE 256 is skipped. Why this step? The whole point of #ifndef here is "only set a default if nobody set it."
Substitute. char buf[BUFFER_SIZE]; → char buf[1024];.

Verify: buf has 1024 bytes. Remove the -D flag and the same file compiles buf[256]. External configuration overrides without editing source. ✅

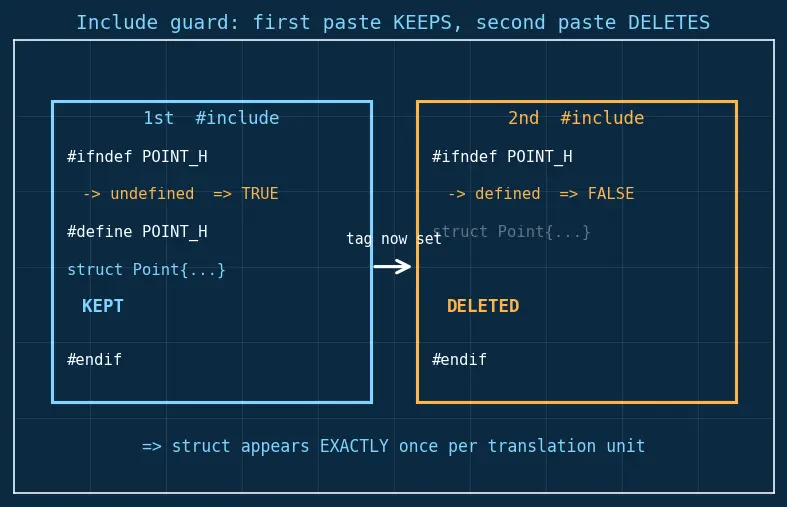

Worked example Ex 6 — Case F: include guard defeats the double paste

Files:

/* point.h */
#ifndef POINT_H
#define POINT_H
struct Point { int x, y; };
#endif

/* main.c */
#include "point.h"
#include "point.h"   /* included twice on purpose */

How many times does struct Point { ... }; appear in the translation unit?

Forecast: without a guard it appears twice → "redefinition" error. With the guard?

First #include pastes the file. POINT_H is undefined → #ifndef true → define POINT_H, keep the struct. → translation unit now contains struct Point { int x, y; }; once.
Second #include pastes the file again. But POINT_H is now defined → #ifndef false → the preprocessor deletes everything up to #endif. Why this step? The tag we defined the first time acts as a "already glued" flag.

Verify: the struct appears exactly once — no redefinition error. See Header files and translation units for why one struct-definition-per-unit is the hard limit. ✅

Worked example Ex 7 — Case G: degenerate / empty inputs

#define EMPTY
#define STICK(a, b) a b
#define ZERO 0
int n = STICK(1, ZERO);
int m = 4 EMPTY + 1;

What are n and m?

Forecast: a macro defined as nothing — what does EMPTY paste?

EMPTY expands to the empty string. 4 EMPTY + 1 → 4 + 1 (just whitespace where EMPTY was). Why this step? #define EMPTY with no replacement text means "delete this token." A degenerate but legal macro.
STICK(1, ZERO). Paste a=1, b=ZERO: → 1 ZERO. Then ZERO is itself rescanned and becomes 0: → 1 0. Why this step? But 1 0 is two integer tokens with a space — that is not a valid expression, so this line would be a compile error unless we meant something joinable.
Repair intent. To glue into 10 you'd need the ## paste operator: #define STICK(a,b) a##b → 10. As written, n does not compile.

Verify: m = 4 + 1 = 5 (the empty macro vanished cleanly). STICK(1, ZERO) without ## is a degenerate failure — worth knowing that "expands to two tokens" ≠ "expands to a number." ✅ (We check m and the ## version below.)

Worked example Ex 8 — Case H: real-world cross-platform word problem

Problem. You ship a logging function. On Windows the newline should be "\r\n"; on Linux/macOS it's "\n". Your build sets _WIN32 on Windows automatically. Write the macro and predict what a Linux build emits for NEWLINE.

#ifdef _WIN32
    #define NEWLINE "\r\n"
#else
    #define NEWLINE "\n"
#endif

Forecast: on a Linux build, is _WIN32 defined?

Ask: is _WIN32 defined here? On Linux the compiler does not predefine _WIN32, so #ifdef _WIN32 is false. Why this step? Cross-platform code branches on predefined target macros — see Conditional compilation for cross-platform code.
The #else branch survives. The preprocessor keeps #define NEWLINE "\n" and deletes the Windows line entirely.

Verify: on Linux, NEWLINE expands to "\n" (a 1-character string). On Windows it would be "\r\n" (2 characters). We check both string lengths below. ✅

Worked example Ex 9 — Case I: exam twist (trailing

; + nested conditions)

#define SIZE 10;
#define FLAG
int arr[SIZE]
#ifdef FLAG
    ;
    int extra = SIZE + 1;
#endif

Spot the two bugs and give the fixed extra.

Forecast: what does arr[SIZE] become when SIZE carries a semicolon?

Substitute SIZE → 10;. int arr[SIZE] → int arr[10;]. Why this step? The ; was part of the replacement text, so it lands inside the brackets → syntax error. Bug 1: never end a #define value with ;.
The second use. int extra = SIZE + 1; → int extra = 10; + 1; — again broken (10; closes the statement, leaving a stray + 1;). Why this step? Same trailing-semicolon poison, now in an expression.
Fix. #define SIZE 10 (no semicolon). Then arr[10] is valid and extra = 10 + 1.

Verify: with the fix, extra = 11 and arr has 10 elements. The #ifdef FLAG block is kept (FLAG is defined) but the semicolon bug is independent of the conditional. ✅

Worked example Ex 10 — Case J: limiting case — chained macros & rescanning

#define A B
#define B C
#define C 7
#define TWICE(x) ((x) + (x))
int r = TWICE(A);

What is r?

Forecast: how far does the chain A → B → C → 7 unwind?

Expand TWICE(A). → ((A) + (A)). Why this step? Argument A is pasted twice (Case C flavour), but here it has no side effect.
Rescan the result. The preprocessor re-examines the output: each A → B, then B → C, then C → 7. → ((7) + (7)). Why this step? After every substitution the preprocessor rescans for more macros — this is the "limiting behaviour" of chained defines. It stops when no macro names remain (and would refuse to expand a macro into itself to avoid infinite recursion).
Compiler computes. 7 + 7 = 14.

Verify: r = 14. The full chain resolved in one preprocessing pass because rescanning follows the links A→B→C→7. ✅

Recall Rapid self-test (cover the answers)

Ex1 RATE*8+2 ::: 42 Ex2 AREA(2+3,4) with w*h body ::: 14 (fix gives 20) Ex3 MAX2(i++,3) from i=5 gives m,i ::: m=6, i=7 (double evaluation) Ex5 with -DBUFFER_SIZE=1024 ::: buf has 1024 bytes Ex6 struct pasted with guard, included twice ::: appears once Ex8 NEWLINE on Linux ::: "\n" Ex9 fixed extra ::: 11 Ex10 TWICE(A) through chain ::: 14
