Foundations — Valgrind — detecting memory errors

Before you can read the parent note Valgrind — detecting memory errors, you need to earn every word it throws at you. Below, each idea is built from nothing: plain words → a picture → why the topic needs it. Read top to bottom; each rung stands on the one below.

1. A byte and an address — the numbered row of boxes

Picture a long row of lockers. Each locker is a byte. The little number painted on each locker door is its address. When C "accesses memory," it walks up to a locker (address), and either reads what's inside or writes a new value into it.

2. A pointer — a box that stores a box-number

The notation:

• int *p — read as "p is a pointer to an int." The * in the declaration means "this thing points at something."
• *p — read as "the value at the locker p points to." Here * means "go there and look inside." This is called dereferencing.
• p (alone) — the locker number itself.

Why the topic needs it: the parent note writes *p == 0 and a[5] = 42. Both are pointer operations. a[5] is secretly *(a + 5) — "go 5 slots past where a points, then look inside." More in Pointers in C.

3. Stack vs Heap — two neighbourhoods of memory

Picture two neighbourhoods:

• Stack — a stack of trays. Each function call adds a tray on top; when it returns, its tray is thrown away automatically. You never call free here.
• Heap — a warehouse where you ask for storage space ("give me 20 bytes") and you are responsible for handing it back.

Valgrind's whole job is watching the heap, because the heap is where you hold the responsibility — and therefore where you make mistakes. See Stack vs Heap.

4. malloc and free — renting and returning heap boxes

Two crucial facts the parent leans on heavily:

1. A fresh malloc block contains garbage — leftover junk from whoever used those lockers before. C does not clear it.
2. After free(p), the pointer p still holds the old address, but you are no longer allowed to use it. Touching it = use-after-free.

More detail: malloc and free.

5. sizeof and array indexing — turning counts into byte offsets

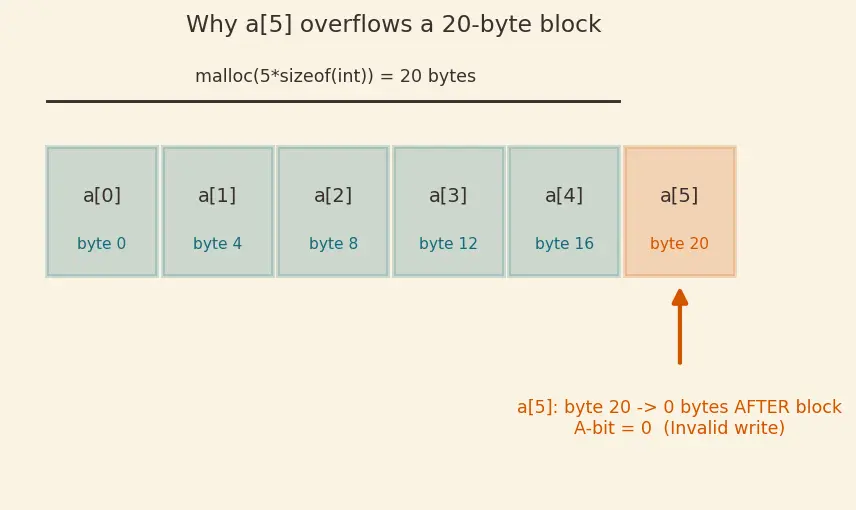

sizeof(int) is usually 4 (four bytes per integer). So in the parent's overflow example, malloc(5 * sizeof(int)) rents $5\times 4=20$ bytes: lockers $0$ through $19$ (relative to the block's start).

Then a[5] means byte $5\times 4=20$ — the first locker past the block. That is exactly why Valgrind says "0 bytes after a block of size 20": your write starts precisely where the rented block ends.

6. The two shadow labels — A-bits and V-bits

Now the payoff. Valgrind keeps, for every real byte, two hidden tags:

Two different questions:

The parent formalises the A-bit rule as: an access of n bytes at address $a$ is OK only if every byte $a,a+1,\dots ,a+n-1$ has its A-bit set to accessible. If even one is 0, it's an error.

7. Undefined Behaviour — why "it worked" proves nothing

The picture: UB is a coin that lands heads (works) most days purely by luck of the heap layout. Change the compiler, the input, or the moon phase, and it lands tails (crash / corruption). Valgrind exists precisely to catch UB before it flips to tails on a customer. See Undefined Behaviour in C.

Prerequisite map

Each foundation on the left feeds the shadow-memory idea on the right. Valgrind is only meaningful once addresses, pointers, the heap, and UB all sit in place. Related tooling worth a glance later: AddressSanitizer (ASan) and Debugging with GDB.

Equipment checklist
