Common memory errors — null dereference, buffer overflow, use-after-free, double free, memory leak: Visual walkthrough

Before we draw anything, three plain-word ideas we will keep reusing. If the parent note assumed them, we build them here.

Throughout, whenever we cross a line the standard forbids, we are in Undefined Behaviour — the program may crash, may work, may corrupt silently. That ambiguity is exactly why we draw so carefully.

Step 1 — Draw the memory strip and the pointer

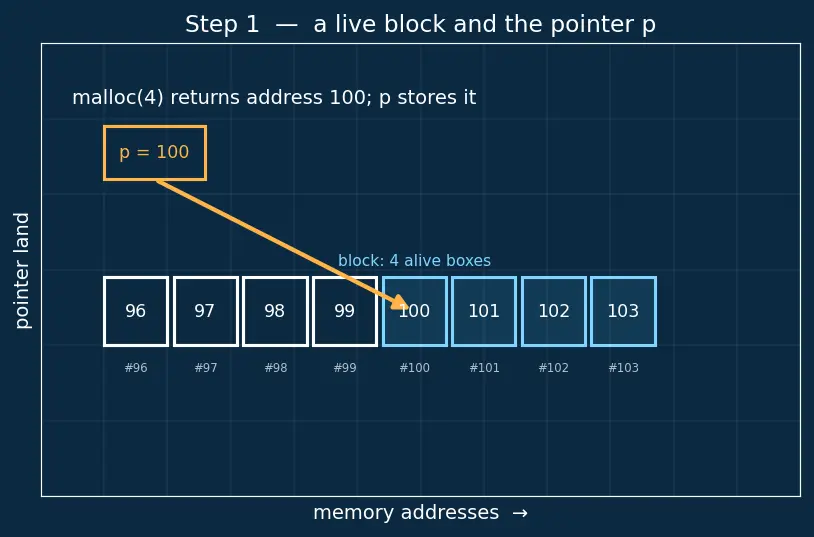

WHAT. We lay memory out as a horizontal strip of boxes, each labelled with its address. We malloc a small block and draw the returned address landing inside p.

WHY. Every error below is "the arrow from p lands in the wrong place or at the wrong time." So we must first fix, on paper, what "the right place at the right time" looks like. This is our reference frame.

PICTURE.

Figure — Common memory errors — null dereference, buffer overflow, use-after-free, double free, memory leak

int *p = malloc(4);   // 4 bytes for one int

Reading the equation-of-code term by term:

malloc(4) — asks for a block of 4 boxes. Its value is the address of box #100 (say).
p — a pointer variable; after the line, the number stored inside p is $100$ .
The amber arrow in the figure is that stored number: it starts at p and lands on the first box of the block.

Every following step is just one of these three conditions failing, drawn.

Step 2 — Break condition 1: the arrow points at box #0 (null deref)

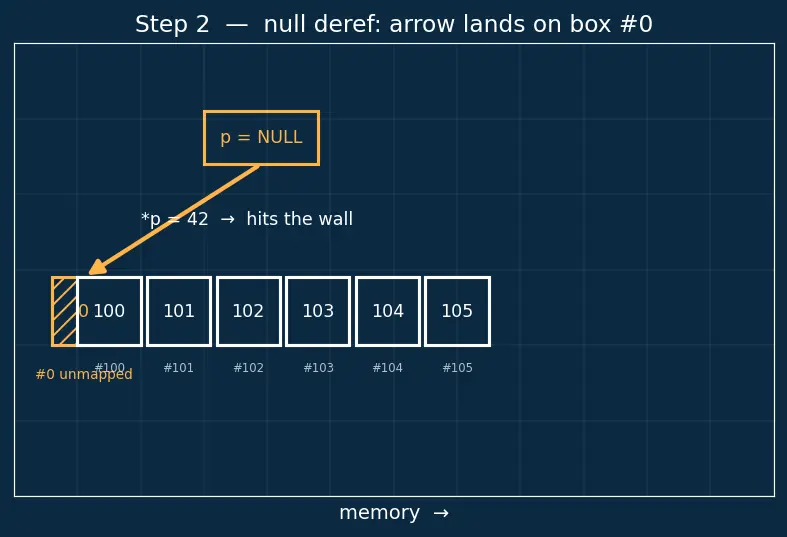

WHAT. Suppose malloc failed and returned NULL, which is address $0$ . Now the arrow from p points at box #0. We write through it anyway.

WHY. malloc returns NULL when the system can't spare the memory. Box #0 is deliberately left unmapped — no real box lives there — so the CPU traps the moment you touch it. This is the safest memory error precisely because it usually crashes loudly instead of corrupting quietly.

PICTURE.

int *p = malloc(HUGE);  // fails → p == NULL  (address 0)
*p = 42;                // arrow lands on the wall → segfault

Term by term:

p == NULL — the number inside p is $0$ . In the figure the arrow bends left off the strip into the hatched "unmapped wall".
*p = 42 — "go to the box p names and store 42 there." But that box is the wall.

Breaking $p \neq = NULL$ from Step 1 gives exactly this picture.

Step 3 — Break condition 3: the arrow overshoots the block (buffer overflow)

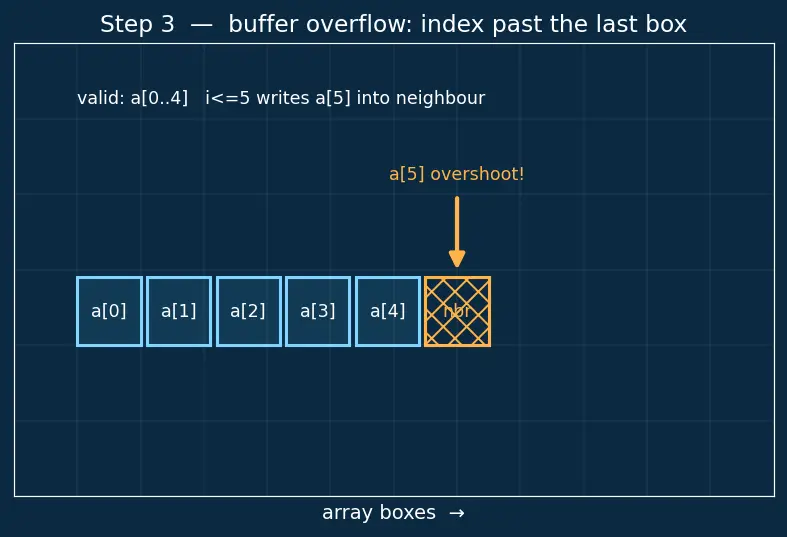

WHAT. The arrow starts at the right block, but the index we add pushes it past the last box, into a neighbouring variable.

WHY. A C array carries no length with it. p[i] is computed as "address of p + i boxes" with no check that i is still inside. So writing one box too far silently overwrites whatever lives next — an adjacent variable, or (on the stack) a saved return address, which is the classic exploit.

PICTURE.

int a[5];              // valid boxes: a[0] .. a[4]
for (int i = 0; i <= 5; i++) a[i] = 0;   // i==5 overshoots

Term by term:

a[5] — declares 5 boxes, indices $0, 1, 2, 3, 4$ . There is no box a[5].
i <= 5 — the loop runs i = 0,1,2,3,4,5. The last pass, a[5] = 0, writes into the neighbour (amber "collision" box in the figure).
Fix: i < 5 keeps every access inside $0 \leq i < N$ with $N = 5$ .

The string version is the same overshoot, counting the hidden terminator (see Strings in C and the null terminator):

Step 4 — The block dies: what `free(p)` actually changes

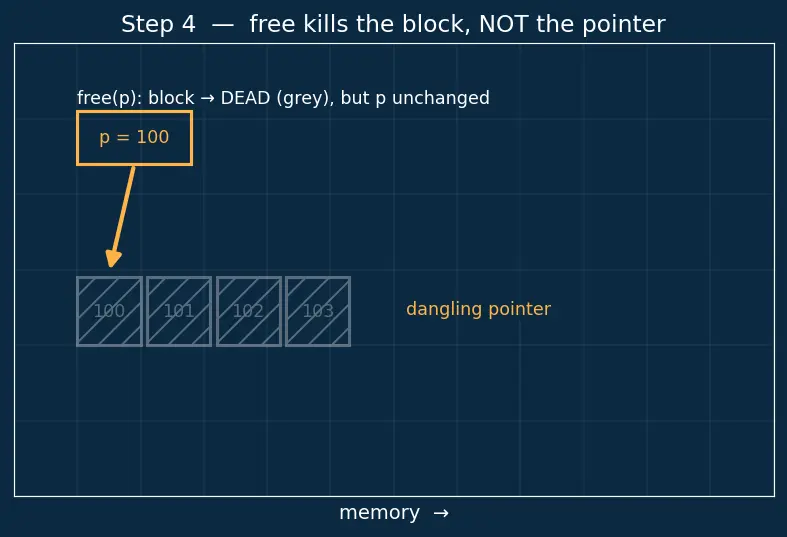

WHAT. We call free(p). In the picture, the block flips from alive (cyan) to dead (grey hatch) — but the arrow inside p does not move.

WHY. This is the single most important frame of the whole page. free is an ordinary function receiving a copy of the address. It hands the boxes back to the allocator, but it cannot reach back and edit your variable p. So p keeps pointing at a block that is no longer yours — a dangling pointer.

PICTURE.

free(p);   // block → dead;  p still holds the old address

Term by term:

The block boxes turn grey: condition 2 ("block is alive") is now false.
The amber arrow is unchanged — this is the trap. p still names those grey boxes.

Step 5 — Touch the dead block: use-after-free

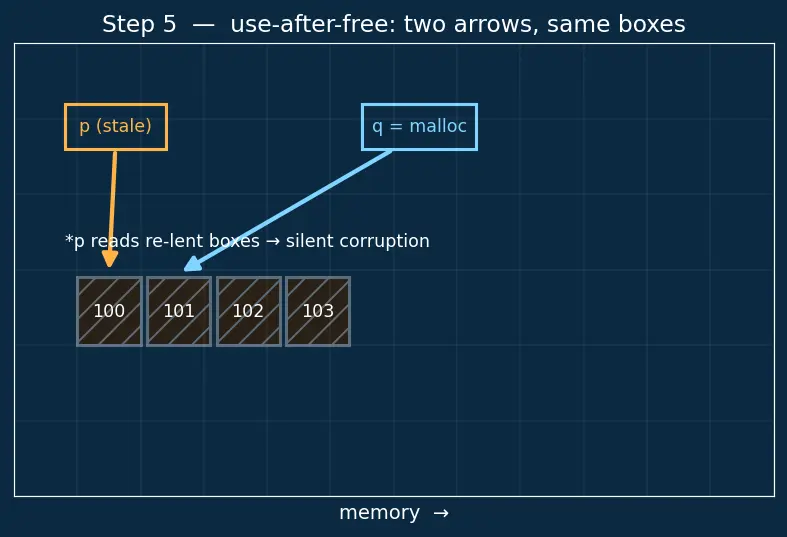

WHAT. After Step 4, we dereference p anyway.

WHY. Condition 2 is broken. Worse than Step 2's honest crash: the allocator may re-lend those exact boxes to the next malloc. Then p and some other pointer name the same boxes — writing through p silently scribbles on the other variable's data. Often no crash, just corruption.

PICTURE.

free(p);
printf("%d\n", *p);   // reads a dead (maybe reused) box

*p — follows the stale arrow into the grey/re-lent region.
The figure shows a second arrow q (from a later malloc) landing on the same boxes: that overlap is the corruption.

Worked example The fix reuses Step 2

free(p);
p = NULL;             // arrow now points at the wall
printf("%d\n", *p);   // becomes a loud null deref, not silent corruption

Nulling converts a silent UAF into a detectable crash.

Step 6 — Free the dead block again: double free

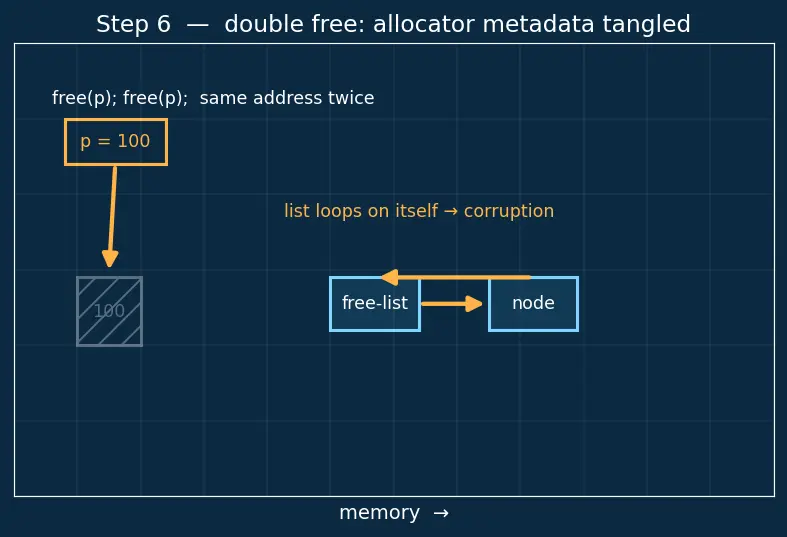

WHAT. We call free(p) a second time on the still-dangling p.

WHY. The allocator keeps its bookkeeping (block size, "next free block") inline, right next to your data. The first free filed this block into its records. Filing it twice tangles that internal list — corrupting metadata an attacker can steer, or triggering an abort.

PICTURE.

free(p);
free(p);   // second free tangles the allocator's list

Both free calls carry the same address (arrow unchanged from Step 4).
The figure shows the allocator's "free-list" chain looping back on itself — the corruption.

Step 7 — Never free at all: the leak (and the conservation law)

WHAT. We overwrite the only arrow to a live block before freeing it. The block stays alive but unreachable — no pointer names it, so it can never be freed.

WHY. Nothing crashes. The block just sits there occupying memory forever. In a loop or a long-running server, these lost blocks pile up until the machine thrashes or the OOM-killer strikes. This is condition 1's opposite: the arrow left, but the block stayed.

PICTURE.

char *p = malloc(100);   // block A, 100 bytes
p = malloc(200);         // arrow jumps to block B; A now unreachable
free(p);                 // frees only B

p = malloc(200) — the arrow leaves block A and lands on block B.
Block A in the figure has no arrow — it is orphaned (amber "lost" tag). It is leaked.
free(p) reclaims only B.

Tools that watch this ledger for you: Valgrind and AddressSanitizer.

The one-picture summary

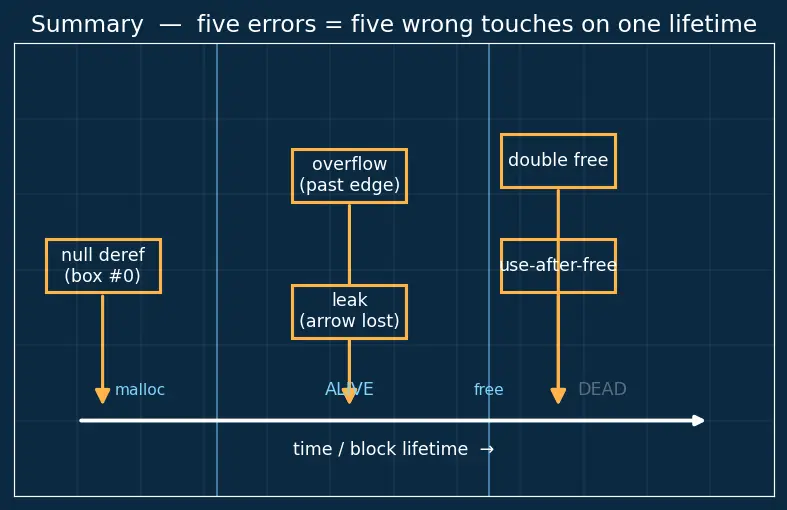

WHAT. One strip, one lifetime, all five errors pinned to the exact moment they occur.

The block is born (malloc), lives, dies (free). Along the time axis each error is a wrong touch:

before birth / on a failed birth → arrow at box #0 → null deref
during life, past the edge → buffer overflow
after death, touching → use-after-free
after death, freeing again → double free
arrow lost before death → memory leak

Recall Feynman: the whole walkthrough in plain words
