Dynamic memory — malloc, calloc, realloc, free: Worked examples

This page is the drill-ground for the parent topic. We march through every kind of case a heap-allocation problem can throw at you: normal sizes, the number zero, degenerate (empty) requests, allocation failure, growing, shrinking, integer overflow of the byte count, a word problem, and an exam trap. Nothing is left unshown.

You should already have met Pointers in C, the sizeof operator, and The Stack and the Heap. If a symbol here feels unfamiliar, that's the cue to revisit those.

The scenario matrix

Think of every heap call as a point on a grid. The two axes that matter are "how much am I asking for?" (the size you request) and "what is the allocator's answer?" (a real block, or NULL). Here is the full grid — every cell gets a worked example below.

Cell	Situation	What's tricky about it	Covered by
C1	Normal `malloc` of `n` objects, success	deriving byte count, garbage init	Example 1
C2	`calloc` for zeroed data	why zero matters, two-arg form, its own multiply overflow	Example 2
C3	`malloc(0)` — the zero-size request	may return `NULL` or a freeable non-`NULL`	Example 3
C4	Allocation failure (`NULL` returned) + byte-count overflow	must check; product can wrap	Example 4
C5	`realloc` to grow, block moves	old pointer invalid after, copy happens	Example 5
C6	`realloc` to shrink	data past new size is lost	Example 6
C7	`realloc(NULL, n)`, `realloc(p, 0)`, `realloc(NULL, 0)` — degenerate edges	behave like `malloc`/`free`/`malloc(0)`	Example 7
C8	Word problem: read unknown-length input	combine grow-loop + free	Example 8
C9	Exam twist: spot the bug	self-assign leak + overflow	Example 9

The sign/quadrant idea from geometry maps here onto sizes: positive-normal (C1, C2), zero (C3, C7), and the "answer is nothing" case (C4). Growing vs shrinking (C5, C6) are the two directions of change. A hidden fourth axis is whether the product n * sizeof(*p) itself overflows before malloc ever sees it (C4, C9): even a "small-looking" request can wrap to a tiny number and hand you a block that is dangerously undersized.

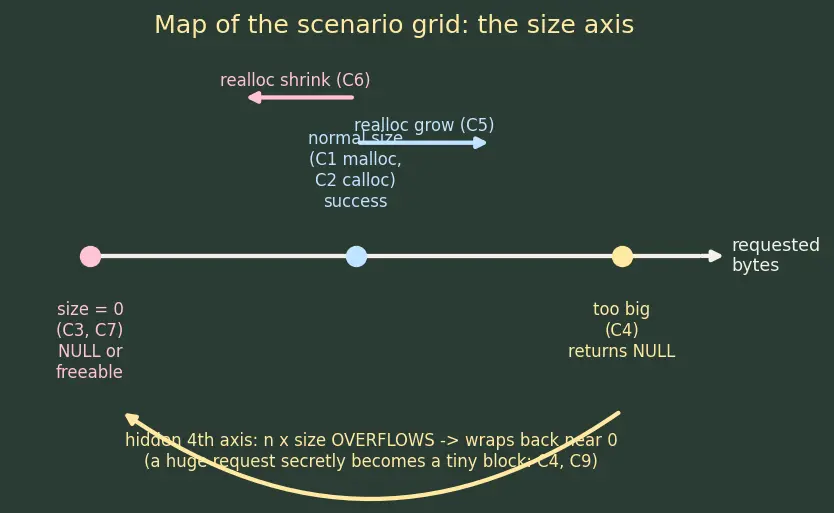

The picture below is a map of that whole grid, so read it carefully:

The horizontal line is the size axis — how many bytes you ask for grows as you move right. The left end is size 0, the middle is a normal request, the right end is "too big to satisfy."
The three coloured dots are the three answer-classes. The pink dot (far left) is the zero-size request (C3, C7) — the allocator may answer NULL or a freeable non-NULL. The blue dot (middle) is a normal success (C1 malloc, C2 calloc). The yellow dot (right) is a request so large the allocator gives up and returns NULL (C4).
The two arrows above the line are realloc: the blue arrow points right (grow, C5) and the pink arrow points left (shrink, C6) — realloc is literally movement along this size axis.
The small fold-under lane beneath the axis is the hidden fourth axis: it shows a large request n × size wrapping around back near zero. That is why a request that "should" land on the yellow dot can secretly land near the pink dot with a block far too small — the danger C4 and C9 warn about.

Figure — Dynamic memory — malloc, calloc, realloc, free

Worked example Example 1 — C1: normal

malloc, success Statement. Allocate room for n = 6 doubles, fill each slot i with i * 1.5, print slot 4, then clean up. Assume sizeof(double) == 8 bytes.

Forecast: How many bytes does the call reserve, and what is arr[4]? Guess before reading.

int n = 6;
double *arr = malloc(n * sizeof(*arr));   // Step 1
if (arr == NULL) return 1;                // Step 2
for (int i = 0; i < n; i++)               // Step 3
    arr[i] = i * 1.5;
printf("%f\n", arr[4]);                   // Step 4
free(arr);                                // Step 5
arr = NULL;

Compute the byte count. n * sizeof(*arr) = 6 * 8 = 48 bytes. Why this step? malloc counts in bytes, not objects. sizeof(*arr) asks "how big is one thing arr points to?" — here a double, so 8.
Check for NULL. Why this step? The heap can be full; touching a NULL pointer is undefined behavior.
Initialize. Why this step? malloc hands you garbage — reading before writing is undefined.
Read slot 4. arr[4] = 4 * 1.5 = 6.0.
free then null. Why this step? Otherwise a memory leak; nulling kills the dangling pointer.

Verify: bytes $= 6 \times 8 = 48$ . Value $= 4 \times 1.5 = 6.0$ . Units check: "objects × bytes/object = bytes." ✓

Worked example Example 2 — C2:

calloc for zeroed counters (and its own overflow) Statement. Count how many times each vowel-position appears; you need 5 counters (a e i o u) all starting at 0, then increment position 2 twice. What is c[2] and what were all counters before any increment?

Forecast: With malloc the starting values would be garbage. What does calloc guarantee — and does it protect its own multiply?

int *c = calloc(5, sizeof(*c));   // Step 1: reserve 5 zeroed ints
if (!c) return 1;                 // Step 2: check NULL
c[2]++;  c[2]++;                  // Step 3: two increments
free(c);

Step 1 — the two-argument call. calloc(5, sizeof(*c)) takes count = 5 and size = sizeof(*c) separately; it multiplies them together to get the total byte count for you, and writes zeros everywhere. Bytes reserved $= 5 \times sizeof(int) = 5 \times 4 = 20$ . Why this step? A frequency table must start at 0; calloc guarantees that, whereas malloc would give garbage.
Step 2 — check NULL. Why this step? Same as always: the heap can be exhausted, and touching NULL is undefined behavior.
Step 3 — increment twice. The starting value is a guaranteed 0, so after two ++ the value is 2.

A precision warning about calloc's multiply. It is tempting to think calloc(count, size) is guaranteed overflow-safe because it does the count * size multiply internally. It is not guaranteed by the C standard — whether calloc detects that count * size overflows a size_t is implementation-defined. Most real libcs (glibc, musl) do return NULL on overflow, but a conforming-but-minimal one need not. For portable code, validate the product yourself (count > SIZE_MAX / size) exactly as in Example 4 before calling.

Verify: every counter starts at $0$ ; c[2] = 0 + 1 + 1 = 2. Bytes reserved $= 5 \times 4 = 20$ (with 4-byte int). ✓

Worked example Example 3 — C3: the

zero-size request malloc(0) Statement. What does void *p = malloc(0); give you, and is free(p) legal?

Forecast: Is p always NULL? Can you dereference it?

What the standard says. malloc(0) may return either NULL or a unique non-NULL pointer that you must not dereference but may pass to free. Why this step? The result is implementation-defined — you cannot assume one branch.
Therefore the safe pattern: treat the return like any allocation — check it, never read/write through it, and always free it. Why this step? If it's non-NULL, skipping free leaks; if it's NULL, free(NULL) is a harmless no-op.

Verify (logical): free(NULL) is defined to do nothing, and any non-NULL result of malloc(0) is a valid argument to free. So free(malloc(0)); is safe in both allowed outcomes. ✓ (No number to plug — this is the degenerate cell.)

Worked example Example 4 — C4: allocation

failure and byte-count overflow Statement. You request an absurd amount, malloc returns NULL. But there is a subtler trap: the multiplication n * sizeof(*a) can itself wrap around before malloc ever sees it. Suppose the intended request is n = 1000000000 ints.

Forecast: If you skip the NULL check and write a[0] = 1, what happens? And what if n * 4 overflows the type it's computed in?

size_t n = 1000000000;                    // Step 0 — use size_t for sizes
if (n > SIZE_MAX / sizeof(int)) return 1; // Step 1 — overflow guard
int *a = malloc(n * sizeof(*a));          // Step 2 — may still fail
if (a == NULL) {                          // Step 3 — check
    fprintf(stderr, "out of memory\n");
    return 1;
}
a[0] = 1;                                 // reached only on success
free(a);

Use size_t, not long. Why this step? Object sizes and malloc's argument are size_t (defined in the callout at the top). On some platforms long is 32-bit, so long n = 1000000000L; n * sizeof(*a) would be computed in a 32-bit type and wrap to a tiny wrong value — malloc would then hand back a block far too small and a[i] writes corrupt the heap.
Guard the multiply. Why this step? n * sizeof(int) overflows exactly when n > SIZE_MAX / sizeof(int). Dividing SIZE_MAX by the element size tells you the largest n that cannot overflow; checking before multiplying is the only portable way to catch the wrap — you cannot detect it after it has already silently happened.
Attempt. Requested bytes $= 1 0^{9} \times 4 = 4 \times 1 0^{9}$ (~4 GB). May exceed the heap → malloc returns NULL.
Check. Why this step? This is the guard between you and a NULL dereference; skipping it makes a[0] = 1 write through NULL → undefined behavior.

Verify: intended bytes $= 1000000000 \times 4 = 4000000000$ . The overflow threshold on a 32-bit size_t (SIZE_MAX = 4294967295) is SIZE_MAX / 4 = 1073741823; since n = 1000000000 < 1073741823, the product 4000000000 fits in 32 bits here — but any n above that threshold would wrap, which the guard rejects. ✓

Worked example Example 5 — C5:

realloc to grow, block moves Statement. You hold 3 ints {7, 8, 9} in a block. Grow it to hold 6 ints. Show that old contents survive and the pointer may change.

Forecast: After growing, is v[1] still 8? Is v still the same address?

int *v = malloc(3 * sizeof(*v));       // Step 1
v[0]=7; v[1]=8; v[2]=9;
int *tmp = realloc(v, 6 * sizeof(*v)); // Step 2
if (!tmp) { free(v); return 1; }       // Step 3
v = tmp;                               // Step 4
// v[0..2] still 7,8,9 ; v[3..5] uninitialized
free(v);

Start at 3. bytes $= 3 \times 4 = 12$ .
realloc to 6. bytes $= 6 \times 4 = 24$ . The allocator either extends in place, or allocates a new 24-byte block, copies the 12 old bytes, and frees the old one. Why this step? realloc is the only call that grows while preserving the first min(old,new) bytes.
Use a tmp. Why this step? On failure realloc returns NULL but keeps the old block alive — assigning straight to v would lose the only pointer to it (a leak).
Commit. Old contents {7,8,9} are intact; slots 3–5 are garbage (uninitialized), so initialize before reading.

Verify: preserved region size $= min (12, 24) = 12$ bytes $= 3$ ints, so v[0]=7, v[1]=8, v[2]=9 still hold. New size $= 24$ bytes. ✓

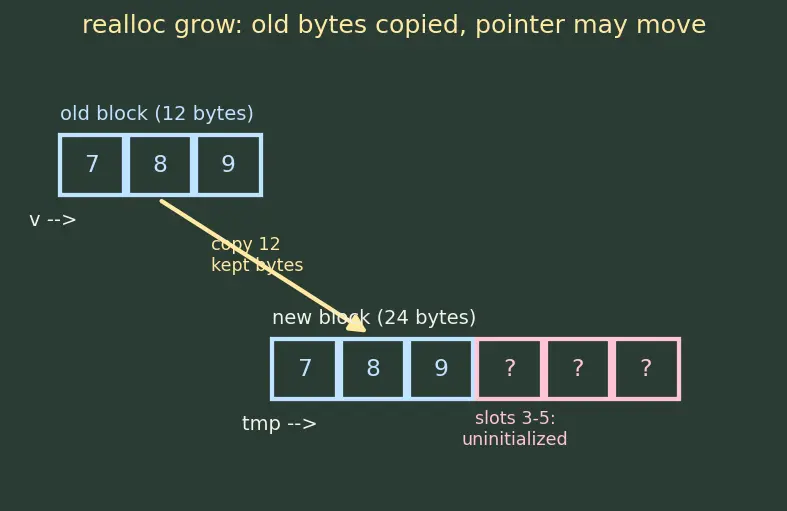

The figure below draws exactly this move: the blue block on top is the original 12 bytes holding 7 8 9; the yellow arrow shows those 12 bytes being copied down into the new 24-byte block; the three pink cells on the right are the fresh, uninitialized slots 3–5.

Worked example Example 6 — C6:

realloc to shrink Statement. Same block {7, 8, 9, 10, 11} (5 ints). Shrink it to hold only 2 ints. What survives, what is lost?

Forecast: After shrinking to 2, can you still read v[3]?

int *v = malloc(5 * sizeof(*v));
for (int i=0;i<5;i++) v[i]=7+i;         // {7,8,9,10,11}
int *tmp = realloc(v, 2 * sizeof(*v));  // shrink to 2 ints
if (tmp) v = tmp;                       // shrink rarely fails, but guard anyway
// valid slots now: v[0]=7, v[1]=8. v[2..4] are GONE.
free(v);

Shrink to 2. new bytes $= 2 \times 4 = 8$ . The allocator keeps the first min(old,new)=8 bytes. Why this step? Shrinking preserves only the leading part you kept room for.
What's lost. Reading v[3] after the shrink is now undefined behavior — those bytes are no longer yours.

Verify: preserved $= min (20, 8) = 8$ bytes $= 2$ ints → v[0]=7, v[1]=8. Indices $\geq 2$ are out of bounds of the 8-byte block. ✓

Worked example Example 7 — C7: the three

degenerate realloc edges Statement. Explain precisely what these do: realloc(NULL, 40), realloc(p, 0), and realloc(NULL, 0).

Forecast: Are these errors, or do they become other functions?

realloc(NULL, 40). The C standard states: "If ptr is a null pointer, the realloc function behaves like the malloc function for the specified size." So this is exactly malloc(40) — 40 fresh bytes. Why this step? It lets you write one grow-loop that works even on the very first (empty) allocation, because realloc(NULL, …) seeds it like a malloc.
realloc(p, 0) (non-NULL p). The standard makes the result deliberately loose: it either frees the old object and returns a null pointer, or returns a non-null pointer that you may not use to access the object (there is no object of size 0 to access) — you may only pass it to free. In C23 realloc(p, 0) is even declared to be undefined behaviour if you rely on it as a free. Practical rule: never use realloc(p, 0) as a way to free; call free(p) explicitly instead. Why this step? Because the return is not portably a usable pointer and not portably a free, mixing those meanings is exactly the trap — so we sidestep it.
realloc(NULL, 0) (both pointer NULL and size 0). By rule 1 (ptr is null → behaves like malloc) with a size of 0, this reduces to malloc(0) — it may return NULL or a unique non-NULL freeable pointer, and you handle it exactly like Example 3. Why this step? This is the intersection of both degenerate axes at once, so both edge rules apply together — never assume NULL.

Verify (logical): realloc(NULL, 40) ≡ malloc(40) → 40 bytes. realloc(p,0) returns either NULL or a pointer usable only for free; realloc(NULL,0) ≡ malloc(0), whose result is implementation-defined. So the portable rule "check the return, use free to free" holds for all three. ✓

Worked example Example 8 — C8:

word problem — read an unknown number of ints Statement. A file contains an unknown count of integers, one per line. Read them all into a dynamically grown array, then report the count and the sum. Suppose the file holds 10, 20, 30, 40, 50 (5 numbers).

Forecast: Starting capacity 2, how many doublings happen to fit 5 items, and what is the sum?

int cap = 2, len = 0, x;
int *v = malloc(cap * sizeof(*v));         // seed the buffer
long sum = 0;
while (scanf("%d", &x) == 1) {             // read until input ends
    if (len == cap) {                      // Step A: buffer full?
        cap *= 2;                          // Step B: double capacity
        int *tmp = realloc(v, cap * sizeof(*v));  // Step C: safe grow
        if (!tmp) { free(v); return 1; }
        v = tmp;
    }
    v[len++] = x;                          // Step D: store + advance len
    sum += x;
}
printf("count=%d sum=%ld\n", len, sum);
free(v);

Step A — Why check len == cap? len is how many ints you've stored; cap is how many you have room for. You only pay to grow when the used count catches up to the allocated count — never earlier.
Step B — Why double (not +1)? Geometric growth makes the total copying cost across all n inserts $O (n)$ amortized; adding 1 each time would recopy the whole array on every insert, giving $O (n^{2})$ .
Step C — Why the tmp + free(v) on failure? If realloc returns NULL the old block is still valid; committing only through tmp means a failure never orphans the old pointer (no leak), and on success v = tmp adopts the (possibly moved) block.
Step D — Why v[len++] = x? Store into the next free slot, then advance len so the next insert lands one further along. sum += x tallies as we go.

Capacity trace (WHAT IT LOOKS LIKE): insert item 1 → len 1 ≤ cap 2; item 2 → len 2 == cap 2 full. Item 3 arrives → double to cap 4, store. Item 4 → len 4 == cap 4 full → next... item 5 arrives → double to cap 8, store. So capacity went 2 → 4 → 8: two doublings, final cap = 8 ≥ 5.

Verify: doublings from cap 2 to hold 5 items: $2 \to 4 \to 8$ = 2 doublings; final cap = 8 \ge 5. count = len = 5. sum = 10+20+30+40+50 = 150. ✓

Worked example Example 9 — C9:

exam twist — find the bug Statement. This code aims to grow v and never leak. Two bugs hide here. Find them and give the corrected byte count for n = 100 ints.

// BUGGY
int *v = malloc(4);               // (a) only 4 bytes — one int, not many
v = realloc(v, 100 * sizeof(*v)); // (b) self-assign realloc

Forecast: Which line leaks on failure, and how big should the request be?

Bug (a): hard-coded, wrong initial size. malloc(4) reserves 4 bytes = room for one int, not the intended many. Byte counts must be derived: malloc(n * sizeof(*v)). And if n comes from input, guard n > SIZE_MAX / sizeof(*v) first (Example 4) so the multiply can't wrap. Why this step? Deriving the count keeps the line correct if the type changes, and the guard kills the hidden fourth-axis overflow.
Bug (b): self-assign leak. v = realloc(v, …) overwrites v even when realloc returns NULL, orphaning the old block → leak. Fix with a tmp:
```
int *tmp = realloc(v, 100 * sizeof(*v));
if (!tmp) { free(v); return 1; }
v = tmp;
```
Why this step? On failure the old block is still valid; keeping its address in v (via tmp) means you can still free(v).
Correct byte count. For 100 ints: $100 \times 4 = 400$ bytes. Why this step? This is the value the corrected malloc/realloc should request.

Verify: intended bytes $= 100 \times 4 = 400$ . The self-assign version leaks exactly the old block whenever realloc fails; the tmp pattern keeps that block reachable so free(v) still works. ✓

Active Recall

Recall (C3) What are the two legal outcomes of

malloc(0)? Either NULL, or a unique non-NULL pointer you must not dereference but may free. Always free the result.

Recall (C2/C4) What is

SIZE_MAX, and how do you guard count * size against overflow? SIZE_MAX is the largest value a size_t can hold. Guard with if (count > SIZE_MAX / size) ... before multiplying — the wrap cannot be detected after it happens. calloc's own overflow check is only implementation-defined, not guaranteed.

Recall (C4) What is the value of a pointer after

malloc fails, and why compute sizes in size_t? After failure the pointer is exactly NULL (integer 0) — always check first. Use size_t (not long) so n * sizeof(*p) is computed in the same width malloc expects and cannot silently wrap on 32-bit long platforms.

Recall (C5 vs C6) After

realloc, how many bytes of old data are guaranteed intact? min(old_size, new_size) bytes. Growing keeps everything; shrinking keeps only the leading kept region.

Recall (C7) What do

realloc(NULL, n) and realloc(NULL, 0) do? realloc(NULL, n) behaves like malloc(n) — a fresh allocation. realloc(NULL, 0) reduces to malloc(0) — may return NULL or a freeable non-NULL pointer.

Recall (C8) Starting at capacity 2 and doubling, how many doublings to fit 5 items?

Two: 2 → 4 → 8.
